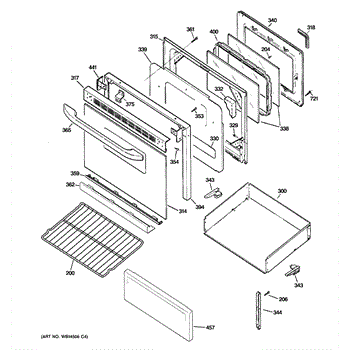

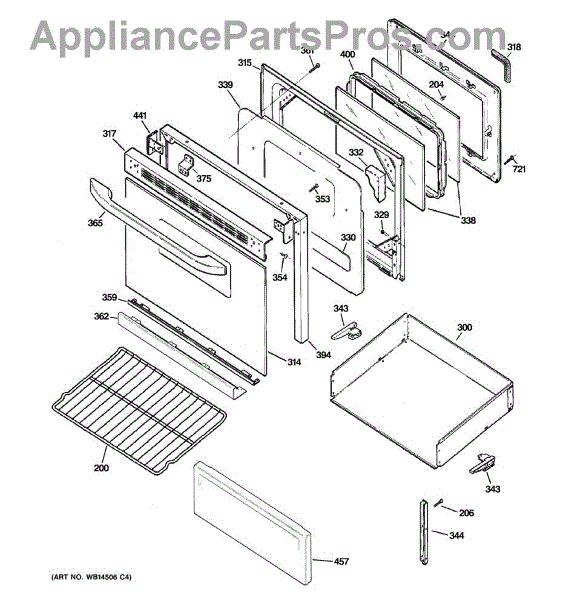

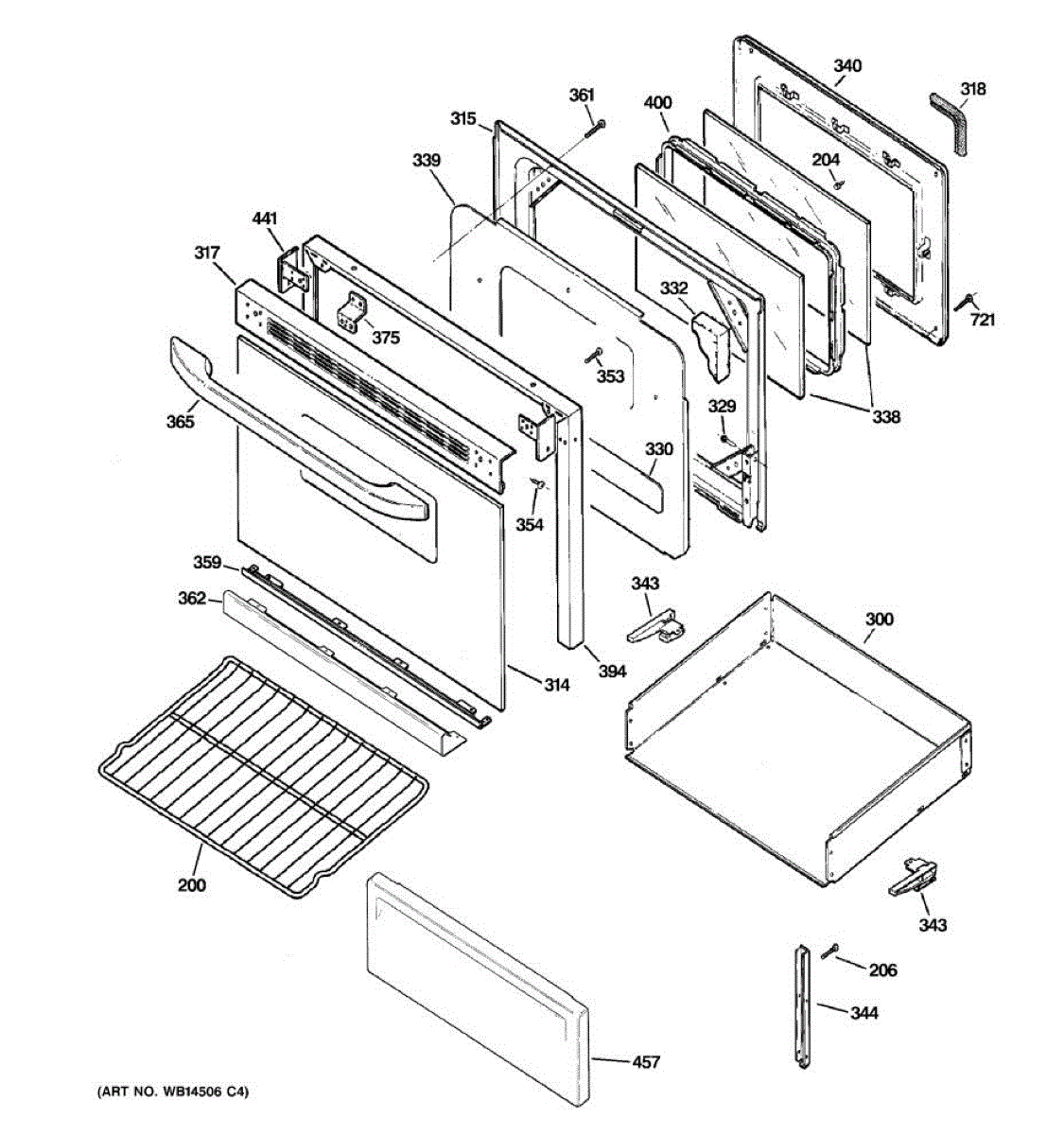

Parts for Hot Point RB787DP2BB: 03 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

Outer door glass for oven. Color: white. Glass has clear window.

Color: Black

This Door Gasket Assembly seals the gap between the appliance door and front frame to contain heat and steam during operation. Replacing a worn gasket restores a snug seal for reliable performance and fewer leaks around the door.

• Creates a tight perimeter seal between the door and cabinet/front frame
• Helps maintain internal temperature and overall cooking efficiency
• Reduces noticeable heat or steam escaping around the door area
• Replace if the gasket is torn, frayed, hardened, flattened, or if the door no longer seals evenly

• Disconnect power at the breaker or unplug the appliance; allow it to cool completely
• Wear cut-resistant gloves; sharp edges may be present around the door and frame
• Remove the old gasket and clean the channel or seating surface
• Install the new gasket evenly without stretching; ensure corners are fully seated and check for uniform contact around the door

Includes 12 screws.

Replace a cracked, shattered, or heat-damaged inner oven door pane with this heat-resistant glass. It restores proper insulation and visibility, helping your oven maintain temperature and protecting the door assembly from spills and high heat.

• Replaces the interior pane within the oven door assembly
• Helps retain heat for consistent cooking performance
• Shields the door liner and insulation from spills and steam
• Common signs it's needed: cracked/shattered inner glass, missing or loose pane, heat escaping, or the door exterior feeling hotter than usual

• Disconnect power or turn off gas and allow the oven to cool completely
• Remove the door per your model's instructions and place it on a padded surface
• Wear gloves; handle glass by the edges and avoid overtightening retainers
• Transfer any brackets, trim, or gasket from the original pane if your model uses them; before reassembly

This right-side drawer glide supports and guides the lower drawer on your range so it opens and closes smoothly. Replace a worn or broken glide to restore easy operation and keep the drawer aligned. What it does:

• Mounts to the cabinet frame on the right-hand side to guide the lower drawer
• Provides a smooth sliding surface for the drawer rail
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to open/close, rubs or binds, sags, or comes off track

• 1 right-hand drawer glide

• Disconnect power and let the appliance cool; for gas ranges, also shut off gas supply
• Remove the lower drawer to access the side glides
• Note right-side orientation; release or unfasten the old glide and install the new one in the same position
• Reinstall the drawer and check for smooth, level travel

Left side

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This part has been discontinued and is no longer available.

The Bottom Door Trim (BLK) is an OEM part for GE ranges. This black trim piece is located at the bottom of the oven door, providing a finished look while also protecting the door's edge from damage and wear.

Causes of a bad bottom door trim can include repeated exposure to high temperatures, accidental impacts, or regular wear and tear from frequent use.

Symptoms of a bad bottom door trim include:

• Visible cracks or breaks in the trim
• The trim becoming loose or detaching from the door
• Sharp edges or warping
• Difficulty in opening or closing the oven door properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bottom Door Trim is an OEM part for GE ranges. It serves as a finishing touch, providing a seamless transition between the bottom of the oven door and the base or kick plate area.

Causes of a damaged Bottom Door Trim range from impacts during cleaning or moving the range, to general wear and tear over years of use. Exposure to high heat or spills can also contribute to the deterioration of the trim.

Symptoms of a bad Bottom Door Trim can include:

• Cracked or broken trim pieces
• Missing sections of trim
• Loose or misaligned trim
• Faded or discolored trim material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models

This White Door Handle is an OEM replacement part for GE ranges. Located on the oven door, this handle provides a means of safely accessing the cooking cavities. As contact points, this durable handle allows withstanding high-heat openings and closings.

Causes can be normal wear and tear over many heating cycles, repeated heavy impacts from storage items, or long-term UV exposure breaking down surface finishes.

Symptoms of a bad door handle may include:

• Breaks, cracks, or splits appearing in the plastic or coating
• Discoloration, fading, or peeling removing their clean look
• Wobble, looseness, or difficulty opening/closing the door due to wear

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Door Handle is an OEM part for GE ranges. It is the ergonomic component located externally on oven doors that allows for safe, comfortable opening and closing during cooking cycles. The handle is black in color and measures about 30 and 1/4 inches.

Symptoms of a bad range door handle can include:

• Looseness, wobbling, or detachment from the door assembly
• Cracked or broken plastic rendering the handle unusable
• Peeling, cracking, or discoloration of surface finishes from heat
• Difficulty grasping the handle to access oven cavities

Expected causes are repeated heat exposure and grasping stresses over time that degrade mounting points and coating integrity.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This right-side door end cap provides a finished edge and secure mounting point for the outer oven/stove door trim, restoring fit and appearance. Use it to replace a cracked, loose, or missing end cap and reduce rattling or gaps. What it does:

• Covers and protects the outer door edge while anchoring the trim for a proper door fit
• Restores the door's finished appearance when the original cap is cracked, broken, or faded
• Helps eliminate noise or vibration caused by a loose or damaged end cap
• Maintains alignment so the door trim and handle sit correctly

• Designed to install on the outer door edge; confirm right-side orientation before starting
• Remove door trim screws or clips as required; keep hardware separate and reuse if intact
• Use basic hand tools; avoid force that can damage surrounding trim or finish
• Disconnect power to the appliance and allow surfaces to cool before beginning work

This drum end cap supports the dryer drum and helps keep it aligned for smooth rotation. Replacing a worn or damaged end cap restores drum positioning to reduce rubbing, noise and uneven wear. What it does:

• Supports and locates the drum at the cabinet end to maintain proper alignment
• Helps the drum rotate smoothly and reduces rubbing or scraping sounds
• Prevents excess wear on the drum edge and adjacent supports
• Common symptom: noisy or wobbling drum that may rub against the cabinet

• One drum end cap

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer front or cabinet panels; keep track of fasteners
• Inspect adjacent parts (glides, rollers, bearings or seals) and replace if worn
• Test the dryer on a short cycle after reassembly to ensure smooth drum rotation

This replacement drawer panel restores the finished front appearance of the appliance drawer and covers the drawer opening for a clean, like-new look. It's a direct-fit cosmetic panel made to match the appliance's original finish. What it does

• Replaces a cracked, dented, scratched, or faded drawer front to restore appearance
• Covers and protects the drawer opening from dust and debris
• Provides the correct mounting surface for existing trim, handles, and clips
• Helps maintain consistent appearance across the appliance front

• High-level replacement; remove drawer assembly to access mounting screws or clips
• Keep small fasteners and mounting clips; verify orientation before tightening
• Use hand tools and avoid over-tightening to prevent panel damage
• Follow safety procedures and disconnect power if instructed by the manufacturer

This white drawer panel is the exterior front of the appliance's drawer. Replace a dented, cracked, or discolored panel to restore a clean look and ensure proper alignment, secure handle mounting, and smooth opening and closing. What it does:

• Forms the visible drawer front and mounting surface for the handle or badge
• Helps the drawer sit flush and operate smoothly when correctly aligned
• Replaces panels that are dented, scuffed, cracked, or rusted
• Can address a loose handle, misaligned drawer front, or scraping when closing

• One white drawer front panel

• Disconnect power and allow the appliance to cool; shut off gas before servicing
• Remove the drawer to access fasteners; retain all screws and hardware
• Transfer the handle/trim from the old panel, align the new panel, and secure fasteners without overtightening
• Wear cut-resistant gloves and use caution around sharp metal edges

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
