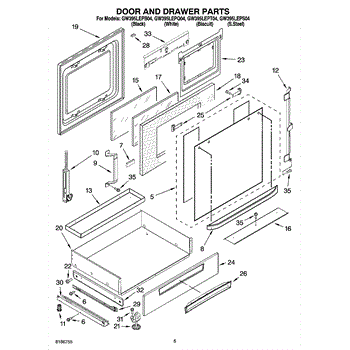

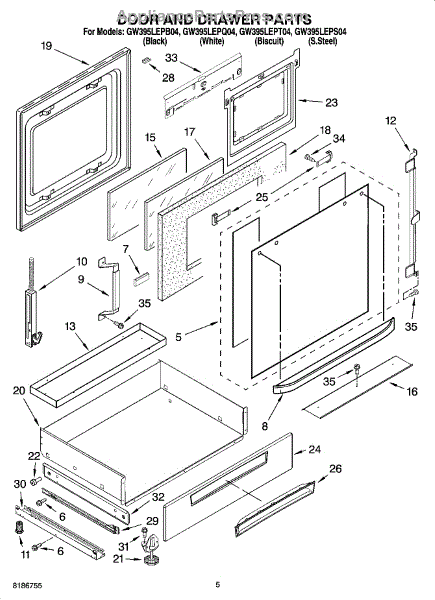

Parts for Whirlpool GW395LEPS04: 04 - Door And Drawer Parts

Color: White

This oven door glass assembly replaces a damaged or shattered viewing panel so the door seals and insulates properly while letting you monitor cooking. Restores clarity and helps maintain temperature when the original glass is compromised.

• Forms the viewing window and part of the oven door's thermal barrier
• Replace if the panel is cracked, shattered, missing, or heavily scratched
• Helps reduce heat loss through the door after glass damage
• Restores a clear view into the oven cavity

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door per your model's instructions and place it face-down on a padded surface
• Handle glass carefully and wear cut-resistant gloves and eye protection
• Transfer any reusable trim or brackets from the old panel; tighten fasteners evenly without overtightening

The Outer Door Glass is an OEM part for Whirlpool ranges. This part forms the exterior surface of the oven door, providing a clear view of the interior while insulating the outer surface from high temperatures.

Causes of a bad outer door glass can include accidental impacts, exposure to extreme temperature changes, or general wear and tear.

Symptoms of a bad outer door glass include:

• Visible cracks or shattering
• Clouding or discoloration that obstructs the view
• Heat escaping from the oven door
• Loose or unstable glass panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This left-hand oven door hinge assembly restores smooth, spring-assisted door movement and a tight seal. Replacing a worn or bent hinge helps the door close properly, reducing heat loss and improving cooking performance and safety.

• Supports and pivots the door; spring mechanism controls opening/closing tension
• Helps the door close fully and compress the gasket for a proper seal
• Corrects sagging, misalignment, or popping doors caused by hinge wear
• Common symptoms: door won't close or stay shut, drops open, uneven gaps, heat escaping, oven light stays on

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door per your model's instructions; support the door and release hinge locks before lifting off
• Left-hand specific: install on the left side when facing the appliance
• Hinge springs are under tension—use caution, and wear gloves and eye protection

This right-hand oven door hinge assembly supports and counterbalances the door so it opens smoothly and closes firmly against the gasket. Replacing a worn hinge restores proper alignment and heat retention for consistent cooking performance.

• Provides the pivot point and spring tension for the oven door
• Helps the door open smoothly and close completely for a tight seal
• Wear or damage can cause sagging, misalignment, or slamming/falling open
• Heat loss from a poor seal may lead to long preheat or temperature fluctuations

• Disconnect power and allow the oven to cool completely before servicing
• The hinge is spring-loaded—support the door and use care to avoid injury
• Remove the door per your model's instructions, then replace the right-side hinge
• After installation, adjust per service guidance if needed

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This inner oven door glass mounts on the inside of the door to help seal in heat while letting you view cooking progress. Replace damaged glass to restore safe viewing, proper insulation, and consistent oven performance.

• Forms the inner pane of the oven door window and acts as a thermal barrier
• Helps the oven reach and maintain set temperature by limiting heat loss through the door
• Provides visibility into the oven cavity during cooking
• Replace if the glass is cracked, shattered, missing, or heat is escaping from the door

• Disconnect power and allow the oven to cool completely; if applicable, shut off gas
• Remove the door and place it on a protected, flat surface before disassembly
• Wear cut-resistant gloves and eye protection; handle glass carefully and support the edges
• Reuse existing brackets, seals, and screws; note orientation during reassembly

This inner oven door glass panel restores the heat-resistant barrier between the oven cavity and the door. Replacing damaged glass helps the oven hold temperature, improves safety, and keeps the viewing window clear and easy to clean.

• Forms the interior heat barrier of the door window to contain heat inside the oven
• Lets you monitor cooking without opening the door
• Supports stable temperatures and consistent baking performance
• Common symptoms: visible cracks, chips, or shattered glass; rattling pieces in the door; missing or visibly damaged inner pane

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove the door per your model's instructions and place it face-down on a padded, protected surface
• Wear cut-resistant gloves and eye protection; handle glass carefully and avoid stressing the edges
• Reassemble in the original order, ensuring brackets/seals are seated correctly; tighten fasteners snugly without overtightening

The Door Insulation is an OEM part for Whirlpool ranges and wall ovens. This part provides thermal insulation for the oven door, helping to maintain the internal temperature and improve energy efficiency. It also protects the exterior surfaces of the oven door from becoming excessively hot during operation.

Causes of bad door insulation can include general wear and tear over time, degradation from repeated exposure to high temperatures, or physical damage.

Symptoms of bad door insulation include:

• Oven taking longer to heat up
• Heat escaping from the oven door
• Outer door surfaces becoming too hot to touch
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the 30-inch door panel for select ovens/ranges. It restores the door's appearance and provides the structural skin that supports the handle, glass, and trim for a solid, properly aligned door assembly. What it does:

• Forms the primary outer skin of the door assembly and supports handle/trim
• Provides a mounting surface for door glass and nameplate/emblems
• Helps maintain proper door alignment and a tight, rattle-free fit
• Common reasons to replace: dents, bends, scratches, discoloration, or stripped mounting holes

• 1 door panel

• Disconnect power and allow the appliance to cool completely before servicing
• Remove the door assembly and place it on a protected surface; wear cut-resistant gloves
• Transfer handle, screws, glass, and trim from the old panel to the new one; note screw lengths/locations
• Align carefully and avoid overtightening to prevent damaging threads or cracking glass

This front leveling leg adjusts the height at the front of your appliance to keep it level and steady. Replacing a worn or missing foot helps eliminate rocking, protect floors, and make fine leveling adjustments simple.

• Threads into the base at the front corner to raise or lower the unit for accurate leveling
• Stabilizes the appliance to minimize rocking and vibration when opening the door or using the cooktop
• Restores proper adjustment when the original foot is stripped, bent, or missing
• Common signs include a wobbling appliance, difficulty leveling, or metal-to-floor contact/scuffing

• Disconnect power; turn off the gas supply
• Protect the floor and use an assistant to carefully slide and tip the appliance
• Start the new leg by hand to avoid cross-threading; finish adjustment with a wrench
• Level front-to-back and side-to-side, then verify stability before restoring service

Drawer support roller kit. Installation instructions included.

Color: Black

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned
