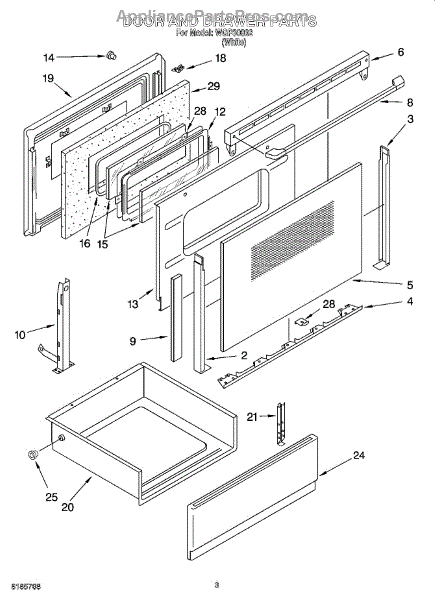

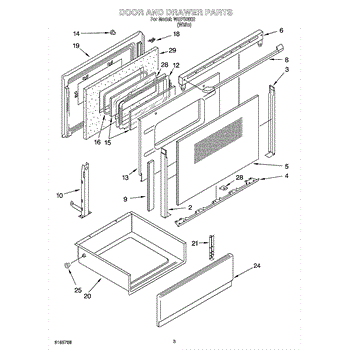

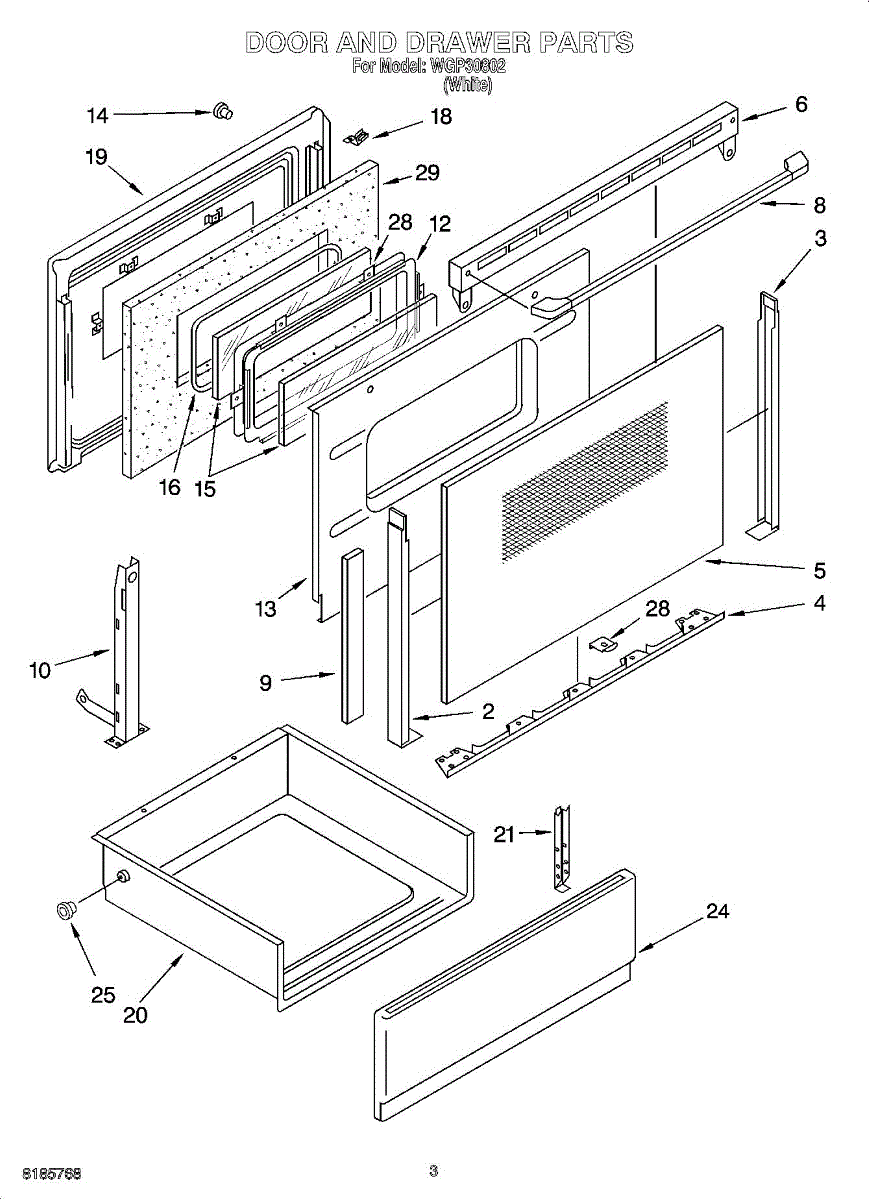

Parts for Whirlpool WGP30802: 03 - Door And Drawer Parts

Color: White. This is the left side door trim. For right side use 9782004PW.

Color: White. This is the right side door trim. For left side use 9782003PW.

Color: White.

Size: 10-16 x 3/8 inch.

Color: White. Other colors: For biscuit use 9753498GC, for black use 9753498GB, for almond use 9753498GT.

Size: 10-16 x 3/8 inch.

Size: 10-16 x 3/8 inch.

This oven door hinge will work for either the left or right side of an oven door. The hinges on the door are responsible for ensuring that the door can open and close properly. If one or both of the hinges are not working correctly, the door may become difficult to open and close or may not stay on the oven. If this happens, the hinges should be replaced before using the oven.Made of durable metal, the oven door hinges should last a long time. However, they can become damaged and may need to be replaced. If there is too much pressure placed on the door or hinges, it could cause them to break. Owners may want to replace both of the hinges at the same time. Be sure that the oven is off and cooled before replacing this part.The oven door hinges are for use with certain ovens from KitchenAid, Whirlpool, Inglis, and Kenmore. The hinges are genuine OEM replacement parts sourced from the manufacturer. Each hinge is sold individually. Owners that need to replace both hinges should buy two.

Rubber bumper. Color: Grey.

This pyrolytic coated oven door glass panel replaces a damaged or worn oven door glass to restore safe viewing and thermal performance. The coated surface helps resist soils during self-clean cycles and maintains a clear view into the oven. What it does:

• Replaces cracked, chipped, or broken oven door glass to restore safe operation and a clear viewing window
• Provides a high-temperature, pyrolytic-coated surface designed for self-cleaning cycles
• Helps retain oven heat and support proper door sealing when installed correctly
• Reduces visible soiling buildup and makes cleanup easier after high-heat cleaning cycles

• Disconnect electrical power (and gas if applicable) before servicing the oven.
• Allow the oven and glass to cool completely; wear cut-resistant gloves and eye protection when handling glass.
• Replacements often require removing the oven door and following manufacturer instructions; keep track of screws, clips, and seal placement.
• Replace only as directed by the OEM diagram.

Size: 10-16 x 3/8 inch.

Size: 10-16 x 1/2 inch.

The Push Clip is an OEM replacement part for Whirlpool dryers. Situated internally near the rear cylinder wall, it firmly secures the drum support roller assembly.

Causes of failure relate to fatigue from years of absorbing drum impacts and associated mechanical stresses. Corrosion penetration if moisture enters the clip mounting area increases operational resistance over time as well.

Symptoms consist of:

• Uneven drying and weakened tumbling action inside the cylinder
• Vibration or noise emerging from the rear roller area
• Premature wear signals stemming from dislocated roller assembly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Color: White. Other colors: For black use 9782108PB, for biscuit use 9782108PC, for almond use 9782108PT, for stainless steel use 9782109PB.

Drawer support roller kit. Installation instructions included.

Size: 10-16 x 3/8 inch.
