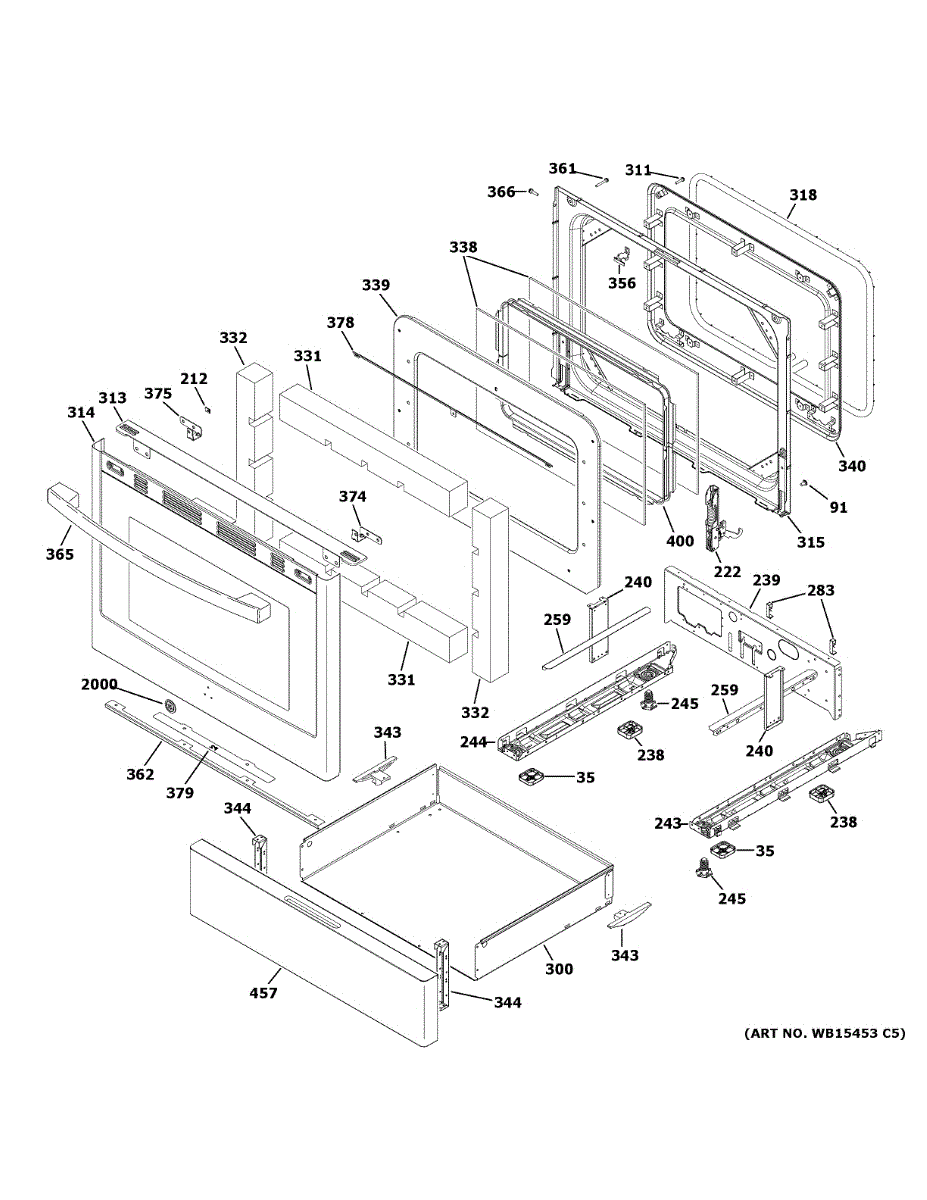

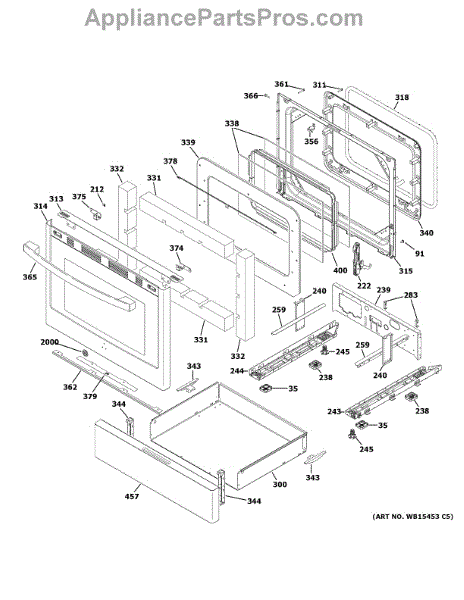

Parts for Ge JGB720FEJ2DS: Door Drawer Parts

Base spacer for gas ranges. Installs at the bottom of the range to provide proper spacing and support. Replace if cracked, broken, or missing.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.

Replaces a broken, sprung, or damaged oven door hinge. Restores smooth opening and closing, prevents sagging doors that won't align or seal properly.

Positions and supports internal components to maintain proper alignment and clearance. Replace if cracked, broken, or missing to restore stability.

Support base for electric and gas ranges. Installs at the bottom to provide structural stability. Replace if cracked, broken, or damaged over time.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement leveling leg for ranges. Installs at base corners to stabilize and level your range on uneven floors. Needed when leg is broken or missing.

Drawer slide rail for electric and gas ranges. Mounts to the drawer box to enable smooth gliding. Replace if bent, broken, or worn for proper operation.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Metal pan that forms your range's lower drawer assembly. Replace if bent, rusted, or damaged to restore proper alignment and smooth sliding on tracks.

Protective bumper that cushions the burner grate and prevents scratching or denting the cooktop surface. Replace if cracked, worn, or missing.

Vent cover trim for gas ranges. Replaces cracked, broken, or discolored trim pieces around the vent area. Restores the finished appearance of your range.

Glass door assembly for gas range ovens. Includes inner and outer glass panels. Replace if cracked, shattered, or discolored from heat exposure.

Secures and reinforces your range oven door structure to maintain proper alignment and seal. Replace if door is misaligned or won't close properly.

Replace your oven door gasket when frayed, hardened, or heat leaks around the door. Forms an airtight seal to maintain cooking temperatures. Verify fit by model.

Thermal insulation strip that attaches to the bottom of your range oven door. Replace if torn, compressed, missing, or no longer sealing properly.

Side door insulation panel for electric and gas ranges. Replaces worn, damaged, or missing insulation to restore proper heat retention and sound dampening.

Inner glass window for range oven doors. Mounts inside the door frame to provide visibility while cooking. Replace when cracked, broken, or shattered.

Replacement drawer glide for range bottom drawer. Needed when glide is broken, cracked, or snapped, causing drawer to fall, scrape floor, or not slide.

Secures and supports your range drawer to prevent sagging and ensure smooth operation. Replace when drawer misaligns or wobbles. Confirm fit with your model.

This 10-24 machine screw secures panels and components on compatible appliances, restoring proper fit and preventing rattles or loose parts. Small, service-grade fastener for repeatable repairs and safe operation. What it does:

• Fastens control panels, trim pieces, brackets, or assemblies that use a 10-24 threaded screw
• Restores secure mounting when a screw is missing, stripped, or damaged
• Helps stop panel rattling, misalignment, or intermittent contact caused by loose parts
• Compatible with repair or replacement tasks requiring the standard 10-24 thread size

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct driver or socket to avoid stripping the head; do not overtighten
• Replace only like-for-like 10-24 fasteners to maintain proper fit and thread engagement
• If threads in the receiving part are damaged, repair or replace the mating component rather than relying on a longer or different screw

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This bracket handle secures the appliance handle to the door or panel, restoring a firm, stable grip and preventing the handle from wobbling or detaching. Ideal when the handle feels loose or the mounting area is damaged. What it does:

• Provides a secure mounting point for the exterior handle
• Restores proper alignment and reduces handle wobble
• Prevents the handle from pulling away or falling off during use
• Works with the existing screws and handle hardware to reattach the handle

• High-level replacement—remove the door/panel or access trim per your model's service instructions
• Use the original screws or OEM-replacement fasteners to secure the bracket
• Disconnect power (or gas for ranges) and follow safety steps before accessing internal parts
• If fasteners or the handle itself are damaged, replace those components as well

This handle bracket secures a range or oven door handle to the door assembly, restoring a stable, usable handle and preventing wobble or detachment. Ideal when the handle feels loose or the bracket is broken. What it does:

• Provides a rigid mounting point for the door handle so the handle stays securely attached.
• Stops handle wobble, looseness, or movement when opening and closing the door.
• Replaces cracked, bent, or missing brackets that prevent proper handle function.
• Helps restore safe, reliable grip and normal door operation.

• One handle bracket

• Turn off power to the appliance and allow surfaces to cool before starting.
• Basic hand tools are typically required; follow the appliance manufacturer's service instructions.
• Handle removal and reattachment may require accessing inner door trim—retain screws and small parts.

Deflector plate that installs on the oven door of your gas range. Replace if cracked, damaged, or missing to restore proper door assembly and appearance.

Bottom door deflector for gas ranges. Replaces cracked, broken, or missing deflector panels that install on the lower oven door assembly.

Positions and supports oven door glass to maintain proper alignment. Replace if worn, cracked, or missing to prevent glass rattling and gaps.

Replace your range's badge assembly if the original is cracked, broken, or missing. This decorative nameplate installs on the control panel area.
