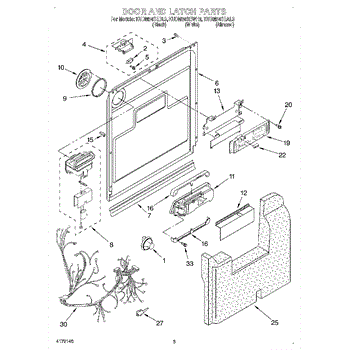

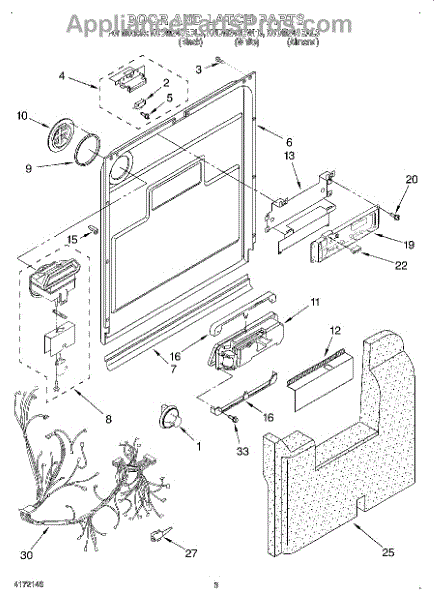

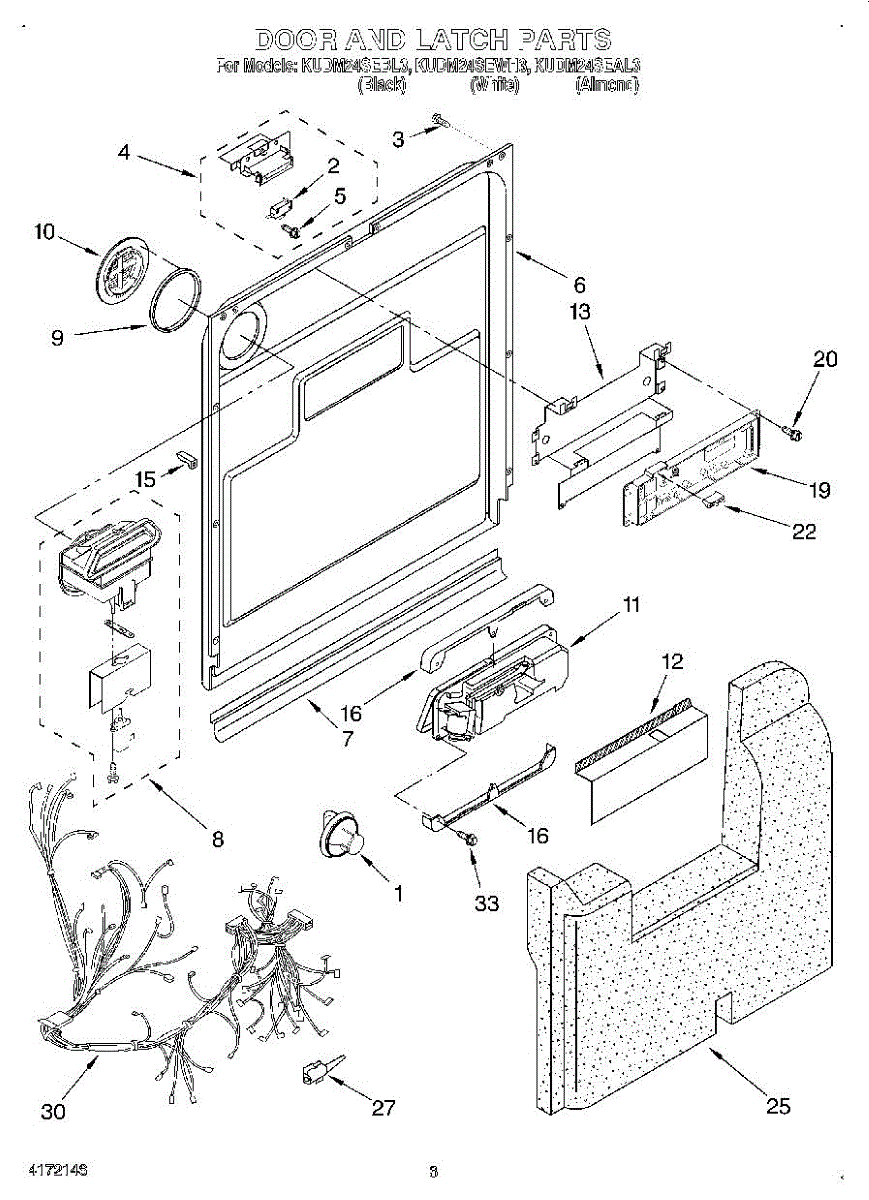

Parts for Kitchenaid KUDM24SEBL3: 03 - Door And Latch Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The Latch Switch Kit, an OEM Replacement Part is designed to ensure the safe operation of your Whirlpool dishwasher. The kit includes two microswitches and a wiring harness. It prevents the appliance from running when the door is open. If defective, the door switch may prevent the dishwasher from operating even when the door is closed.

Causes of a bad door switch can include wear and tear, exposure to moisture, or a broken actuator.

Symptoms of a bad door switch include:

• Dishwasher not starting
• Dishwasher stopping mid-cycle
• Error codes related to door issues
• Dishwasher running with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fixes loose panels, rattling doors, or wobbly components caused by stripped or missing screws. Secures brackets, covers, and mounting hardware. Easy DIY.

The door latch assembly is the mechanism that catches and holds the appliance door firmly shut during operation, preventing it from swinging open mid-cycle. On ovens, it also engages during self-clean cycles to lock the door securely at high temperatures. Replace this assembly when the door won't stay closed, the latch feels loose or broken, or the oven won't begin or complete a self-clean cycle.

Prevents leaks at the bottom of your dishwasher door. Replace if you see water pooling or rotted rubber. Includes main seal and corner pieces.

Motor included.

Rubber gasket ring.

Soap dispenser door won't latch or detergent stays in compartment? This dishwasher dispenser assembly releases detergent at the right time. Moderate DIY.

Electronic control assembly. Fuse not included. To order fuse use 675796.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

Includes wiring harness.

This part has been discontinued and is no longer available.

Wire harness elbow connector for dishwashers. Replaces damaged, cracked, or broken electrical connectors that route power between components.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Optional accessory. Color: White.

Optional accessory. Color: Black.

Color: White.

Black frameless outer door kit for dishwashers. Replaces cracked, chipped, or faded exterior door panels. Installs on front of dishwasher door.

Color: Almond.

Color: Almond.

Secures your dishwasher to the floor by attaching to the metal base flange. Replace if bracket is bent, broken, or missing from your installation.

Black side panel kit for dishwashers. Covers exposed sides for a finished look. Replace cracked, scratched, or missing panels during installation.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Power Cord Kit is an OEM replacement part for Whirlpool dishwashers. It is a 3-prong grounded, 16-gauge cord that includes all the hardware needed for installation. Includes all hardware needed for installation.

Causes of a bad power cord can include normal wear and tear over years of use, accidental impacts or cuts to the wiring, or improper installation that damages components.

Symptoms of a bad power cord include:

• The dishwasher not turning on or completing cycles
• Warm or hot power cords during operation
• Frayed, cracked, or exposed copper wiring

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
