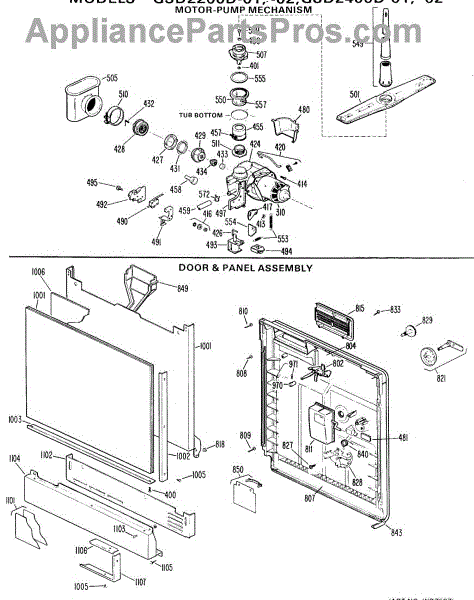

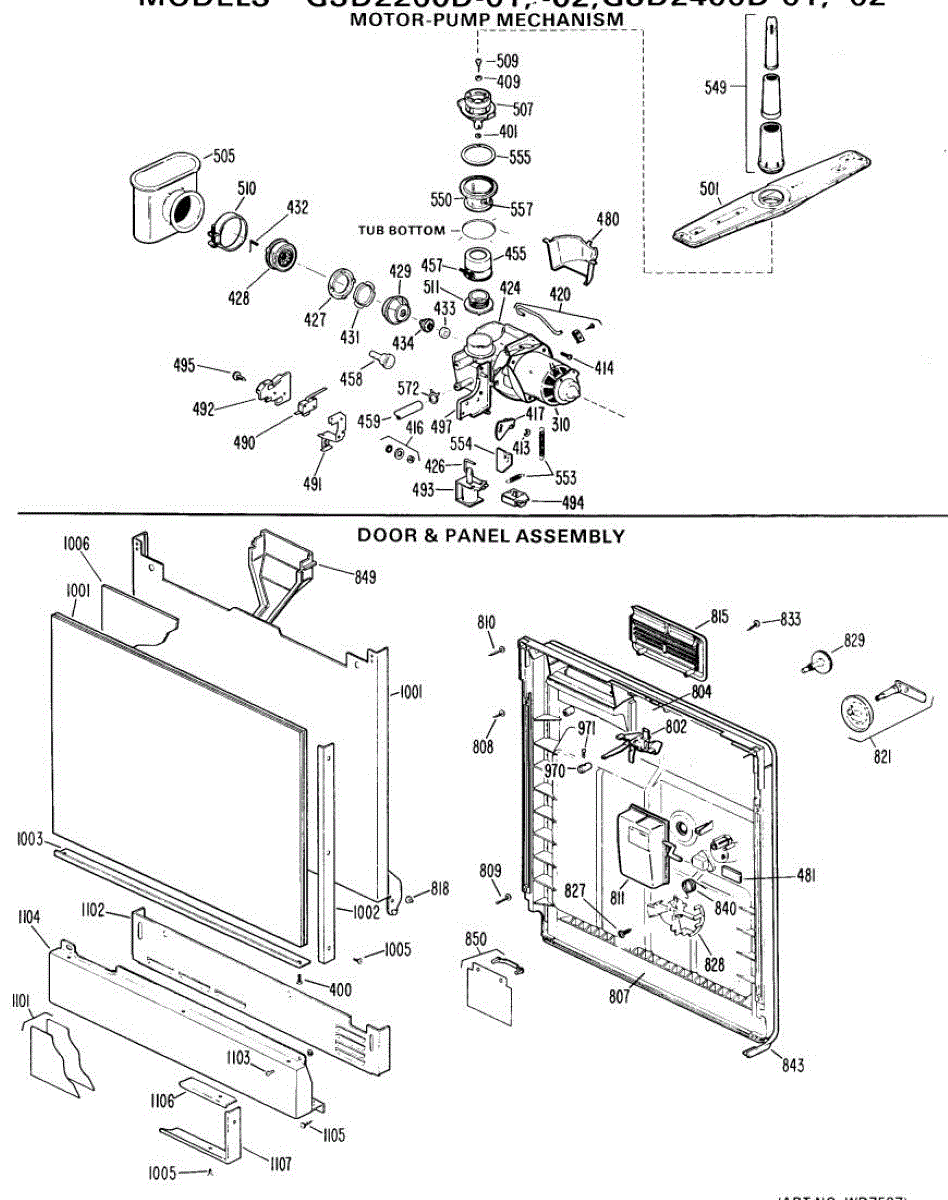

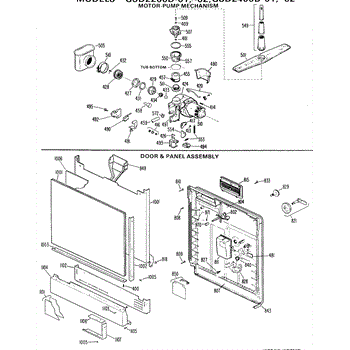

Parts for Ge GSD2400D-01: 02 - Door & Panel Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Dishwasher not draining or leaving water in the bottom? This pump and motor assembly circulates and drains water. 2-hour DIY repair with video guide.

Replacement mounting screw for securing panels, brackets, and components inside your appliance. Needed when original screws are stripped or missing.

C-clip retainers secure components in your dishwasher or range. Replace when clips are loose, broken, or missing to prevent rattling and parts shifting. Verify fit with your model number.

The Dishwasher Shaft Seal is an OEM part for GE dishwashers. This seal is located around the motor shaft and prevents water from leaking out of the dishwasher tub where the motor shaft enters.Seal for pump drain valve shaft. Instruction sheet included. Push-on nut may have to be cut off, order WR2X7054.

Over time, regular use can cause the seal to deteriorate, or debris and mineral deposits can lead to damage. A compromised shaft seal can result in water leaks, potentially causing damage to your kitchen floor and dishwasher components.

Symptoms of a bad dishwasher shaft seal include:

• Water leaking from the bottom of the dishwasher
• Puddles or water damage around the dishwasher area
• Unusual noises coming from the motor area due to water infiltration
• Visible wear or cracks on the seal

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This kit fits both D style and T style shafts.

Fix a dishwasher that won't drain or keeps draining during fill. This solenoid armature controls the drain valve. DIY repair in about 45 minutes.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

A replacement clamp that secures hoses or wiring to keep lines routed and stable, helping prevent rubbing, leaks and noise. Restores a reliable hold for tubing and harnesses so the appliance runs quietly and safely. What it does:

• Holds hoses, tubing or wire harnesses in place to reduce movement and chafing.
• Helps prevent leaks and water line abrasion caused by loose fittings.
• Reduces rattling or vibration from unsecured lines or cables.
• Keeps routing organized so adjacent components aren't stressed or worn.

• Disconnect power before servicing the appliance; shut off water supply when working on water or drain lines.
• Remove the old clamp and position the replacement so it fully engages the hose or harness, avoiding twists.
• Use appropriate hand tools (pliers or screwdriver) and secure the clamp evenly; avoid overtightening.
• Inspect surrounding hoses and wiring for damage while installing; replace any components that show wear.

A replacement clamp that secures hoses or wiring to keep lines routed and stable, helping prevent rubbing, leaks and noise. Restores a reliable hold for tubing and harnesses so the appliance runs quietly and safely. What it does:

• Holds hoses, tubing or wire harnesses in place to reduce movement and chafing.
• Helps prevent leaks and water line abrasion caused by loose fittings.
• Reduces rattling or vibration from unsecured lines or cables.
• Keeps routing organized so adjacent components aren't stressed or worn.

• Disconnect power before servicing the appliance; shut off water supply when working on water or drain lines.
• Remove the old clamp and position the replacement so it fully engages the hose or harness, avoiding twists.
• Use appropriate hand tools (pliers or screwdriver) and secure the clamp evenly; avoid overtightening.
• Inspect surrounding hoses and wiring for damage while installing; replace any components that show wear.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

Deflector guard for dishwasher spray arm assembly. Replaces cracked, broken, or missing deflector shields. Mounts to spray system to direct water flow.

This float switch detects rising water in the refrigerator drain pan or lower cabinet area and signals the appliance control to help prevent overflow and water damage. Use it to replace a failed or intermittent water-level sensor. What it does:

• Senses high water level in the drain pan or collection area and closes the circuit to alert the control.
• Helps identify causes of leaks and pooling under or behind the appliance.
• Commonly used when symptoms include water on the floor, drip pan overflow, or water-related error/alert conditions.
• Matches OEM function for refrigeration units that include a float-based water-detection circuit.

• Disconnect power to the appliance before starting any repairs; shut off the water supply if working near water lines.
• Access may require removing lower kick plate or back panel; handle plastic clips and fasteners carefully.
• Disconnect electrical connector gently and note orientation before installing the replacement; secure wiring and verify float moves freely.
• Restore power and run a short test cycle or simulate water level to ensure proper operation.

Fix a dishwasher that won't drain or drains constantly during wash cycles. This drain solenoid valve controls water drainage timing. Moderate DIY repair.

Fix dishwasher leaks or poor cleaning with a new sump cap. Seals the sump opening to contain wash water and protect the pump. Quick DIY replacement.

This has male threads. For female threads use WD18X214

This spring kit restores proper door tension so the appliance door opens and closes smoothly and stays in position. Use it to replace worn or broken springs that cause a sagging, loose, or hard-to-operate door. What it does:

• Replaces worn or damaged door tension springs to restore smooth opening and closing.
• Helps prevent the door from dropping, sagging, or not staying open.
• Reduces uneven or jerky door movement caused by lost spring tension.
• Matches OEM-design function for safe, reliable door operation when installed correctly.

• Disconnect power (and water, if applicable) before beginning any repair.
• Springs are under tension—use caution and proper tools to avoid injury.
• Follow the appliance's service manual or OEM instructions.

This kit fits both D style and T style shafts.

White dishwasher lower spray arm assembly with collapsible tower. Replaces cracked, broken, or damaged spray arms. Installs at bottom of tub.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

Replacement handle mounting screw for refrigerators. Secures the door handle to the appliance. Order if your original screw is stripped, missing, or lost.

Size: 8-18 x 7/8 inch.

Fixes spotty dishes and rinse aid leaks. This reservoir holds and releases rinse agent during the final cycle. Quick DIY repair with video guide.

Replacement door vent directs humid air out during the dry cycle. Install inside the door panel to replace a cracked, clogged, or missing vent.

Size: 10-12 x 1/2 inch.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-16 x 2 inch ss.

The Door Gasket is an OEM part for GE dishwashers. It forms a seal between the dishwasher door and tub which is critical for proper operation. The gasket ensures excess water and moisture do not leak from the dishwasher during active wash and rinse cycles. It also helps keep noise levels low by providing sound insulation. This gasket measures 3/8 x 89 inches.

Common causes of a bad door gasket include regular wear and tear, exposure to high temperatures and detergents, or physical damage. These factors can cause the gasket to lose its flexibility and sealing capability.

Symptoms of a bad Door Gasket include:

• Water leaking from the dishwasher door
• Visible cracks, tears, or deformation in the gasket
• The door not closing properly or securely
• Increased moisture around the dishwasher during or after cycles

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Chrome

Includes 12 screws.

Reversible panel - black on one side, almond on the other.

Replacement mounting screw for dishwashers. Secures internal components and panels. Order a new screw if the original is stripped, missing, or damaged.

Reversible panel - white on one side, almond on the other.

Replacement handle mounting screw for refrigerators. Secures the door handle to the appliance. Order if your original screw is stripped, missing, or lost.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
