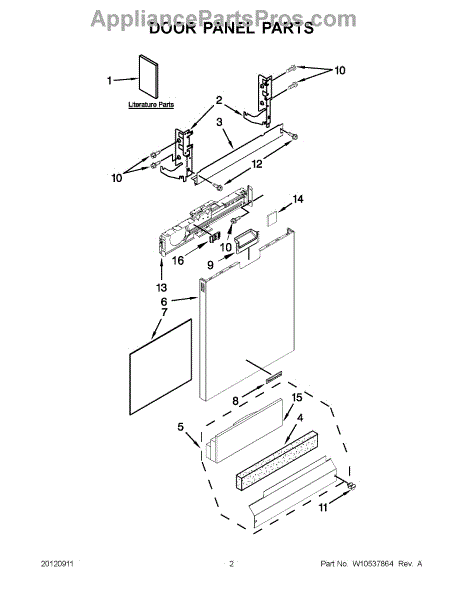

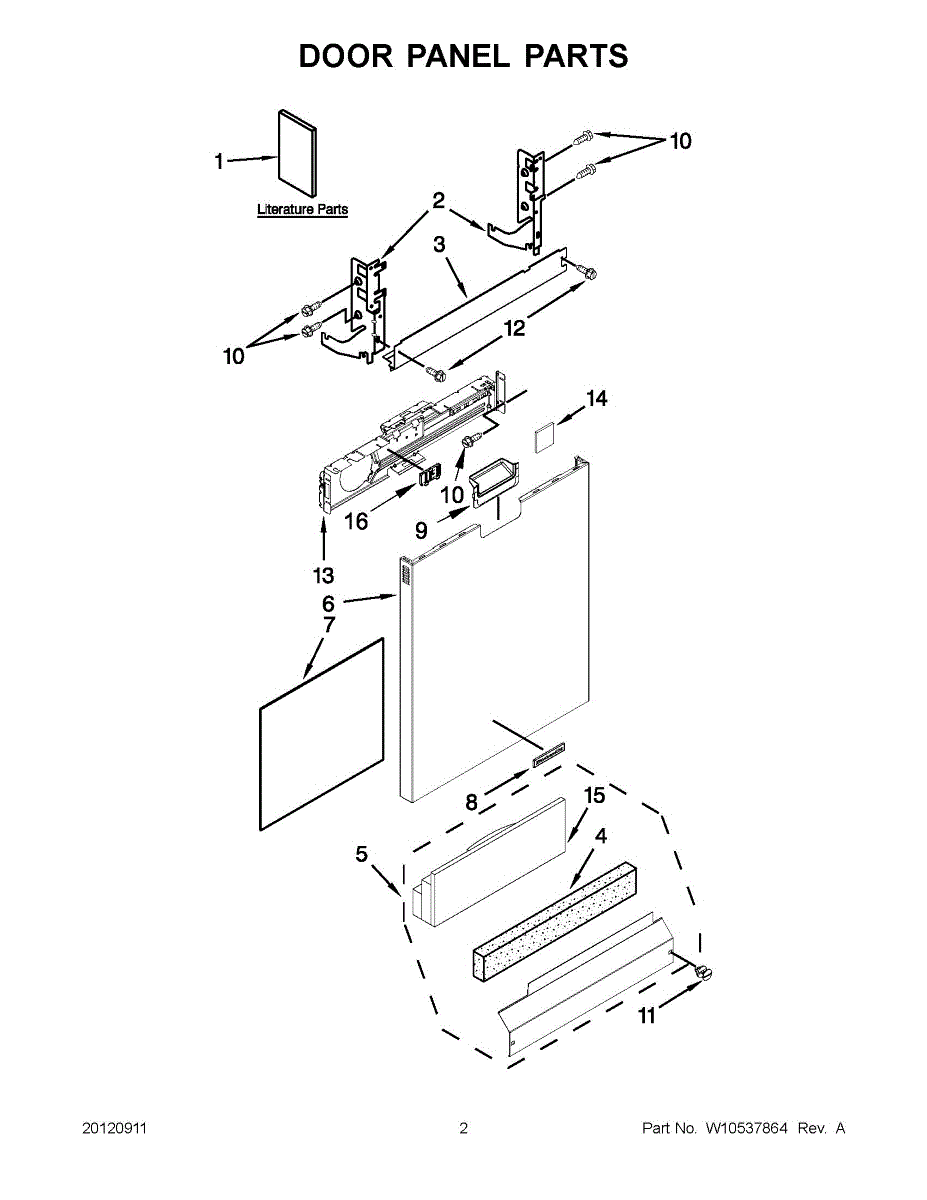

Parts for Kitchenaid KUDS30IBBT0: 01 - Door Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Hinge Assembly is an OEM part for Whirlpool dishwashers. This hinge assembly is responsible for attaching the dishwasher door to the main body, allowing it to open and close smoothly while maintaining a proper seal when shut.

Causes of a bad door hinge assembly can include regular wear and tear, damage from excessive force or accidental impacts, and corrosion from exposure to moisture and detergents.

Symptoms of a bad door hinge assembly include:

• The dishwasher door not closing properly or staying open
• Difficulty opening or closing the dishwasher door
• A misaligned dishwasher door
• Unusual noises or resistance when moving the door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Hinge (RH) is an OEM replacement part for Whirlpool dishwashers. This hinge is installed on the right-hand side of the dishwasher door, allowing it to open and close smoothly while maintaining the proper tension and alignment. The hinge plays a crucial role in ensuring the door seals securely during operation, preventing leaks and enabling efficient cleaning performance.

Common causes include regular use leading to wear and tear, accidental impacts, or exposure to moisture, which can contribute to rust or corrosion.

Symptoms of a bad door hinge include:

• The dishwasher door not closing completely
• Difficulty opening or closing the door
• A sagging or misaligned door
• Unusual noises when moving the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hinge Brace is an OEM replacement part for Whirlpool dishwashers. It serves as a supportive bracket anchoring the dishwasher door hinge assembly firmly in place.Note: This part may be different from your original. If your original part was a flat plastic vapor barrier, the new design is a wire. It is a factory design change, the old design is no longer available.

Over time, the hinge brace can degrade due to constant use, heavy loads on the door, or accidental impacts. A faulty hinge brace can result in misalignment or difficulty in operating the dishwasher door.

Symptoms of a bad hinge brace include:

• Loose or unstable door that does not close securely
• Gaps appearing around the door seal during wash cycles
• Broken hinge components from added stress and tension on the door
• Difficulty fully opening or closing the dishwasher door

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Toe Panel Insulation is an OEM part for Whirlpool dishwashers. This part was designed to enhance the appliance's performance by reducing noise and preventing heat escape from the bottom of the dishwasher. This insulation panel fits snugly behind the dishwasher's toe panel, which is located at the lower front part of the unit.

Causes of a bad Toe Panel Insulation might include wear and tear over time, damage during appliance installation or removal, or deterioration due to moisture exposure.

Symptoms of inadequate or damaged Toe Panel Insulation include:

• Noticeable increase in noise level from the dishwasher, making it more disruptive during its operation.
• Excess heat felt near the base of the dishwasher, indicating heat loss.
• Potential for condensation or slight temperature changes in the kitchen due to the heat emitted from the dishwasher.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This control panel is the exterior console overlay that restores the appliance's user interface and button labels for normal operation and appearance. It replaces a cracked, faded, or damaged front panel to improve usability. What it does:

• Provides the exterior interface and button/label surface for the appliance's controls.
• Restores clear labeling and a clean appearance when the original panel is scratched, worn, or discolored.
• Helps resolve user-interface issues caused by a physically damaged or warped control surface.
• Protects internal control components from direct contact and light debris.

• Disconnect power to the appliance before starting any repair to reduce shock risk.
• Minor disassembly of the console may be required; keep screws and trim organized for reassembly.
• Handle the panel carefully to avoid scratching or bending; use appropriate trim tools to prevent damage.

Color: White

The Dishwasher Access Panel is an OEM part for Whirlpool dishwashers. This panel covers the lower front section of the dishwasher, providing a finished look while protecting internal components from debris and damage.

Causes of a bad access panel include accidental impacts, wear and tear over time, or exposure to moisture, which can lead to rust or corrosion.

Symptoms of a bad access panel include:

• Visible cracks or dents
• Rust or discoloration
• Loose or misaligned panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This insulation pad installs in the factory location to isolate and cushion components or panels. It helps reduce vibration and limit unwanted heat transfer, supporting quieter operation and proper performance where the original pad was installed.

• Provides a thermal and acoustic barrier between parts or panels
• Helps minimize vibration and rattling noises
• Restores proper spacing/cushioning when the original pad is missing or deteriorated
• Replace if the pad is brittle, compressed, contaminated, or falling off
• Common signs include increased noise or rattles and localized hot spots or condensation

• Disconnect power (and gas/water, if applicable) before servicing
• Allow hot or cold surfaces to return to a safe temperature
• Note the original pad's location/orientation; remove old pad and clean the surface
• Install the new pad in the same spot without over-compressing; secure per the original method and verify clearances

Color: White

This replacement name plate restores the appliance's front identification/trim for a clean, factory appearance and helps keep labels and controls visible. It's a simple cosmetic/replaceable part for worn, cracked, or missing name plates. What it does

• Replaces a faded, cracked or missing name plate to restore original appearance
• Provides the visible label/trim that surrounds or covers controls and branding
• Helps prevent dirt and grime from collecting behind exposed openings
• Restores a finished look after panel or control repairs

• One name plate

• Disconnect power to the appliance before starting any work
• Typically installs with snaps or screws; align carefully and avoid forcing the plastic
• Use appropriate tools for specific steps
• Replace with OEM hardware for correct fit

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Color: Black

Color: Stainless

This machine screw secures panels, brackets, and other components inside your appliance. Replacing a missing or damaged fastener restores a solid fit, reduces vibration and rattling, and helps keep assemblies properly aligned for reliable performance.

• 10-32 machine-thread fastener for mounting and securing internal parts and panels
• Helps maintain alignment and structural integrity of assembled components
• Replaces missing, stripped, or damaged hardware
• Reduces rattling, vibration, or loosening from worn fasteners

• Disconnect power; shut off gas or water supplies before servicing
• Match thread and length to the original fastener used in that location
• Start by hand to avoid cross-threading; tighten snugly without overtightening
• Reuse original washers or clips if present and in good condition

Color: Bisque

Color: White

The Retainer Clip is an OEM part for Whirlpool dishwashers. It is designed to secure the kickplate in place at the bottom of the dishwasher, ensuring that the kickplate remains securely attached to the dishwasher. It helps prevent the kickplate from becoming loose or falling off during regular use, ensuring that it stays in place to protect the internal components from any potential damage.

A bad Dishwasher Kickplate Retainer Clip can occur due to wear and tear over time or accidental damage.

Symptoms of a bad Retainer Clip include:

• Kickplate coming loose or falling off.
• Excessive noise or vibration during dishwasher operation.
• Difficulty in securing the kickplate in place.
• Visible damage or missing clip.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Access Panel Retaining Clip is an OEM part for Whirlpool dishwashers. This black clip is used to secure the access panel to the dishwasher frame, ensuring it stays in place and provides a finished look while protecting internal components.

You should replace the access panel retaining clip if it becomes damaged or worn out. Over time, the clip can break or lose its grip due to repeated removal and installation of the access panel or general wear and tear.

Symptoms of a bad access panel retaining clip include:

• The access panel not staying securely attached
• Rattling or vibrations from a loose panel
• Missing or broken clips

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This control bracket secures the console or control housing to the appliance, keeping the control panel stable and properly aligned for reliable operation. Replaces a damaged or missing bracket to restore secure mounting and prevent panel movement. What it does:

• Mounts the control console to the appliance frame to prevent wobbling or sagging
• Keeps control buttons and switches aligned for consistent user operation
• Helps stop rattling or vibration noise caused by a loose control housing
• Supports wiring and components behind the console to reduce strain on connectors

• Always unplug the appliance or disconnect power before beginning service
• Remove the console or access panel per service instructions to reach mounting points
• Use appropriate screwdrivers or nut drivers; keep original hardware unless damaged
• Align bracket and tighten screws evenly; avoid overtightening to prevent stripping

The Toe Panel Insulation is an OEM part for Whirlpool dishwashers. This part was designed to enhance the appliance's performance by reducing noise and preventing heat escape from the bottom of the dishwasher. This insulation panel fits snugly behind the dishwasher's toe panel, which is located at the lower front part of the unit.

Causes of a bad Toe Panel Insulation might include wear and tear over time, damage during appliance installation or removal, or deterioration due to moisture exposure.

Symptoms of inadequate or damaged Toe Panel Insulation include:

• Noticeable increase in noise level from the dishwasher, making it more disruptive during its operation.
• Excess heat felt near the base of the dishwasher, indicating heat loss.
• Potential for condensation or slight temperature changes in the kitchen due to the heat emitted from the dishwasher.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A small metal spacer plate used to position and support nearby components for correct alignment and clearance. Replaces a worn or missing spacer to restore proper fit and reduce rubbing or vibration. What it does:

• Holds components at the correct distance to prevent contact or interference
• Maintains alignment of panels or assemblies for reliable operation
• Helps stop vibration-related noise caused by loose or misaligned parts
• Preserves sealing/fit where precise spacing is required

• Disconnect power before servicing to avoid shock or injury
• Handle sharp sheet-metal edges carefully and wear gloves
• Install in the same orientation as the original; secure with the factory fasteners
• Do not force or overtighten fasteners—ensure proper alignment before fully torquing
