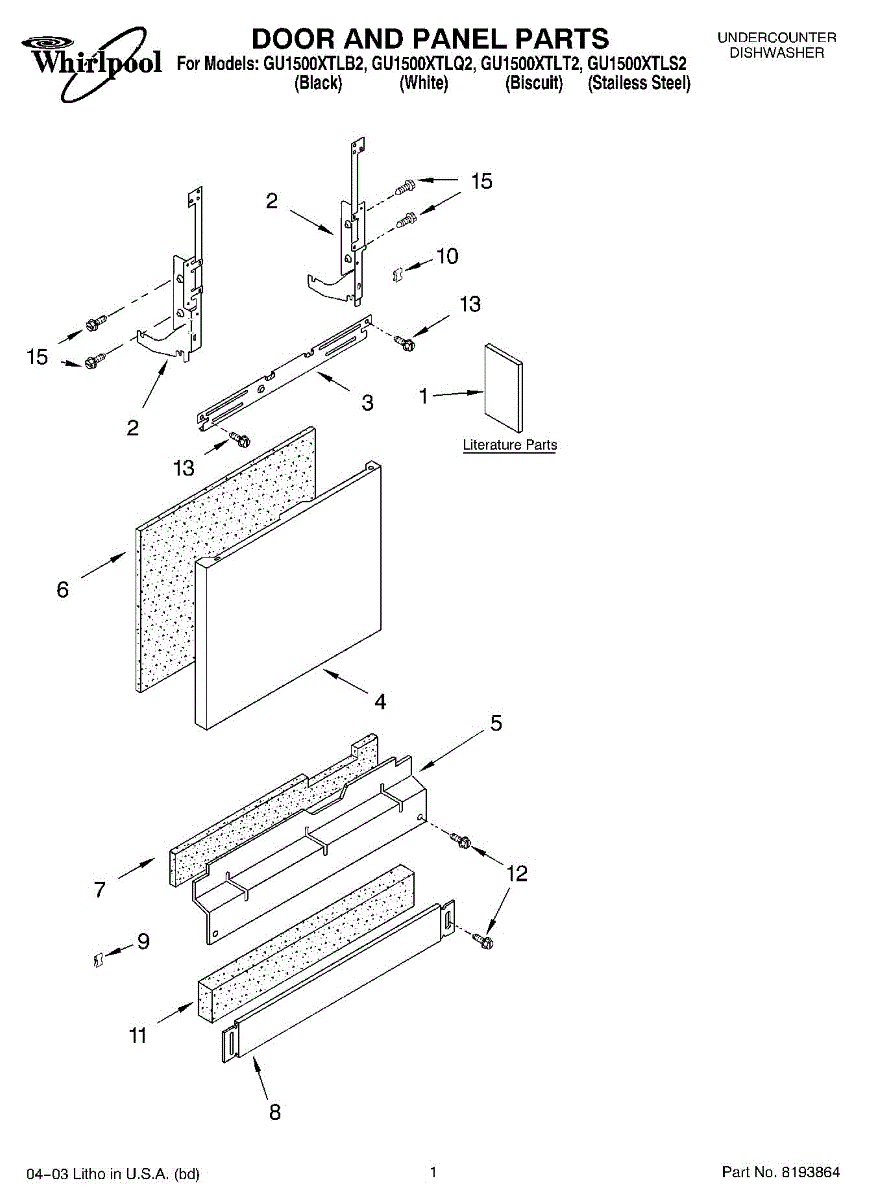

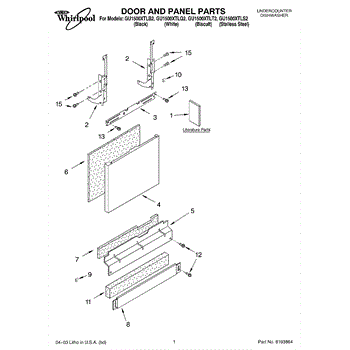

Parts for Whirlpool GU1500XTLB2: 01 - Door And Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Right-hand door hinge that replaces a worn or damaged refrigerator door hinge to restore proper door alignment and smooth opening and closing. Helps maintain a tight seal and prevents door sag or binding. What it does:

• Supports and pivots the refrigerator door on the right-hand side for correct alignment.
• Restores smooth opening/closing and reduces rubbing or scraping at the cabinet.
• Helps re-establish a full door seal to prevent cold air loss and temperature issues.
• Addresses symptoms such as a sagging or misaligned door, noisy hinge movement, or a door that doesn't close evenly.

• Disconnect power to the appliance and remove any items from the door before starting.
• Support the door while removing hinge hardware to prevent sudden drops or damage.
• Reuse existing screws/hardware unless replacement hardware is provided; tighten securely but avoid over-torquing.
• After installation, check door alignment and gasket contact; adjust hinge position as needed to ensure proper sealing.

This left-hand door hinge supports and pivots the door so it opens smoothly and closes tight. Replace a worn hinge to correct sagging, rubbing, or doors that won't seal—improving performance and preventing damage. What it does:

• Provides the pivot point for the door on the left side
• Maintains alignment so the door sits level and latches/seals properly
• Helps the door open and close smoothly without binding
• Common symptoms: door sags or rubs, won't close fully, uneven gaps, squeaking/grinding noises, poor seal

• One left-hand door hinge

• Disconnect power; also shut off gas and/or water before servicing
• Support or remove the door before unfastening the hinge; some hinges may be under spring tension—use caution
• Transfer original hardware/shims as needed and tighten fasteners securely
• Check door alignment and gasket contact after installation; open/close several times to ensure smooth operation

• "Left-hand" is determined when facing the front of the appliance.

Color: Bisque

Color: White

Color: Black

Color: Stainless

This replacement panel restores your appliance's original look while shielding internal components. Install a new panel to replace a dented, cracked, or missing piece and keep the assembly secure, aligned, and protected.

• Covers and protects internal parts while restoring the exterior finish and fit
• Provides the designed mounting surface for trim/handles; helps maintain alignment
• Replace when the panel is dented, cracked, warped, rusted, or mounting tabs are broken
• Helps resolve loose or rattling panels and visible gaps or misalignment

• Disconnect power; turn off water or gas supply if applicable
• Wear gloves and protect finished surfaces; handle carefully to avoid bending or scratching
• Transfer and reuse original screws, clips, insulation, and trim as directed by your service manual
• Fit and alignment before fully tightening fasteners

This foam pad installs between the inner and outer door panels of a dishwasher to dampen sound and help shield the outer panel from heat and moisture, keeping operation quieter and the door better protected. What it does:

• Lines the inside of the outer door panel to reduce operating noise and vibration
• Acts as a thermal and moisture barrier for the outer door panel
• Helps maintain proper door performance when the original insulation is worn or missing
• Replace if torn, degraded, or waterlogged, or if noise/condensation around the door has increased

• 1 door insulation pad

• Disconnect power and shut off water to the dishwasher before servicing
• Support the door; remove perimeter screws to separate the inner and outer door panels
• Note the pad's orientation; seat the new insulation evenly without pinching wires or harnesses
• Reassemble panels and fasteners; verify smooth door/latch operation

The Toe Panel Insulation is an OEM part for Whirlpool dishwashers. This part was designed to enhance the appliance's performance by reducing noise and preventing heat escape from the bottom of the dishwasher. This insulation panel fits snugly behind the dishwasher's toe panel, which is located at the lower front part of the unit.

Causes of a bad Toe Panel Insulation might include wear and tear over time, damage during appliance installation or removal, or deterioration due to moisture exposure.

Symptoms of inadequate or damaged Toe Panel Insulation include:

• Noticeable increase in noise level from the dishwasher, making it more disruptive during its operation.
• Excess heat felt near the base of the dishwasher, indicating heat loss.
• Potential for condensation or slight temperature changes in the kitchen due to the heat emitted from the dishwasher.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Color: White

Color: Black - Part has been changed to an Access Panel Kit - The toe panel is no longer used.

A small metal clip that secures the appliance's ground wire to the chassis. Restores a reliable ground connection to reduce loose or arcing contacts and help prevent intermittent electrical faults. What it does:

• Secures the ground wire to the appliance frame to maintain a solid earth connection.
• Prevents a loose ground that can cause arcing, intermittent power issues, or visible sparking at the connection.
• Holds the wire in place through normal vibration and movement so terminals stay tight and stable.
• Replaces damaged, bent, or missing grounding fasteners to restore safe electrical continuity.

• Disconnect power at the breaker or unplug the appliance before inspecting or replacing the clip.
• Use proper hand tools to remove and reinstall the screw or fastener that holds the clip—do not overtighten.
• Ensure the ground wire is routed and stripped correctly; replace wiring if insulation or conductor is damaged.

The Toe Panel Insulation is an OEM part for Whirlpool dishwashers. This part was designed to enhance the appliance's performance by reducing noise and preventing heat escape from the bottom of the dishwasher. This insulation panel fits snugly behind the dishwasher's toe panel, which is located at the lower front part of the unit.

Causes of a bad Toe Panel Insulation might include wear and tear over time, damage during appliance installation or removal, or deterioration due to moisture exposure.

Symptoms of inadequate or damaged Toe Panel Insulation include:

• Noticeable increase in noise level from the dishwasher, making it more disruptive during its operation.
• Excess heat felt near the base of the dishwasher, indicating heat loss.
• Potential for condensation or slight temperature changes in the kitchen due to the heat emitted from the dishwasher.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Biscuit. Screw for lower toe panel. For black screw use WP302868, for white screw use WP3400836.

Color: Black. Screw for lower toe panel. For Biscuit screw use 3400865, for white screw use WP3400836.

Color: White

The Retainer Clip is an OEM part for Whirlpool dishwashers. It is designed to secure the kickplate in place at the bottom of the dishwasher, ensuring that the kickplate remains securely attached to the dishwasher. It helps prevent the kickplate from becoming loose or falling off during regular use, ensuring that it stays in place to protect the internal components from any potential damage.

A bad Dishwasher Kickplate Retainer Clip can occur due to wear and tear over time or accidental damage.

Symptoms of a bad Retainer Clip include:

• Kickplate coming loose or falling off.
• Excessive noise or vibration during dishwasher operation.
• Difficulty in securing the kickplate in place.
• Visible damage or missing clip.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.
