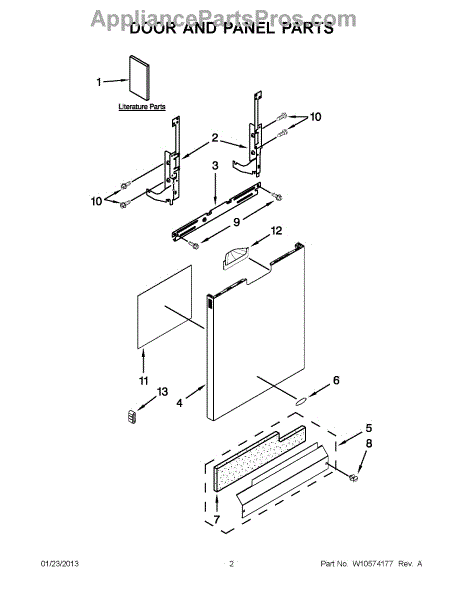

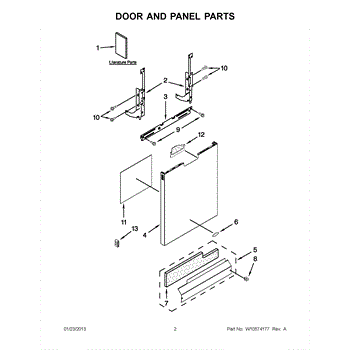

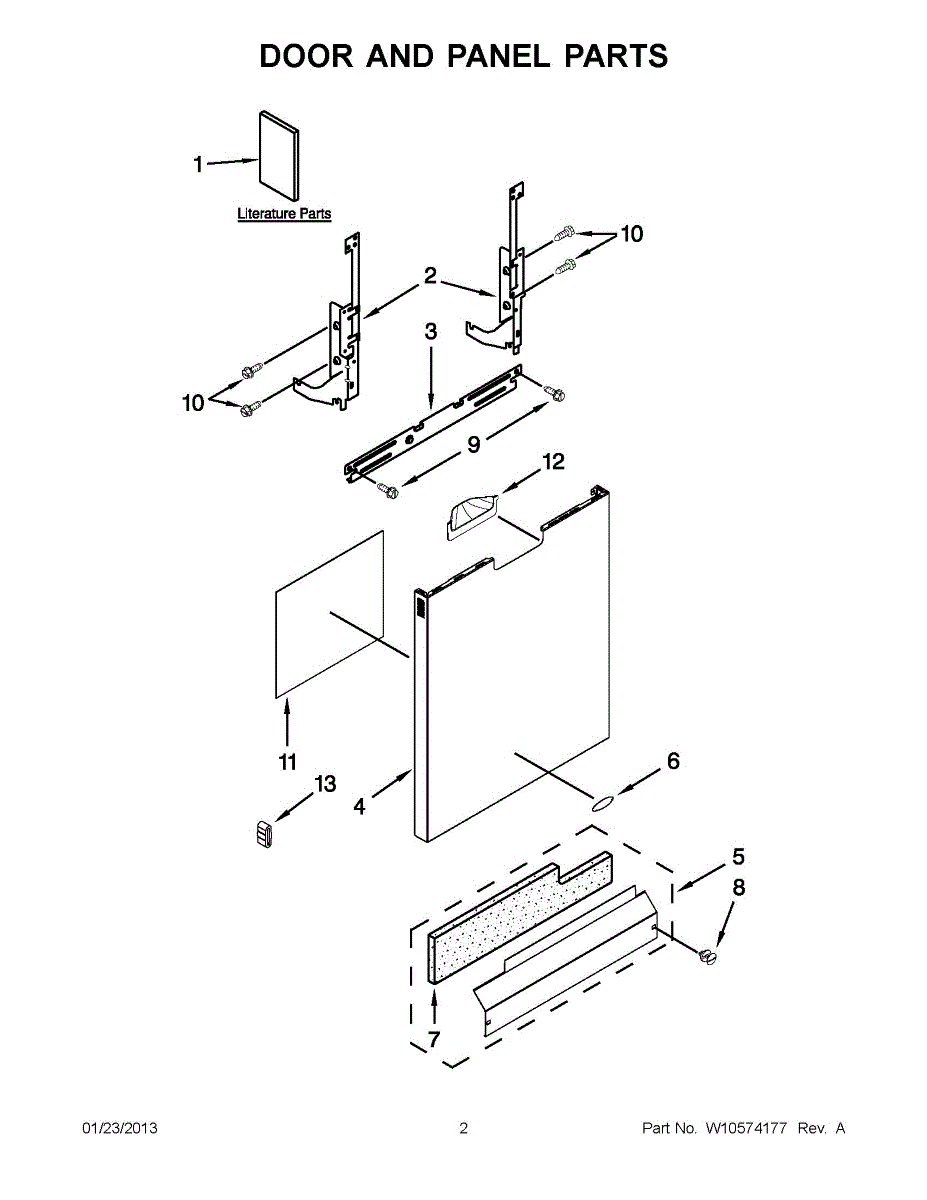

Parts for Whirlpool WDF530PSYW4: 01 - Door And Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Right-hand door hinge that replaces a worn or damaged refrigerator door hinge to restore proper door alignment and smooth opening and closing. Helps maintain a tight seal and prevents door sag or binding. What it does:

• Supports and pivots the refrigerator door on the right-hand side for correct alignment.
• Restores smooth opening/closing and reduces rubbing or scraping at the cabinet.
• Helps re-establish a full door seal to prevent cold air loss and temperature issues.
• Addresses symptoms such as a sagging or misaligned door, noisy hinge movement, or a door that doesn't close evenly.

• Disconnect power to the appliance and remove any items from the door before starting.
• Support the door while removing hinge hardware to prevent sudden drops or damage.
• Reuse existing screws/hardware unless replacement hardware is provided; tighten securely but avoid over-torquing.
• After installation, check door alignment and gasket contact; adjust hinge position as needed to ensure proper sealing.

This left-hand door hinge supports and pivots the door so it opens smoothly and closes tight. Replace a worn hinge to correct sagging, rubbing, or doors that won't seal—improving performance and preventing damage. What it does:

• Provides the pivot point for the door on the left side
• Maintains alignment so the door sits level and latches/seals properly
• Helps the door open and close smoothly without binding
• Common symptoms: door sags or rubs, won't close fully, uneven gaps, squeaking/grinding noises, poor seal

• One left-hand door hinge

• Disconnect power; also shut off gas and/or water before servicing
• Support or remove the door before unfastening the hinge; some hinges may be under spring tension—use caution
• Transfer original hardware/shims as needed and tighten fasteners securely
• Check door alignment and gasket contact after installation; open/close several times to ensure smooth operation

• "Left-hand" is determined when facing the front of the appliance.

The Hinge Brace is an OEM replacement part for Whirlpool dishwashers. It serves as a supportive bracket anchoring the dishwasher door hinge assembly firmly in place.Note: This part may be different from your original. If your original part was a flat plastic vapor barrier, the new design is a wire. It is a factory design change, the old design is no longer available.

Over time, the hinge brace can degrade due to constant use, heavy loads on the door, or accidental impacts. A faulty hinge brace can result in misalignment or difficulty in operating the dishwasher door.

Symptoms of a bad hinge brace include:

• Loose or unstable door that does not close securely
• Gaps appearing around the door seal during wash cycles
• Broken hinge components from added stress and tension on the door
• Difficulty fully opening or closing the dishwasher door

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This front panel assembly replaces a damaged or worn exterior panel to restore the appliance's appearance and proper fit. It provides the finished front surface and secures underlying components for normal operation. What it does:

• Replaces a cracked, dented, scratched, or warped front panel that affects appearance
• Covers and protects internal components behind the front of the appliance
• Restores proper alignment and mounting where damaged or missing panels cause gaps
• Helps prevent debris entry into the panel cavity and supports attached hardware

• Disconnect power to the appliance before starting any work.
• Typical install requires removing adjacent trim or door panels and handling fasteners; keep track of hardware.
• Use care to avoid scratching the new panel and watch for sharp edges on metal parts.

Color: White

The Panel (BLK) is an OEM part for Whirlpool dishwashers. This black exterior panel is designed to provide a sleek and durable front surface for the dishwasher, enhancing its appearance and protecting internal components.

Causes of a bad panel can include physical impacts, scratches, or general wear over time. A compromised panel can affect the aesthetic appeal and may expose internal components to potential damage.

Symptoms of a bad panel include:

• Visible dents, scratches, or cracks
• The panel not fitting securely or aligning properly
• Discoloration or fading of the panel surface
• Difficulty opening or closing the dishwasher door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This name plate is the decorative centennial badge that restores the appliance's exterior appearance and branding. It replaces a missing, damaged, or faded badge to keep the unit looking factory-finished. What it does

• Restores the appliance's exterior badge for a like-new appearance
• Replaces badges that are cracked, scratched, peeling, or discolored
• Helps identify the appliance style when the original emblem is missing
• Cosmetic part only — does not affect appliance operation

• One name plate

• For best results, clean the mounting area and remove dirt or wax before installation
• Handle carefully to avoid scratching the finish; use non-marring tools as needed
• If access behind trim is required, unplug the appliance or disconnect power before removing panels
• Follow OEM instructions for removal and reinstallation to avoid damaging clips or surrounding trim

Color: Grey

The Toe Panel Insulation is an OEM part for Whirlpool dishwashers. This part was designed to enhance the appliance's performance by reducing noise and preventing heat escape from the bottom of the dishwasher. This insulation panel fits snugly behind the dishwasher's toe panel, which is located at the lower front part of the unit.

Causes of a bad Toe Panel Insulation might include wear and tear over time, damage during appliance installation or removal, or deterioration due to moisture exposure.

Symptoms of inadequate or damaged Toe Panel Insulation include:

• Noticeable increase in noise level from the dishwasher, making it more disruptive during its operation.
• Excess heat felt near the base of the dishwasher, indicating heat loss.
• Potential for condensation or slight temperature changes in the kitchen due to the heat emitted from the dishwasher.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Color: White

The Retainer Clip is an OEM part for Whirlpool dishwashers. It is designed to secure the kickplate in place at the bottom of the dishwasher, ensuring that the kickplate remains securely attached to the dishwasher. It helps prevent the kickplate from becoming loose or falling off during regular use, ensuring that it stays in place to protect the internal components from any potential damage.

A bad Dishwasher Kickplate Retainer Clip can occur due to wear and tear over time or accidental damage.

Symptoms of a bad Retainer Clip include:

• Kickplate coming loose or falling off.
• Excessive noise or vibration during dishwasher operation.
• Difficulty in securing the kickplate in place.
• Visible damage or missing clip.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Access Panel Retaining Clip is an OEM part for Whirlpool dishwashers. This black clip is used to secure the access panel to the dishwasher frame, ensuring it stays in place and provides a finished look while protecting internal components.

You should replace the access panel retaining clip if it becomes damaged or worn out. Over time, the clip can break or lose its grip due to repeated removal and installation of the access panel or general wear and tear.

Symptoms of a bad access panel retaining clip include:

• The access panel not staying securely attached
• Rattling or vibrations from a loose panel
• Missing or broken clips

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

This insulation pad installs in the factory location to isolate and cushion components or panels. It helps reduce vibration and limit unwanted heat transfer, supporting quieter operation and proper performance where the original pad was installed.

• Provides a thermal and acoustic barrier between parts or panels
• Helps minimize vibration and rattling noises
• Restores proper spacing/cushioning when the original pad is missing or deteriorated
• Replace if the pad is brittle, compressed, contaminated, or falling off
• Common signs include increased noise or rattles and localized hot spots or condensation

• Disconnect power (and gas/water, if applicable) before servicing
• Allow hot or cold surfaces to return to a safe temperature
• Note the original pad's location/orientation; remove old pad and clean the surface
• Install the new pad in the same spot without over-compressing; secure per the original method and verify clearances

The Friction Pad is an OEM replacement part for Whirlpool dishwashers. It is a component located within the dishwasher door hinge assembly that is responsible for reducing friction and providing smooth operation as the door opens and closes.

Friction pads can wear out over time due to repeated opening and closing of the dishwasher door. This repeated motion causes the pad material to break down gradually. If you notice increased resistance or noise when operating the door, or the door is not opening and closing as smoothly as before, it may be time to replace the friction pad.

Symptoms of a worn friction pad are:

• Difficulty opening or closing the dishwasher door
• Increased noise or squeaking sounds when operating the door
• Resistance or binding feeling when moving the door
• Door not staying securely in place when fully opened or closed

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
