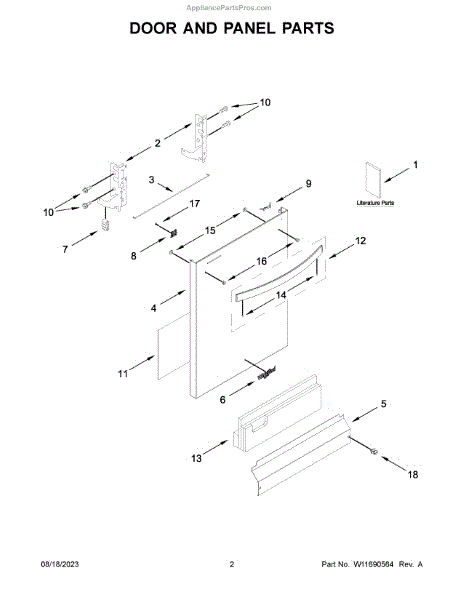

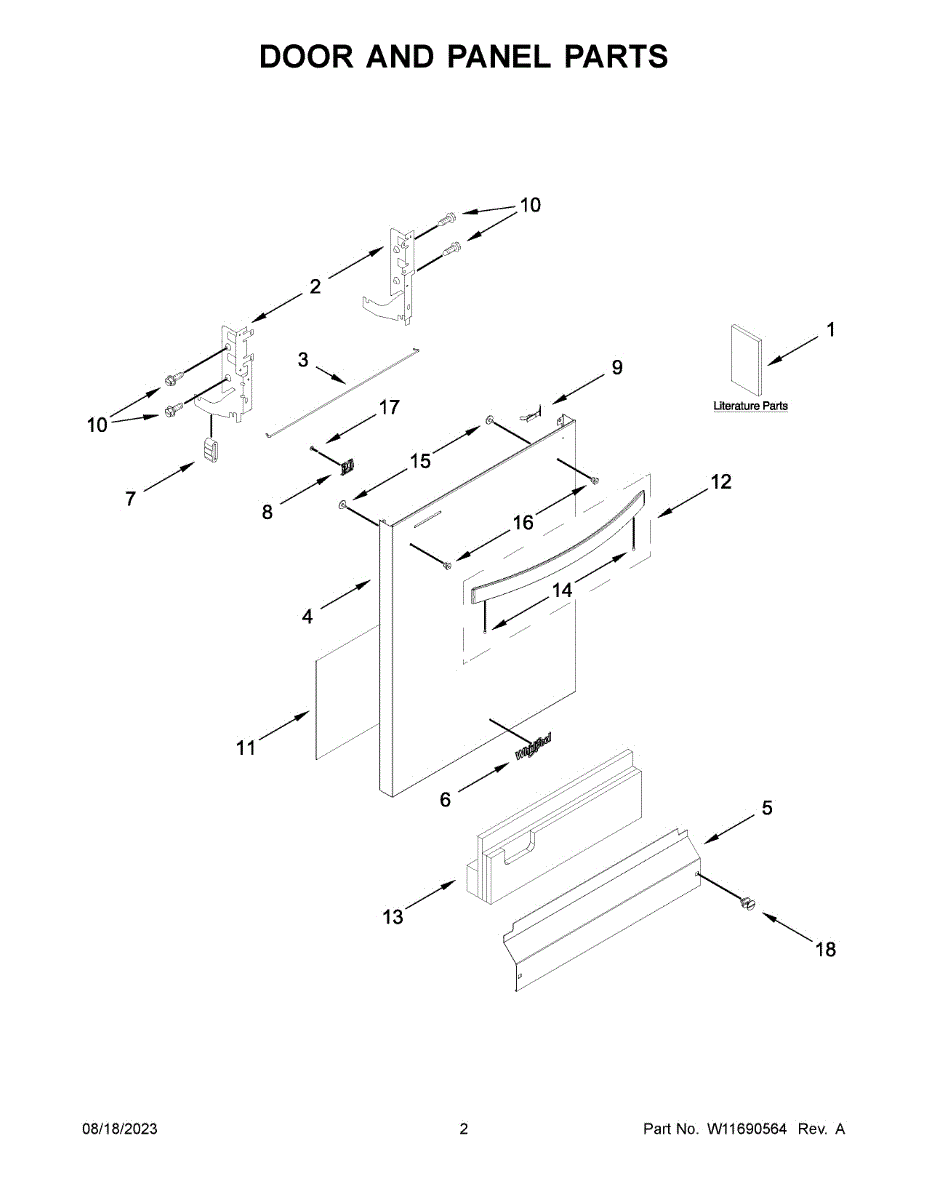

Parts for Whirlpool WDT531HAPM0: Door And Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Hinge Brace is an OEM replacement part for Whirlpool dishwashers. It serves as a supportive bracket anchoring the dishwasher door hinge assembly firmly in place.Note: This part may be different from your original. If your original part was a flat plastic vapor barrier, the new design is a wire. It is a factory design change, the old design is no longer available.

Over time, the hinge brace can degrade due to constant use, heavy loads on the door, or accidental impacts. A faulty hinge brace can result in misalignment or difficulty in operating the dishwasher door.

Symptoms of a bad hinge brace include:

• Loose or unstable door that does not close securely
• Gaps appearing around the door seal during wash cycles
• Broken hinge components from added stress and tension on the door
• Difficulty fully opening or closing the dishwasher door

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This replacement panel restores your appliance's original look while shielding internal components. Install a new panel to replace a dented, cracked, or missing piece and keep the assembly secure, aligned, and protected.

• Covers and protects internal parts while restoring the exterior finish and fit
• Provides the designed mounting surface for trim/handles; helps maintain alignment
• Replace when the panel is dented, cracked, warped, rusted, or mounting tabs are broken
• Helps resolve loose or rattling panels and visible gaps or misalignment

• Disconnect power; turn off water or gas supply if applicable
• Wear gloves and protect finished surfaces; handle carefully to avoid bending or scratching
• Transfer and reuse original screws, clips, insulation, and trim as directed by your service manual
• Fit and alignment before fully tightening fasteners

Color: Grey

The Friction Pad is an OEM replacement part for Whirlpool dishwashers. It is a component located within the dishwasher door hinge assembly that is responsible for reducing friction and providing smooth operation as the door opens and closes.

Friction pads can wear out over time due to repeated opening and closing of the dishwasher door. This repeated motion causes the pad material to break down gradually. If you notice increased resistance or noise when operating the door, or the door is not opening and closing as smoothly as before, it may be time to replace the friction pad.

Symptoms of a worn friction pad are:

• Difficulty opening or closing the dishwasher door
• Increased noise or squeaking sounds when operating the door
• Resistance or binding feeling when moving the door
• Door not staying securely in place when fully opened or closed

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement fastening nut used to secure appliance components and mounting hardware. It restores a solid connection so panels, brackets, or assemblies stay properly attached and function safely. What it does:

• Secures threaded shafts, studs, or bolts to hold parts in place
• Prevents loosening that can cause rattling, misalignment, or detached panels
• Restores proper mounting for brackets, trim pieces, and small assemblies
• Works wherever the correct threaded nut is required for a secure fit

• Turn off power to the appliance and unplug before servicing
• Hand-start threads to avoid cross-threading, then tighten with appropriate hand tool

This machine screw secures panels, brackets, and other components inside your appliance. Replacing a missing or damaged fastener restores a solid fit, reduces vibration and rattling, and helps keep assemblies properly aligned for reliable performance.

• 10-32 machine-thread fastener for mounting and securing internal parts and panels
• Helps maintain alignment and structural integrity of assembled components
• Replaces missing, stripped, or damaged hardware
• Reduces rattling, vibration, or loosening from worn fasteners

• Disconnect power; shut off gas or water supplies before servicing
• Match thread and length to the original fastener used in that location
• Start by hand to avoid cross-threading; tighten snugly without overtightening
• Reuse original washers or clips if present and in good condition

This insulation pad installs in the factory location to isolate and cushion components or panels. It helps reduce vibration and limit unwanted heat transfer, supporting quieter operation and proper performance where the original pad was installed.

• Provides a thermal and acoustic barrier between parts or panels
• Helps minimize vibration and rattling noises
• Restores proper spacing/cushioning when the original pad is missing or deteriorated
• Replace if the pad is brittle, compressed, contaminated, or falling off
• Common signs include increased noise or rattles and localized hot spots or condensation

• Disconnect power (and gas/water, if applicable) before servicing
• Allow hot or cold surfaces to return to a safe temperature
• Note the original pad's location/orientation; remove old pad and clean the surface
• Install the new pad in the same spot without over-compressing; secure per the original method and verify clearances

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Toe Panel Insulation is an OEM part for Whirlpool dishwashers. This part was designed to enhance the appliance's performance by reducing noise and preventing heat escape from the bottom of the dishwasher. This insulation panel fits snugly behind the dishwasher's toe panel, which is located at the lower front part of the unit.

Causes of a bad Toe Panel Insulation might include wear and tear over time, damage during appliance installation or removal, or deterioration due to moisture exposure.

Symptoms of inadequate or damaged Toe Panel Insulation include:

• Noticeable increase in noise level from the dishwasher, making it more disruptive during its operation.
• Excess heat felt near the base of the dishwasher, indicating heat loss.
• Potential for condensation or slight temperature changes in the kitchen due to the heat emitted from the dishwasher.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement mounting screw secures appliance components and panels. When original hardware loosens, strips, or goes missing, installing a new screw restores a snug, rattle-free fit and keeps assemblies properly aligned for reliable operation.

• Fastens brackets, covers, or internal components to the appliance frame
• Helps maintain alignment of panels, trims, and assemblies
• Replaces stripped or corroded hardware to reduce vibration, noise, or gaps
• Common signs it's needed: missing/loose screw, stripped head/threads, panel movement or rattling

• Disconnect power and shut off gas/water supplies before servicing
• Use the correct driver bit; start threads by hand to avoid cross-threading
• Repair/replace damaged clips or inserts before tightening
• Tighten snugly; avoid overtightening into plastic or thin sheet metal

This replacement screw secures appliance components, panels, and brackets. It restores a tight, reliable hold when an original fastener is missing or damaged, helping eliminate rattles, gaps, or shifting parts.

• Fastens two or more parts together inside the appliance
• Helps keep panels, brackets, or trim securely in place
• Can reduce vibration, rattling, or loose handles caused by missing/loose screws
• Replaces worn, stripped, or corroded fasteners

• Disconnect power and shut off water supply before servicing
• Match location and orientation to the original fastener
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly—do not overtighten to prevent stripping or cracking

This stud is a small mounting fastener that provides a secure anchor point for attaching appliance components. Replacing a worn or missing stud restores a tight, aligned fit and helps prevent looseness, rattles, or shifting.

• Provides a fixed, threaded anchor for mounting a handle, bracket, or panel
• Helps keep parts aligned and secure during normal operation
• Common replacement for studs that are stripped, bent, broken, or missing
• Symptoms can include a loose or wobbly component, difficulty tightening, or visible damage/corrosion

• Disconnect power and, if applicable, shut off water or gas before servicing
• Wear cut-resistant gloves and handle panels carefully
• Hand-start threads to avoid cross-threading; tighten snugly without over-torquing
• Reinstall any covers or related hardware in their original positions

Number-8, 18-thread screw used to secure panels, brackets and small assemblies in Whirlpool appliances. Replacing a missing or damaged screw restores secure mounting and helps stop rattling or loose parts. What it does:

• Fastens trim, panels, brackets or small appliance components that use a #8-18 threaded fastener
• Restores secure mounting when a screw is lost, stripped or damaged
• Helps eliminate vibration-related noise from loose parts
• Simple replacement part for basic fastening needs

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver or driver bit to avoid cam-out or stripped heads
• Thread in straight and tighten until snug; do not over-torque to avoid stripping threads or damaging components
• Replace with the identical screw type and size for proper fit and function

Color: Black

The Access Panel Retaining Clip is an OEM part for Whirlpool dishwashers. This black clip is used to secure the access panel to the dishwasher frame, ensuring it stays in place and provides a finished look while protecting internal components.

You should replace the access panel retaining clip if it becomes damaged or worn out. Over time, the clip can break or lose its grip due to repeated removal and installation of the access panel or general wear and tear.

Symptoms of a bad access panel retaining clip include:

• The access panel not staying securely attached
• Rattling or vibrations from a loose panel
• Missing or broken clips

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
