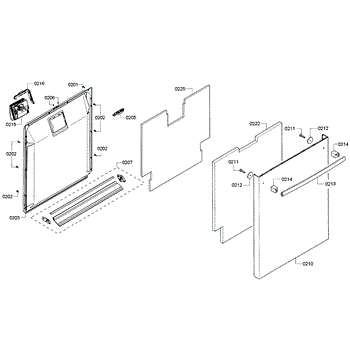

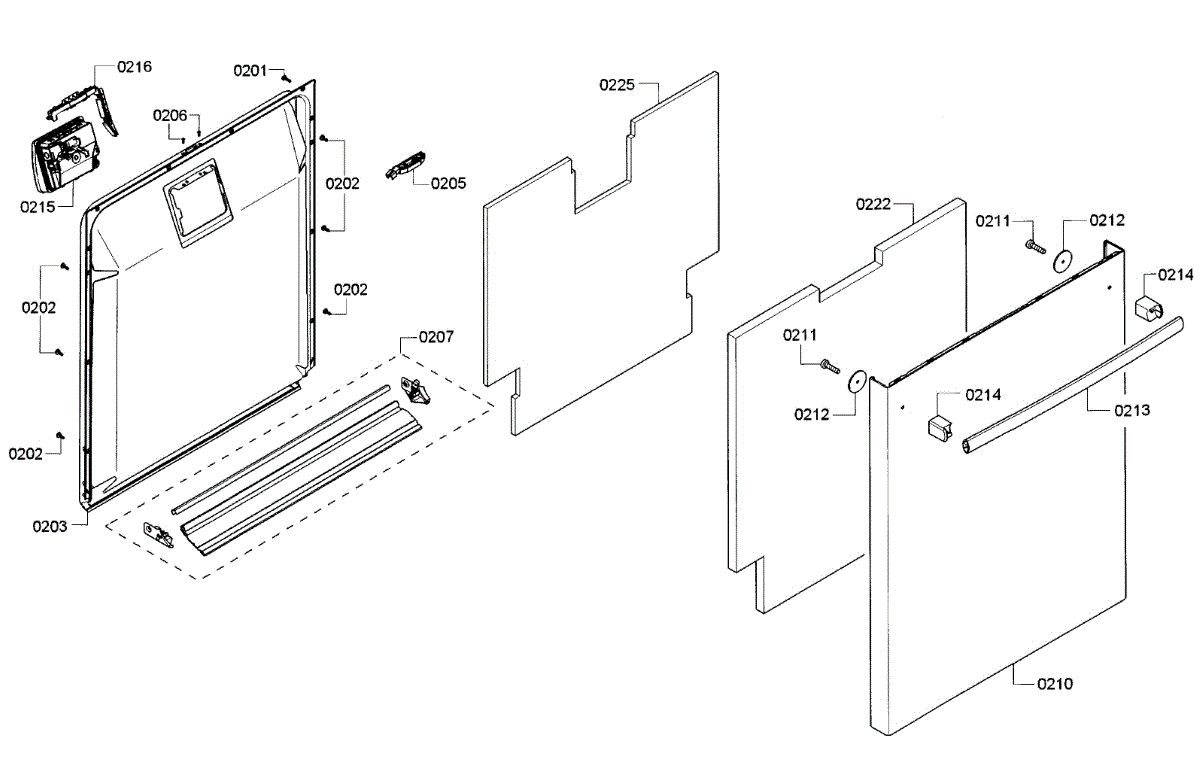

Parts for Bosch SHX4ATF5UC/12: Door Parts

Parts for Bosch SHX4ATF5UC/12: Door Parts

Location on Diagram
Part Description
Price & Availability
Best Seller
Product photo
4.9 (420)
By: Whirlpool
Part Number: W10549851

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

More
$9.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
201
Best Seller
Product photo
5.0 (1)
By: Bosch
Part Number: 00611311

This replacement screw secures panels, brackets, and internal parts in your appliance for a tight, rattle-free fit. Use it to replace lost, stripped, or corroded hardware and keep components properly fastened.

  • Fastens components to the appliance frame or assemblies
  • Replaces a missing, stripped, or rusted original screw
  • Helps reduce rattling or vibration from loose hardware
  • Restores proper alignment of panels or brackets
What's included: One screw Install notes:
  • Disconnect power and shut off water before servicing
  • Refer to your model's parts diagram to locate and place
  • Start threads by hand to avoid cross-threading; tighten snugly without overtightening

More
$12.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
202
Best Seller
Product photo
5.0 (8)
By: Bosch
Part Number: 00151703

Six-screw kit for securing the inner door assembly in your dishwasher. Replace missing, stripped, or lost screws to properly fasten door panels.

More
$10.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
203
Product photo
By: Bosch
Part Number: 00688501

Replaces a cracked, scratched, or damaged dishwasher inner door panel. Protects internal components and restores the door interior appearance.

More
$130.69

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
205
Product photo
4.5 (4)
By: Bosch
Part Number: 00611312

This switch is mounted on the dishwasher frame and detects when the door is properly closed to allow the wash cycle to begin. Replace it if your dishwasher won't start even with the door firmly closed, or if it stops mid-cycle unexpectedly.

More
$37.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
206
Product photo
By: Bosch
Part Number: 00611659

Factory mounting screw secures panels, brackets, and internal components in your dishwasher. Replace missing, stripped, or damaged screws during repair.

More
$7.69

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
207
Best Seller
Product photo
4.9 (21)
By: Bosch
Part Number: 00669221

Prevents leaks around the lower dishwasher door edge. Replace if you see water pooling, torn rubber, or gaps. Confirm fit with your model number.

More
$31.35

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
210
Best Seller
Product photo
4.9 (9)
By: Bosch
Part Number: 00689996

Exterior front panel for dishwasher doors. Restores appearance when original is dented, scratched, or you want to change color. Mounts over inner assembly.

More
$144.46

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
211
Product photo
By: Bosch
Part Number: 00628999

Secures panels, brackets, and internal components in your dishwasher. Replace this screw if it's stripped, missing, or corroded to restore proper fit.

More
$8.28

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
Best Seller
Product photo
4.9 (420)
By: Whirlpool
Part Number: W10549851

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

More
$9.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
212
Product photo
By: Bosch
Part Number: 00611862

Hardware washer distributes clamping force under screws and nuts in your dishwasher. Replace when worn or missing to restore secure fit and reduce vibration.

More
$5.57

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
213
Best Seller
Product photo
5.0 (8)
By: Bosch
Part Number: 00746443

The Door Handle is an OEM part for Bosch dishwashers. It is installed on the outer edge of the dishwasher door and is used to open and close the door.

The door handle is responsible for providing an easy and secure grip point to facilitate loading and unloading of dishes. It allows for controlled movement of the door through its range of motion.

Symptoms of a bad door handle can include:

  • Looseness, wobbling, or detachment from the door
  • Chipping, cracking or general wear and tear of the handle surface
  • Difficulty grasping or lifting the door with the handle
  • The door failing to securely latch in the closed position

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

More
$81.36

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
214
Best Seller
Product photo
4.8 (39)
By: Bosch
Part Number: 00628998

Broken or missing dishwasher handle end cap? This finishing piece covers handle ends for a complete look. DIY repair in 15-30 minutes with basic tools.

More
$8.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
215
Best Seller
Product photo
4.9 (69)
By: Bosch
Part Number: 00645208

Dispenser door won't open or stay closed? This dishwasher dispenser releases detergent and rinse aid at the right time. Moderate DIY repair.

More
$88.60

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
216
By: Bosch
Part Number: 00645374

Wire guide for dishwashers. Secures and routes wiring inside the unit. Replace if broken, cracked, or missing to properly organize internal wires.

More
$10.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
222
Product photo
By: Bosch
Part Number: 11050928

Insulating pad for dishwashers. Installs on the tub or door to reduce noise and retain heat. Replace if cracked, torn, or missing for proper insulation.

More
$23.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
225
By: Bosch
Part Number: 00747394

This insulating part is a molded insulator that protects nearby components by reducing heat transfer and providing electrical isolation, helping prevent heat damage and short circuits for safer, more reliable appliance operation. What it does:

  • Provides thermal insulation to limit heat transfer from hot components to surrounding parts
  • Offers electrical isolation to help prevent shorts between conductors or grounded metal
  • Maintains proper spacing and support for wiring or small assemblies
  • Helps prevent symptoms such as scorch marks, melted wiring insulation, burning smells, or intermittent electrical behavior
What's included: One insulating part Install notes:
  • Disconnect power to the appliance before attempting any repair
  • Inspect the surrounding area and the old insulator's location and orientation before removal
  • Replace with the same part and orientation; avoid compressing or deforming the insulator

More
$12.11

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
Best Seller
Product photo
4.9 (420)
By: Whirlpool
Part Number: W10549851

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

More
$9.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
