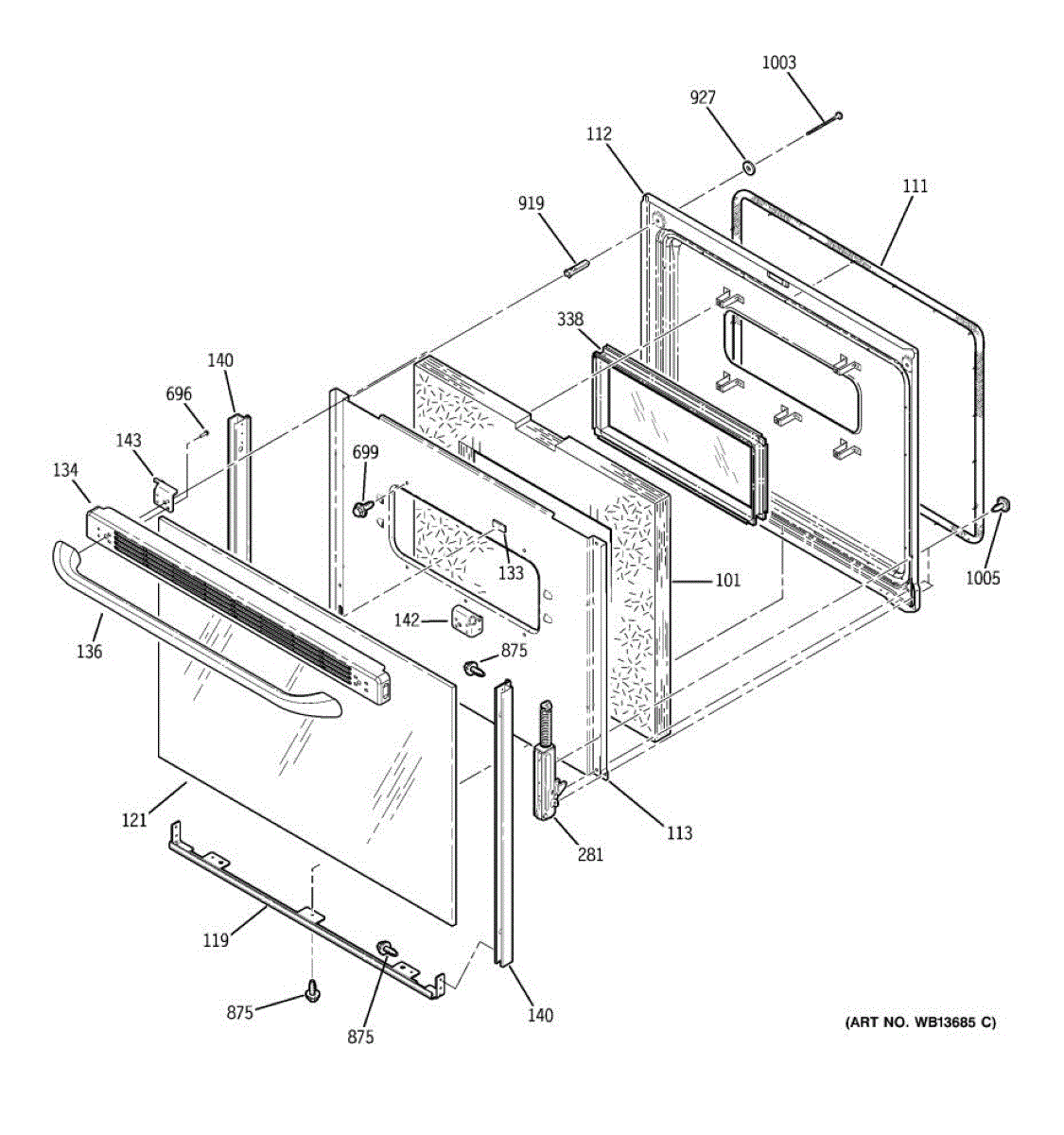

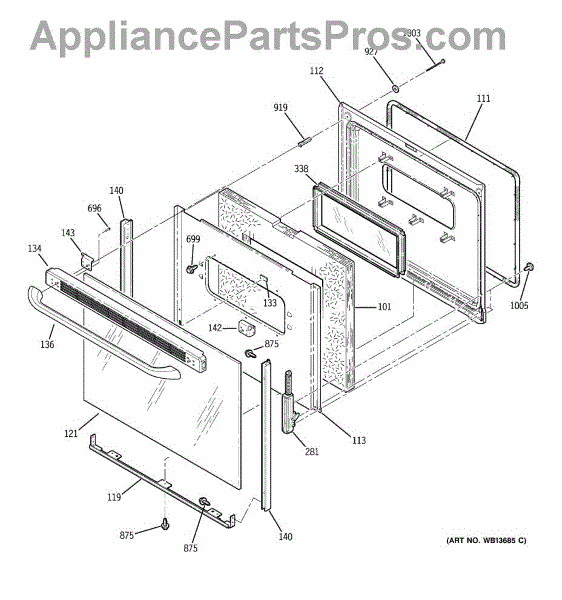

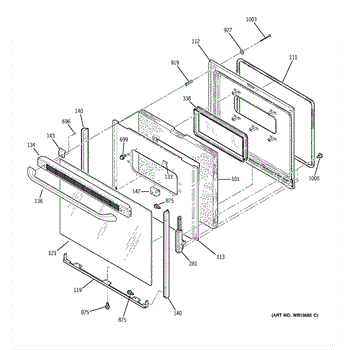

Parts for Ge JBP23DN1CC: 04 - Door Parts

The Oven Door Seal is an OEM part for GE ovens. This seal prevents heat from escaping during cooking, ensuring that the oven maintains a consistent temperature for efficient and even cooking.

A compromised Oven Door Seal can result from several factors, including normal wear and tear from regular use, exposure to high temperatures that degrade the material over time, or accidental damage such as tears or cuts.

Symptoms of a failing Oven Door Seal include:

• Visible wear or damage to the seal
• Heat escaping from the oven door during use
• An increase in cooking times or uneven cooking results
• A noticeable increase in energy consumption as the oven works harder to maintain temperatures

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Bisque

The Bottom trim channel is an OEM part for GE ranges. This trim piece provides an aesthetic finishing touch to the bottom exterior of the oven, covering any gaps and protecting internal components.

Causes of a bad trim chanel can include normal wear and tear over time from regular cleaning or accidental impacts. Plastic trim pieces can fade or become discolored with exposure to heat and cleaning chemicals.

Symptoms of a bad trim chanel include:

• Visible gaps along the bottom front edge of the oven
• Scratches, cracks or fading of the trim surface
• Looseness or inability to snap tightly into place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bottom Trim Channel is an OEM part for GE electric ranges. As an essential cosmetic component, it works to cover and seamlessly conceal the area along the bottom perimeter of the range.

Causes of a faulty trim channel can include damage from impact or abrasion, degradation of material finishes from repeated cleaning, or loose fittings from normal stresses of use over time.

Symptoms include:

• Gaps visible between the channel and appliance bottom
• Scuffs, cracks, or breaks in the trim piece surface
• Loose or improper positioning of channel attachment clips

Color: White

This GE replacement restores a sleek, professional look while protecting internal components from spills and debris ingress. Compatible with Hotpoint, RCA, and select Kenmore models as well, it prevents future repairs from minor aesthetic issues. Keep your range looking its best!


This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

This is the door pad. Consider replacing both when replacing trim number WB07T10230

A replacement trim vent door that covers and finishes the appliance vent opening for a clean look and proper airflow. Restores the exterior appearance and allows the vent to open and close as designed. What it does

• Acts as the exterior door/trim for the appliance vent, providing a finished opening and protection.
• Opens to allow normal exhaust airflow and closes when the appliance is idle to limit drafts and pests.
• Commonly replaced when the door or surrounding trim is cracked, warped, stuck, or no longer closes properly.
• Helps maintain proper vent function and prevent unwanted debris or small pests from entering the vent opening.

• One trim vent door assembly as shown.

• Disconnect power to the appliance (and gas if applicable) before starting any service.
• Remove any surrounding access panels or fasteners to reach the vent door; handle trim pieces carefully to avoid cosmetic damage.
• Check that the door opens/closes freely after installation and that any mounting clips or screws are secure.
• Inspect the vent duct and exhaust path for obstructions or damage.

A replacement trim vent door that restores the finished vent opening and lets the refrigerator vent operate as intended. Replaces a cracked or missing door to help maintain proper airflow and appliance appearance. What it does

• Covers the vent opening while allowing the vent to open and direct airflow inside the cabinet
• Restores proper vent movement so cold air can circulate as designed
• Replaces cracked, warped, or broken trim that can catch or stick
• Helps reduce visible gaps and improves the refrigerator's interior appearance

• One white trim vent door

• Always unplug the appliance or turn off power at the breaker before servicing
• Many trim vent doors are snap-fit; gently pry or release retaining tabs to remove the old piece
• Handle plastic parts carefully to avoid cracking; align tabs before snapping the new door into place
• You may need to remove shelves or an interior panel for access—keep fasteners organized

Color: White

Color: Bisque

The Side Door Trim is an OEM part for GE ovens. This trim piece is designed to fit along the edge of the oven door, providing a finished look and helping to seal the door properly when closed. It contributes to the overall aesthetics of the oven and ensures efficient heat retention during cooking.

Causes of a bad side door trim can include accidental impact, heat damage over time, or general wear and tear from frequent use. A damaged trim can lead to inefficient sealing, affecting the oven’s cooking performance and energy efficiency.

Symptoms of a bad side door trim include:

• Visible cracks or damage on the trim
• The oven door not sealing properly
• Heat escaping from the sides of the oven door
• The oven door appearing misaligned

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-side door trim bracket secures the exterior trim to the appliance door, restoring a flush, finished appearance and preventing the trim from coming loose. Designed to replace a damaged or missing right-hand bracket. What it does:

• Holds the door trim in place on the right side to maintain alignment and appearance
• Prevents trim gaps, vibration noise, and rattling caused by a loose or broken bracket
• Restores proper trim attachment after collision, wear, or failed fasteners
• Works with the factory trim assembly to ensure a straight, secure fit

• One right-side door trim bracket

• Use basic hand tools; retain any reusable screws or clips unless damaged
• Power off and unplug the appliance before starting work for safety
• Align the bracket and trim before tightening fasteners to avoid cracking the trim
• Replace missing or damaged clips or screws with OEM-specified fasteners

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

Oven doors utilize door hinges to open and close efficiently. There is a door hinge attached to opposite ends of the door, and the part is also connected to the range. With time, the hinges can wear out, get damaged, or break off. When the hinges are no longer functioning correctly, replacement parts are necessary to continue using the appliance.An indication that there is a problem with the door hinge on an oven door is difficulty opening or closing or a door that partially slips on one side or the other out of position. A visual inspection will determine the condition of a door hinge. The replacement of the piece is simple. Unplug the range from its power source before starting the repair. Wear gloves for protection. Check the condition of both hinges before ordering. This door hinge is an authentic OEM replacement part. It is sourced directly from the manufacturer. The piece is sold as an individual unit. The door hinge fits several different models of ranges. The replacement part is compatible with appliances produced by General Electric, Hotpoint, and RCA. It is manufactured using high-quality, durable metal materials.

The Oven Window Pack Assembly is an OEM replacement part for GE electric ranges. It provides a safe, transparent barrier for viewing cooking progress inside the oven cavity. The glass measures 17 x 7 inches.

Causes for needing replacement include cracks or chips developing over time due to consistent thermal expansion and contraction during cooking cycles. Surface scratches from harsh or abrasive cleaners are another culprit.

Symptoms of a faulty window pack include:

• Reduced visibility into the oven makes it difficult to monitor foods
• Cracks or fractures compromising the integrity of the glass
• Chips or gouges that could potentially fall into foods being cooked
• An ill-fitting window allowing heat to escape and decreasing efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges

This hex washer-head screw secures sheet-metal panels, brackets, and assemblies in your appliance. Replacing a missing, stripped, or rusted fastener restores a tight, rattle-free fit and helps keep components properly aligned during everyday use.

• Fastens panels, brackets, and assemblies to the chassis
• Helps maintain alignment and stability under normal vibration and heat
• Direct replacement for lost, damaged, or stripped hardware
• Common signs include loose or rattling panels, gaps/misalignment, or a rounded screw head

• Disconnect power; if servicing a gas appliance, also shut off gas and allow surfaces to cool
• Match the new screw to the original location; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping sheet metal
• Use an appropriate nut driver or socket for the hex head

A silicon-controlled rectifier (SCR) used on appliance control boards to regulate power to motors, igniters or other loads. Replacing a faulty SCR can restore proper power switching and steady operation of the driven component. What it does:

• Acts as a power-switching semiconductor in appliance electronic control circuits to allow current flow only when triggered.
• Enables controlled delivery of voltage/current to motors, igniters and similar loads on the control board.
• A failing SCR can cause symptoms such as no power to a motor or igniter, intermittent operation, or complete failure of the driven component.
• Match the SCR package and electrical ratings to the control board before replacing.

• Disconnect all power to the appliance before accessing control electronics to avoid shock or damage.
• Take electrostatic-discharge (ESD) precautions; handle the SCR by its body and avoid touching leads.
• Package orientation and electrical ratings on the control board and wiring before installation.

ST10-16 X 7/16"

Package of 12

Black. 8-18 AB HXW 3/8

This spacer positions and supports appliance panels and components to maintain correct alignment and clearances, helping reduce panel movement and ensure proper fit. It's a simple replacement that restores intended spacing where worn or missing. What it does

• Provides consistent spacing between panels or components to prevent rubbing or misalignment
• Helps stabilize trim, panels, or assemblies that sit flush against the cabinet
• Used when gaps, loose panels, or misaligned trim are present

• One spacer

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect surrounding fasteners and mounting points; replace any damaged screws or clips
• Install in the same orientation and location as the original spacer; do not force into place

Includes 12 washers.

This is a genuine OEM replacement screw that is to attach the oven door panels to each other. This is a fully threaded screw that fits the predrilled hole to connect the two components. The screw is used with a washer when installed. This screw does not require a nut; it connects directly into the oven part, where it has a built-in receiving nut. If this part becomes worn and breaks or is lost during repairs to the oven, it must be replaced before the oven can be reassembled.Component assembly screws like this one used in oven panels are not normally replaced. These are made of high-temperature steel and designed to last a long time; however, if the oven panels are removed to make repairs, one or more screws may become lost. If this happens, replacement screws must be purchased and installed before the oven can be used. This screw is a silver metal replacement part that is sold individually. It does not come with the washer needed to install it. Verify the number of screws needed before ordering. This screw is designed for use in ovens manufactured by General Electric and Kenmore.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
