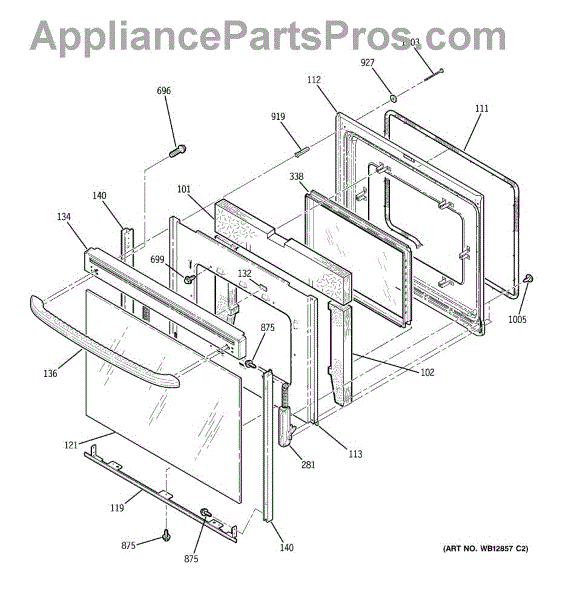

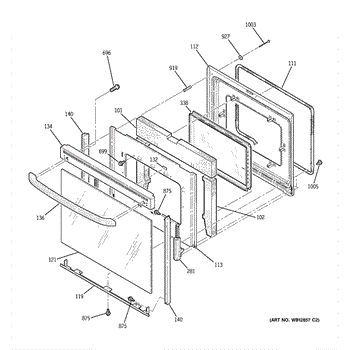

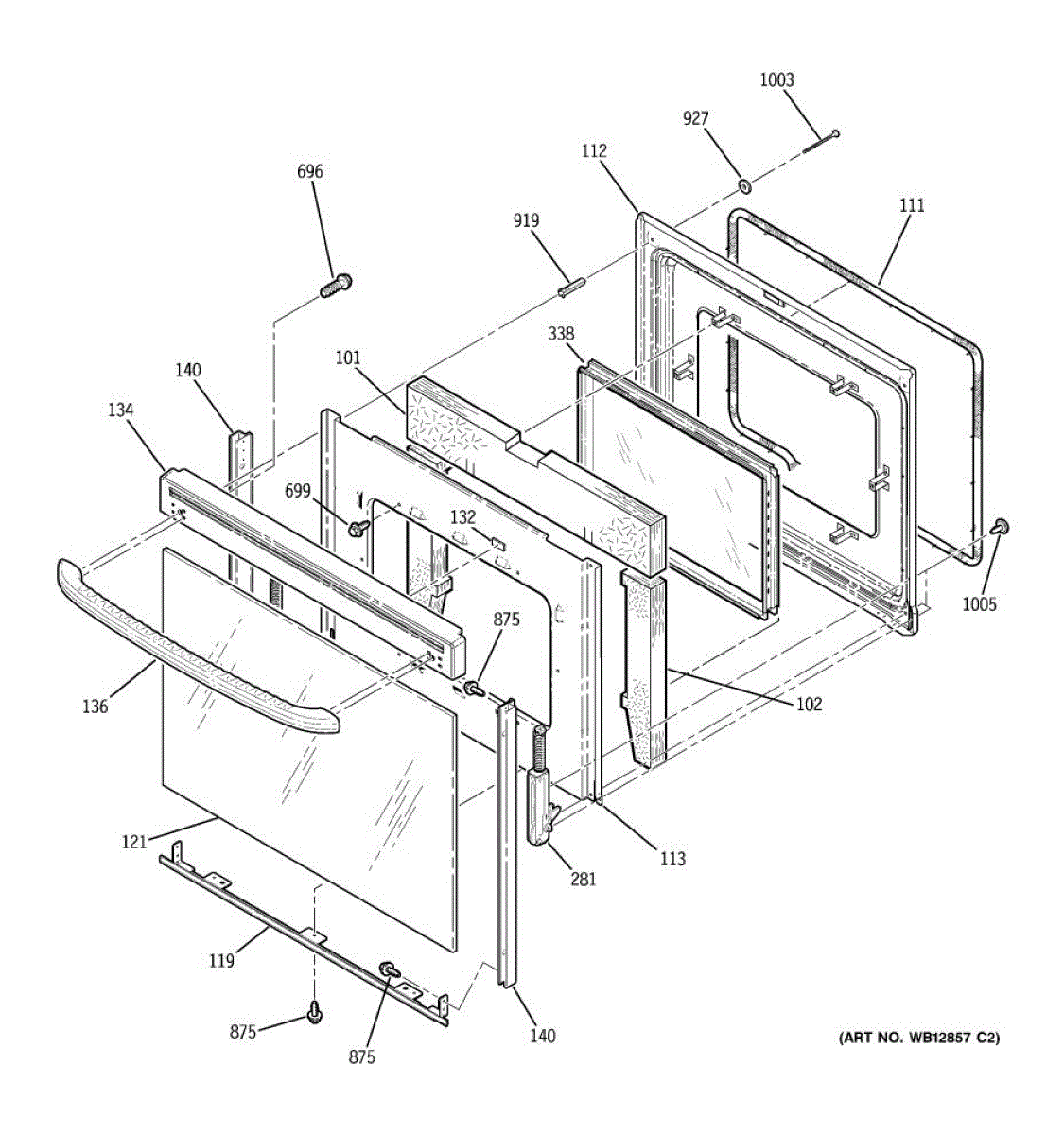

Parts for Ge JBP35BH1CT: 04 - Door Parts

Replaces brittle, burned, or grease-soaked insulation inside your oven door. Restores the thermal barrier to reduce heat loss and exterior heat.

Prevents heat loss and ensures even cooking. Replace if damaged, torn, or worn to restore oven efficiency. Confirm fit with your model number.

Bottom trim channel for range oven doors. Covers gaps and finishes the bottom exterior edge of the door. Replace if rusted, bent, cracked, or missing.

 Color: Black

The Bottom Trim Channel is an OEM part for GE ranges and wall ovens. This trim piece attaches along the bottom front edge of the oven cavity, creating a seamless facade.

The bottom trim channel is responsible for covering any unsightly gaps and providing a sleek, finished look. It also acts as a protective barrier, shielding internal electronics and insulation from accidental impacts or liquid spills on the counter below.

Symptoms of a bad bottom trim channel include:

• Drooping, loose, or improperly fitted trim piece
• Exposed internal components behind missing or damaged trim
• Liquids or debris accumulating behind or beneath the channel

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Cosmetic trim channel that covers the bottom perimeter of your range door. Replace if rusted, cracked, damaged, or missing to restore door appearance.

This is the outer glass panel that forms the exterior surface of the oven door. It provides a finished appearance and works with the inner glass to create an insulating barrier that keeps heat inside the oven cavity. Replace this panel if it is cracked, shattered, chipped, or if the white finish is damaged, which can compromise insulation and pose a safety hazard.

Consider replacing both door pads part number WB01T10026

Color: Black

Color: Bisque

Side frame trim for range oven doors. Provides structural support along door edges. Replace if cracked, broken, or missing to restore door appearance.

Replace cracked, rusted, or broken side door trim on your range oven. Installs along the edge of the door frame for a finished look and proper seal.

Replacement oven door hinge supports and controls door movement. Install if your hinge is worn, broken, or causing the door to stick, sag, or misalign.

Replace your cracked or broken oven door window pack assembly. Includes glass and gasket for a clear view while maintaining internal temperature and insulation.

ST10-16 X 7/16"

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Replacement mounting spacer for electric ranges. Positions and supports panels to maintain alignment and proper fit. Replaces worn, missing, or damaged spacers.

Includes 12 washers.

Attaches oven door panels together on your range. Replace this threaded screw if the original is stripped, missing, or no longer holding panels secure.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
