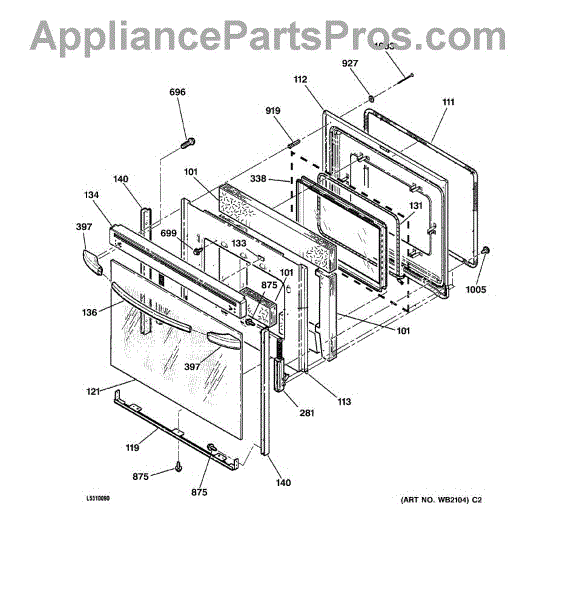

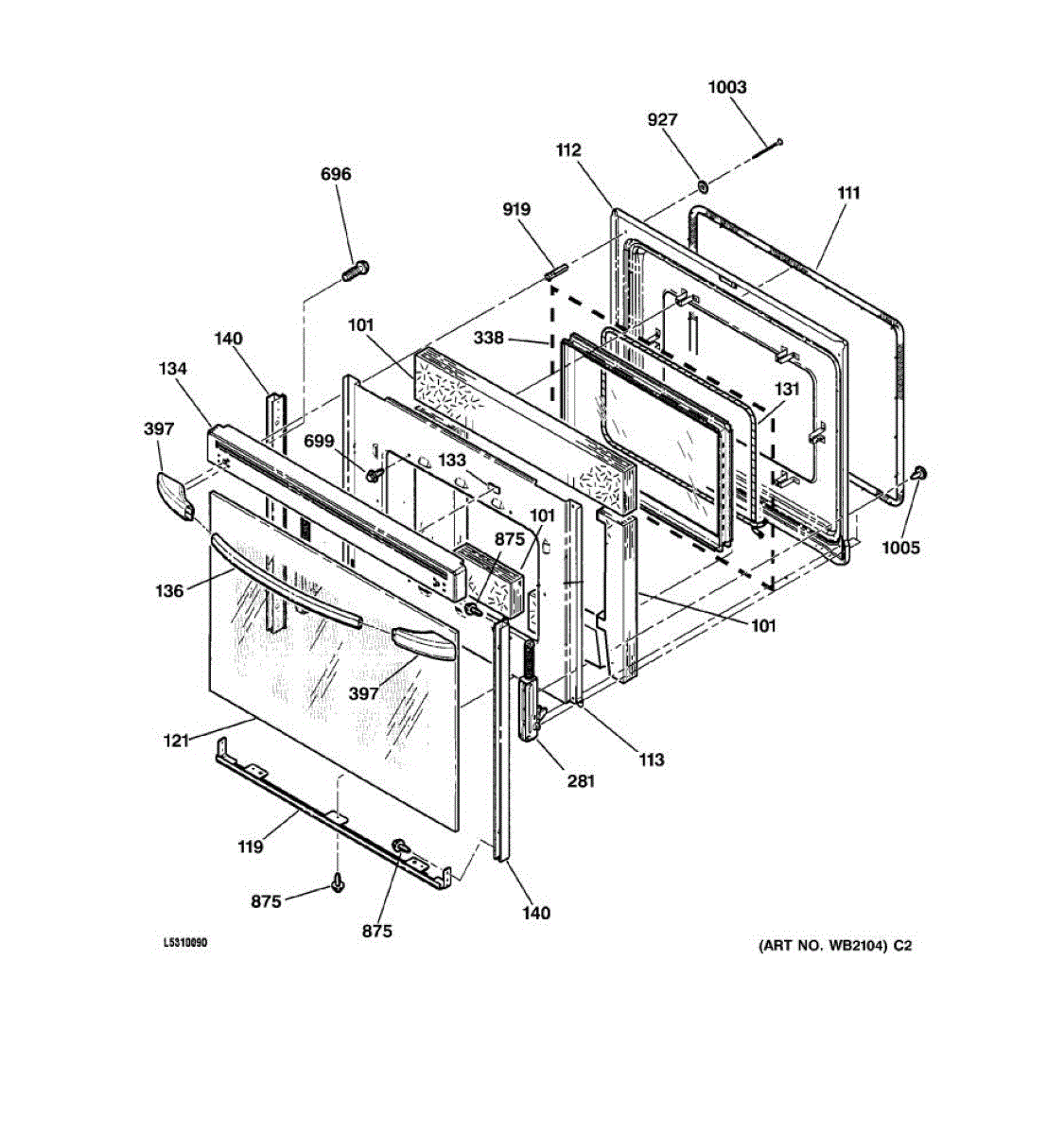

Parts for Ge JBP78BB1BB: 04 - Door Parts

This oven door insulation restores the heat barrier inside the door so your oven can reach and maintain temperature while helping keep the exterior cooler. Replace brittle, burned, or grease-soaked insulation to reduce heat loss and odors.

• Provides a thermal barrier between the inner and outer door panels
• Helps the oven reach and hold set temperature by reducing heat transfer through the door
• Common signs it's needed include excessive exterior door heat, lingering odors/smoke from past spills, or visibly deteriorated/missing insulation
• Replacing contaminated insulation can reduce recurring odors during preheat and baking

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Remove the oven door per your model's instructions and place it on a padded surface for disassembly
• Wear cut-resistant gloves and eye protection; handle insulation gently to limit airborne fibers
• Note the original orientation and any retainers; install the new insulation the same way without compressing it, then reassemble

The Oven Door Gasket is an OEM part for GE ranges. This seal prevents heat from escaping the oven cavity when baking or broiling. The gasket helps maintain temperatures for more efficient cooking and reliable operation. The gasket measures approximately 84" long.

Causes of a bad gasket can include deterioration over prolonged high-heat use, damage due to abrasion or impact, or warping from moisture exposure over time.

Symptoms of a bad oven door gasket include:

• Excessive heat loss from around the oven door when in use
• Difficulty keeping desired baking temperatures
• Cooler/cold air felt escaping around the door seal
• Visible cracks, splits, or gaps in the gasket seal

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

 Color: Black

The Bottom Trim Channel is an OEM part for GE ranges and wall ovens. This trim piece attaches along the bottom front edge of the oven cavity, creating a seamless facade.

The bottom trim channel is responsible for covering any unsightly gaps and providing a sleek, finished look. It also acts as a protective barrier, shielding internal electronics and insulation from accidental impacts or liquid spills on the counter below.

Symptoms of a bad bottom trim channel include:

• Drooping, loose, or improperly fitted trim piece
• Exposed internal components behind missing or damaged trim
• Liquids or debris accumulating behind or beneath the channel

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

This is the door pad. Consider replacing both when replacing trim number WB07T10230

This is the door pad. Consider replacing both when replacing trim number WB07T10230

The Handle is an OEM part for  GE ovens and ranges. It serves as the primary means of opening and closing the oven door, allowing you to access the interior for cooking, cleaning, or maintenance purposes. Order 2 of part number AP3623187 for the end caps.

Symptoms of a bad Oven Handle:

• Loose or wobbly handle
• Difficulty opening or closing the oven door
• Cracks or breaks in the handle material
•  Sharp edges posing a potential safety hazard

Causes of a bad oven handle can include excessive force during operation, wear and tear from regular use, or accidental impacts that may lead to cracks or breakage.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement door hinge supports and controls the oven door's movement so it opens smoothly and closes securely against the gasket. Replacing a worn hinge restores proper alignment and sealing to help maintain consistent temperatures and safe operation. What it does:

• Provides the pivot and spring tension for controlled door motion
• Helps the door close fully to maintain a proper seal
• Promotes smooth, balanced opening to prevent slamming or binding
• Common symptoms: door won't close fully, sits uneven, drops open, or feels loose/noisy

• One door hinge

• Disconnect power and allow the appliance to cool completely before servicing
• Remove the door per your model's instructions; support the door and engage hinge locks if equipped
• Replace the hinge using existing mounting hardware; inspect hinge receivers for wear
• Reinstall the door and verify alignment and gasket contact; replacing both hinges together can help maintain even tension

The Oven Door Window Pack Assembly is an OEM part for GE ovens. This assembly includes the glass window and necessary components to ensure a clear view into the oven while maintaining the internal temperature and providing insulation. The glass measures 19" x 12".

Causes of a bad window pack can include thermal stress from repeated heating and cooling cycles, physical impacts causing cracks or breaks, or seal failure leading to fogging or heat loss.

Symptoms of a bad window pack assembly include:

• Visible cracks or chips in the glass
• Fogging or condensation between glass layers
• Heat escaping from the oven door
• Difficulty seeing into the oven during cooking

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Door Handle Endcap is an OEM part for GE ovens. This endcap attaches to the ends of the oven door handle, providing a finished look and ensuring a secure grip for opening and closing the oven door.

You should replace the oven door handle endcap if it becomes cracked, broken, or loose. Causes of a bad endcap can include frequent use, accidental impact, or exposure to high temperatures that can weaken the material over time.

Symptoms of a bad oven door handle endcap include:

• The handle feeling loose or wobbly
• Cracks or visible damage on the endcap
• Difficulty in opening or closing the oven door
• The endcap detaching from the handle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

Black. 8-18 AB HXW 3/8

Includes 12 washers.

The 10-16 Pl Pnt 2.5 S Screw is an OEM replacement part for GE ranges.

Causes of damaged or worn oven door screws include repeated exposure to high-temperature fluctuations during cooking cycles. This repeated heating and cooling puts repetitive stresses on fasteners over time.

Symptoms of bad oven door screws include:

• Loosened or detached door assemblies that will not seal properly
• Misaligned controls or glass panels suffering fitment issues
• Potential burns or cuts from accidental door detachment while in use

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
