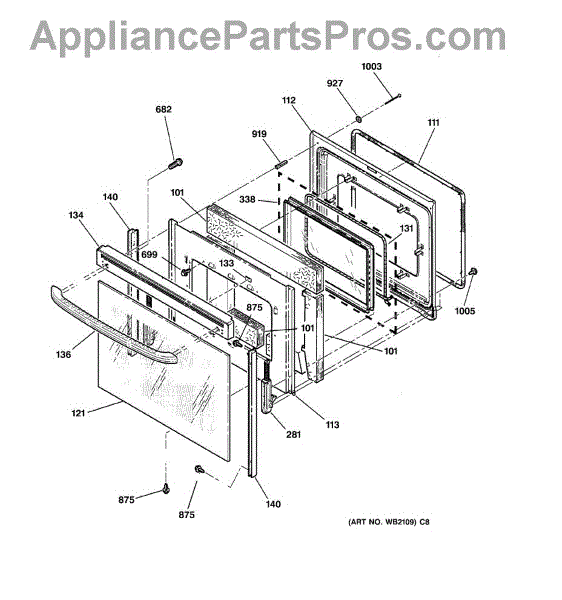

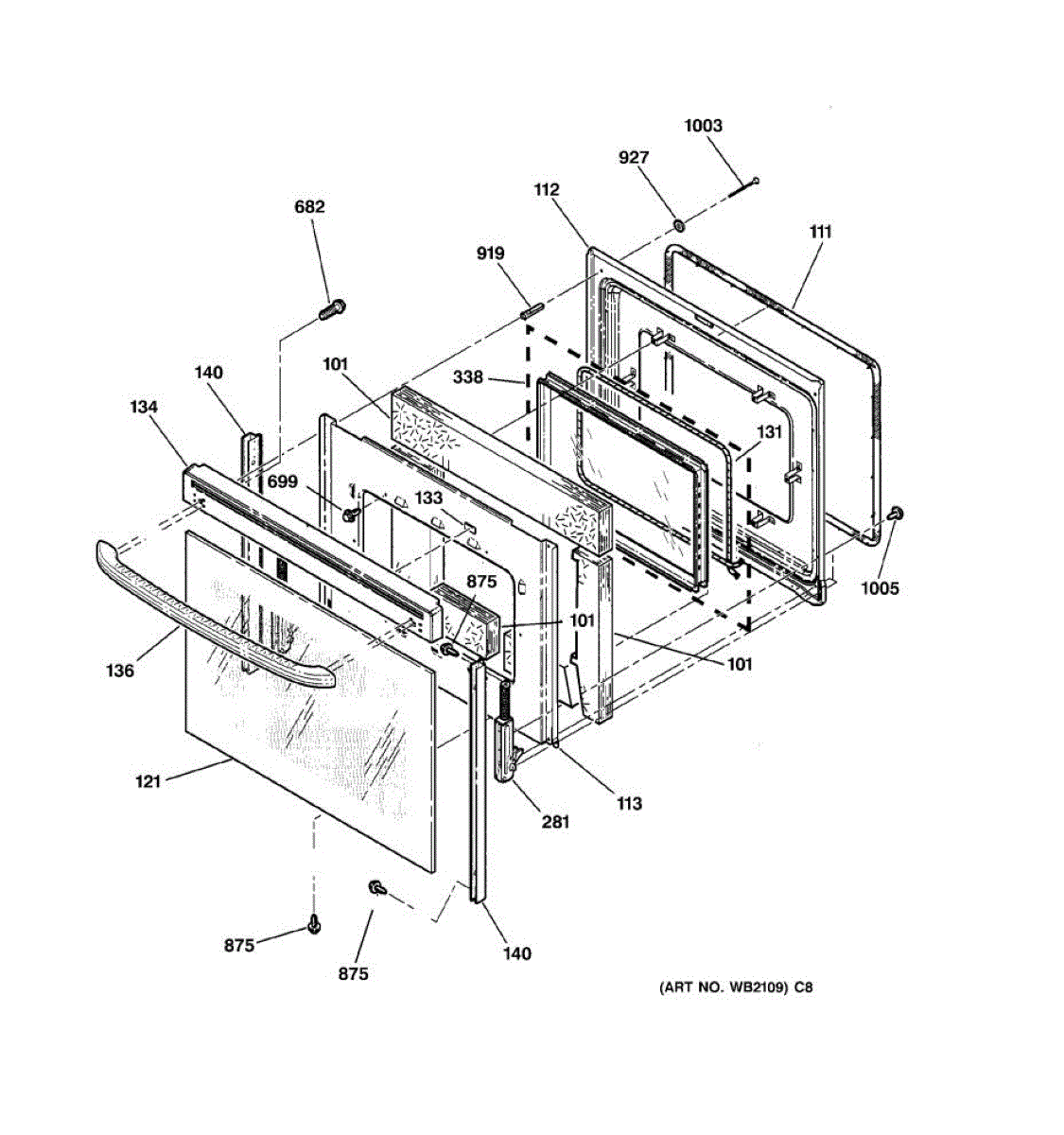

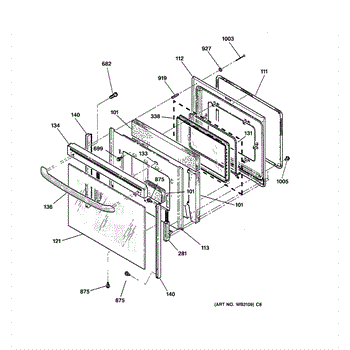

Parts for Ge JBP79CB4CC: 04 - Door Parts

This oven door insulation restores the heat barrier inside the door so your oven can reach and maintain temperature while helping keep the exterior cooler. Replace brittle, burned, or grease-soaked insulation to reduce heat loss and odors.

• Provides a thermal barrier between the inner and outer door panels
• Helps the oven reach and hold set temperature by reducing heat transfer through the door
• Common signs it's needed include excessive exterior door heat, lingering odors/smoke from past spills, or visibly deteriorated/missing insulation
• Replacing contaminated insulation can reduce recurring odors during preheat and baking

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Remove the oven door per your model's instructions and place it on a padded surface for disassembly
• Wear cut-resistant gloves and eye protection; handle insulation gently to limit airborne fibers
• Note the original orientation and any retainers; install the new insulation the same way without compressing it, then reassemble

The Oven Door Seal is an OEM part for GE ovens. This seal prevents heat from escaping during cooking, ensuring that the oven maintains a consistent temperature for efficient and even cooking.

A compromised Oven Door Seal can result from several factors, including normal wear and tear from regular use, exposure to high temperatures that degrade the material over time, or accidental damage such as tears or cuts.

Symptoms of a failing Oven Door Seal include:

• Visible wear or damage to the seal
• Heat escaping from the oven door during use
• An increase in cooking times or uneven cooking results
• A noticeable increase in energy consumption as the oven works harder to maintain temperatures

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This outer oven door glass is the exterior glass panel that restores your range or wall oven's appearance and helps keep heat inside the oven. It provides a clear viewing surface and protects the inner door components. What it does:

• Replaces cracked, chipped, scratched, or shattered outer door glass that affects appearance or safety
• Restores a clean viewing surface so you can check cooking progress without opening the door
• Helps maintain proper heat containment by providing the exterior barrier of the oven door
• Protects internal door parts, insulation, and electronics from direct contact and debris

• Disconnect power to the appliance before starting any repair.
• Handle glass with care; wear gloves and eye protection to avoid cuts from sharp edges.
• Installation typically requires removing the oven door and fasteners; keep track of screws and clips.

Color: Bisque

The Bottom trim channel is an OEM part for GE ranges. This trim piece provides an aesthetic finishing touch to the bottom exterior of the oven, covering any gaps and protecting internal components.

Causes of a bad trim chanel can include normal wear and tear over time from regular cleaning or accidental impacts. Plastic trim pieces can fade or become discolored with exposure to heat and cleaning chemicals.

Symptoms of a bad trim chanel include:

• Visible gaps along the bottom front edge of the oven
• Scratches, cracks or fading of the trim surface
• Looseness or inability to snap tightly into place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

This is the door pad. Consider replacing both when replacing trim number WB07T10230

Color: Bisque

This replacement door hinge supports and controls the oven door's movement so it opens smoothly and closes securely against the gasket. Replacing a worn hinge restores proper alignment and sealing to help maintain consistent temperatures and safe operation. What it does:

• Provides the pivot and spring tension for controlled door motion
• Helps the door close fully to maintain a proper seal
• Promotes smooth, balanced opening to prevent slamming or binding
• Common symptoms: door won't close fully, sits uneven, drops open, or feels loose/noisy

• One door hinge

• Disconnect power and allow the appliance to cool completely before servicing
• Remove the door per your model's instructions; support the door and engage hinge locks if equipped
• Replace the hinge using existing mounting hardware; inspect hinge receivers for wear
• Reinstall the door and verify alignment and gasket contact; replacing both hinges together can help maintain even tension

The Oven Door Window Pack Assembly is an OEM part for GE ovens. This assembly includes the glass window and necessary components to ensure a clear view into the oven while maintaining the internal temperature and providing insulation. The glass measures 19" x 12".

Causes of a bad window pack can include thermal stress from repeated heating and cooling cycles, physical impacts causing cracks or breaks, or seal failure leading to fogging or heat loss.

Symptoms of a bad window pack assembly include:

• Visible cracks or chips in the glass
• Fogging or condensation between glass layers
• Heat escaping from the oven door
• Difficulty seeing into the oven during cooking

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

ST10-16 X 7/16"

Package of 12

Black. 8-18 AB HXW 3/8

Includes 12 washers.

The 10-16 Pl Pnt 2.5 S Screw is an OEM replacement part for GE ranges.

Causes of damaged or worn oven door screws include repeated exposure to high-temperature fluctuations during cooking cycles. This repeated heating and cooling puts repetitive stresses on fasteners over time.

Symptoms of bad oven door screws include:

• Loosened or detached door assemblies that will not seal properly
• Misaligned controls or glass panels suffering fitment issues
• Potential burns or cuts from accidental door detachment while in use

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
