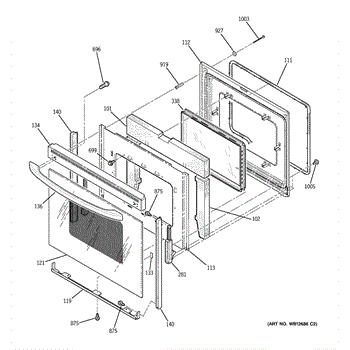

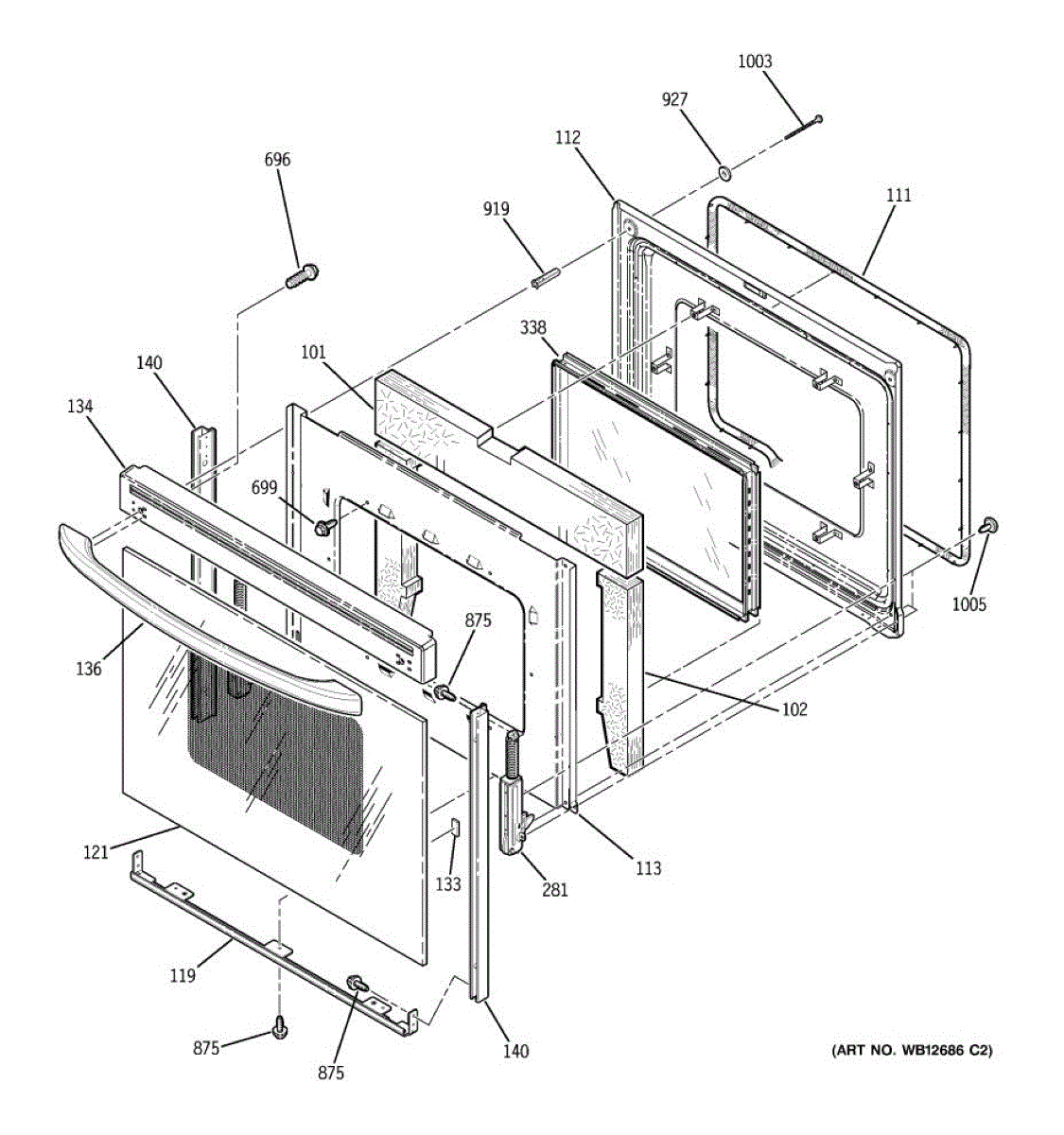

Parts for Ge JBP84WH1WW: 04 - Door Parts

Replaces brittle, burned, or grease-soaked insulation inside your oven door. Restores the thermal barrier to reduce heat loss and exterior heat.

Prevents heat loss and ensures even cooking. Replace if damaged, torn, or worn to restore oven efficiency. Confirm fit with your model number.

Cosmetic trim channel that covers the bottom perimeter of your range door. Replace if rusted, cracked, damaged, or missing to restore door appearance.

This is the outer glass panel that forms the exterior surface of the oven door. It provides a finished appearance and works with the inner glass to create an insulating barrier that keeps heat inside the oven cavity. Replace this panel if it is cracked, shattered, chipped, or if the white finish is damaged, which can compromise insulation and pose a safety hazard.

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

Consider replacing both door pads part number WB01T10026

Color: White

Replace cracked, rusted, or broken side door trim on your range oven. Installs along the edge of the door frame for a finished look and proper seal.

Replacement oven door hinge supports and controls door movement. Install if your hinge is worn, broken, or causing the door to stick, sag, or misalign.

Replace your cracked or broken oven door window pack assembly. Includes glass and gasket for a clear view while maintaining internal temperature and insulation.

ST10-16 X 7/16"

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Replacement mounting spacer for electric ranges. Positions and supports panels to maintain alignment and proper fit. Replaces worn, missing, or damaged spacers.

Includes 12 washers.

Attaches oven door panels together on your range. Replace this threaded screw if the original is stripped, missing, or no longer holding panels secure.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
