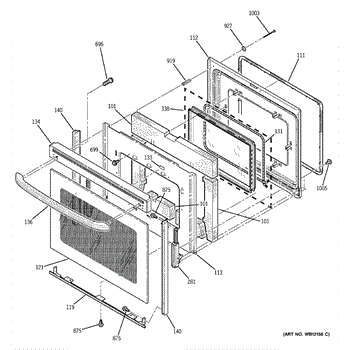

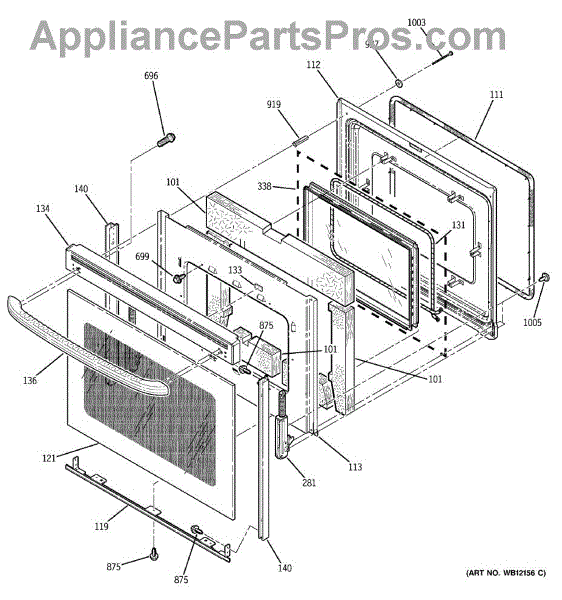

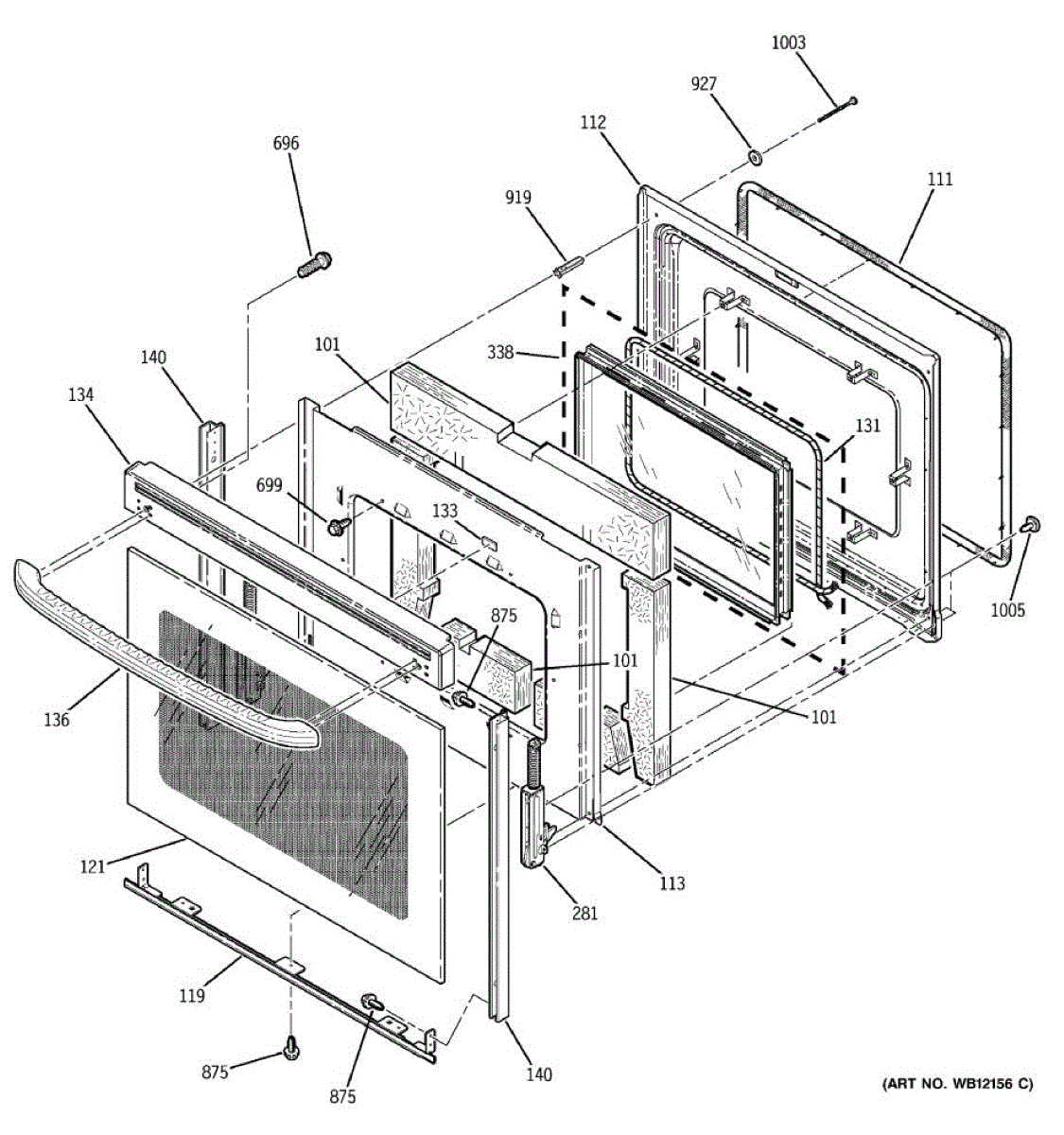

Parts for Ge JBP85TD1WW: 04 - Door Parts

Replace worn or damaged door insulation on your range. This sound dampening material installs inside the oven door to improve heat retention and reduce noise.

Replaces brittle, burned, or grease-soaked insulation inside your oven door. Restores the thermal barrier to reduce heat loss and exterior heat.

Prevents heat loss and ensures even cooking. Replace if damaged, torn, or worn to restore oven efficiency. Confirm fit with your model number.

Cosmetic trim channel that covers the bottom perimeter of your range door. Replace if rusted, cracked, damaged, or missing to restore door appearance.

Replace your cracked, shattered, or broken range oven door glass panel. This inner glass assembly installs between the door frames when damaged or missing.

The oven door gasket is the flexible rubber or silicone seal that runs around the perimeter of your oven door. It creates an airtight barrier between the door and the oven cavity to keep heat inside during cooking. Replace it if your oven is losing heat, takes longer to cook food, or you can feel warmth escaping around the door edges.

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

Consider replacing both door pads part number WB01T10026

White oven door handle that mounts to the front of your oven door. Replace if yours is cracked, broken, discolored, or missing for a complete appearance.

Replace cracked, rusted, or broken side door trim on your range oven. Installs along the edge of the door frame for a finished look and proper seal.

Replacement oven door hinge supports and controls door movement. Install if your hinge is worn, broken, or causing the door to stick, sag, or misalign.

Replace your cracked or broken oven door window pack assembly. Includes glass and gasket for a clear view while maintaining internal temperature and insulation.

ST10-16 X 7/16"

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Includes 12 washers.

The 10-16 Pl Pnt 2.5 S Screw is an OEM replacement part for GE ranges.

Causes of damaged or worn oven door screws include repeated exposure to high-temperature fluctuations during cooking cycles. This repeated heating and cooling puts repetitive stresses on fasteners over time.

Symptoms of bad oven door screws include:

• Loosened or detached door assemblies that will not seal properly
• Misaligned controls or glass panels suffering fitment issues
• Potential burns or cuts from accidental door detachment while in use

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
