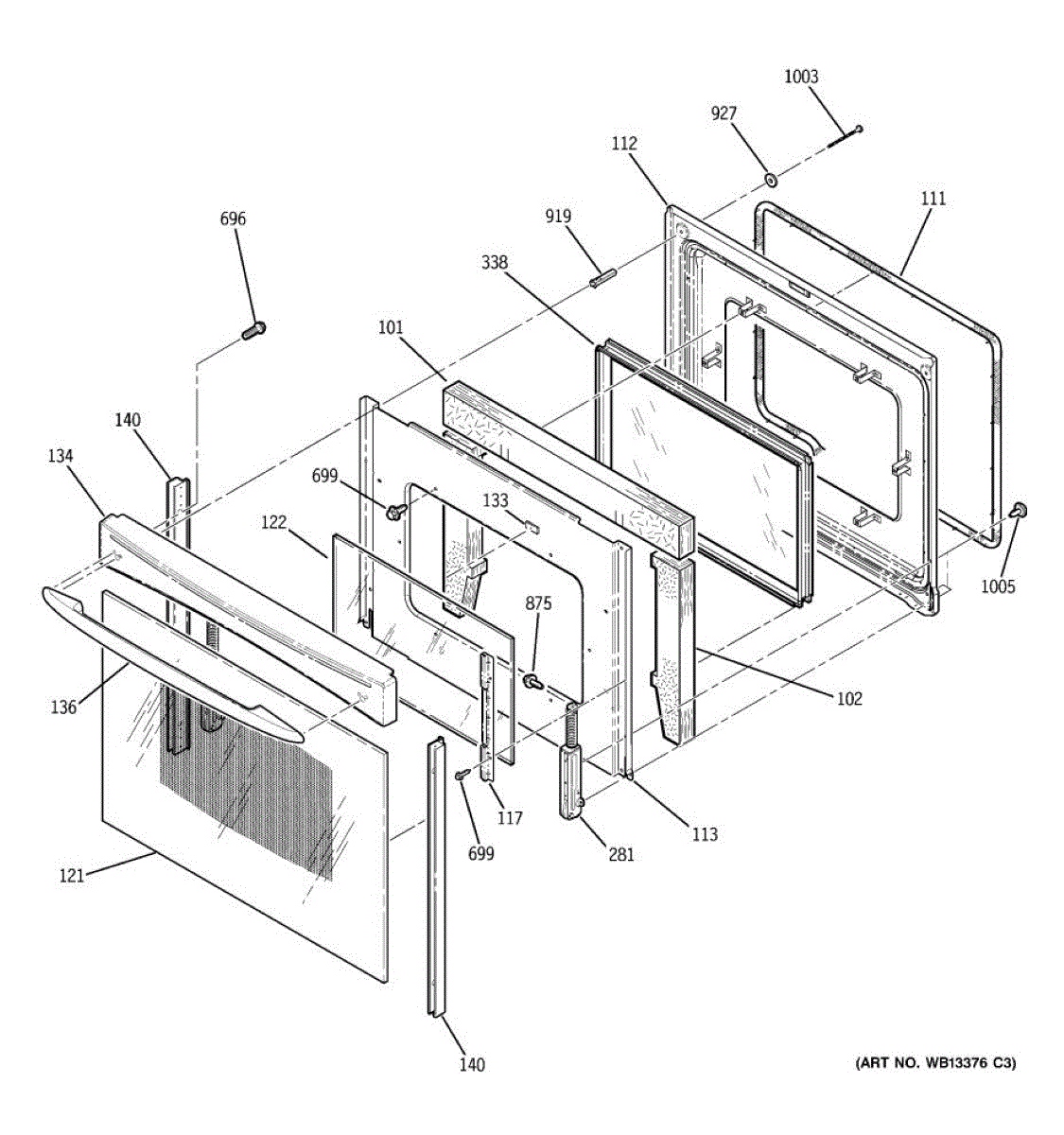

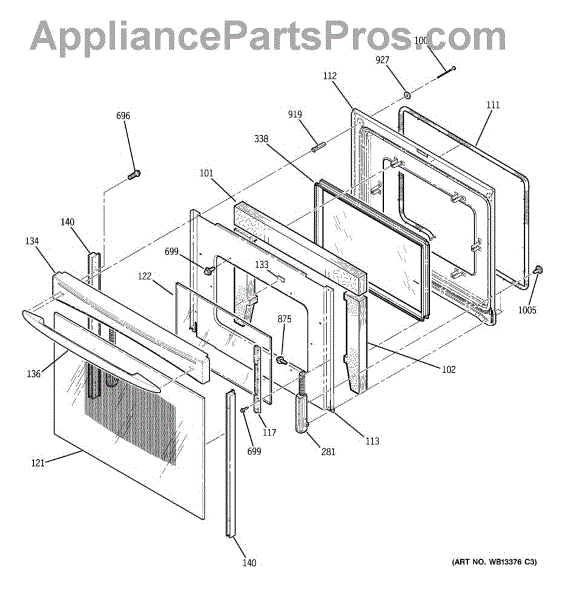

Parts for Ge JCB909BK3BB: 04 - Door Parts

This oven door insulation restores the heat barrier inside the door so your oven can reach and maintain temperature while helping keep the exterior cooler. Replace brittle, burned, or grease-soaked insulation to reduce heat loss and odors.

• Provides a thermal barrier between the inner and outer door panels
• Helps the oven reach and hold set temperature by reducing heat transfer through the door
• Common signs it's needed include excessive exterior door heat, lingering odors/smoke from past spills, or visibly deteriorated/missing insulation
• Replacing contaminated insulation can reduce recurring odors during preheat and baking

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Remove the oven door per your model's instructions and place it on a padded surface for disassembly
• Wear cut-resistant gloves and eye protection; handle insulation gently to limit airborne fibers
• Note the original orientation and any retainers; install the new insulation the same way without compressing it, then reassemble

This door insulation lines the inside of the oven door to reduce heat loss and help maintain stable temperatures. Replace a torn, burnt, or saturated pad to restore heating performance and keep the outer door cooler.

• Provides a thermal barrier between the oven cavity and the outer door panel
• Helps the oven reach and hold set temperature more consistently
• Helps reduce heat felt on the exterior door and nearby controls
• Replace if insulation is damaged, compressed, burnt, or grease-soaked; common signs include heat escaping at the door, longer preheat, or temperature swings

• Disconnect power/gas and allow the range to cool completely
• Remove the oven door; place it on a padded surface
• Separate door panels; note insulation routing and any cutouts before removal
• Position the new pad without over-compressing; keep clear of the window and latch, reassemble, and ensure hinges are fully seated

The Oven Door Seal is an OEM part for GE ovens. This seal prevents heat from escaping during cooking, ensuring that the oven maintains a consistent temperature for efficient and even cooking.

A compromised Oven Door Seal can result from several factors, including normal wear and tear from regular use, exposure to high temperatures that degrade the material over time, or accidental damage such as tears or cuts.

Symptoms of a failing Oven Door Seal include:

• Visible wear or damage to the seal
• Heat escaping from the oven door during use
• An increase in cooking times or uneven cooking results
• A noticeable increase in energy consumption as the oven works harder to maintain temperatures

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bonded front panel assembly restores the appliance's finished appearance and provides a sealed surface for the control area. It replaces cracked, delaminated, or cosmetically damaged panels to help make the unit look and function like new. What it does:

• Replaces a cracked, warped, or delaminated front/control panel
• Provides a bonded, finished surface that protects internal components and control hardware
• Restores proper mounting and alignment for buttons, displays, and trim
• Helps stop moisture and grime from entering behind the control area

• Disconnect power to the appliance before starting any work
• Handle panel edges carefully; edges or cutouts may be sharp
• Remove adjacent trim, bezels, or door components as needed for access
• Align tabs and fasteners before tightening to avoid panel damage; use gentle pressure to seat bonded areas

This inner oven door glass is a replacement inner-pane that restores visibility and helps contain heat inside the oven cavity. It fits into the oven door assembly and replaces damaged or cracked inner glass for safe, functional use. What it does:

• Replaces cracked, broken or fogged inner oven door glass to restore clear viewing of the cooking chamber
• Helps maintain proper heat containment when installed correctly
• Works with the oven door assembly to preserve insulation and door integrity
• Reduces heat transfer to the outer door surface when used as part of a complete door repair

• Allow the appliance to cool and disconnect power before starting any repair
• Handle glass carefully; wear cut-resistant gloves and eye protection
• Installation typically requires removing the oven door and disassembling the door panels.

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

This foam tape seals and cushions the oven door assembly to reduce vibration and help keep the door glass and inner components stable. It restores proper spacing and helps reduce rattling or light air leaks around the door. What it does:

• Provides a soft, compressible seal between the door and frame to reduce noise and movement
• Cushions and protects glass and trim from contact and vibration
• Helps limit minor air leakage that can allow heat or odors to escape
• Commonly used when door trim or glass is loose, rattling, or shows visible gaps

• One adhesive-backed foam tape strip

• Clean and dry mating surfaces before applying to ensure good adhesive contact
• Measure and trim to fit; press firmly along the full length for proper adhesion
• Replace only with the same style of tape—do not use electrical or non-heat-rated foam in high-temperature areas
• Disconnect power/cool the appliance before working on the door assembly to avoid burns or injury

This is the door pad. Consider replacing both when replacing trim number WB07T10230

The Drawer Handle is an OEM part for GE ranges. This handle is designed to provide a secure and comfortable grip for opening and closing the storage drawer.

Causes of a bad drawer handle can include regular wear and tear, physical damage from impacts, or exposure to high temperatures.

Symptoms of a bad drawer handle include:

• The handle becoming loose or wobbly
• Visible cracks or breaks in the handle material
• Difficulty in gripping the handle securely
• The handle detaching from the drawer

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This door hinge secures and aligns an appliance door to restore smooth opening and closing. It replaces a worn or damaged hinge to help eliminate door sag and improve seal alignment for reliable operation. What it does:

• Provides a stable pivot point so the door opens and closes smoothly
• Keeps the door aligned to prevent dragging, uneven gaps, or improper sealing
• Reduces noise and sticking caused by a bent or worn hinge
• Helps restore proper door fit that can affect temperature control on sealed compartments

• Disconnect power to the appliance before starting any repair
• Support the door while removing and installing the hinge to prevent dropping or damage
• Use appropriate hand tools and tighten fasteners securely but do not overtighten

The Window Pack Assembly is an OEM part for GE ranges and ovens. It serves as the inner glass component of the oven door, allowing you to observe the cooking process while providing insulation and protection. It consists of an inner glass panel, frame, and seals to ensure proper insulation and prevent heat loss.

Causes of a faulty window pack assembly can include accidental impact, cracks, or damage to the inner glass panel or frame. These factors can compromise the visibility, insulation, and safety of the oven.

Symptoms of a bad window pack assembly may include:

• Cracked or shattered inner glass panel
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This hex washer-head screw secures sheet-metal panels, brackets, and assemblies in your appliance. Replacing a missing, stripped, or rusted fastener restores a tight, rattle-free fit and helps keep components properly aligned during everyday use.

• Fastens panels, brackets, and assemblies to the chassis
• Helps maintain alignment and stability under normal vibration and heat
• Direct replacement for lost, damaged, or stripped hardware
• Common signs include loose or rattling panels, gaps/misalignment, or a rounded screw head

• Disconnect power; if servicing a gas appliance, also shut off gas and allow surfaces to cool
• Match the new screw to the original location; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping sheet metal
• Use an appropriate nut driver or socket for the hex head

ST10-16 X 7/16"

Package of 12

Black. 8-18 AB HXW 3/8

This spacer positions and supports appliance panels and components to maintain correct alignment and clearances, helping reduce panel movement and ensure proper fit. It's a simple replacement that restores intended spacing where worn or missing. What it does

• Provides consistent spacing between panels or components to prevent rubbing or misalignment
• Helps stabilize trim, panels, or assemblies that sit flush against the cabinet
• Used when gaps, loose panels, or misaligned trim are present

• One spacer

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect surrounding fasteners and mounting points; replace any damaged screws or clips
• Install in the same orientation and location as the original spacer; do not force into place

Includes 12 washers.

The 10-16 Pl Pnt 2.5 S Screw is an OEM replacement part for GE ranges.

Causes of damaged or worn oven door screws include repeated exposure to high-temperature fluctuations during cooking cycles. This repeated heating and cooling puts repetitive stresses on fasteners over time.

Symptoms of bad oven door screws include:

• Loosened or detached door assemblies that will not seal properly
• Misaligned controls or glass panels suffering fitment issues
• Potential burns or cuts from accidental door detachment while in use

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
