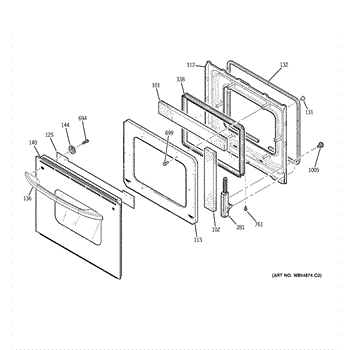

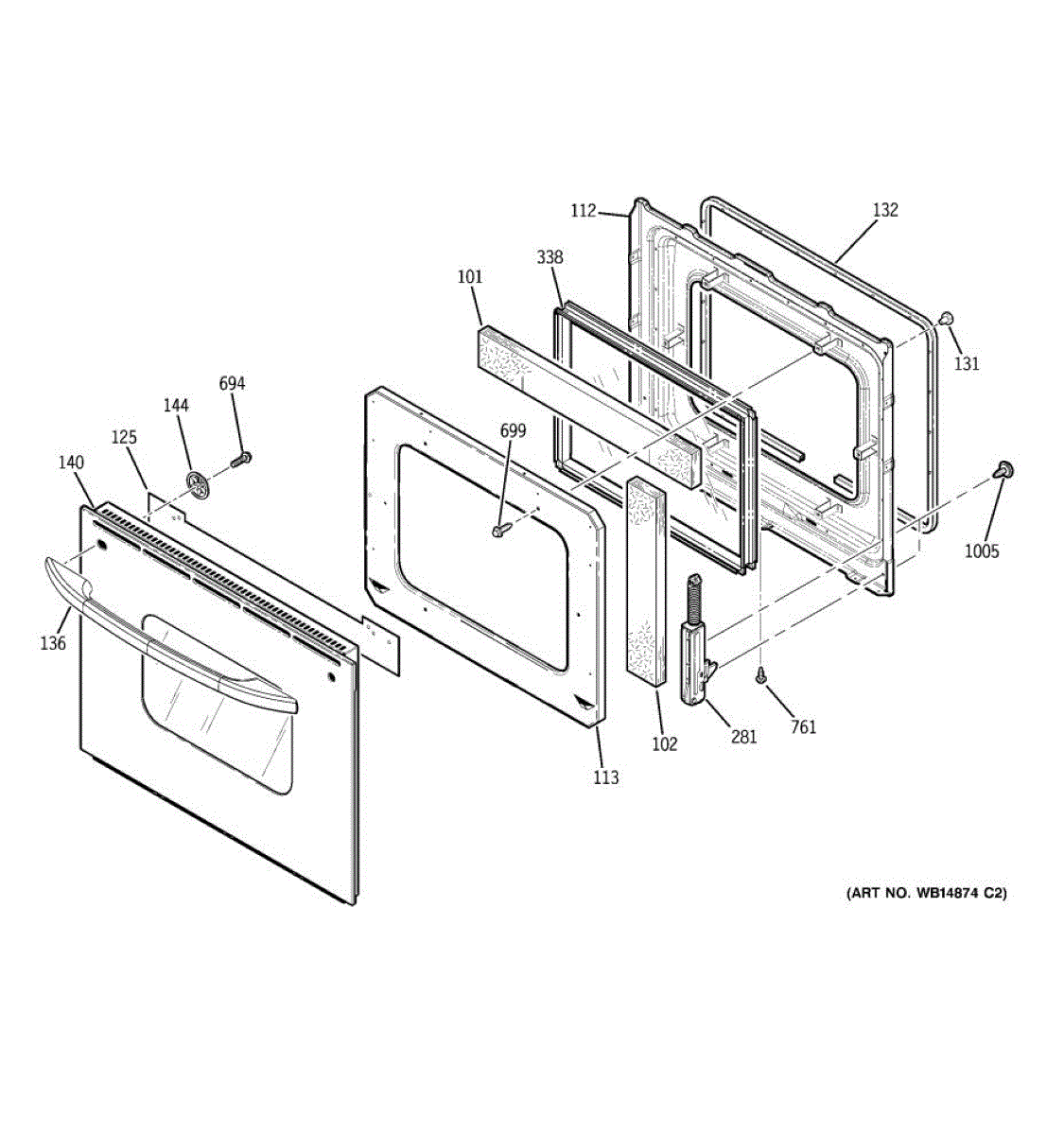

Parts for Ge JKP30DP2CC: 03 - Door Parts

This top oven door insulation replaces the upper thermal liner inside the oven door to help retain heat and improve oven temperature stability for more even cooking. It restores proper door insulation where the original is missing or damaged. What it does:

• Replaces the top section of the oven door insulation to reduce heat loss through the door
• Helps maintain oven temperature for more consistent baking and roasting
• Reduces exterior door heat and minimizes risk of hot spots on the door surface
• Addresses symptoms like excessive oven heat loss, longer preheat times, or a noticeably thin/damaged door interior

• One top oven door insulation piece

• Disconnect power to the appliance and allow the oven and door to cool completely before starting
• Install requires removing the oven door and some fasteners—handle glass and clips carefully to avoid damage
• Wear gloves to protect from sharp edges and insulation fibers
• Verify proper fit and seal after installation

This foam tape seals and cushions the oven door assembly to reduce vibration and help keep the door glass and inner components stable. It restores proper spacing and helps reduce rattling or light air leaks around the door. What it does:

• Provides a soft, compressible seal between the door and frame to reduce noise and movement
• Cushions and protects glass and trim from contact and vibration
• Helps limit minor air leakage that can allow heat or odors to escape
• Commonly used when door trim or glass is loose, rattling, or shows visible gaps

• One adhesive-backed foam tape strip

• Clean and dry mating surfaces before applying to ensure good adhesive contact
• Measure and trim to fit; press firmly along the full length for proper adhesion
• Replace only with the same style of tape—do not use electrical or non-heat-rated foam in high-temperature areas
• Disconnect power/cool the appliance before working on the door assembly to avoid burns or injury

This oven door gasket seals the perimeter of the door to keep heat inside the cavity. Replacing a worn seal helps maintain consistent temperatures and proper preheat, improving baking performance and preventing heat from leaking around the door.

• Creates a heat-resistant seal between the oven door and front frame
• Helps maintain set temperature and stable preheat times
• Reduces heat loss and air leaks around the door
• Common symptoms: visible tears or fraying, flattened/hardened gasket, gaps around the door, longer preheat or cook times

• Disconnect power or gas and allow the oven to cool completely before starting.
• Open the door and carefully remove the old gasket; note the orientation of ends/clips for reinstallation.
• Clean the gasket channel/retainer of debris for a proper fit.
• Install without stretching; seat corners fully and ensure the ends meet snugly for a continuous seal.

A door handle spacer that fits behind a range of GE appliance handles to ensure correct fit and alignment, restoring a snug, finished appearance. Helps keep the handle positioned and prevents contact rubbing. What it does:

• Positions the door handle at the correct distance from the door surface for proper fit and operation
• Helps prevent handle wobble, rubbing, and cosmetic gaps
• Supports secure attachment of the handle to the door assembly
• Useful when replacing a damaged or missing spacer during handle repair

• One door handle spacer

• Install with the handle hardware in the correct order; confirm orientation before tightening
• Use proper-size screwdrivers; avoid over-tightening fasteners to prevent cracking the spacer
• Disconnect power or follow appliance-specific safety instructions when working near electrical components or heating elements
• Replace those components as well for a reliable repair

This left-side door hinge secures and supports the appliance door, keeping it aligned for proper sealing and smooth opening. Replacing a worn hinge restores correct door fit and helps prevent gaps or uneven closing. What it does

• Supports the door's weight and guides its swing on the left side
• Maintains proper door alignment to preserve the seal and internal temperature
• Reduces sagging, rubbing, or binding when opening and closing
• Helps eliminate unusual door noises caused by worn pivot points

• Disconnect power before starting and remove food/shelves as needed to safely access the hinge
• Support the door while removing or installing the hinge to avoid damage or injury
• Use the correct tools and tighten fasteners securely but avoid over-torquing
• Handle carefully if the door has glass panels or wiring.

The Window Pack Assembly is an OEM part for GE ranges. This part allows you to monitor your food while it cooks without opening the door and letting heat escape. The assembly ensures clear visibility and helps maintain the oven's internal temperature for consistent cooking results.

Causes of a bad window pack can include accidental impacts, thermal stress from repeated heating and cooling cycles, or manufacturing defects.

Symptoms of a bad window pack assembly include:

• Cracks or breaks in the glass
• Fogging or condensation between the glass layers
• Difficulty in seeing through the window
• Heat escaping from the door area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hex-washer-head screw secures appliance components and panels. The correct 10-16 thread, 1-inch length fastener restores a tight, factory fit when an original screw is missing, stripped, or corroded.

• Fastens brackets, shields, trim, or panels to the appliance chassis
• Helps resolve rattling, gaps, or loose parts caused by a missing/damaged screw
• 10-16 thread with 1-inch length matches factory hardware for specified locations
• Hex-washer head provides solid tool engagement and distributes load to protect surfaces

• Disconnect power before servicing; if working on a gas appliance, also shut off the gas supply
• Support the part being secured and align holes before tightening
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any additional missing screws in the same area for uniform support

This hex washer head screw secures appliance panels and brackets. The 10-16 x 0.812 size replaces missing or stripped hardware so components stay properly fastened, helping prevent looseness, rattling, and misalignment.

• Fastens metal panels, brackets, and components in compatible appliances
• Replaces a lost, damaged, or corroded screw to restore proper attachment
• Helps reduce vibration, noise, or loose-fitting parts caused by missing hardware
• Correct 10-16 thread and 0.812-inch length for specified mounting points

• Disconnect power; for gas models, also shut off the gas supply.
• Note the original screw's location and orientation before removal.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• Use a nut driver or socket that fits the hex head.

ST10-16 X 7/16"

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
