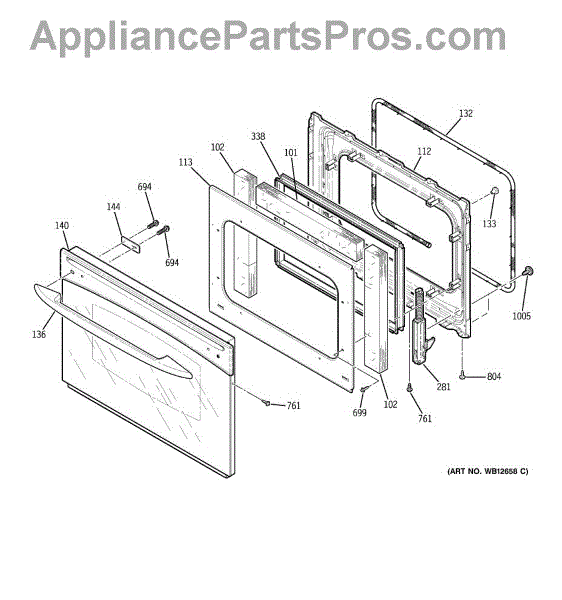

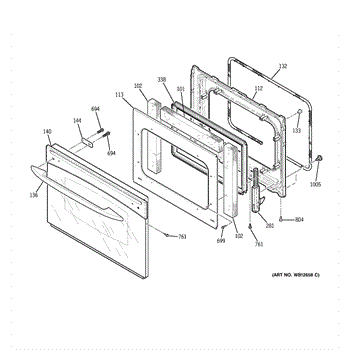

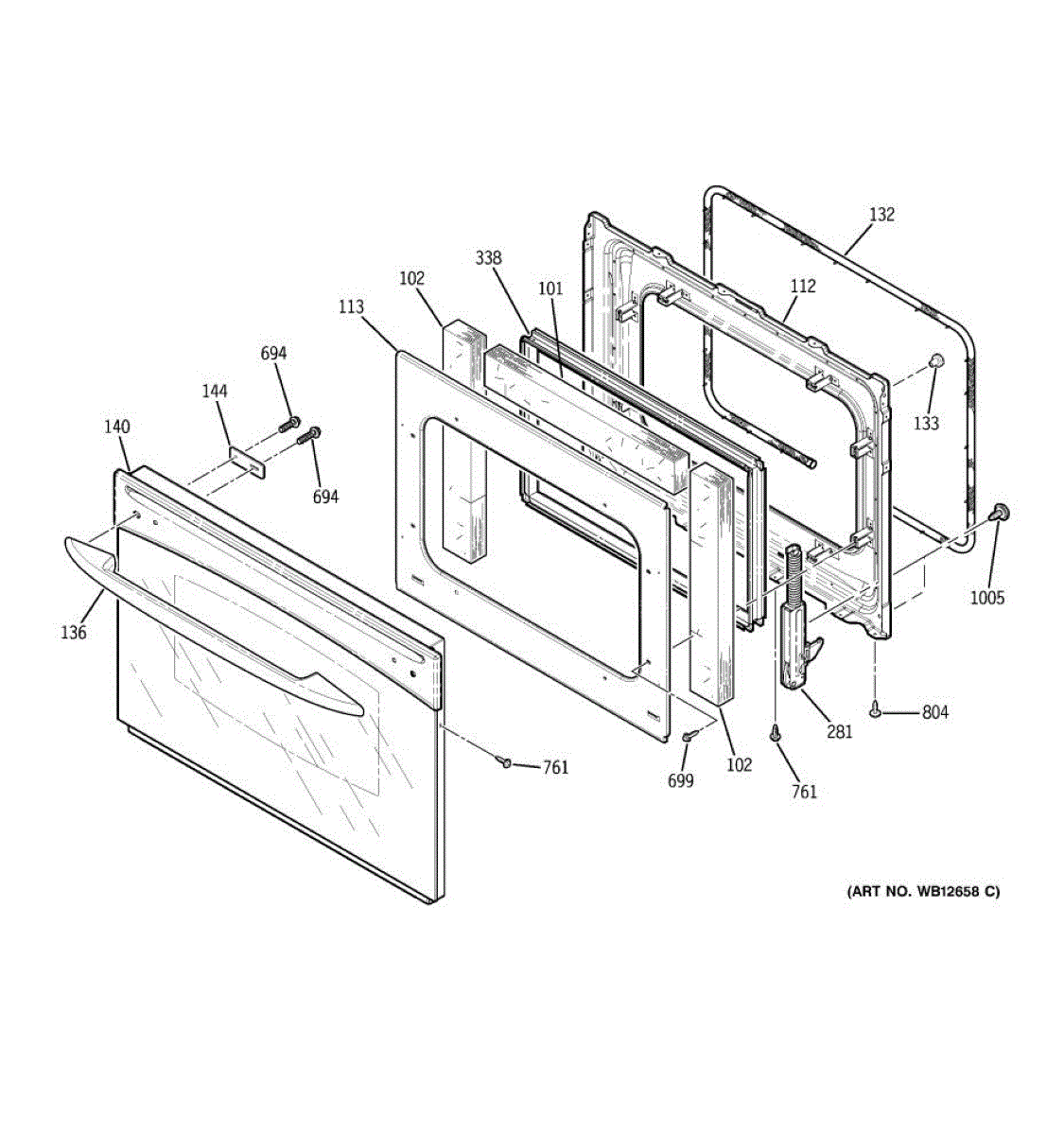

Parts for Ge JSS28CK2CC: 03 - Door Parts

This oven door insulation pad fits behind the inner door liner to help retain heat in the oven cavity and reduce heat transfer to the outer door. It restores proper oven temperature control and improves cooking consistency. What it does:

• Replaces worn or damaged insulation that can allow heat to escape from the oven cavity
• Helps the oven reach and maintain set temperatures for more even baking and roasting
• Reduces excessive outer door temperatures and hot spots on the range front
• Restores the intended thermal barrier between the oven cavity and outer door assembly

• One oven door insulation pad

• Disconnect power to the appliance before starting any repair; allow the oven to cool completely
• Installation commonly requires removing the oven door and inner door liner—follow OEM instructions
• Handle insulation carefully; wear gloves and a dust mask if material is fibrous

This oven door side insulation sits between the inner and outer door panels to limit heat loss and reduce hot spots along the door edge. Replace when the original is burnt, brittle, or missing to help restore safe thermal performance.

• Provides a thermal barrier along the side of the oven door between panels
• Helps retain oven heat and reduce heat transfer to the outer door surface
• Can help address heat escaping around door edges or a door exterior that feels hotter than normal
• Replace if the insulation is charred, frayed, compressed, or contaminated during service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door and disassemble per your model's service instructions; work on a padded surface
• Wear gloves and eye protection; handle insulation carefully and avoid compressing it
• Do not block vents or air passages during reassembly; note orientation for proper fit

This oven door insulation retainer secures the insulation inside the oven door, helping maintain proper heat containment and preventing insulation from shifting. It's a small but important clip that keeps the door's inner components stable. What it does:

• Holds inner door insulation in place so insulation stays positioned during use
• Helps maintain consistent heat distribution by preventing insulation gaps
• Reduces rattling or movement of the door interior when opening or closing
• Commonly replaced when insulation is loose, visible, or shifting inside the door

• One oven door insulation retainer

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Access typically requires removing the oven door or inner door panel — follow your model's service instructions
• Handle door panels and insulation carefully to avoid damage; keep fasteners organized for reassembly

The Oven Door Gasket is an OEM part for GE ovens. It creates a seal between the oven door and the oven frame, preventing heat from escaping during cooking. This gasket is essential for maintaining consistent oven temperatures, which ensures even cooking and energy efficiency.

You should replace the oven door gasket if it becomes worn or damaged. Common causes of a bad gasket include repeated exposure to high temperatures, normal wear and tear, or physical damage from cleaning or accidental impacts. A compromised gasket can lead to heat loss, uneven cooking, and increased energy consumption.

Symptoms of a bad oven door gasket include:

• Heat escaping from around the oven door
• Longer cooking times or unevenly cooked food
• Visible cracks, tears, or deformation in the gasket
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

Note: This part has one piece of glass. Per factory, it only requires one glass because it is used on non-self clean models.

This hex-washer-head screw secures appliance components and panels. The correct 10-16 thread, 1-inch length fastener restores a tight, factory fit when an original screw is missing, stripped, or corroded.

• Fastens brackets, shields, trim, or panels to the appliance chassis
• Helps resolve rattling, gaps, or loose parts caused by a missing/damaged screw
• 10-16 thread with 1-inch length matches factory hardware for specified locations
• Hex-washer head provides solid tool engagement and distributes load to protect surfaces

• Disconnect power before servicing; if working on a gas appliance, also shut off the gas supply
• Support the part being secured and align holes before tightening
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any additional missing screws in the same area for uniform support

ST10-16 X 7/16"

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
