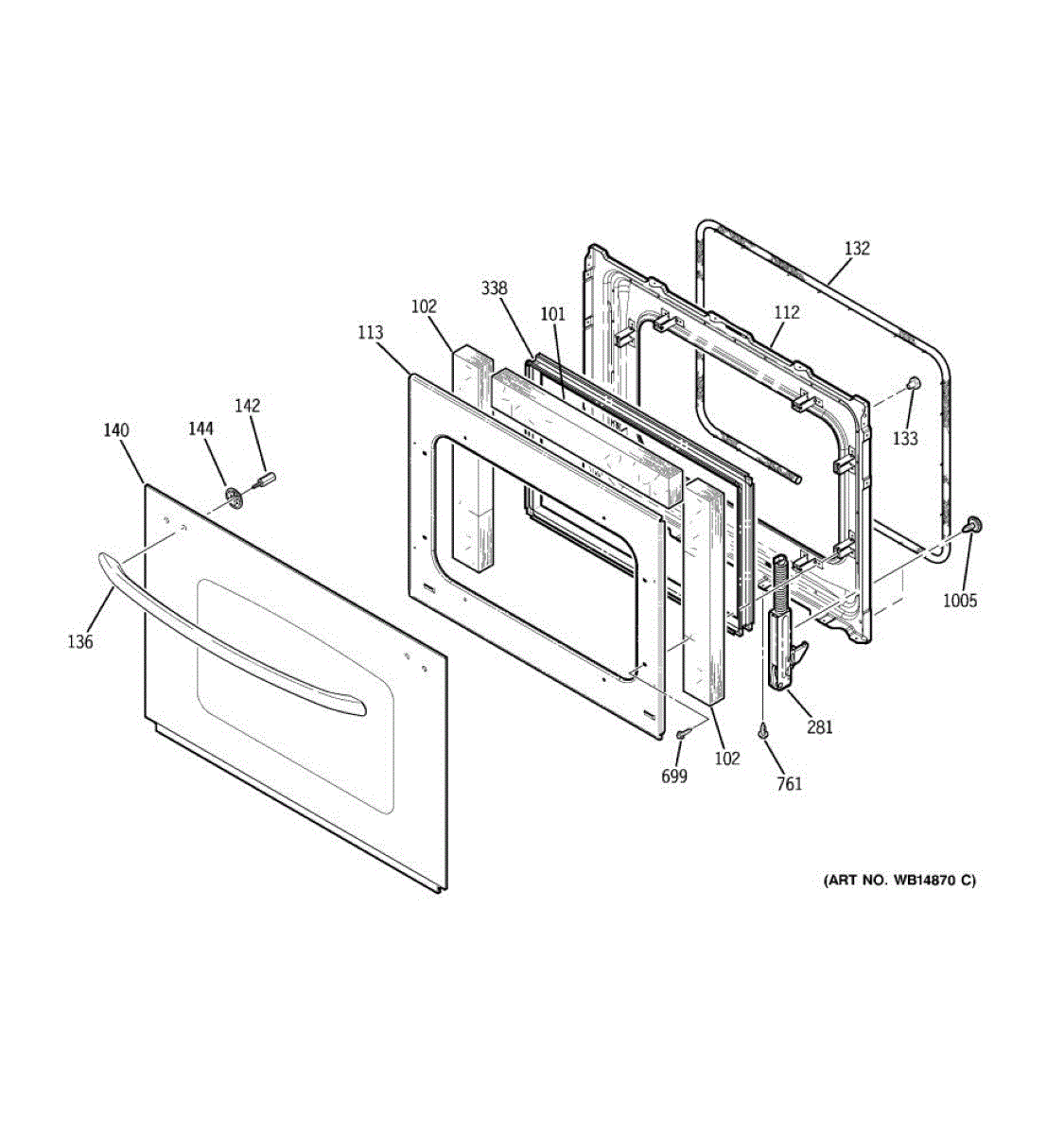

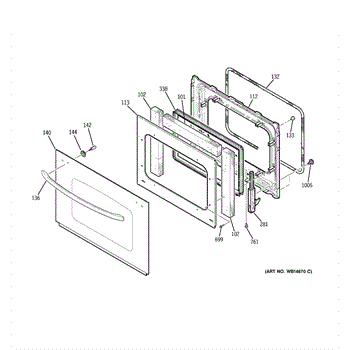

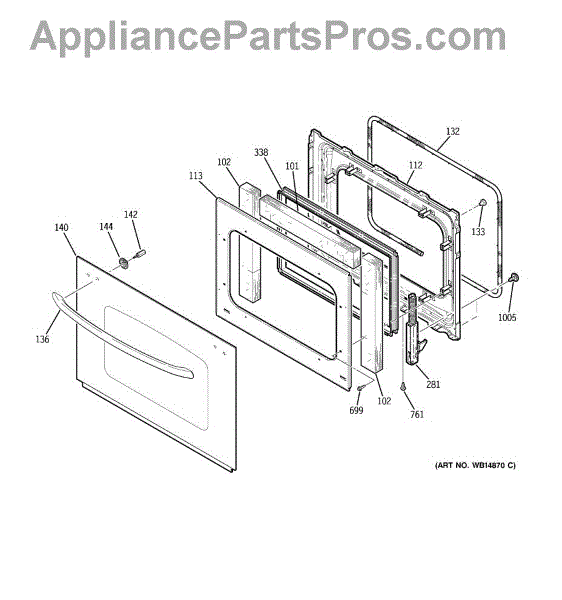

Parts for Ge JTP35DP2BB: 05 - Door Parts

This oven door insulation pad fits behind the inner door liner to help retain heat in the oven cavity and reduce heat transfer to the outer door. It restores proper oven temperature control and improves cooking consistency. What it does:

• Replaces worn or damaged insulation that can allow heat to escape from the oven cavity
• Helps the oven reach and maintain set temperatures for more even baking and roasting
• Reduces excessive outer door temperatures and hot spots on the range front
• Restores the intended thermal barrier between the oven cavity and outer door assembly

• One oven door insulation pad

• Disconnect power to the appliance before starting any repair; allow the oven to cool completely
• Installation commonly requires removing the oven door and inner door liner—follow OEM instructions
• Handle insulation carefully; wear gloves and a dust mask if material is fibrous

This oven door side insulation sits between the inner and outer door panels to limit heat loss and reduce hot spots along the door edge. Replace when the original is burnt, brittle, or missing to help restore safe thermal performance.

• Provides a thermal barrier along the side of the oven door between panels
• Helps retain oven heat and reduce heat transfer to the outer door surface
• Can help address heat escaping around door edges or a door exterior that feels hotter than normal
• Replace if the insulation is charred, frayed, compressed, or contaminated during service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door and disassemble per your model's service instructions; work on a padded surface
• Wear gloves and eye protection; handle insulation carefully and avoid compressing it
• Do not block vents or air passages during reassembly; note orientation for proper fit

This oven door insulation retainer secures the insulation inside the oven door, helping maintain proper heat containment and preventing insulation from shifting. It's a small but important clip that keeps the door's inner components stable. What it does:

• Holds inner door insulation in place so insulation stays positioned during use
• Helps maintain consistent heat distribution by preventing insulation gaps
• Reduces rattling or movement of the door interior when opening or closing
• Commonly replaced when insulation is loose, visible, or shifting inside the door

• One oven door insulation retainer

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Access typically requires removing the oven door or inner door panel — follow your model's service instructions
• Handle door panels and insulation carefully to avoid damage; keep fasteners organized for reassembly

This oven door gasket forms a heat-resistant seal between the door and the oven frame to keep heat in the cavity. A fresh seal helps the oven preheat properly and maintain consistent temperatures while limiting hot air from escaping.

• Provides a tight thermal seal around the door to reduce heat loss
• Helps stabilize oven temperature and preheat performance
• Replace if the gasket is torn, frayed, brittle, shrunken, or flattened
• Common symptoms of a worn seal: hot air leaking at the door, uneven baking, odors or smoke escaping

• Disconnect power and allow the oven to cool completely
• Remove the old gasket from its channel or end clips; note orientation and seam location
• Clean the groove; press the new gasket in place without stretching, seating corners and ends fully
• Confirm the door closes evenly and seals all around; if not, inspect hinge and latch alignment

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

This black door handle restores a secure, comfortable grip and a clean, factory look to your appliance's door. Replace a cracked, loose, or damaged handle to keep the door easy to operate and the exterior looking right.

• Provides the handhold used to open and close the door
• Attaches to the door with screws; designed to replace a broken, cracked, missing, or loose handle
• Common symptoms: handle broken, wobbling, missing, or finish damage/scuffs
• Restores appearance without affecting door latch or seal function

• Disconnect power before servicing and allow the appliance to cool completely
• Access handle fasteners per your model (often from the inner door panel); support any glass or trim
• Keep track of spacers and screws for reassembly
• Tighten mounting screws evenly; do not overtighten; verify smooth door operation

This reinforcement spacer maintains the correct gap and supports the joint between mating parts in your appliance. Replacing a worn or missing spacer helps keep panels, trim, or brackets aligned for a solid fit and smooth operation.

• Maintains proper spacing and alignment between components to prevent rubbing or distortion
• Reinforces mounting points to distribute fastener load and reduce cracking around holes
• Helps reduce rattles and looseness; promotes tight, even gaps
• Common signs include a missing/broken spacer, wobbly panels/trim, rattling noises, or visible misalignment

• Disconnect power; allow the appliance to cool completely. For gas units, shut off the gas supply
• Access the affected area and note the spacer's orientation before removal
• Reuse original hardware and install the spacer in the same position; do not overtighten fasteners
• Reassemble, check clearances and alignment, then test operation

This composite support stud mounts on the cooktop to provide a stable resting point for the burner grate. It helps keep the grate level and protects the cooktop finish from metal-to-enamel contact.

• Supports and levels the burner grate at its contact point
• Helps protect the porcelain/enamel surface from scratches and chips
• Maintains proper grate alignment over the burner
• Typical symptoms of a failed/missing stud: wobbly or rocking grate, rattling, scuffing around grate landing points

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the grate and the damaged/missing stud; clean the contact area
• Install the new stud per your model's design and seat it fully without overtightening
• Reinstall the grate and confirm it sits flat and stable

A door handle spacer that fits behind a range of GE appliance handles to ensure correct fit and alignment, restoring a snug, finished appearance. Helps keep the handle positioned and prevents contact rubbing. What it does:

• Positions the door handle at the correct distance from the door surface for proper fit and operation
• Helps prevent handle wobble, rubbing, and cosmetic gaps
• Supports secure attachment of the handle to the door assembly
• Useful when replacing a damaged or missing spacer during handle repair

• One door handle spacer

• Install with the handle hardware in the correct order; confirm orientation before tightening
• Use proper-size screwdrivers; avoid over-tightening fasteners to prevent cracking the spacer
• Disconnect power or follow appliance-specific safety instructions when working near electrical components or heating elements
• Replace those components as well for a reliable repair

The Window Pack Assembly is an OEM part for GE ranges and ovens. It serves as the inner glass component of the oven door, allowing you to observe the cooking process while providing insulation and protection. It consists of an inner glass panel, frame, and seals to ensure proper insulation and prevent heat loss.

Causes of a faulty window pack assembly can include accidental impact, cracks, or damage to the inner glass panel or frame. These factors can compromise the visibility, insulation, and safety of the oven.

Symptoms of a bad window pack assembly may include:

• Cracked or shattered inner glass panel
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
