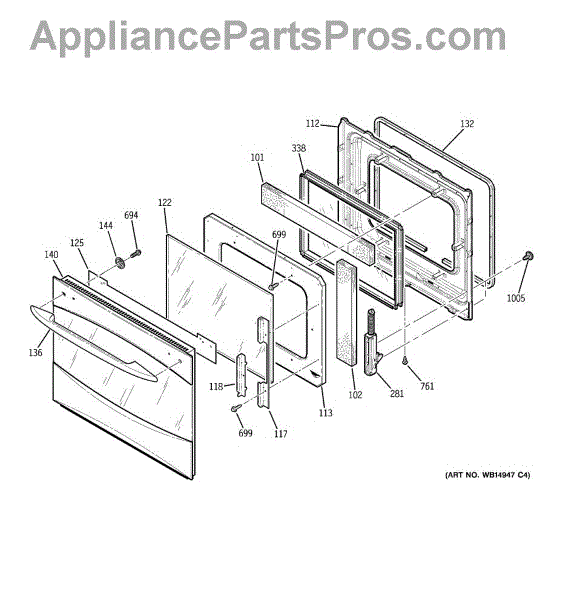

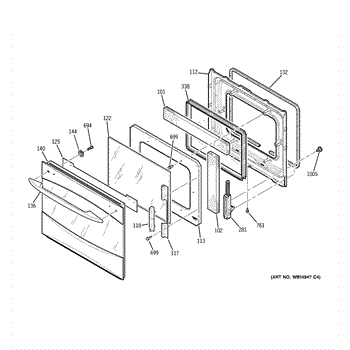

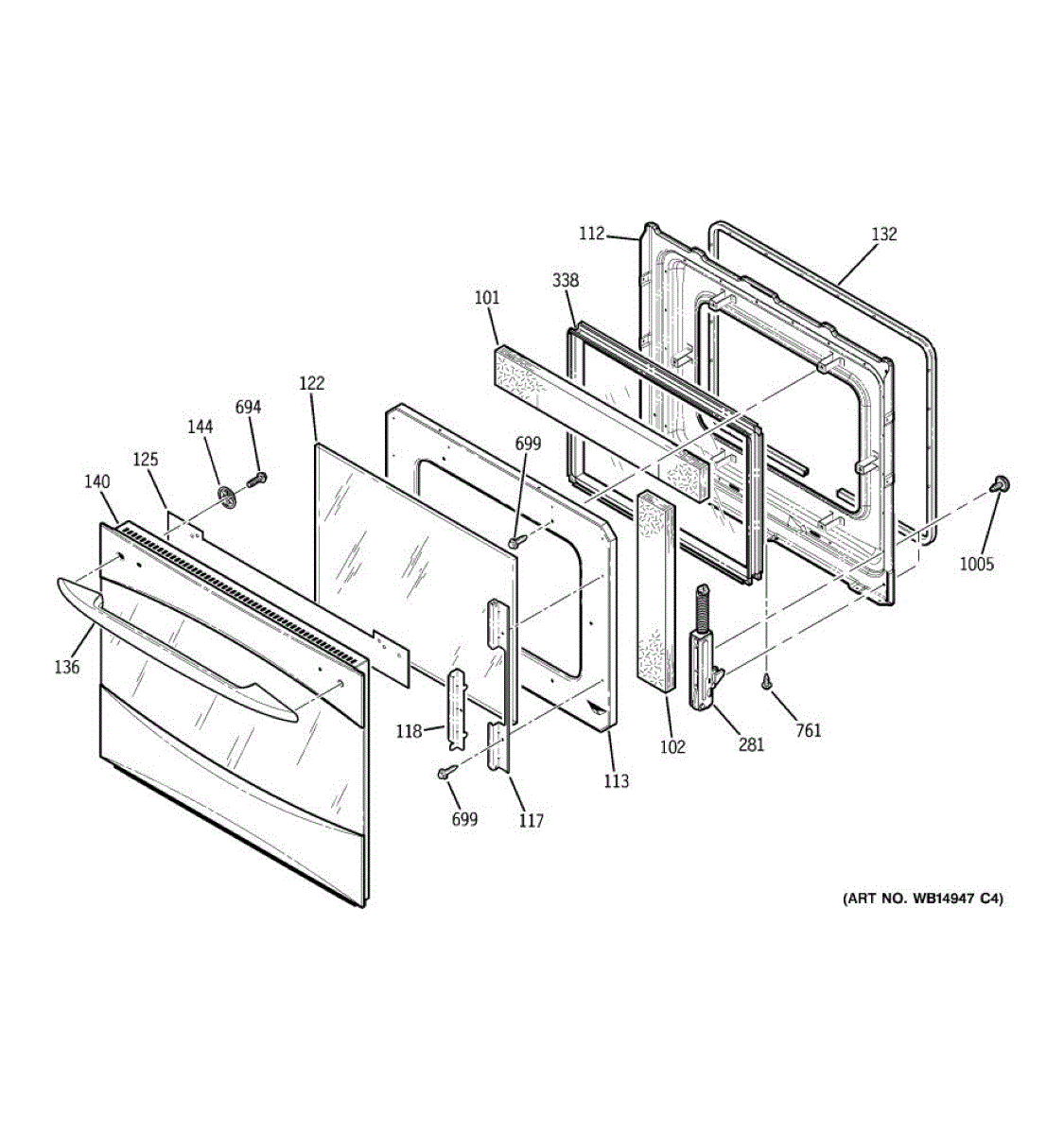

Parts for Ge PCK916SR3SS: 03 - Door Parts

This top oven door insulation replaces the upper thermal liner inside the oven door to help retain heat and improve oven temperature stability for more even cooking. It restores proper door insulation where the original is missing or damaged. What it does:

• Replaces the top section of the oven door insulation to reduce heat loss through the door
• Helps maintain oven temperature for more consistent baking and roasting
• Reduces exterior door heat and minimizes risk of hot spots on the door surface
• Addresses symptoms like excessive oven heat loss, longer preheat times, or a noticeably thin/damaged door interior

• One top oven door insulation piece

• Disconnect power to the appliance and allow the oven and door to cool completely before starting
• Install requires removing the oven door and some fasteners—handle glass and clips carefully to avoid damage
• Wear gloves to protect from sharp edges and insulation fibers
• Verify proper fit and seal after installation

A door handle spacer that fits behind a range of GE appliance handles to ensure correct fit and alignment, restoring a snug, finished appearance. Helps keep the handle positioned and prevents contact rubbing. What it does:

• Positions the door handle at the correct distance from the door surface for proper fit and operation
• Helps prevent handle wobble, rubbing, and cosmetic gaps
• Supports secure attachment of the handle to the door assembly
• Useful when replacing a damaged or missing spacer during handle repair

• One door handle spacer

• Install with the handle hardware in the correct order; confirm orientation before tightening
• Use proper-size screwdrivers; avoid over-tightening fasteners to prevent cracking the spacer
• Disconnect power or follow appliance-specific safety instructions when working near electrical components or heating elements
• Replace those components as well for a reliable repair

This right-side door hinge secures and guides the appliance door for correct alignment and smooth operation. Replacing a worn hinge restores proper closing and prevents door sag or uneven gaps. What it does:

• Supports the door pivot and maintains correct door alignment.
• Enables smooth opening and closing of the door.
• Prevents door sag, binding, or misaligned gaps that can affect seal performance.
• Helps eliminate rubbing, scraping, or unusual door movement.

• Disconnect power to the appliance before starting and remove any stored items from the door.
• Support the door while removing/installing the hinge to prevent dropping or damage.
• Reuse existing screws only if they are undamaged; replace damaged fasteners.
• Check door alignment after installation and make minor adjustments as needed for an even seal.

A direct-replacement left door hinge that restores proper door alignment and smooth opening on compatible appliances. Helps keep doors closing securely to maintain temperature and reduce wear on seals and hardware. What it does

• Supports the left side of the appliance door and provides a pivot point for opening and closing.
• Restores proper door alignment to help ensure an even seal and consistent internal temperature.
• Reduces door sag and uneven wear that can lead to gaps or rubbing.
• Works with existing pins, screws and strike hardware when the original hinge is worn or damaged.

• Basic mechanical replacement; remove power or disconnect appliance if required by your model before starting.
• Retain original fasteners and hinge pins unless replacements are specified by the manufacturer.
• Align door carefully and tighten fasteners gradually to avoid binding or misalignment.

This 8-32 thread screw fastens panels and components in compatible appliances, restoring secure mounting and stopping rattles or loose parts. Use it to replace stripped or missing fasteners and maintain proper alignment of covers and assemblies. What it does

• Secures panels, control boards, brackets, and accessory parts to the appliance chassis
• Restores proper fastening when original screws are missing, damaged, or stripped
• Helps eliminate vibration noise and loose-fit symptoms
• Matches common 8-32 appliance thread standards for a direct replacement

• One 8-32 thread screw

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Use the correct-size Phillips or hex driver to prevent cam-out and head damage
• Install by hand first to engage threads, then tighten snugly—do not overtighten to avoid stripping

ST10-16 X 7/16"

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
