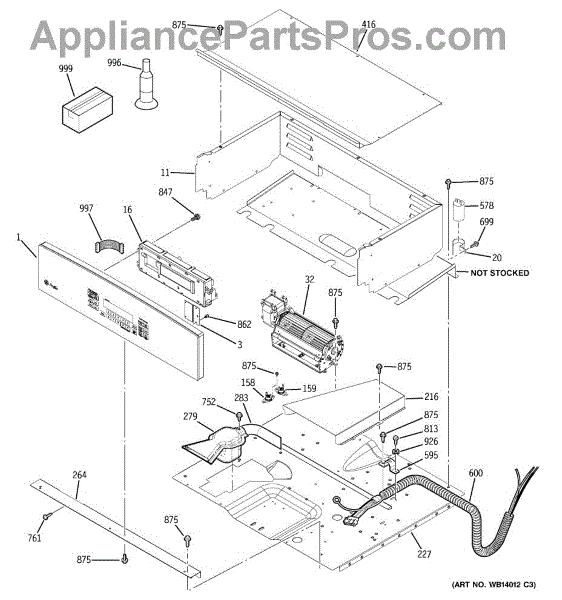

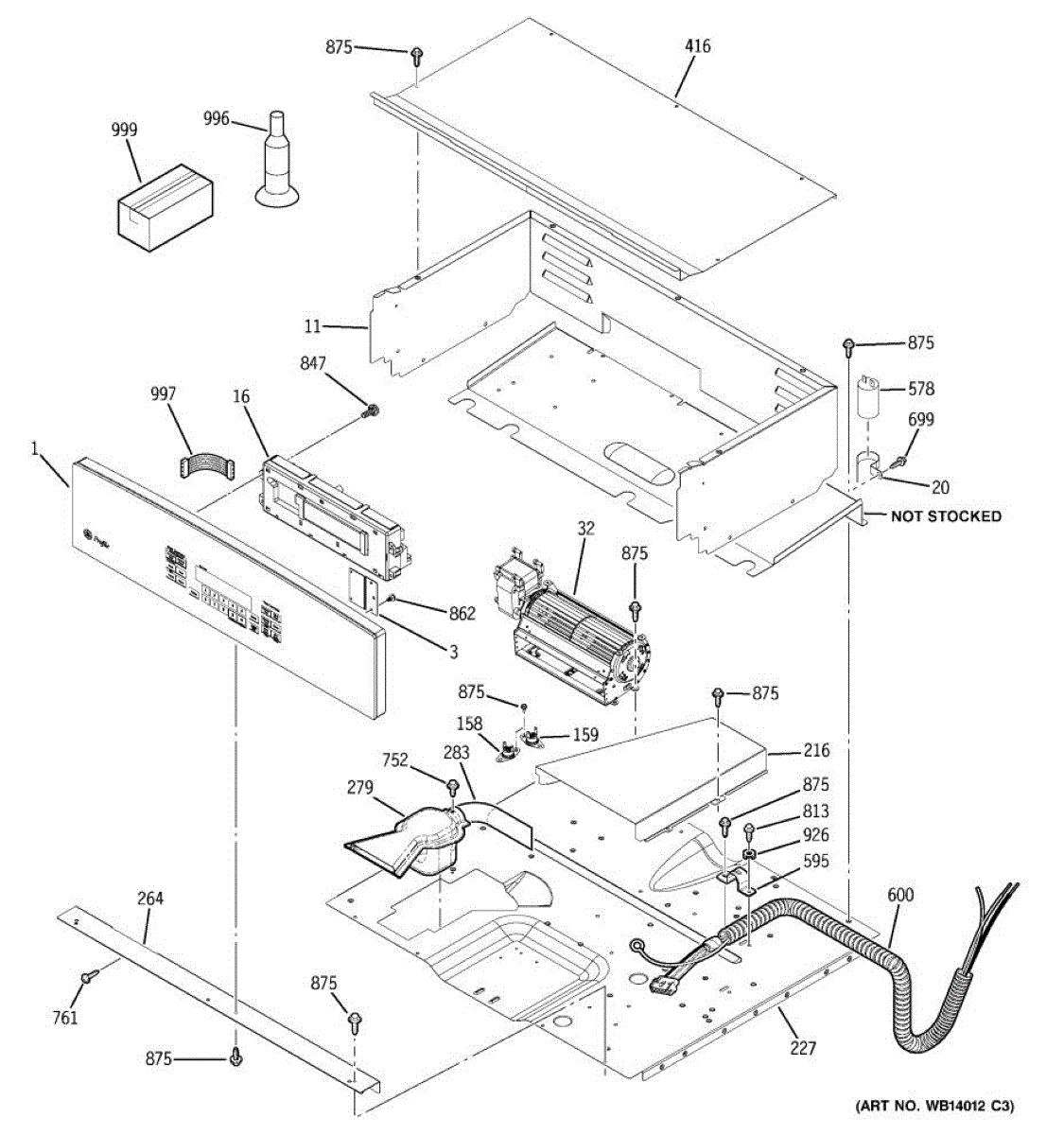

Parts for Ge PCK916SR3SS: 01 - Control Panel Parts

This fan housing is the replacement assembly that supports and secures the appliance fan, directing airflow to keep internal components cooled and operating efficiently. Restores proper airflow and helps reduce overheating-related issues. What it does

• Holds the fan motor and blades in the correct position to channel airflow through the appliance.
• Maintains stable airflow to help evaporator, condenser, or electronic components stay cool.
• Can resolve symptoms such as noisy or wobbling fan operation, poor cooling, or intermittent motor contact caused by a damaged or cracked housing.
• Keeps the fan properly aligned to prevent rubbing, vibration, or premature motor wear.

• One fan housing assembly.

• Disconnect power before inspecting or replacing the housing to avoid shock or injury.
• Verify mounting tabs and mating surfaces are intact; replace any damaged fasteners or clips as needed.
• Handle plastic housings carefully to avoid cracking; follow OEM service instructions for access and reassembly.
• If noise or poor airflow persists after installation, inspect the fan blade and motor for separate wear or damage.

This limit switch is a safety cutoff that helps stop power to heating circuits when a fault or over-temperature condition occurs, protecting the appliance and reducing fire risk. It's a direct-fit replacement part designed to restore proper safety control. What it does

• Opens the circuit to shut off heating when the temperature climbs above safe limits
• Prevents continuous heating during thermostat or control failures
• Common symptom: oven or cooktop won't heat or keeps shutting off unexpectedly
• Common symptom: burner or element fails to stay on despite control inputs

• One limit switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle and route wires carefully; match wire connections exactly per the wiring diagram
• If mounting hardware or connectors are missing on your unit,

The Thermal Fuse is an OEM part for GE ranges. This component is a safety device to protect the range from overheating. It is located in the electrical circuit and acts as a fail-safe to cut off the power supply to the range if it detects excessive heat.

Causes of a faulty thermal fuse can include power surges, overheating due to prolonged use, or other electrical issues. When the fuse blows, it interrupts the electrical flow, preventing potential damage to the range's sensitive components and ensuring user safety.

Symptoms of a bad fuse may include:

• The range not turning on or functioning at all.
• The oven not heating up or not reaching the desired temperature.
• The range displaying error codes related to temperature issues.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This electrical top cover protects the range's wiring and terminal connections at the rear top area, helping keep wiring secure and shielded from dust and contact hazards. It restores the factory appearance and basic wiring protection. What it does:

• Covers and protects the range's rear-top electrical terminals and wiring harness
• Helps prevent accidental contact with live terminals and reduces debris buildup
• Keeps wiring routed and secured to reduce strain on connections
• Restores the appliance's finished appearance where the cover was missing or damaged

• Disconnect power to the appliance at the breaker or unplug before servicing
• Access may require removal of a back panel or lifting the cooktop depending on model
• Secure with the original screws or fasteners; do not overtighten plastic mounting points
• If terminals or wiring show damage or corrosion, replace or repair those components before reassembly

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This conduit wire assembly routes and protects electrical wiring for the appliance, restoring secure connections and safe signal/power routing. It's a direct-fit wiring harness used where factory conduit is required. What it does

• Replaces damaged or frayed conduit wiring to restore safe electrical routing
• Protects internal wires from chafing, heat, and vibration
• Ensures stable power/signal connections between components
• Helps eliminate intermittent electrical faults caused by broken wiring

• One conduit wire assembly as shown

• Recommended for installers or experienced DIYers; disconnect power before servicing
• Verify wire routing and connector orientation match factory harness before finalizing
• Inspect connectors and surrounding components for damage; replace other damaged pieces as needed
• Secure conduit with existing clips or fasteners; do not over-tighten

ST10-16 X 7/16"

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

Package of 12

Black. 8-18 AB HXW 3/8

This lubricant/cleaner is used during service of cooking appliances to dissolve residue and provide light lubrication on small moving parts. It helps restore smoother operation of control shafts and valves when burner knobs feel stiff or sticky. What it does:

• Cleans deposits and old grease from control shafts and valve components
• Provides light lubrication to reduce friction and sticking
• Helps address symptoms such as hard-to-turn burner knobs or rough valve rotation
• Supports preventative maintenance during range/cooktop service

• Lubricant/cleaner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Work in a well-ventilated area and keep away from open flames or ignition sources
• Apply sparingly per service instructions; avoid contact with igniters, electrical components, and flame ports
• Replace any worn or leaking valve—do not rely on lubricant/cleaner to correct a leak
