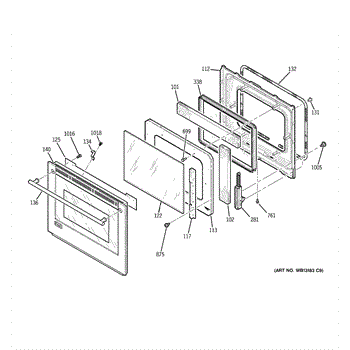

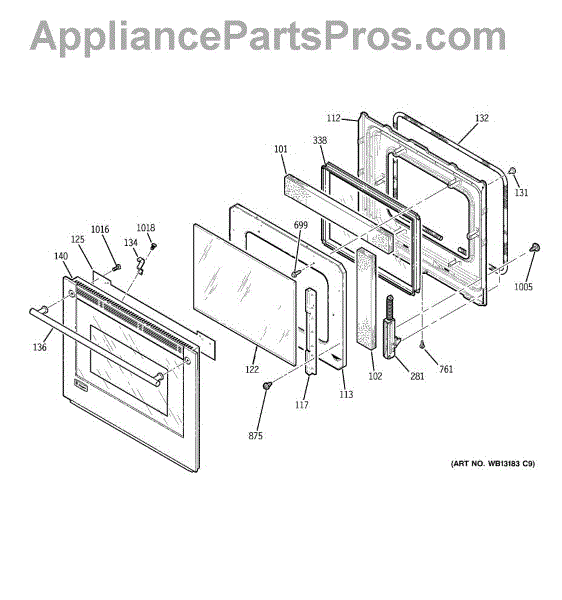

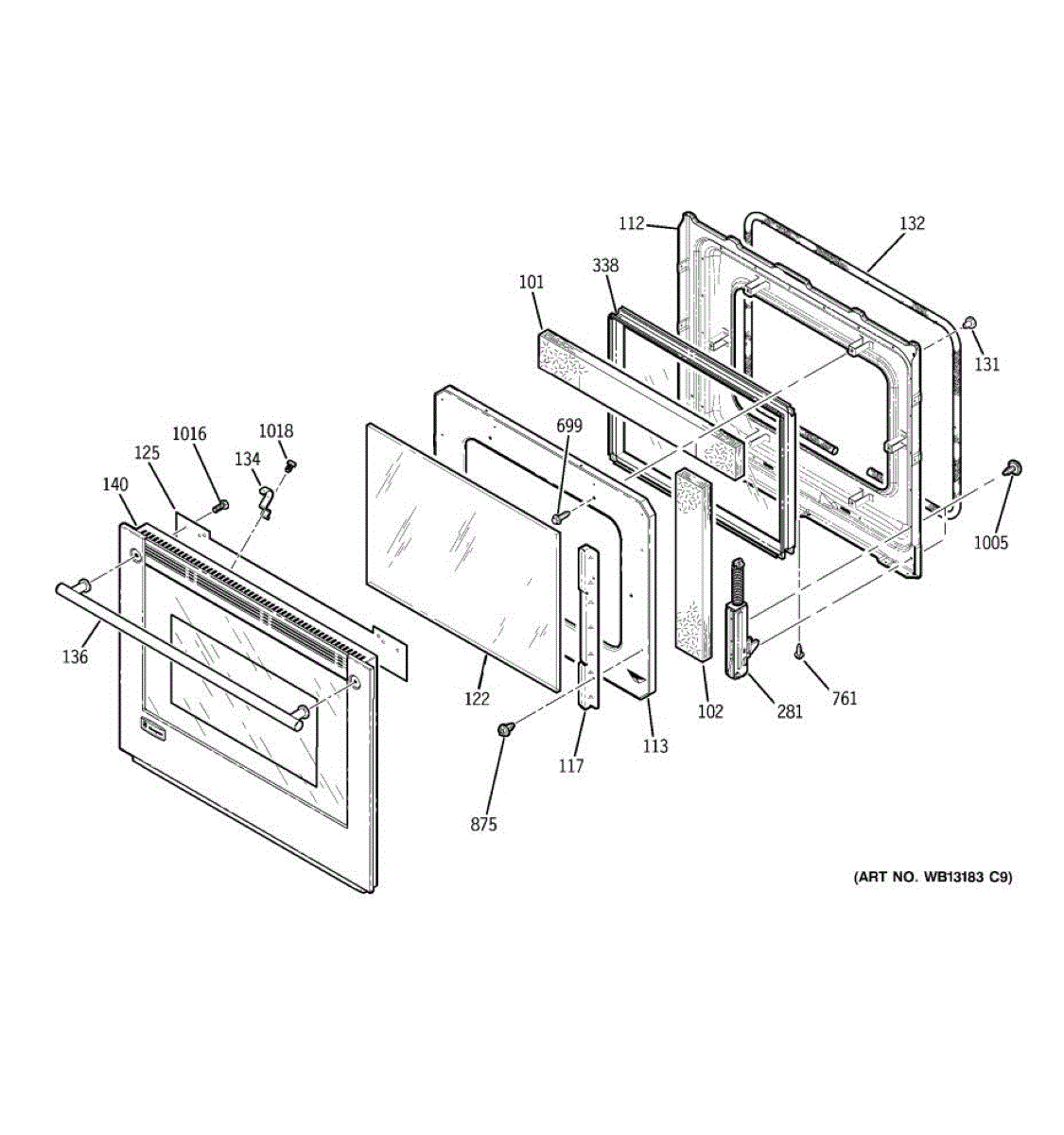

Parts for Ge ZEK958BM2BB: 05 - Door Parts

This top oven door insulation replaces the upper thermal liner inside the oven door to help retain heat and improve oven temperature stability for more even cooking. It restores proper door insulation where the original is missing or damaged. What it does:

• Replaces the top section of the oven door insulation to reduce heat loss through the door
• Helps maintain oven temperature for more consistent baking and roasting
• Reduces exterior door heat and minimizes risk of hot spots on the door surface
• Addresses symptoms like excessive oven heat loss, longer preheat times, or a noticeably thin/damaged door interior

• One top oven door insulation piece

• Disconnect power to the appliance and allow the oven and door to cool completely before starting
• Install requires removing the oven door and some fasteners—handle glass and clips carefully to avoid damage
• Wear gloves to protect from sharp edges and insulation fibers
• Verify proper fit and seal after installation

This foam tape seals and cushions the oven door assembly to reduce vibration and help keep the door glass and inner components stable. It restores proper spacing and helps reduce rattling or light air leaks around the door. What it does:

• Provides a soft, compressible seal between the door and frame to reduce noise and movement
• Cushions and protects glass and trim from contact and vibration
• Helps limit minor air leakage that can allow heat or odors to escape
• Commonly used when door trim or glass is loose, rattling, or shows visible gaps

• One adhesive-backed foam tape strip

• Clean and dry mating surfaces before applying to ensure good adhesive contact
• Measure and trim to fit; press firmly along the full length for proper adhesion
• Replace only with the same style of tape—do not use electrical or non-heat-rated foam in high-temperature areas
• Disconnect power/cool the appliance before working on the door assembly to avoid burns or injury

This oven door gasket seals the perimeter of the door to keep heat inside the cavity. Replacing a worn seal helps maintain consistent temperatures and proper preheat, improving baking performance and preventing heat from leaking around the door.

• Creates a heat-resistant seal between the oven door and front frame
• Helps maintain set temperature and stable preheat times
• Reduces heat loss and air leaks around the door
• Common symptoms: visible tears or fraying, flattened/hardened gasket, gaps around the door, longer preheat or cook times

• Disconnect power or gas and allow the oven to cool completely before starting.
• Open the door and carefully remove the old gasket; note the orientation of ends/clips for reinstallation.
• Clean the gasket channel/retainer of debris for a proper fit.
• Install without stretching; seat corners fully and ensure the ends meet snugly for a continuous seal.

This oven door clip secures the oven door or inner door components to the hinge assembly, restoring proper door alignment and a stable seal for safe, efficient cooking. It's a compact, direct-fit mounting clip used on many GE ovens. What it does:

• Secures the oven door or inner panel to the hinge or mounting point
• Helps maintain correct door alignment and a tight oven seal
• Can eliminate door movement, sagging, or uneven closing
• Works as a replacement for a worn, broken, or missing door clip

• Disconnect power to the appliance before servicing to avoid electrical shock
• Support the oven door or remove it per manufacturer instructions before replacing the clip
• Use basic hand tools; avoid forcing parts—ensure clip seats fully on the hinge/mount

This right-side door hinge secures and guides the appliance door for correct alignment and smooth operation. Replacing a worn hinge restores proper closing and prevents door sag or uneven gaps. What it does:

• Supports the door pivot and maintains correct door alignment.
• Enables smooth opening and closing of the door.
• Prevents door sag, binding, or misaligned gaps that can affect seal performance.
• Helps eliminate rubbing, scraping, or unusual door movement.

• Disconnect power to the appliance before starting and remove any stored items from the door.
• Support the door while removing/installing the hinge to prevent dropping or damage.
• Reuse existing screws only if they are undamaged; replace damaged fasteners.
• Check door alignment after installation and make minor adjustments as needed for an even seal.

A direct-replacement left door hinge that restores proper door alignment and smooth opening on compatible appliances. Helps keep doors closing securely to maintain temperature and reduce wear on seals and hardware. What it does

• Supports the left side of the appliance door and provides a pivot point for opening and closing.
• Restores proper door alignment to help ensure an even seal and consistent internal temperature.
• Reduces door sag and uneven wear that can lead to gaps or rubbing.
• Works with existing pins, screws and strike hardware when the original hinge is worn or damaged.

• Basic mechanical replacement; remove power or disconnect appliance if required by your model before starting.
• Retain original fasteners and hinge pins unless replacements are specified by the manufacturer.
• Align door carefully and tighten fasteners gradually to avoid binding or misalignment.

The Window Pack Assembly is an OEM part for GE ranges. This part allows you to monitor your food while it cooks without opening the door and letting heat escape. The assembly ensures clear visibility and helps maintain the oven's internal temperature for consistent cooking results.

Causes of a bad window pack can include accidental impacts, thermal stress from repeated heating and cooling cycles, or manufacturing defects.

Symptoms of a bad window pack assembly include:

• Cracks or breaks in the glass
• Fogging or condensation between the glass layers
• Difficulty in seeing through the window
• Heat escaping from the door area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

ST10-16 X 7/16"

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

Package of 12

Black. 8-18 AB HXW 3/8

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This is a 1/4-28 hex washer head machine screw with a 7/8 inch length and zinc plating, used to secure components in appliances. It replaces stripped or missing fasteners and restores proper fit and alignment. What it does

• Secures panels, brackets, or hardware where a 1/4-28 hex washer head screw is specified
• Provides a wide bearing surface to reduce pull-through on sheet metal or bracket parts
• Zinc plating resists corrosion in typical household appliance environments
• Common symptom: loose, rattling, or misaligned panels caused by missing or damaged screws

• Replace only with the matching thread size and head style to ensure proper fit
• Hand-start threads to avoid cross-threading; tighten to snug (do not overtighten)
• Use proper safety gear and disconnect power to the appliance if working near electrical components
• If multiple fasteners are corroded or missing, inspect adjacent hardware and replace as needed

Package of 12
