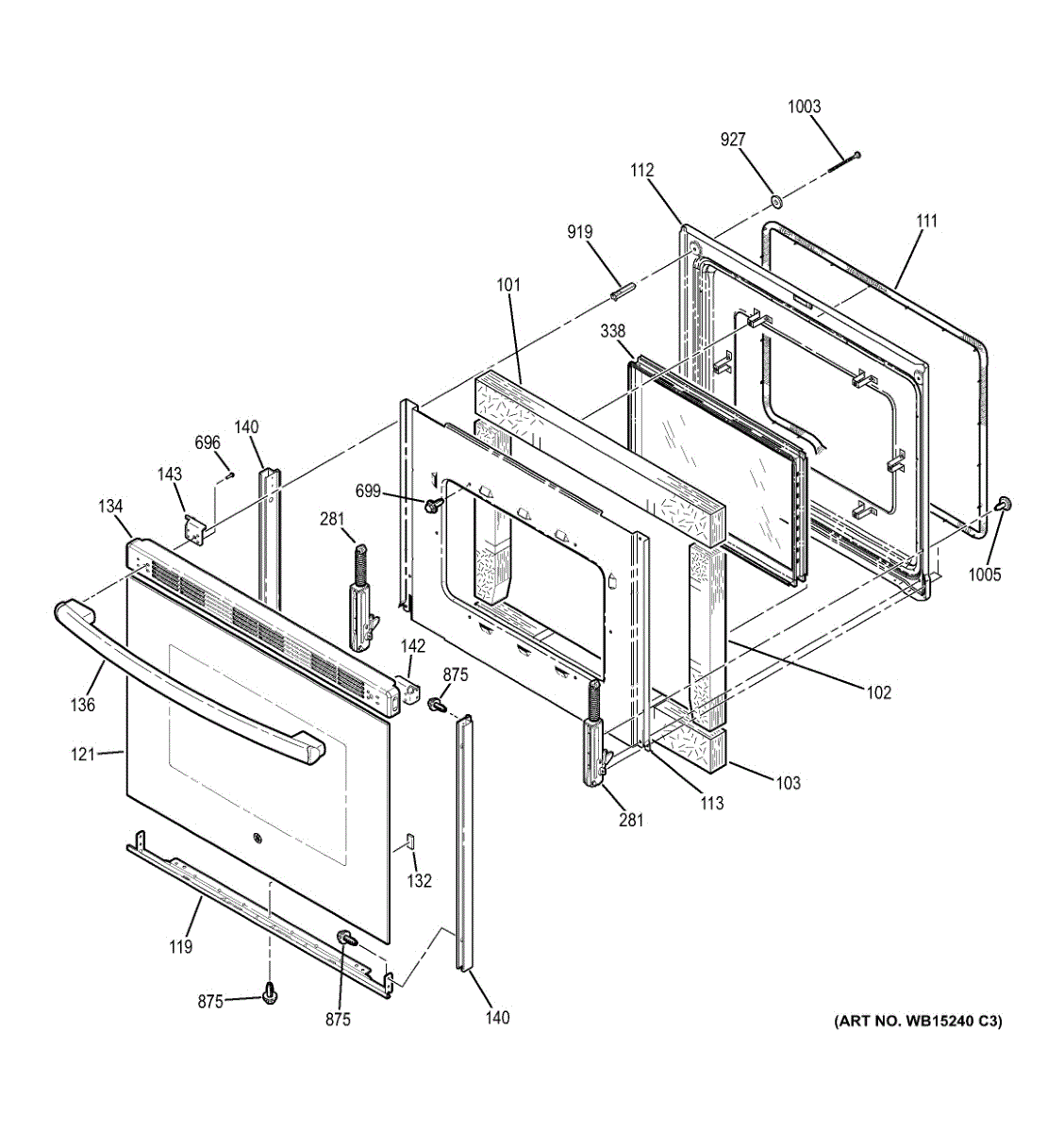

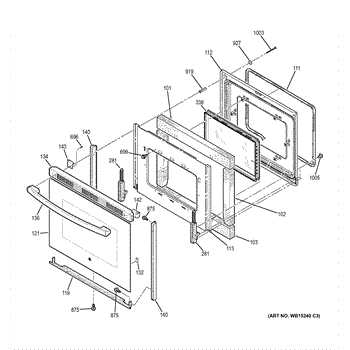

Parts for Ge JB640DF2WW: Door Parts

This oven door insulation restores the heat barrier inside the door so your oven can reach and maintain temperature while helping keep the exterior cooler. Replace brittle, burned, or grease-soaked insulation to reduce heat loss and odors.

• Provides a thermal barrier between the inner and outer door panels
• Helps the oven reach and hold set temperature by reducing heat transfer through the door
• Common signs it's needed include excessive exterior door heat, lingering odors/smoke from past spills, or visibly deteriorated/missing insulation
• Replacing contaminated insulation can reduce recurring odors during preheat and baking

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Remove the oven door per your model's instructions and place it on a padded surface for disassembly
• Wear cut-resistant gloves and eye protection; handle insulation gently to limit airborne fibers
• Note the original orientation and any retainers; install the new insulation the same way without compressing it, then reassemble

This door insulation replaces the inner thermal pad that helps block heat transfer through the oven door, improving temperature stability and reducing exterior door heat. Fits behind the inner door panel to restore proper insulation. What it does

• Replaces the oven door's internal insulation to help maintain oven temperature and improve heating efficiency.
• Reduces exterior door surface heat for safer operation and lower cabinet heat exposure.
• Helps prevent heat loss that can cause longer preheat times or uneven baking.
• Fits behind the inner door panel and works with the door's liners and glass to insulate the cooking cavity.

• One oven door insulation piece as shown.

• Always disconnect power at the breaker and allow the oven to cool completely before servicing.
• Remove the oven door and inner door panel per the manufacturer's instructions to access the insulation.
• Handle insulation with gloves and avoid compressing or tearing the material; position it flat against the inner panel.
• If any mounting clips, screws, or inner door glass were removed, keep parts organized and reassemble.

The Oven Door Gasket is an OEM part for GE ranges. This seal prevents heat from escaping the oven cavity when baking or broiling. The gasket helps maintain temperatures for more efficient cooking and reliable operation. The gasket measures approximately 84" long.

Causes of a bad gasket can include deterioration over prolonged high-heat use, damage due to abrasion or impact, or warping from moisture exposure over time.

Symptoms of a bad oven door gasket include:

• Excessive heat loss from around the oven door when in use
• Difficulty keeping desired baking temperatures
• Cooler/cold air felt escaping around the door seal
• Visible cracks, splits, or gaps in the gasket seal

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

The Bottom Trim Channel is an OEM part for GE electric ranges. As an essential cosmetic component, it works to cover and seamlessly conceal the area along the bottom perimeter of the range.

Causes of a faulty trim channel can include damage from impact or abrasion, degradation of material finishes from repeated cleaning, or loose fittings from normal stresses of use over time.

Symptoms include:

• Gaps visible between the channel and appliance bottom
• Scuffs, cracks, or breaks in the trim piece surface
• Loose or improper positioning of channel attachment clips

Color: White

This GE replacement restores a sleek, professional look while protecting internal components from spills and debris ingress. Compatible with Hotpoint, RCA, and select Kenmore models as well, it prevents future repairs from minor aesthetic issues. Keep your range looking its best!


This outer oven door glass panel replaces cracked or shattered front glass, restoring the door's protective barrier and factory look while helping maintain proper heat containment and safe operation.

• Serves as the front-facing glass of the oven door assembly
• Helps contain heat and protect inner glass and insulation
• Restores appearance and door integrity after impact or thermal damage
• Common fix for broken, cracked, loose, or missing outer glass

• Disconnect power at the breaker; shut off gas. Allow the oven to cool completely
• Wear cut-resistant gloves and eye protection; handle glass carefully
• Many models require removing the door and transferring original screws/trim to the new panel—support the door to protect hinges
• Tighten fasteners evenly and do not overtighten to avoid stressing the glass

A replacement trim vent door that restores the finished vent opening and lets the refrigerator vent operate as intended. Replaces a cracked or missing door to help maintain proper airflow and appliance appearance. What it does

• Covers the vent opening while allowing the vent to open and direct airflow inside the cabinet
• Restores proper vent movement so cold air can circulate as designed
• Replaces cracked, warped, or broken trim that can catch or stick
• Helps reduce visible gaps and improves the refrigerator's interior appearance

• One white trim vent door

• Always unplug the appliance or turn off power at the breaker before servicing
• Many trim vent doors are snap-fit; gently pry or release retaining tabs to remove the old piece
• Handle plastic parts carefully to avoid cracking; align tabs before snapping the new door into place
• You may need to remove shelves or an interior panel for access—keep fasteners organized

This left-side refrigerator door handle replaces a damaged or worn trim handle, restoring a secure grip and clean appearance. It matches original mounting points for a factory-fit look and function. What it does

• Provides the left-side grip for opening and closing the refrigerator door
• Restores proper alignment and prevents sharp edges from broken handles
• Helps eliminate rattling or loose-feel door operation caused by a damaged handle
• Matches the OEM finish for a consistent appearance

• One left-side white handle

• Designed to replace the matching left door handle; use existing fasteners unless new hardware is specified
• Tighten mounting screws to a snug fit; avoid over-torquing which can crack plastic
• Disconnect power and remove food from the door area if needed for safer access

The Side Door Trim is an OEM part for GE ovens. This trim piece is designed to fit along the edge of the oven door, providing a finished look and helping to seal the door properly when closed. It contributes to the overall aesthetics of the oven and ensures efficient heat retention during cooking.

Causes of a bad side door trim can include accidental impact, heat damage over time, or general wear and tear from frequent use. A damaged trim can lead to inefficient sealing, affecting the oven’s cooking performance and energy efficiency.

Symptoms of a bad side door trim include:

• Visible cracks or damage on the trim
• The oven door not sealing properly
• Heat escaping from the sides of the oven door
• The oven door appearing misaligned

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-side door trim bracket secures the exterior trim to the appliance door, restoring a flush, finished appearance and preventing the trim from coming loose. Designed to replace a damaged or missing right-hand bracket. What it does:

• Holds the door trim in place on the right side to maintain alignment and appearance
• Prevents trim gaps, vibration noise, and rattling caused by a loose or broken bracket
• Restores proper trim attachment after collision, wear, or failed fasteners
• Works with the factory trim assembly to ensure a straight, secure fit

• One right-side door trim bracket

• Use basic hand tools; retain any reusable screws or clips unless damaged
• Power off and unplug the appliance before starting work for safety
• Align the bracket and trim before tightening fasteners to avoid cracking the trim
• Replace missing or damaged clips or screws with OEM-specified fasteners

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

This spring-loaded oven door hinge supports and pivots the door so it opens smoothly and closes tightly. Replacing a worn hinge restores proper door alignment and seal, helping maintain temperature and safe, reliable operation.

• Provides the spring-tensioned pivot that controls door opening and closing
• Maintains door alignment and gasket compression for a tight seal
• Common symptoms: door won't close fully or pops open during use
• Door may drop/sag, not hold position, or make squeaking/binding noises
• Heat escaping from the front of the oven or longer preheat/uneven baking

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door per your model's procedure; engage hinge locks or insert retaining pins and support the door
• Replace the hinge; springs are under tension—use gloves and caution
• Reinstall and check door movement and seal for proper closure

The Window Pack Assembly is an OEM replacement part for GE electric ranges. It comprises the outer oven window and securing brackets that hold the glass in place.

Causes of failure can include cracks in the glass from impact or thermal stress over time. Mounting brackets may loosen from normal use.

Symptoms of a faulty window pack assembly include:

• Fogging or condensation between panes of glass
• Leaks evident around the perimeter of the oven window
• Window that rocks or wiggles in the frame
• Inability to securely latch the window shut

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models.

A silicon-controlled rectifier (SCR) used on appliance control boards to regulate power to motors, igniters or other loads. Replacing a faulty SCR can restore proper power switching and steady operation of the driven component. What it does:

• Acts as a power-switching semiconductor in appliance electronic control circuits to allow current flow only when triggered.
• Enables controlled delivery of voltage/current to motors, igniters and similar loads on the control board.
• A failing SCR can cause symptoms such as no power to a motor or igniter, intermittent operation, or complete failure of the driven component.
• Match the SCR package and electrical ratings to the control board before replacing.

• Disconnect all power to the appliance before accessing control electronics to avoid shock or damage.
• Take electrostatic-discharge (ESD) precautions; handle the SCR by its body and avoid touching leads.
• Package orientation and electrical ratings on the control board and wiring before installation.

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

This spacer positions and supports appliance panels and components to maintain correct alignment and clearances, helping reduce panel movement and ensure proper fit. It's a simple replacement that restores intended spacing where worn or missing. What it does

• Provides consistent spacing between panels or components to prevent rubbing or misalignment
• Helps stabilize trim, panels, or assemblies that sit flush against the cabinet
• Used when gaps, loose panels, or misaligned trim are present

• One spacer

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect surrounding fasteners and mounting points; replace any damaged screws or clips
• Install in the same orientation and location as the original spacer; do not force into place

Includes 12 washers.

This is a genuine OEM replacement screw that is to attach the oven door panels to each other. This is a fully threaded screw that fits the predrilled hole to connect the two components. The screw is used with a washer when installed. This screw does not require a nut; it connects directly into the oven part, where it has a built-in receiving nut. If this part becomes worn and breaks or is lost during repairs to the oven, it must be replaced before the oven can be reassembled.Component assembly screws like this one used in oven panels are not normally replaced. These are made of high-temperature steel and designed to last a long time; however, if the oven panels are removed to make repairs, one or more screws may become lost. If this happens, replacement screws must be purchased and installed before the oven can be used. This screw is a silver metal replacement part that is sold individually. It does not come with the washer needed to install it. Verify the number of screws needed before ordering. This screw is designed for use in ovens manufactured by General Electric and Kenmore.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
