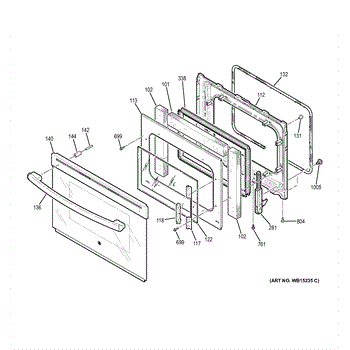

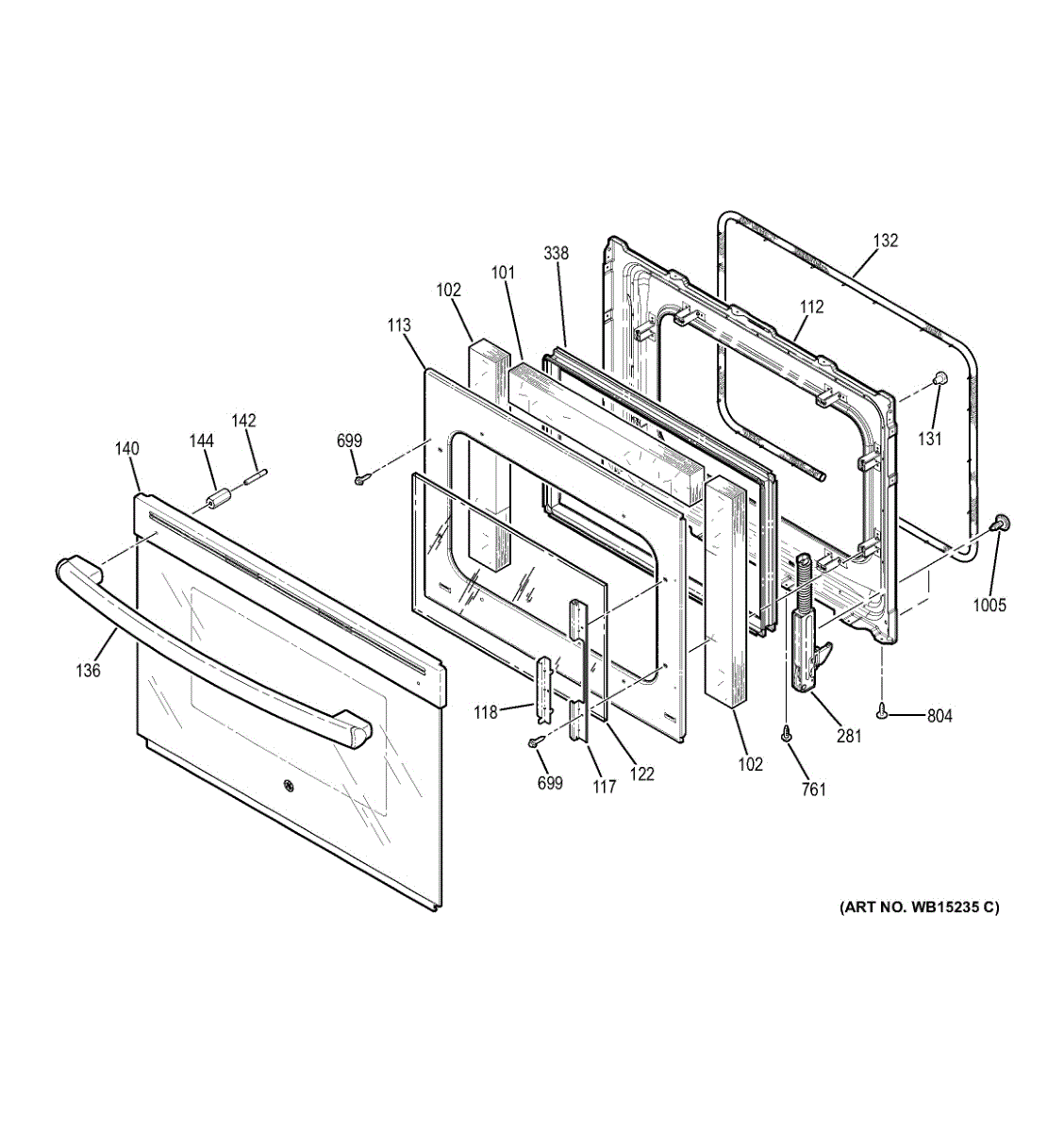

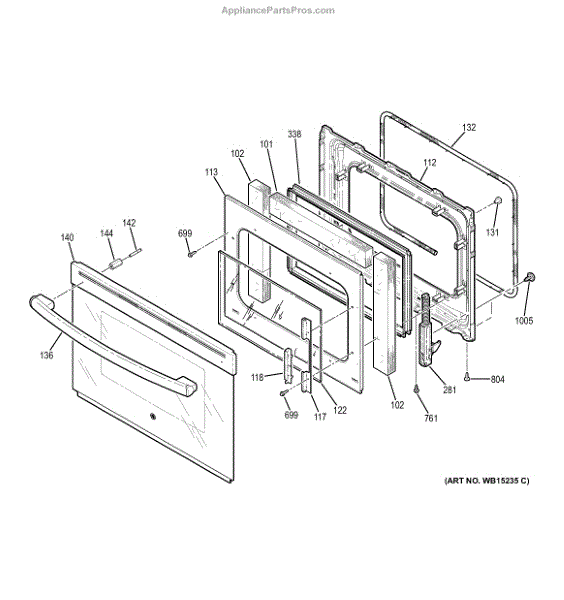

Parts for Ge JD630DF1BB: Door Parts

Thermal insulation pad that installs inside the range oven door. Replace if torn, compressed, missing, or no longer retaining heat effectively.

Thermal insulation that fits between inner and outer oven door panels along the side edge. Replace when burnt, brittle, cracked, or missing from wear.

Replaces the inner oven door panel that protects insulation and secures the glass. Install when damaged, warped, or rusted to restore a proper seal.

Secures insulation inside the oven door to prevent shifting and maintain heat containment. Replace if clip is cracked, broken, or missing.

Secures and holds the glass panel in place on your oven door. Replace this retainer if it's cracked, broken, or missing to properly support the glass.

Retainer holds the glass panel securely in your oven door. Replace if cracked, broken, or missing to restore proper glass mounting and door appearance.

Inner oven door glass installs inside the door cavity behind the outer panel. Replace if shattered, cracked, or broken to restore viewing window function.

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

The Oven Door Gasket is an OEM part for GE ranges. This gasket is responsible for creating an air-tight seal between the door and the oven housing. It allows heat to be properly contained within the oven cavity during the cooking process.

Causes of a bad gasket can include warping, cracking, or breakdown of the gasket material over repeated heating and cooling cycles. Exposure to excessive heat or impact damage is also possible.

Symptoms of a bad gasket include:

• Inability to maintain proper oven temperatures
• Leaks of heat, smoke, or flames from the door seal area
• Drafts or cold spots felt around the door perimeter
• Difficulty in fully latching the oven door closed

This OEM GE replacement gasket is also compatible with Hotpoint, RCA, and some Kenmore models.

The Black Handle is an OEM part for GE electric range models. It facilitates safely opening and closing the oven door for cooking access.

Symptoms of a faulty handle include:

• Loosened mounting stresses vulnerable to long-term impact
• Potential pinched fingers if stability fades over repetitive use
• Degraded aesthetic appeal detracting from the kitchen space

Failures stem from wear on mounting screws after years of heating cycles, stresses from accidental impacts compromising structure, and faded color from sustained thermal exposures.

This OEM handle is compatible with select Hotpoint and RCA gas range models.

Black outer door panel with trim kit for ranges. Replaces cracked, dented, or discolored front door panels. Restores the exterior appearance of your oven.

Composite support stud mounts on your cooktop to provide a stable resting point for the burner grate. Replace if cracked, broken, or missing.

Reinforcement spacer maintains proper gap and support between panels, trim, or brackets. Replace if worn, missing, or cracked to restore alignment.

Oven door hinge secures and supports the door during opening and closing. Replace if hinge is cracked, broken, or causing door misalignment issues.

Left-side oven door hinge that secures and pivots the door for smooth opening and proper alignment. Replace if cracked, bent, or loose to restore stable operation.

Inner glass assembly for oven doors. Replace when cracked, shattered, or broken to restore door visibility and insulation. Verify fit with your model number.

ST10-16 X 7/16"

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
