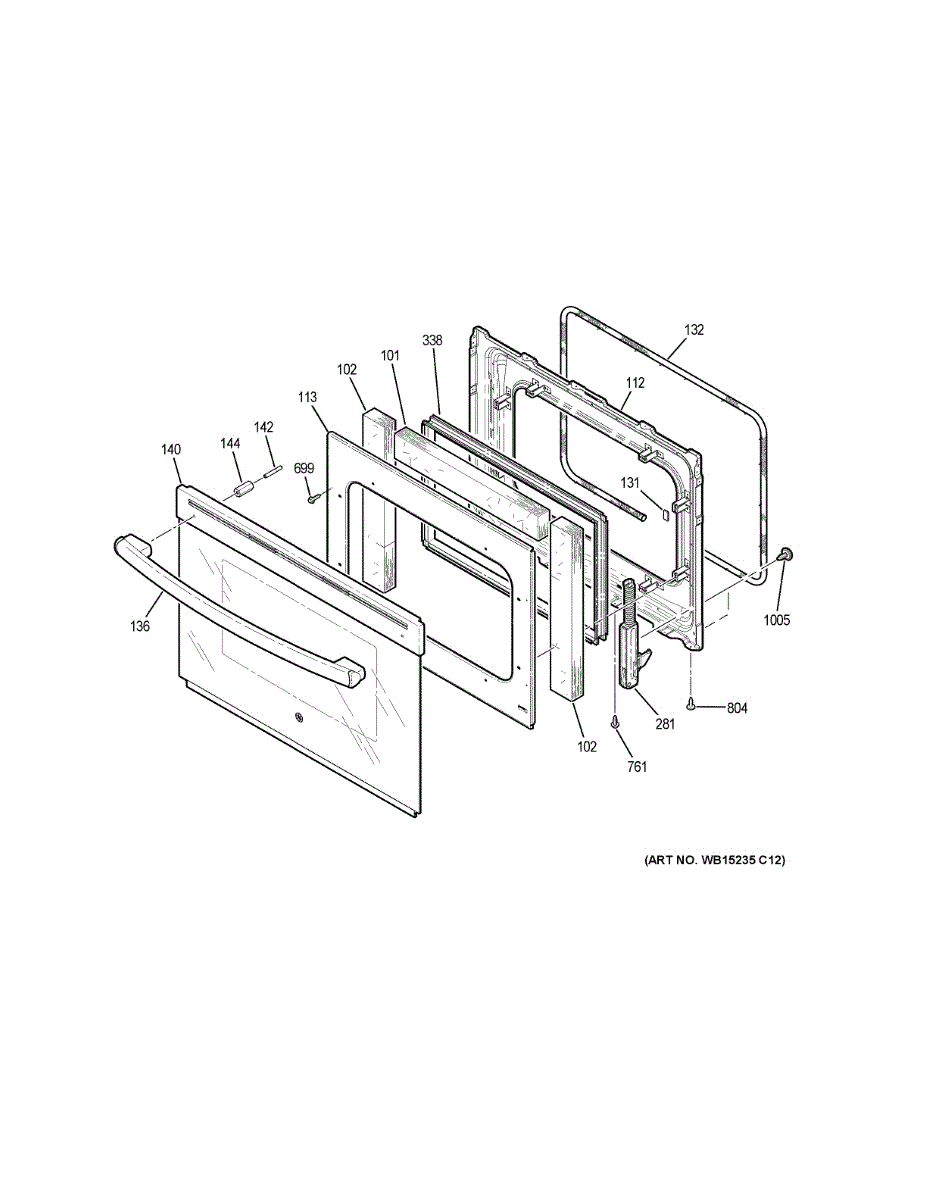

Parts for Ge JD630DF8WW: Door Parts

Thermal insulation pad that installs inside the range oven door. Replace if torn, compressed, missing, or no longer retaining heat effectively.

Thermal insulation that fits between inner and outer oven door panels along the side edge. Replace when burnt, brittle, cracked, or missing from wear.

Replaces the inner oven door panel that protects insulation and secures the glass. Install when damaged, warped, or rusted to restore a proper seal.

Secures insulation inside the oven door to prevent shifting and maintain heat containment. Replace if clip is cracked, broken, or missing.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

The Oven Door Gasket is an OEM part for GE ranges. This gasket is responsible for creating an air-tight seal between the door and the oven housing. It allows heat to be properly contained within the oven cavity during the cooking process.

Causes of a bad gasket can include warping, cracking, or breakdown of the gasket material over repeated heating and cooling cycles. Exposure to excessive heat or impact damage is also possible.

Symptoms of a bad gasket include:

• Inability to maintain proper oven temperatures
• Leaks of heat, smoke, or flames from the door seal area
• Drafts or cold spots felt around the door perimeter
• Difficulty in fully latching the oven door closed

This OEM GE replacement gasket is also compatible with Hotpoint, RCA, and some Kenmore models.

White outer door panel and trim kit for electric ranges. Replaces cracked, chipped, or discolored door panels. Includes trim components for complete installation.

Composite support stud mounts on your cooktop to provide a stable resting point for the burner grate. Replace if cracked, broken, or missing.

Reinforcement spacer maintains proper gap and support between panels, trim, or brackets. Replace if worn, missing, or cracked to restore alignment.

Replace cracked, broken, or shattered oven door window glass. This assembly includes the glass pane and securing brackets that install inside your range door.

ST10-16 X 7/16"

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
