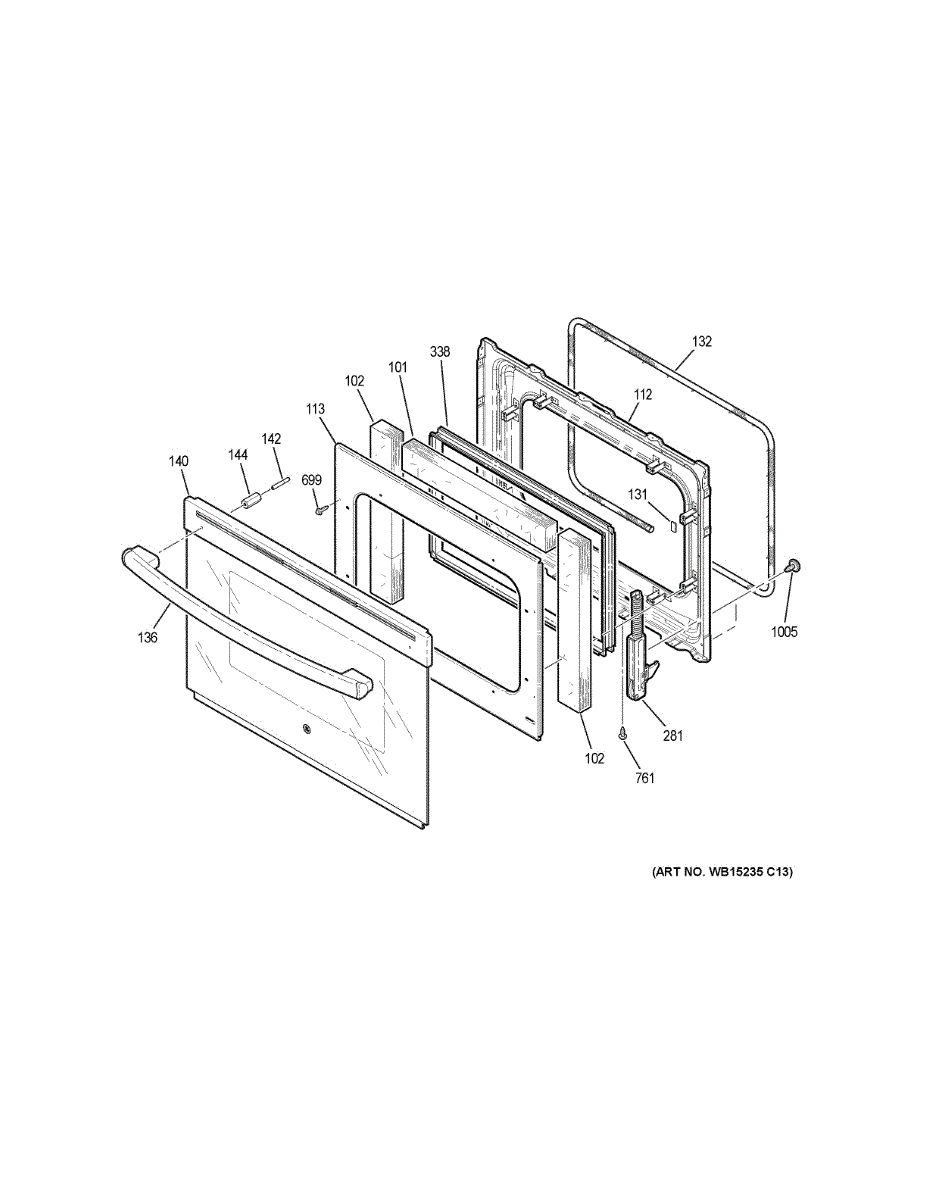

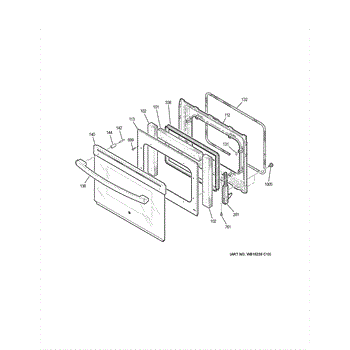

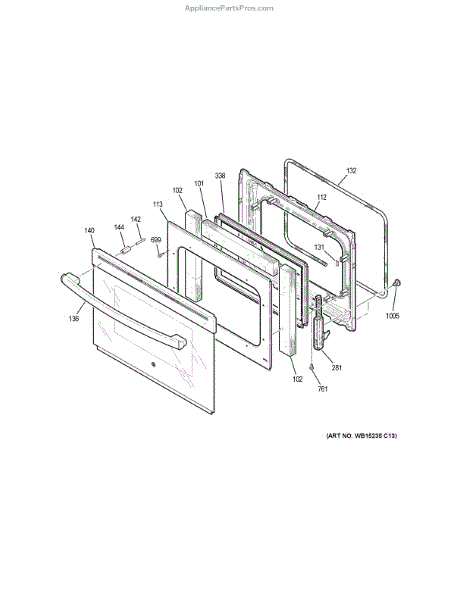

Parts for Ge JS750DF4BB: Door Parts

Thermal insulation pad that installs inside the range oven door. Replace if torn, compressed, missing, or no longer retaining heat effectively.

Thermal insulation that fits between inner and outer oven door panels along the side edge. Replace when burnt, brittle, cracked, or missing from wear.

Replaces the inner oven door panel that protects insulation and secures the glass. Install when damaged, warped, or rusted to restore a proper seal.

Secures insulation inside the oven door to prevent shifting and maintain heat containment. Replace if clip is cracked, broken, or missing.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

The Oven Door Gasket is an OEM part for GE ranges. This gasket is responsible for creating an air-tight seal between the door and the oven housing. It allows heat to be properly contained within the oven cavity during the cooking process.

The Black Handle is an OEM part for GE electric range models. It facilitates safely opening and closing the oven door for cooking access.

Symptoms of a faulty handle include:

• Loosened mounting stresses vulnerable to long-term impact
• Potential pinched fingers if stability fades over repetitive use
• Degraded aesthetic appeal detracting from the kitchen space

Failures stem from wear on mounting screws after years of heating cycles, stresses from accidental impacts compromising structure, and faded color from sustained thermal exposures.

This OEM handle is compatible with select Hotpoint and RCA gas range models.

Black outer door panel with trim kit for ranges. Replaces cracked, dented, or discolored front door panels. Restores the exterior appearance of your oven.

Composite support stud mounts on your cooktop to provide a stable resting point for the burner grate. Replace if cracked, broken, or missing.

Reinforcement spacer maintains proper gap and support between panels, trim, or brackets. Replace if worn, missing, or cracked to restore alignment.

Left-side oven door hinge that secures and pivots the door for smooth opening and proper alignment. Replace if cracked, bent, or loose to restore stable operation.

This right-side refrigerator door hinge provides a secure pivot for the door, restoring proper alignment and smooth opening. It replaces worn or bent hinges to reduce scraping and uneven sealing for better cold retention. What it does:

• Supports

Replace cracked, broken, or shattered oven door window glass. This assembly includes the glass pane and securing brackets that install inside your range door.

ST10-16 X 7/16"

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
