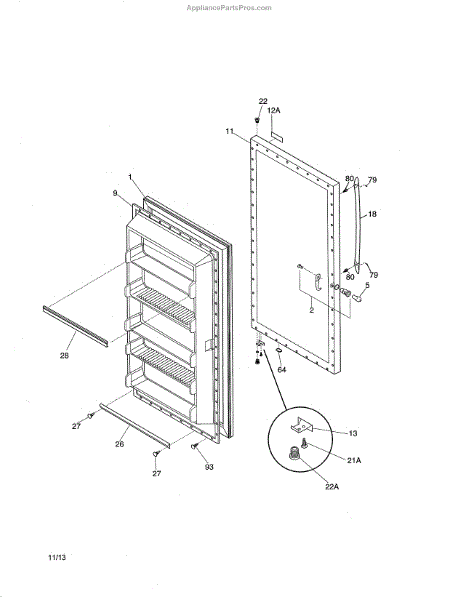

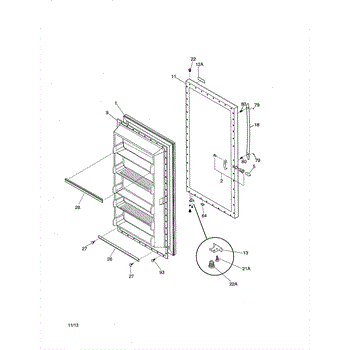

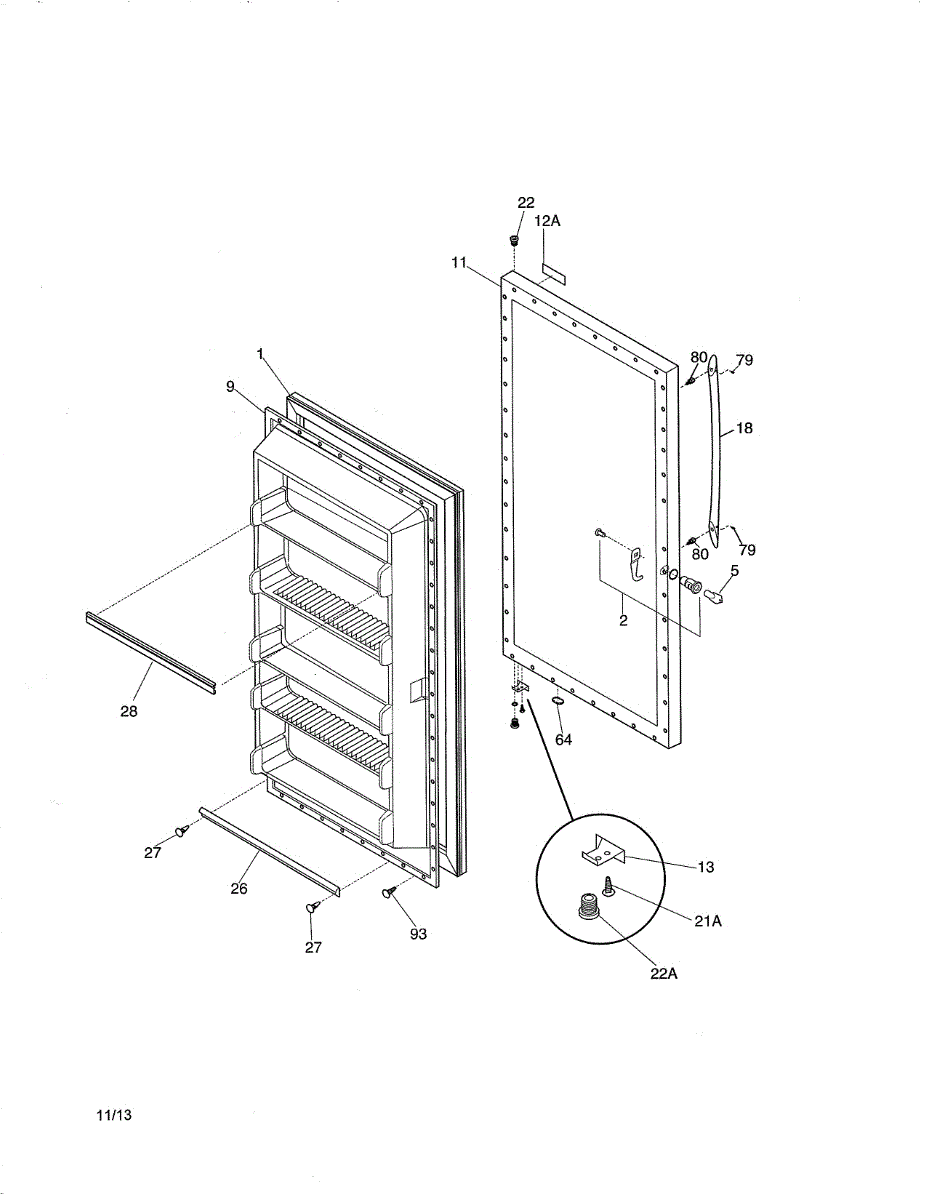

Parts for Kenmore 253.28732C2 (25328732C2, 253 28732C2): Door Parts

The Door Gasket is an OEM part for Frigidaire refrigerators. It ensures a tight seal around the door, preventing cold air from escaping and maintaining the set temperature inside the appliance. Over time, the gasket can wear out, become brittle, or lose its elasticity, leading to gaps between the gasket and the appliance frame. The gasket measures approximately 31" x 60"

Causes of a bad door gasket can vary from normal wear and tear to accidental damage.

Symptoms of a bad Gasket include:

• Noticeable gaps or tears in the gasket
• Difficulty in maintaining the set temperature
• Condensation or frost buildup around the door

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Freezer Door Key is an OEM replacement part for Frigidaire refrigerators. This small but essential component is designed to securely lock the freezer door, preventing accidental openings or unauthorized access.

Symptoms of needing to replace the freezer door key include:

• Difficulty in locking or unlocking the freezer door
• The key not fitting properly or becoming stuck in the lock
• Visible wear, damage, or breakage of the key itself

Causes of a faulty freezer door key can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the locking mechanism itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This control panel replaces a damaged or worn front console to restore the oven/range user interface and appearance. It provides the tactile surface and openings that hold the display, touchpads, and control knobs. What it does:

• Hosts the user controls and display so you can operate the appliance
• Protects internal control electronics from spills and debris
• Restores proper alignment and fit of buttons, knobs, and indicator windows
• Helps resolve issues caused by cracked, warped, or cosmetically damaged panels

• Disconnect power at the breaker or unplug the appliance before starting.
• Typically requires removing fasteners and carefully releasing retaining clips; handle to avoid scratching the finish.
• Re-seat any button pads, overlays, or display modules exactly as removed to ensure proper function.
• If electronics or wiring are attached, note their routing and connections.

This nut-anchor is a small mounting insert that provides a secure threaded point in thin sheet metal so screws can fasten panels or components reliably. It restores a solid attachment where the original fastener or threaded hole is missing. What it does:

• Provides a reinforced threaded anchor in thin metal or plastic panels
• Allows screws to tighten without stripping the sheet material
• Stops panels, trim, or assemblies from coming loose or rattling
• Used where a captive nut or threaded insert is required for reassembly

• Install where original nut/insert was located; verify orientation before fastening
• Use the correct screw size and hand-tighten to avoid overtightening or thread damage
• Disconnect power and move the appliance to a safe, stable work area before servicing
• If the original mounting point is severely damaged, consider assessing the surrounding structure for repair

The Handle is an OEM part for Frigidaire freezers. It serves as the primary point of access to the freezer compartment, allowing you to open and close the door with ease. This handle is designed to provide a secure and comfortable grip, ensuring smooth operation when retrieving or storing frozen items.

Causes of a bad handle include physical damage from impact or excessive force, loosening over time due to repeated use, or general wear and tear on the handle or its mounting hardware.

Symptoms of a bad handle include:

• Difficulty opening or closing the freezer door
• A loose or wobbly handle that feels insecure
• Visible cracks, breaks, or deformation in the handle itself

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw secures panels, brackets, or internal components in select Frigidaire-made refrigerators and freezers. Use it to replace missing or stripped hardware and restore a secure fit to help reduce vibration and noise.

• Fastens appliance panels, brackets, and internal components
• Helps prevent vibration, rattling, or looseness from missing hardware
• Reliable fix when the original screw is missing, damaged, or stripped
• Designed for proper fit in the original threaded location(s) specified for this part number

• Disconnect power to the appliance before servicing
• Align parts and start the screw by hand to avoid cross-threading
• Tighten snugly; do not overtighten, especially into plastic components
• Reuse any original washers or clips if present and in good condition

This bearing installs in the refrigerator/freezer door hinge to provide a smooth pivot point and maintain alignment. Replacing a worn bearing restores easy door movement and helps the door close and seal correctly.

• Provides a low-friction surface between the hinge pin and hinge bracket for smooth door pivoting
• Helps maintain proper door height and alignment for a reliable gasket seal
• Typical symptoms of wear: squeaking or grinding when opening, door binding or dropping, door not closing fully or popping open
• Excess wear can contribute to air leaks and frost buildup around the door

• Disconnect power before servicing; remove or secure items in the door
• Support the door; remove hinge fasteners and lift the door off if required
• Note and retain any shims/spacers; install the new bearing in the hinge as oriented in the diagram
• Reinstall and align the door; verify smooth operation and a complete gasket seal. Do not lubricate unless specified by the manufacturer

This door gasket creates an airtight seal around your refrigerator or freezer door or lid, keeping cold air in and moisture out. Replace a worn gasket to restore temperature control, reduce frost, and support efficient operation.

• Forms a tight perimeter seal between the cabinet and door/lid to prevent air leaks
• Helps maintain stable internal temperatures and consistent cooling performance
• Reduces frost and condensation caused by a failed or leaking seal
• Common symptoms: visible tears or cracks, gaps, warping/shrinkage, door not sealing or staying closed

• Disconnect power; remove items from the door/lid as needed
• Warm the new gasket (soak in warm water or gently heat) to make it pliable, then straighten corners
• Fit the gasket into the channel or under the retainer, working evenly around the perimeter
• Check closure all around with a paper test; adjust hinges/leveling as needed and allow the gasket to relax and conform

A small replacement mounting clip that secures interior trim or panels on select refrigerators, helping restore a snug fit and reduce loose, rattling parts. Fits where worn or broken clips allow trim to shift. What it does:

• Holds trim, panels or small components in place to prevent rattling and movement.
• Restores proper alignment of affected panels so edges sit flush and look finished.
• Simple mechanical fastening — replaces brittle or broken clips that no longer grip.
• Helps reduce noise caused by loose interior parts during normal operation.

• Always unplug the appliance or switch off power at the breaker before servicing.
• Remove the affected trim or panel per manufacturer instructions to access the clip location.
• Press the clip into the mating slot or post until it seats securely; use a small tool if needed to avoid fingernail or surface damage.
• Inspect surrounding mounting surfaces for cracks or wear; damaged supports may require additional replacement parts.

The Refrigerator Door Gasket Clips are OEM parts for Frigidaire refrigerators. These clips secure the door gasket in place, ensuring a tight seal to maintain the internal temperature and prevent cold air from escaping. This pack contains 40 clips, which secure the interior trim pieces and hold the gasket and liner to the freezer lid.

Over time, the gasket clips can become damaged or worn out due to frequent opening and closing of the refrigerator door, exposure to moisture, or accidental impacts. If the clips fail, the door gasket may not stay in place, compromising the refrigerator's efficiency.

Symptoms of bad refrigerator door gasket clips include:

• The door gasket not staying securely in place
• Visible damage or wear on the clips
• Cold air escaping from around the door
• Increased energy consumption due to poor sealing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This door rack mounts to the inside of the refrigerator or freezer door to hold small items securely. Replace a cracked or missing rack to restore door storage and prevent items from falling when the door opens and closes.

• Provides additional storage on the inner door for jars, condiments, and small items
• Helps keep contents organized and stable during door movement
• Common symptoms: broken or missing rack, items falling from the door, reduced storage space
• Restores original fit and function when the existing rack is damaged

• Unplug the appliance before servicing
• Remove items from the affected door area
• Lift or release the old rack from the end supports/slots; seat the new rack fully into the same supports
• Confirm the rack is secure before reloading and avoid overloading to prevent damage

This part number contains one (1) screw.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener
