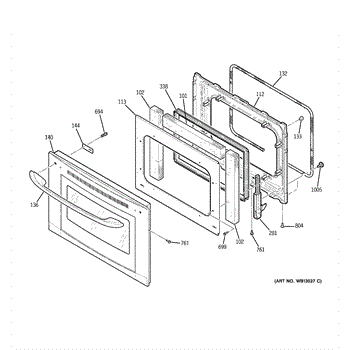

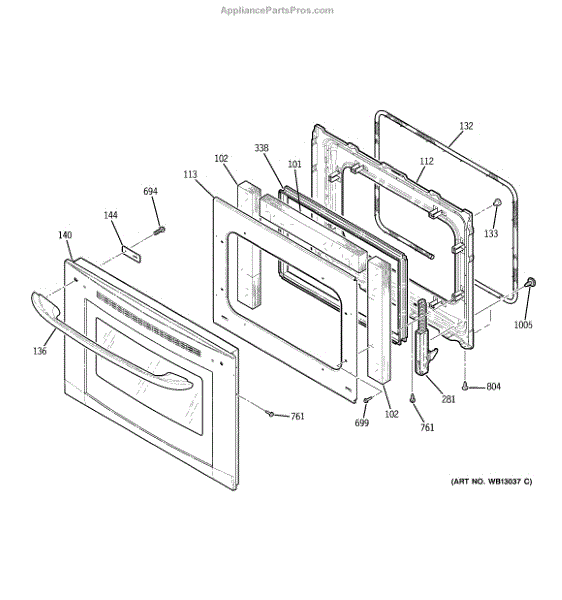

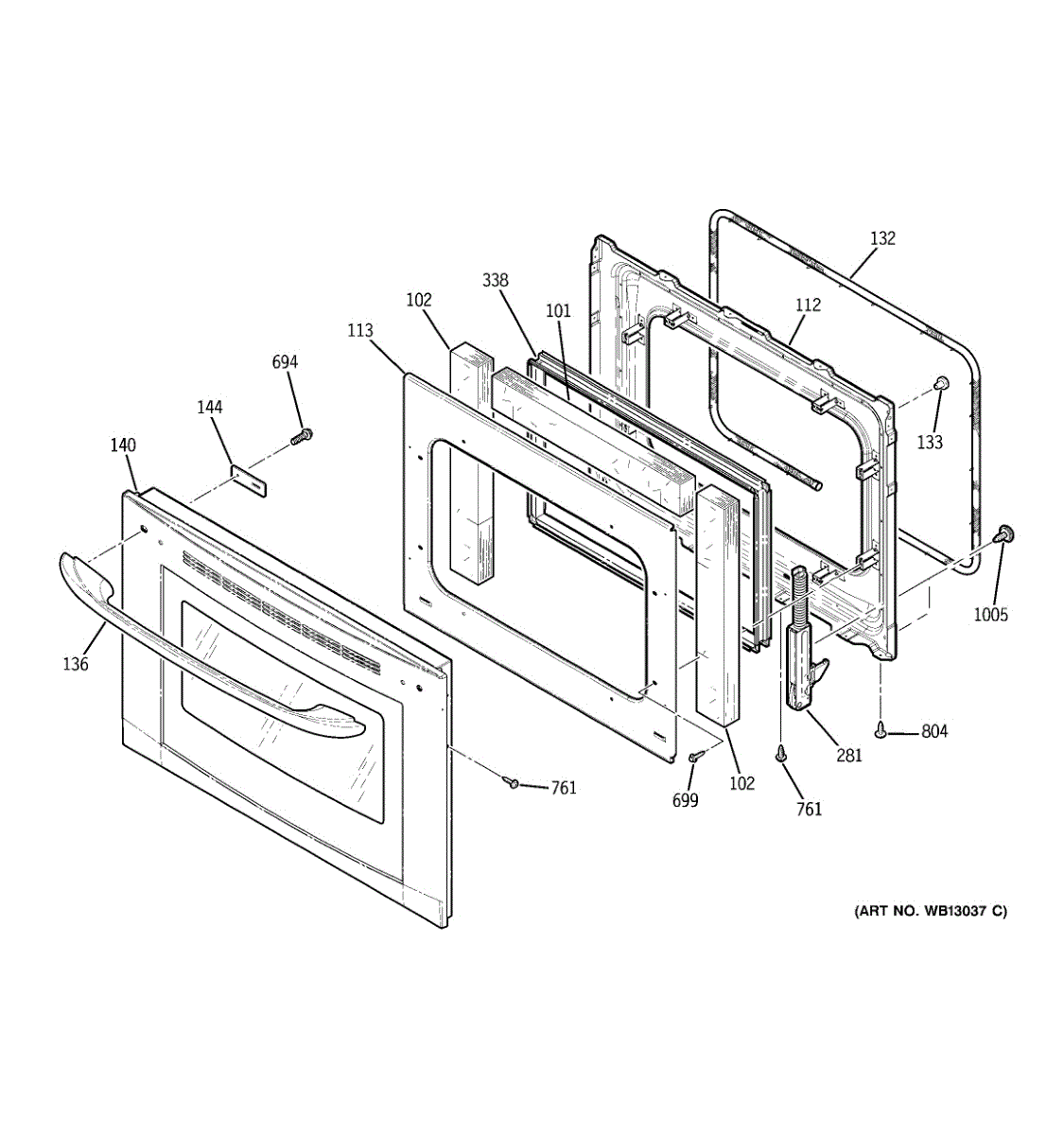

Parts for Kenmore 911.49042200 (91149042200, 911 49042200): Door Parts

This oven door insulation pad fits behind the inner door liner to help retain heat in the oven cavity and reduce heat transfer to the outer door. It restores proper oven temperature control and improves cooking consistency. What it does:

• Replaces worn or damaged insulation that can allow heat to escape from the oven cavity
• Helps the oven reach and maintain set temperatures for more even baking and roasting
• Reduces excessive outer door temperatures and hot spots on the range front
• Restores the intended thermal barrier between the oven cavity and outer door assembly

• One oven door insulation pad

• Disconnect power to the appliance before starting any repair; allow the oven to cool completely
• Installation commonly requires removing the oven door and inner door liner—follow OEM instructions
• Handle insulation carefully; wear gloves and a dust mask if material is fibrous

This oven door side insulation sits between the inner and outer door panels to limit heat loss and reduce hot spots along the door edge. Replace when the original is burnt, brittle, or missing to help restore safe thermal performance.

• Provides a thermal barrier along the side of the oven door between panels
• Helps retain oven heat and reduce heat transfer to the outer door surface
• Can help address heat escaping around door edges or a door exterior that feels hotter than normal
• Replace if the insulation is charred, frayed, compressed, or contaminated during service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door and disassemble per your model's service instructions; work on a padded surface
• Wear gloves and eye protection; handle insulation carefully and avoid compressing it
• Do not block vents or air passages during reassembly; note orientation for proper fit

The Oven Door Gasket is an OEM part for GE ranges. It wraps around the door perimeter creating an insulating barrier.

Causes related to standard wear absorbing repeated heating/cooling cycles without failure. Exposure to accidental cuts or abrasions during cleaning can also damage integrity.

Symptoms include:

• Slower preheat times
• Hot spots developing beside the door opening

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

The Window Pack Assembly is an OEM replacement part for GE electric ranges. It comprises the outer oven window and securing brackets that hold the glass in place.

Causes of failure can include cracks in the glass from impact or thermal stress over time. Mounting brackets may loosen from normal use.

Symptoms of a faulty window pack assembly include:

• Fogging or condensation between panes of glass
• Leaks evident around the perimeter of the oven window
• Window that rocks or wiggles in the frame
• Inability to securely latch the window shut

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models.

This hex-washer-head screw secures appliance components and panels. The correct 10-16 thread, 1-inch length fastener restores a tight, factory fit when an original screw is missing, stripped, or corroded.

• Fastens brackets, shields, trim, or panels to the appliance chassis
• Helps resolve rattling, gaps, or loose parts caused by a missing/damaged screw
• 10-16 thread with 1-inch length matches factory hardware for specified locations
• Hex-washer head provides solid tool engagement and distributes load to protect surfaces

• Disconnect power before servicing; if working on a gas appliance, also shut off the gas supply
• Support the part being secured and align holes before tightening
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any additional missing screws in the same area for uniform support

ST10-16 X 7/16"

This white trim screw secures panels and plastic trim on the appliance, restoring proper fit and stopping rattles or loose pieces. It's a direct-replacement fastener used where the factory-installed screw has stripped, corroded, or gone missing. What it does

• Fastens trim, panels, or components to maintain proper alignment and fit
• Prevents vibration noise and rattling caused by loose parts
• Replaces stripped, rusted, or lost screws for a clean, finished appearance
• Matches factory finish to remain discreet in visible areas

• Disconnect power to the appliance before starting any repair
• Use the correct-size screwdriver/drill bit to avoid stripping the head
• Tighten securely but do not overtighten; excessive force can crack plastic or strip threads
• Replace only with the same part number to ensure proper fit and finish

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed
