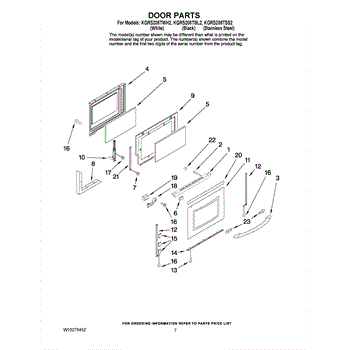

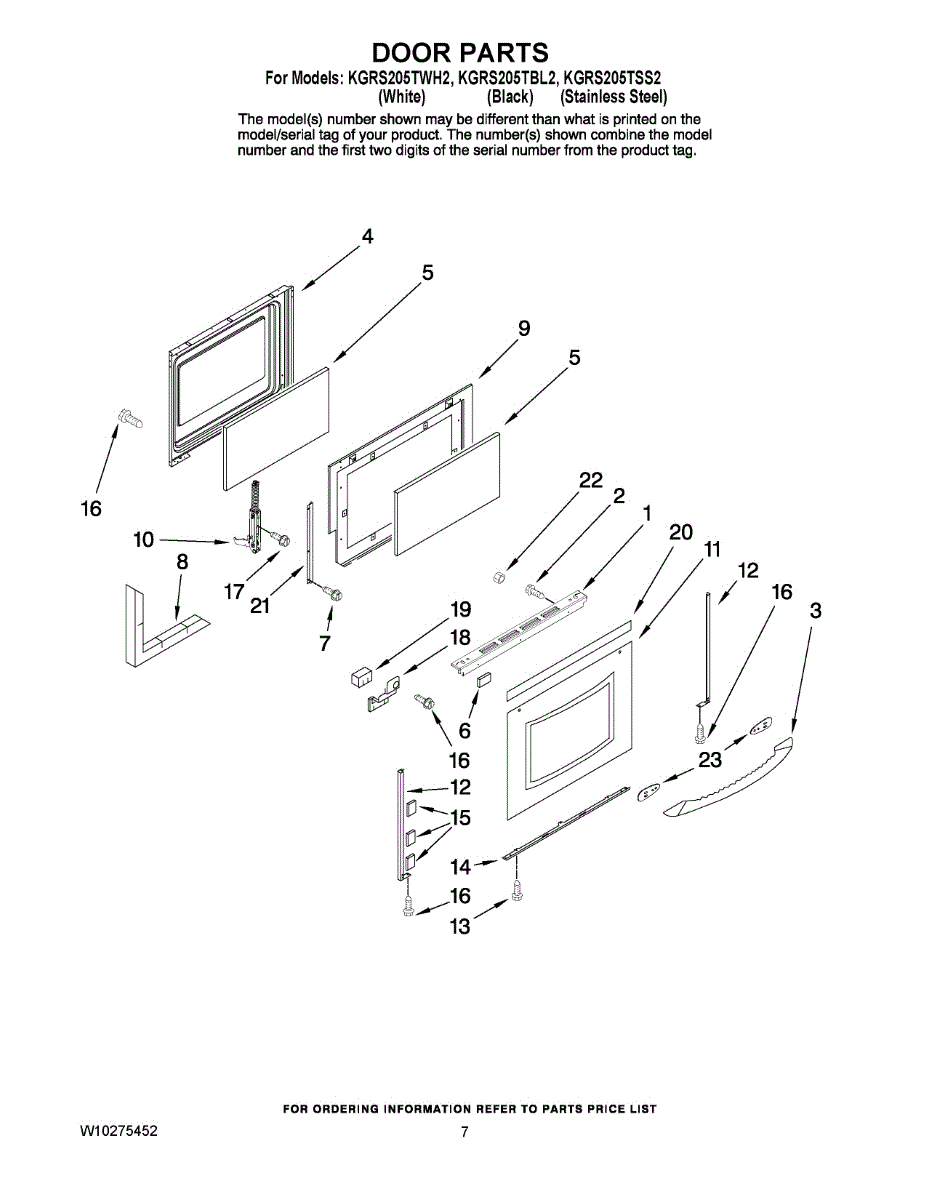

Parts for Kitchenaid KGRS205TBL2: 05 - Door Parts

Black

White

Black

White

Stainless steel

The Oven Inner Door Glass is an OEM part for Whirlpool ovens. The glass component is specially tempered to withstand high heat inside the oven cavity.

Size: 20 5/8 inches x 13 1/8 inches. For the glass measuring 22 3/8 inches x 14 inches order 74004857

Causes of a bad oven inner door glass can include small cracks or chips developing from regular door openings/closings, or microscopic defects that enlarge under repeated thermal cycling. Damage from accidental impacts is also possible.

Symptoms of a bad Oven Inner Door Glass include:

• Reduced visibility into the oven due to fogging, steam, or condensation buildup
• Cracks or fractures compromising the structural integrity of the glass
• Leaks or seal failure allowing heat to escape from around the door frame

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: White

Color: White. Size: 8-18 x 3/8 inch.

The Oven Door Hinge is an OEM replacement part for Whirlpool ovens and ranges. It is the mechanism that allows the oven door to securely and safely open and close. The hinge components work together to provide an even and balanced movement, while also carrying the weight of the door during operation.

Causes of a bad oven door hinge can include regular wear and tear from frequent use, physical damage due to accidental impacts, or rust and corrosion over time.
Symptoms of a bad oven door hinge include:

• Improper closure where the door does not align or seal fully with the oven cavity
• Increased noise or squeaking upon opening and closing
• The door becoming loose or wobbly over time

This OEM Whirlpool replacement part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: If the hinges have never been replaced the manufacturer also recommends replacing door hinge receiver kit part number 12002578

Stainless steel

White

Screw for side trim.

White

Screw for side trim.

Size: 10-24X5/16-NI

Left

This glass mounting bracket secures the oven door glass to the door frame, restoring a stable, properly aligned door and helping prevent rattling or loose glass. Designed to replace a worn, broken, or missing bracket. What it does:

• Holds the oven door glass in place so the door closes and seals correctly
• Prevents glass from shifting, rattling, or coming loose during use
• Restores proper alignment after a cracked, bent, or missing bracket
• Works with the door assembly to maintain safe, reliable operation

• Disconnect power to the appliance before beginning any repair; allow surfaces to cool.
• Handle glass carefully and wear cut-resistant gloves and eye protection.
• Replacement typically requires partial door disassembly; keep fasteners organized for reassembly.
• Tighten fasteners securely but avoid over-torquing; inspect surrounding clips and gaskets while installing.

White

Black

This spacer is a small mounting component that helps keep internal appliance parts correctly positioned for reliable, quiet operation. Use it to restore proper spacing and reduce rubbing or vibration between parts. What it does:

• Provides correct spacing between components to maintain alignment and prevent contact
• Helps reduce noise and vibration caused by misaligned parts
• Supports stable assembly of panels, brackets, or housings where used
• Commonly replaced when worn, cracked, or missing

• Disconnect power (and water, if applicable) before beginning any repair
• Installation typically requires removing an access panel and replacing the old spacer with the new one
• Use basic hand tools; avoid forcing parts into position to prevent damage
