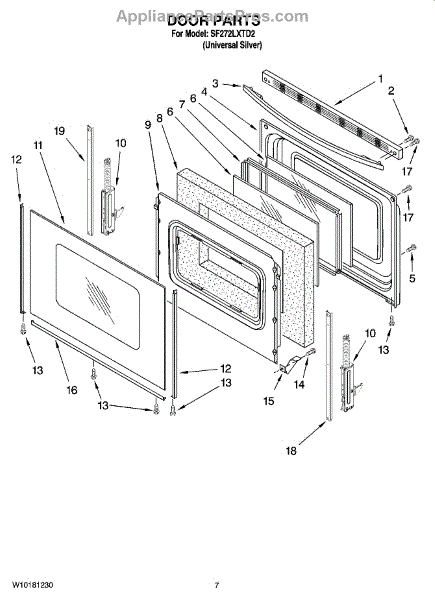

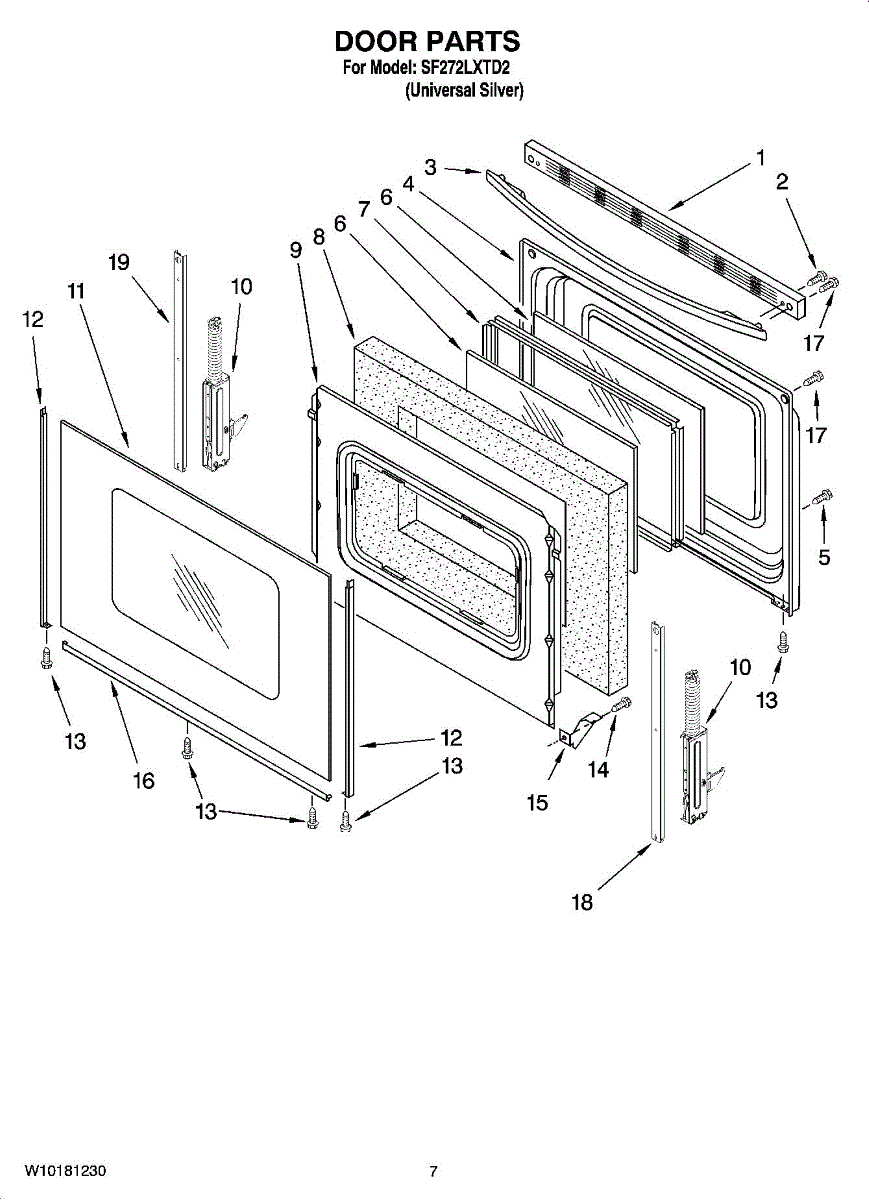

Parts for Whirlpool SF272LXTD2: 05 - Door Parts

Color: Black

The Screw is an OEM part for Whirlpool appliances that is responsible for securing various parts in place. The screw ensures a tight and secure fit, preventing any loose parts. A bad screw can occur due to wear and tear or accidental damage. If the screw becomes stripped, rusted, or lost, it can lead to instability or even malfunction of the affected parts.

Symptoms of a bad screw include:

• Loose or wobbly parts.
• Components not securely fastened.
• Difficulty in assembling or disassembling the appliance.
• Rattling or unusual noises during operation.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This left inner door liner replaces a cracked, stained, or damaged inner door panel to restore the refrigerator/freezer door interior surface and support door-mounted bins and shelving. It helps maintain a clean, secure mounting surface for door accessories. What it does:

• Replaces the inner door panel to cover insulation and provide a finished interior surface
• Provides mounting points and support for door bins, shelves, and hardware
• Helps prevent cold air leaks by restoring the proper door interior assembly fit
• Addresses symptoms like visible cracks, holes, staining, or loose/misaligned door-mounted storage

• One left door liner

• High-level replacement — may require removing the door, inner trim, and any attached bins or shelves
• Keep fasteners and hardware organized; transfer existing gaskets, clips, and brackets as needed
• Disconnect power to the appliance if working near electrical components or lights

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

The Inner Door Glass is an OEM part for Whirlpool ovens. It serves as an inner layer of the oven door, providing a clear view into the oven while helping to maintain the temperature inside. The glass measures approximately 12.8 x 18.5 inch.

Over time, the inner door glass can become damaged or worn out due to regular use, exposure to high temperatures, or accidental impact. These issues can compromise the effectiveness of the oven door, leading to heat loss and inefficient cooking performance.

Symptoms of a bad inner door glass include:

• Visible cracks or chips in the glass
• Heat escaping from the oven
• Difficulty seeing through the glass during cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This frame surrounds and supports the window glass in your oven door, keeping the glass secure and aligned. Replace a bent or corroded frame to address loose glass and restore the door's proper fit and clean appearance.

• Secures the oven door window glass within the door assembly
• Helps maintain alignment and seal around the window area
• Replaces frames that are bent, cracked, or corroded
• Addresses loose, rattling, or misaligned door glass
• Restores the finished look of the door

• Disconnect power and allow the oven to cool completely before service
• Remove the door per your model's instructions and place it on a padded surface
• Handle glass with cut-resistant gloves; keep track of screws, clips, and insulation for transfer
• Seat the glass evenly and avoid overtightening fasteners during reassembly

Qty 4 needed to complete full insulation

The Door Hinge Kit is an OEM part for Whirlpool refrigerators. This kit includes all necessary components to replace the door hinge, ensuring that the refrigerator door opens and closes smoothly and remains properly aligned. The kit is comprised of one active hinge with a spring and one passive hinge without.

You should replace the door hinge kit if it becomes damaged or worn out. Causes of a bad door hinge include frequent use, heavy door loads, or physical damage from impacts. A faulty hinge can result in misalignment of the door, making it difficult to open or close and potentially compromising the refrigerator's seal.

Symptoms of a bad Door Hinge Kit include:

• The door not aligning correctly with the refrigerator frame
• Difficulty in opening or closing the door
• The door sagging or appearing misaligned
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Trim is an OEM replacement part for Whirlpool ranges. It is the outer decorative coating that wraps around the edges of the oven door opening. The trim piece provides a sleek finished look while protecting internal elements from accidental contact when accessing the oven cavity. For Right-Hand use W10761014

Symptoms of a failing door trim include:

• Peeling or flaking of the outer coating
• Cracks or breaks in trim corners exposing raw edges
• Loose fitting or inability to securely mount around the opening

Causes involve normal wear over time from routine cleaning and occasional impact during use. Exposure to heat radiating from the oven door can accelerate surface deterioration as well.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Door Trim is an OEM replacement part for Whirlpool ranges. It covers the outer edge of the oven door, protecting it from wear and dust while retaining heat and improving aesthetics.

Causes of a bad door trim include normal wear and tear over time from repeated door openings and closings, exposure to heat and steam from cooking, or accidental damage. The high-temperature paint coating can peel or bubble and the rigid trim material may crack or warp.

Symptoms of a bad door trim include:

• Peeling, bubbling, or cracked paint
• Warped or misshapen trim
• Gaps appearing around the door seal
• Increased heat loss from the oven cavity
• Declining aesthetic appeal

Color: Black - Right Hand Trim. For the Left Hand use W10761018

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 8-18 x 1/2 inch.

The Lower Trim is an OEM replacement part for Whirlpool ranges. This black stainless steel trim is positioned at the bottom of the range, providing a finished look by covering the gap between the floor and the appliance. Additionally, the lower trim helps to protect internal components from debris and ensures the appliance fits securely within your kitchen setup.

Over time, the lower trim can become damaged due to exposure to heat, accidental impacts, or general wear and tear. A damaged or missing lower trim may lead to the appliance looking unfinished and could allow debris to accumulate underneath.

Symptoms of a bad lower trim include:

• Visible damage, such as dents or cracks
• The trim not fitting securely
• Gaps between the floor and the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This support bracket secures an appliance cabinet component or mounting point to restore alignment and reduce movement. It replaces worn or broken supports so panels and internal parts stay properly positioned during normal operation. What it does

• Holds a cabinet panel, frame, or internal component in place to maintain proper alignment.
• Stabilizes mounting points to help reduce vibration, rubbing, or intermittent noise.
• Common replacement when you notice a loose or sagging panel, rattling, or unusual chassis movement.
• Provides a direct mechanical fix—matches the OEM bracket design and fit.

• Disconnect power (and shut off gas supply for gas appliances) before starting any repair.
• Remove necessary panels and fasteners to access the old bracket; keep track of all screws and clips.
• Compare the new bracket to the old part for orientation before installing; secure using the original fasteners—do not overtighten.
