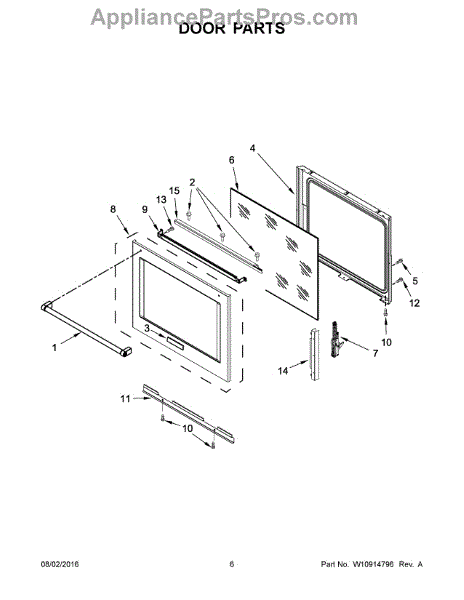

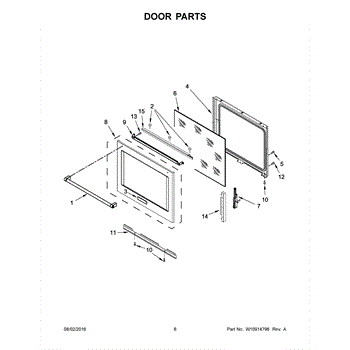

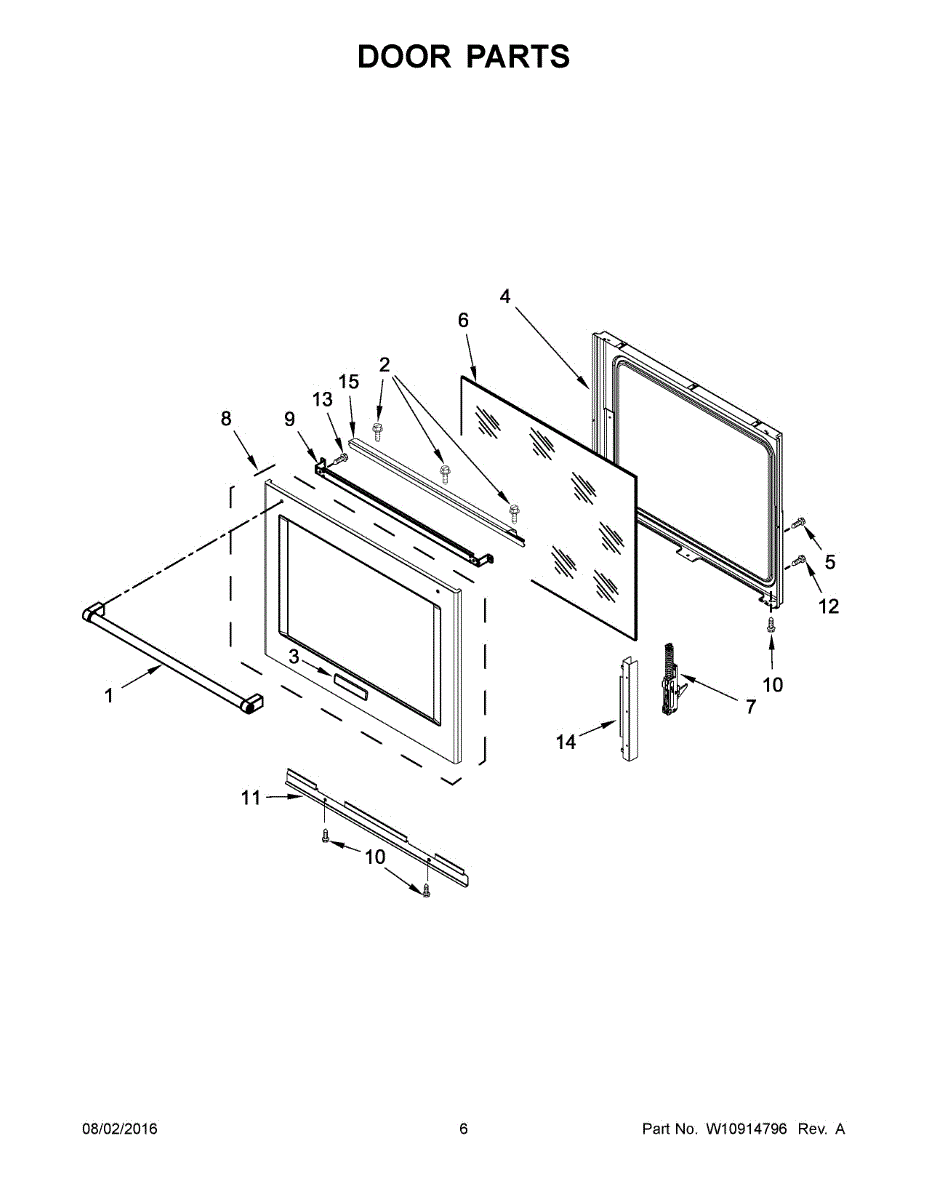

Parts for Whirlpool KSEG700EBS0: 04 - Door Parts

This replacement door handle restores a secure grip and smooth operation to your appliance door. It provides a direct-fit swap for worn, cracked, or broken handles so the door opens and closes reliably. What it does:

• Replaces the damaged or broken door handle so the door can be opened and closed safely
• Provides a comfortable grip and restores original door appearance
• Reduces the risk of further damage from using a compromised handle
• Helps prevent door misalignment caused by loose or missing hardware

• Verify power is off or appliance is in a safe state before starting any work
• Installation requires removing the old handle hardware and securing this handle with the original fasteners
• Keep small screws and retainers in a safe place during installation to avoid loss

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

The Nameplate is an OEM part for Whirlpool appliances. It serves as an identification label, typically displaying the brand name and model number, providing a clean and professional appearance for the appliance.

You should replace this nameplate if it becomes damaged or worn out. Common causes of a bad nameplate include wear and tear from regular cleaning, exposure to moisture or heat that can cause peeling or fading, and accidental impact that can lead to cracks or detachment.

Symptoms of a bad nameplate include:

• Fading or illegible text
• Peeling or detaching from the appliance surface
• Visible cracks or damage
• The nameplatae being completely missing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door liner is the oven's inner door panel that helps protect the door cavity and support the inner glass. Replaces a damaged or worn liner to restore a clean interior surface and proper glass fit. What it does:

• Replaces the oven's inner door panel that secures the inner glass and insulation
• Restores a sealed, smooth interior door surface to help contain heat and cooking messes
• Helps eliminate rattles or misalignment caused by a cracked or bent liner
• Compatible with ovens that specify part number W10902192

• One inner oven door liner

• Refer to the oven model's service manual for step-by-step disassembly and reassembly
• Disconnect power (and gas if applicable) before starting work
• Handle the glass and liner carefully—wear gloves and eye protection to avoid cuts
• If other door components are damaged, inspect and replace them as needed for a complete repair

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

The Door Glass is an OEM replacement part for Whirlpool ranges. It provides insulation and protection for the oven cavity and maintains the proper temperature inside the oven while allowing you to visually check on your dishes without opening the door.

Symptoms of a faulty inner door glass include:

• Cracks or shattered glass
• Foggy or discolored appearance
• Heat escaping from the oven

A bad inner door glass can occur due to accidental damage, extreme temperatures, or regular wear and tear. If you notice signs such as cracks, shattered glass, or foggy appearance, it may be time to replace the inner door glass.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The door hinge is an OEM part for Whirlpool ranges. This piece serves as the anchor for stable, smooth opening and closing of the oven door.

Causes of a bad door hinge include warping from repeated heat exposures and compromising its secure gateway function over time. Breakdowns disrupt workflows.

Symptoms involve:

• A sagging oven portal is unable to support itself when ajar
• Grating or binding movements straining the hinge mechanism
• Difficulty latching or sealing the door during baking

This OEM Whirlpool part is also compatible with some Maytag, Jenn-Air, and KitchenAid ranges.

This mounting bracket secures and supports appliance panels and internal components to keep assemblies aligned and stable during operation. It restores proper fit and prevents excessive vibration or movement in the affected area. What it does:

• Provides a sturdy attachment point for cabinet panels and internal parts
• Helps maintain correct alignment to reduce rattling and vibration
• Restores secure mounting after damage, wear, or during reassembly
• Commonly used when panels are loose, misaligned, or produce noise

• One mounting bracket

• Turn off and unplug the appliance before beginning any repairs
• Verify bracket orientation and fastener locations match the removed part
• Use the original screws or OEM-recommended fasteners; replace any stripped hardware

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

This glass bracket secures the oven/microwave door glass, keeping the inner glass panel aligned and stable for safe operation. It replaces worn or damaged brackets to restore proper door fit and reduce rattling. What it does:

• Secures and supports the door's inner glass panel to maintain alignment
• Prevents glass movement that can cause vibration, noise, or improper sealing
• Helps restore proper door closing and even heat retention when functioning parts are present
• Commonly replaced when bracket is cracked, bent, or missing mounting integrity

• One glass bracket

• Disconnect power to the appliance before beginning any repair
• Handle glass carefully; wear cut-resistant gloves and eye protection
• Installation typically requires partial door disassembly and removal of retaining screws—keep track of fasteners

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance components and panels. Replacing worn or missing hardware restores a tight, rattle-free fit and helps keep assemblies properly aligned for reliable performance.

• Fastens panels, brackets, or covers to the appliance frame or mating parts
• Helps maintain proper alignment and reduces vibration and noise
• Replaces missing, stripped, or corroded screws
• Common signs to replace: loose or rattling panels, misaligned parts, damaged screw head or threads

• Disconnect power; also shut off water or gas to the appliance if applicable
• Compare to the original to ensure thread and length match before installing
• Start threads by hand to avoid cross-threading; tighten only until snug
• If the mating clip/insert is stripped, replace that hardware as well

The Trim Vent is an OEM component specifically designed for Whirlpool ranges. Located at the rear of the unit above the oven cavity, the trim vent serves an important safety and ventilation purpose.

Constructed of heat-resistant sheet metal with a powder-coated finish, the trim vent features an internal baffle system and a rear-mounted exhaust fan. This facilitates the proper drawing of hot oven air and fumes up and out of the kitchen area.

This exhaust vent meets all codes regarding flame barrier rating and venting performance. It attaches securely to the framework at the top and back edges.

Symptoms of a bad trim-vent include:

• Excessive heat and smoke escaping during use
• Grease or residue buildup inside the vent pathway
• Misaligned vent body not flush or securely seated

This OEM part fits KitchenAid, Jenn-Air, Amana and select GE range models.
