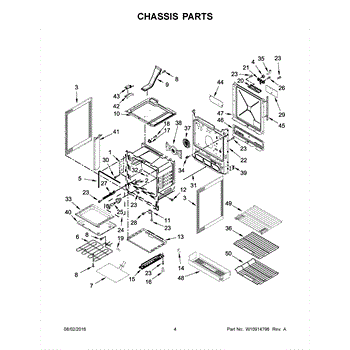

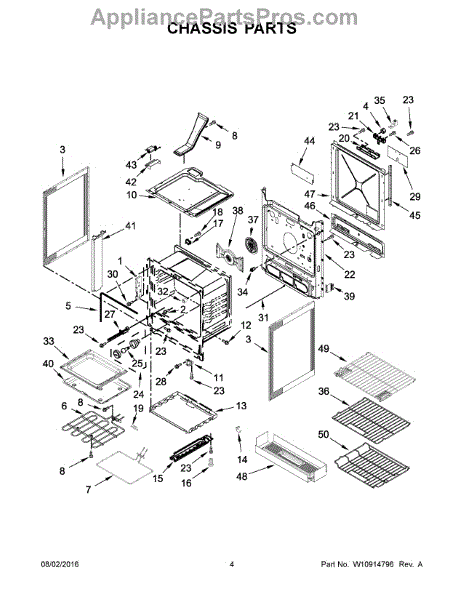

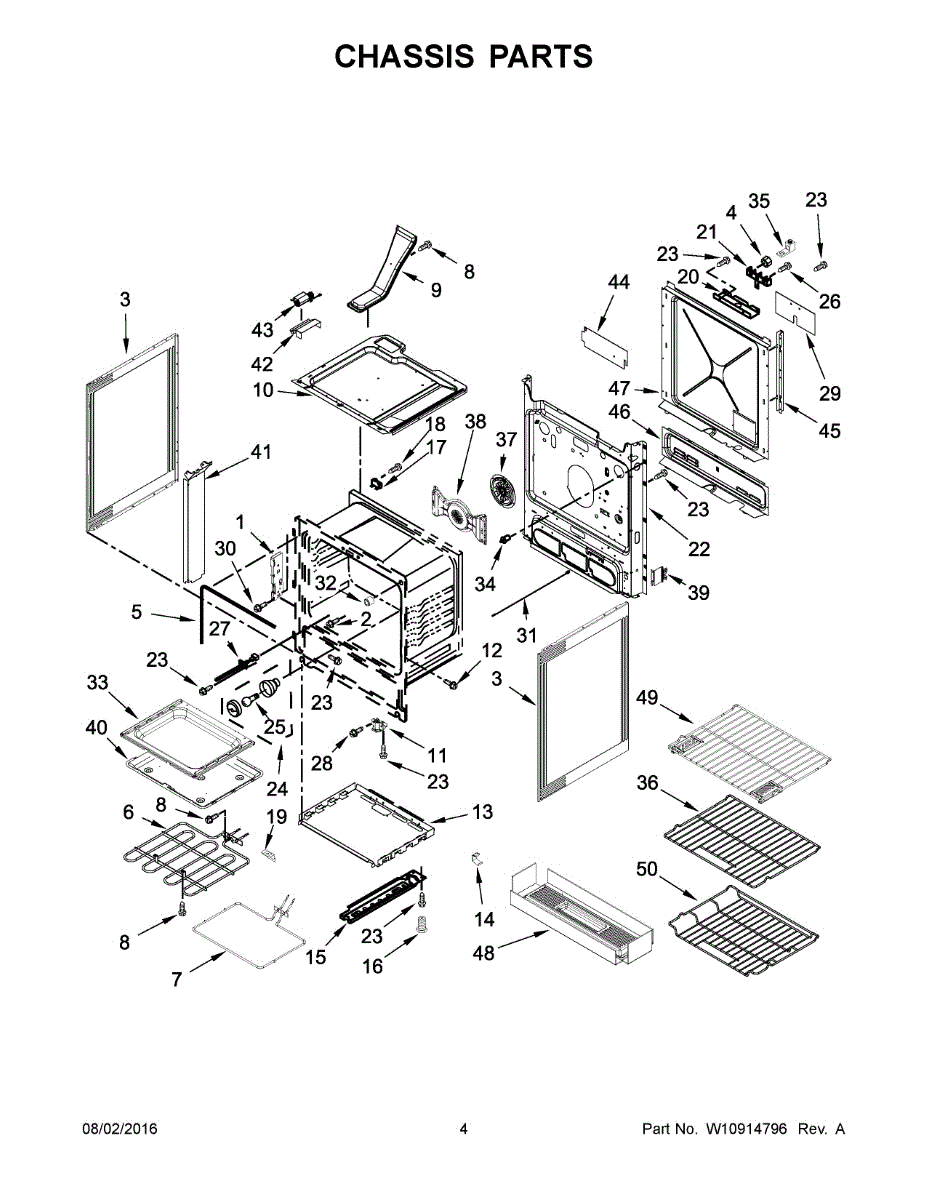

Parts for Whirlpool KSEG700EBS0: 03 - Chassis Parts

This hinge receiver mounts to the appliance frame and accepts the door hinge arm/pin. It keeps the door aligned and secure so it opens and closes smoothly. Replacing a worn or cracked receiver restores proper door action.

• Anchors the hinge arm/pin at the cabinet/frame for smooth door movement
• Maintains door alignment and consistent closing action
• Wear or damage can cause a loose or sagging door, misalignment, or binding
• Common signs include clicking/grinding noises and visible cracks or deformation

• Disconnect power; allow the appliance to cool and shut off gas/water if applicable
• Support or remove the door to access the receiver
• Remove mounting fasteners, swap in the new receiver, and align per service instructions
• Reinstall the door and verify smooth movement and full closure

This replacement screw restores secure fastening for appliance panels and components, helping stop loose parts and rattling so controls and panels stay aligned. Use when original screws are missing, stripped, or damaged. What it does:

• Secures panels, trim, control boards, brackets, or components to the appliance frame
• Stops rattling, vibration noise, and loose or misaligned parts caused by missing or damaged fasteners
• Replaces stripped, corroded, or missing screws to restore proper fit and function
• Matches OEM fit and threading for straightforward hardware replacement when the correct screw is identified

• Turn off power and unplug the appliance before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head; do not force mismatched drivers
• Tighten until snug—do not overtighten, which can strip threads or crack plastic
• Keep removed hardware organized and verify the replacement screw matches the original before installation

This side panel is a replacement cabinet trim piece that restores the exterior finish and protects the refrigerator side from dings and scratches. It matches original fit and appearance for a clean, factory look. What it does

• Covers and protects the refrigerator cabinet side from damage and wear
• Restores a uniform exterior appearance after dent or cosmetic repair
• Helps maintain proper panel alignment and mounting for adjacent parts
• Matches OEM shape so doors and trim fit correctly

• One side panel

• Intended for cabinet-side replacement; verify side (left/right) using your model diagram before ordering
• Remove power and empty nearby shelves before starting; handle panel edges carefully to avoid cuts
• May require basic tools (screwdriver, trim removal tool) and a second person for proper alignment

Size: 10-32

The Door Gasket is an OEM part for Whirlpool ovens. This part creates a tight seal around the oven door, preventing heat from escaping during cooking. This part ensures that the oven maintains a consistent temperature, leading to more efficient cooking and energy use.

A damaged gasket might also allow hot air to escape, potentially causing heat damage to surrounding kitchen cabinetry and increasing energy consumption.

Symptoms of a bad Door Gasket include:

• The oven takes longer to preheat
• You notice heat escaping from the edges of the oven door
• Uneven cooking or baking results
• Increased energy bills due to the oven working harder to maintain temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Broil Element is an OEM part for Whirlpool wall ovens and ranges. This heating element is responsible for the broiling function of the oven.

Located at the top of the oven cavity, the broil element functions by directing intense radiant heat downward to cook and brown food from above.

Causes may include natural wear and damage over prolonged high-heat use. Electrical malfunctions inside the element can also cause premature failure.

Symptoms of a bad broil element include:

• Failure of the broil function
• Diminished or uneven heating during broil cycles
• The presence of cracks, breaks or corrosion on the heating coils

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Bake Element is an OEM replacement part for Whirlpool ovens. It is a component responsible for generating the heat necessary for baking and roasting operations within the oven cavity.

Symptoms of needing to replace the bake element include:

• Uneven or inconsistent baking results
• Difficulty in reaching or maintaining the desired oven temperature
• Visible damage or burnout on the element itself
• Unusual smells or odors associated with a faulty heating element

Causes of a faulty bake element can include normal wear and tear over time, electrical malfunctions, or physical damage due to impact or excessive temperature fluctuations.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This leveling foot adjusts the appliance's height at the front to keep the cabinet stable and level. A properly leveled unit helps reduce vibration and noise and ensures doors, drums, and drawers operate smoothly.

• Supports the appliance and provides front height adjustment
• Helps correct rocking, vibration, and excessive noise from an unlevel appliance
• Can improve door alignment and smooth operation when the cabinet is leveled
• Common wear or damage can cause wobbling or difficulty staying level

• Unplug the appliance and, if applicable, turn off the water supply before servicing
• Tip or lift the unit carefully; use a helper to avoid injury
• Thread the new foot into the base and adjust until the cabinet is level and stable
• Tighten any applicable lock nut and recheck level after repositioning the appliance

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

This heat shield protects oven cavity components from direct heat and helps maintain correct temperature distribution for reliable cooking. It replaces a damaged or warped shield to help prevent heat-related wear. What it does:

• Deflects and disperses radiant heat away from sensitive panels and wiring.
• Helps maintain even internal oven temperatures for consistent cooking.
• Prevents heat damage to insulation, wiring, and nearby components.
• Common symptom: visible warping, burn marks, or a detached/damaged shield.

• Disconnect power (and gas if applicable) before starting any repair.
• Wear gloves to protect against sharp edges and hot surfaces.
• Reinstall using the original fasteners; verify proper alignment and clearance.
• Follow the appliance manufacturer's instructions and diagrams for safe, correct installation.

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermal Fuse is an OEM replacement part for Whirlpool ovens. This safety device is designed to prevent the oven from overheating by cutting off electrical power if the internal temperature exceeds a safe level.

The thermal fuse can fail due to normal wear and tear, prolonged exposure to high temperatures, or electrical surges. Accumulation of grease and debris around the fuse can also cause it to malfunction.

Symptoms of a bad thermal fuse include:

• The oven not heating up
• The oven shutting off during use
• No power to the oven
• Error codes related to temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

The Temperature Sensor is an OEM part for Whirlpool ovens and ranges. It monitors the internal temperature of the oven cavity and communicates with the oven control board to maintain accurate cooking temperatures. This ensures that your oven heats to the correct temperature for baking, roasting, and broiling.

Causes of a bad temperature sensor can include normal wear and tear, exposure to high temperatures over extended periods, or damage from accidental impacts or electrical surges.

Symptoms of a bad temperature sensor include:

• Incorrect oven temperatures
• Overcooking or undercooking of food
• Oven not heating up
• Error codes displayed on the oven control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

A replacement wire insulation sleeve that protects appliance wiring from heat, abrasion and vibration to help maintain safe electrical connections. Installs quickly to restore proper insulation on exposed or damaged wiring. What it does:

• Shields wiring from heat and rubbing that can wear or melt insulation
• Helps prevent electrical shorts and intermittent power caused by chafed wires
• Holds wiring away from sharp edges and moving parts
• Used where original insulation has cracked, split or burned

• One wire insulation sleeve

• Disconnect power to the appliance before starting any work
• Slide sleeve over the wire and position to fully cover the exposed area; secure per OEM routing and retainers
• Inspect nearby wiring and components for heat or abrasion damage and replace if needed

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spacer provides a precise gap for proper alignment and clearance between components, helping maintain correct part positioning for reliable operation. It's a simple replacement that restores intended spacing and reduces wear. What it does:

• Positions and separates adjoining parts to maintain correct clearance
• Helps prevent rubbing, misalignment, or binding of moving components
• Restores factory spacing after maintenance or part replacement
• Fits where the original spacer was used to support assembly alignment

• One spacer as shown

• Inspect surrounding components and mounting surfaces for damage before installing
• Remove power to the appliance and follow manufacturer service instructions
• Install in the same orientation as the original spacer and verify proper clearance
• If fasteners or adjacent parts are worn, replace them to ensure a secure fit

The Bottom Oven Panel is an OEM part for Whirlpool ranges. This panel is located at the bottom of the oven cavity, protecting the internal components and providing a smooth surface for easy cleaning.

Causes of a bad Bottom Oven Panel can include exposure to excessive heat or spills, causing warping, discoloration, or damage to the panel.

Symptoms of a bad Bottom Oven Panel include:

• Visible cracks, dents, or other physical damage
• Discoloration or surface deterioration
• Loose or dislodged panel, exposing internal components

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door-activated switch detects when the oven door opens or closes and signals the appliance to control the interior light. Replacing a worn or failed switch restores dependable light operation and accurate door-status feedback.

• Senses oven door position and opens/closes the light circuit
• Controls the oven's interior light based on door position
• Provides door-status input to the control for normal operation
• Typical symptoms: light stays on, won't turn on, or flickers with door movement; door-ajar messages may appear

• Disconnect power at the breaker or unplug the unit before servicing
• Access the switch from behind the front frame or control area, depending on model
• Move wires to the new switch one at a time to maintain correct positions; secure with existing hardware
• Restore power and verify light operation with door open/closed before reassembly

Comes with three connectors per package.

This oven rack provides a stable, adjustable shelf inside the oven so cookware sits securely for baking, broiling, and roasting. It restores proper oven organization and consistent airflow for even cooking. What it does:

• Supports cookware and bakeware at selectable oven heights for versatile cooking
• Replaces warped, bent, rusted, or missing racks that can cause instability
• Helps maintain proper clearance and airflow for even baking and roasting
• Slides into oven rack guides for easy repositioning as needed

• One oven rack

• Install by sliding the rack into the oven side rails until fully seated; no tools usually required
• Ensure the oven is completely cool and disconnected from power before handling
• Clean with warm, soapy water; avoid abrasive cleaners that can damage finishes
• Verify correct rack placement and secure fit before preheating the oven

The Convection Fan is an OEM part for Whirlpool wall ovens and ranges. It circulates hot air inside the oven cavity, facilitating even heat distribution during the cooking and baking cycles. The convection fan enhances cooking performance through fast, forced air movement.

Causes of a bad convection fan include a failed motor, worn-out blades, or blockages that disrupt airflow.

Symptoms of a bad convection fan include:

• Incomplete or uneven cooking even at higher temperatures
• Longer than normal cook times
• Loud buzzing or grinding noises from the fan motor area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hidden oven floor pan sits under the bake element to protect the oven cavity from spills and debris while helping maintain proper heat distribution. It replaces a damaged or corroded oven floor shield for safer, cleaner operation. What it does:

• Collects spills and drips below the hidden bake element to protect the oven floor from damage.
• Supports the hidden bake element assembly and helps direct heat within the oven.
• Replace if the pan is warped, rusted, has holes, or causes persistent smoke or burning odors during use.
• Prevents food and debris buildup that can create smoke or affect cooking performance.

• Disconnect power to the appliance and allow the oven to cool completely before starting.
• Remove oven racks and follow OEM access steps; panels or the element may need to be loosened to remove the pan.
• Handle the pan carefully — edges can be sharp and the part may be dirty or hot.

The Fan Blower is an OEM replacement part for Whirlpool ranges. This component is crucial for circulating air within the range to ensure even heating and proper ventilation during cooking.

The fan blower can fail due to wear and tear from regular use, buildup of grease and debris, or electrical issues. Overheating or physical damage can also cause the blower to malfunction.

Symptoms of a bad fan blower include:

• Unusual noises or rattling during operation
• Inadequate ventilation or uneven cooking
• The fan not running or starting intermittently
• Overheating of the range

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wire cover protects and organizes electrical wiring on the appliance, helping prevent wear and snagging while keeping wires routed neatly for reliable operation. Fits as the OEM replacement protective cover for the wire harness. What it does:

• Shields wiring from abrasion and contact with sharp edges or moving parts
• Helps keep harnesses routed to prevent pinching or rubbing that can cause electrical faults
• Supports safer access during service by holding wires in place
• Reduces vibration-related wear on nearby wires and connectors

• One wire cover

• Install on the appliance where the harness is routed; secure using existing clips or fasteners
• Disconnect power before beginning any repair to avoid shock or short circuits
• Inspect surrounding wires and connectors for damage; replace any worn wiring before reassembly

The RESERVOIR STEAM RACK is an OEM part specifically designed for Whirlpool ranges. This steam rack reservoir serves as a key component, allowing moisture to be released into the oven during cooking to maintain optimal moisture levels and improve food texture.

A damaged or malfunctioning steam rack reservoir can compromise the oven's ability to regulate moisture effectively. Causes of a faulty reservoir might include cracks, wear, or damage due to prolonged use or exposure to high temperatures.

Symptoms of a defective RESERVOIR STEAM RACK may include:

• Inability to maintain proper moisture levels during cooking
• Visible signs of damage or wear on the reservoir
• Reduced performance in food texture or moisture retention while cooking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The RESERVOIR STEAM RACK is an OEM part specifically designed for Whirlpool ranges. This steam rack reservoir serves as a key component, allowing moisture to be released into the oven during cooking to maintain optimal moisture levels and improve food texture.

A damaged or malfunctioning steam rack reservoir can compromise the oven's ability to regulate moisture effectively. Causes of a faulty reservoir might include cracks, wear, or damage due to prolonged use or exposure to high temperatures.

Symptoms of a defective RESERVOIR STEAM RACK may include:

• Inability to maintain proper moisture levels during cooking
• Visible signs of damage or wear on the reservoir
• Reduced performance in food texture or moisture retention while cooking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Oven Rack is an OEM part for Whirlpool ranges,  designed to enhance the baking and roasting capabilities of your oven. This high-quality rack provides a sturdy and level surface for placing cookware, ensuring even heat distribution and consistent cooking results. Crafted to fit perfectly within Whirlpool ovens, this rack can be easily adjusted to different heights, accommodating a variety of dishes and baking needs.

Signs that you might need to replace the Oven Rack include warping or damage from high temperatures, difficulty sliding the rack in and out, or corrosion that could potentially contaminate food.

Symptoms of a bad Oven Rack include:

• Difficulty fitting the rack securely within the oven, indicating possible warping or damage.
• Uneven cooking or baking results, due to poor heat distribution from a damaged rack.
• Challenges in sliding the rack in and out smoothly, which can affect cooking efficiency and safety.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This oven rack restores a stable cooking surface inside the oven, letting you slide baking sheets, pans and cookware in and out safely. It replaces bent, rusted or missing racks to help your oven perform as intended. What it does:

• Provides a stable shelf for cookware and bakeware during cooking and baking
• Slides into oven rack guides to allow easy insertion and removal of pans
• Replaces warped, bent or missing racks that cause uneven cooking or instability
• Compatible with models that use part number W11256463

• Allow the oven to cool completely before installing or removing the rack.
• Slide the rack into the oven's existing rack guides until fully seated.
• Wear gloves to protect hands from sharp edges and to avoid pinching.
• Do not modify the rack or force it into incompatible guides.

This replacement oven cavity insulation helps contain cooking heat and protects nearby components for more even baking and safer operation. It restores the oven's thermal barrier when old insulation is damaged or missing. What it does

• Provides thermal protection for the oven cavity and surrounding cabinet components
• Helps reduce heat loss for more consistent oven temperatures during use
• Limits heat transfer to adjacent parts and control areas to prevent overheating
• Commonly replaced when insulation is torn, burned, compressed, or missing

• One oven cavity insulation piece as shown

• Disconnect power to the appliance before starting any repair; unplug or switch off the circuit breaker
• Remove oven panels or racks as needed to access the insulation; follow the oven's service manual for panel removal
• Handle insulation with care; wear gloves and a dust mask if materials are fibrous or dusty
• Reinstall panels and restore power only after insulation and clearances are confirmed per the manufacturer's guidance
