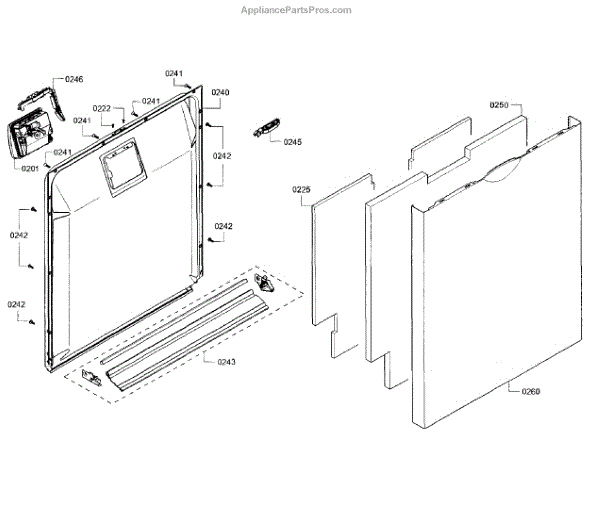

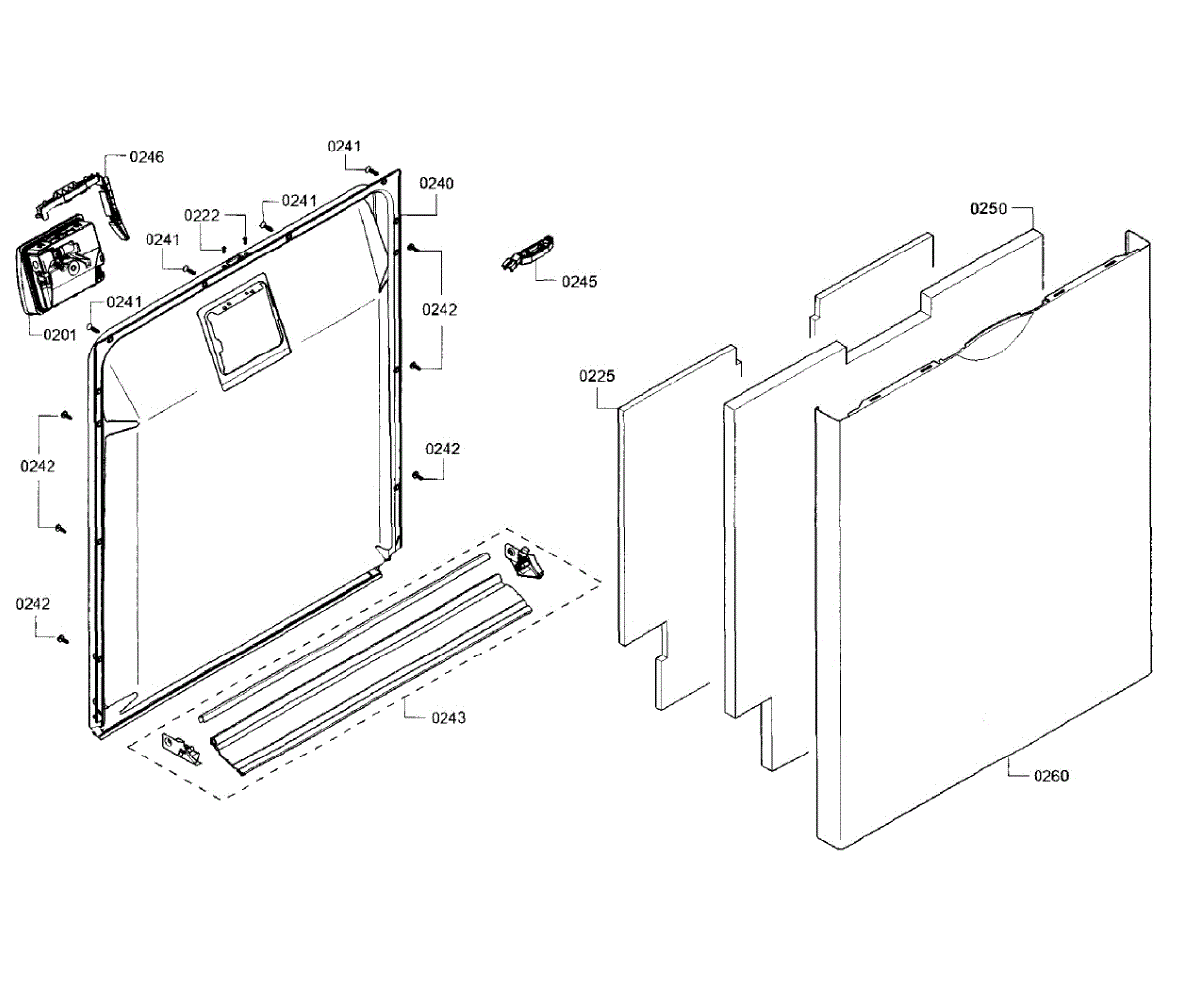

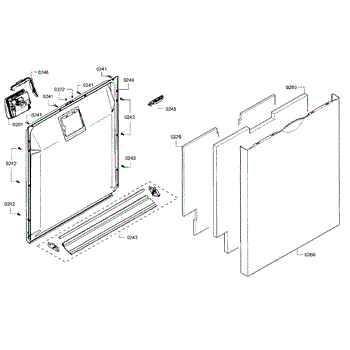

Parts for Bosch SHS5AVF2UC/01: Door Section Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Dispenser door won't open or stay closed? This dishwasher dispenser releases detergent and rinse aid at the right time. Moderate DIY repair.

Factory mounting screw secures panels, brackets, and internal components in your dishwasher. Replace missing, stripped, or damaged screws during repair.

This insulating part is a molded insulator that protects nearby components by reducing heat transfer and providing electrical isolation, helping prevent heat damage and short circuits for safer, more reliable appliance operation. What it does:

• Provides thermal insulation to limit heat transfer from hot components to surrounding parts
• Offers electrical isolation to help prevent shorts between conductors or grounded metal
• Maintains proper spacing and support for wiring or small assemblies
• Helps prevent symptoms such as scorch marks, melted wiring insulation, burning smells, or intermittent electrical behavior

• Disconnect power to the appliance before attempting any repair
• Inspect the surrounding area and the old insulator's location and orientation before removal
• Replace with the same part and orientation; avoid compressing or deforming the insulator

Replaces a cracked, scratched, or damaged dishwasher inner door panel. Protects internal components and restores the door interior appearance.

This replacement screw secures panels, brackets, and internal parts in your appliance for a tight, rattle-free fit. Use it to replace lost, stripped, or corroded hardware and keep components properly fastened.

• Fastens components to the appliance frame or assemblies
• Replaces a missing, stripped, or rusted original screw
• Helps reduce rattling or vibration from loose hardware
• Restores proper alignment of panels or brackets

• Disconnect power and shut off water before servicing
• Refer to your model's parts diagram to locate and place
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening

Six-screw kit for securing the inner door assembly in your dishwasher. Replace missing, stripped, or lost screws to properly fasten door panels.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Prevents leaks around the lower dishwasher door edge. Replace if you see water pooling, torn rubber, or gaps. Confirm fit with your model number.

Fix a dishwasher door that won't latch or cycles stopping mid-wash. This door lock assembly secures the door during operation. Easy 10-minute repair.

Wire guide for dishwashers. Secures and routes wiring inside the unit. Replace if broken, cracked, or missing to properly organize internal wires.

Insulating pad for dishwashers. Installs on the tub or door to reduce noise and retain heat. Replace if cracked, torn, or missing for proper insulation.

Replace your dishwasher's outer door panel when the exterior finish is scratched, dented, or you're updating your kitchen's appearance. Mounts to front.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
