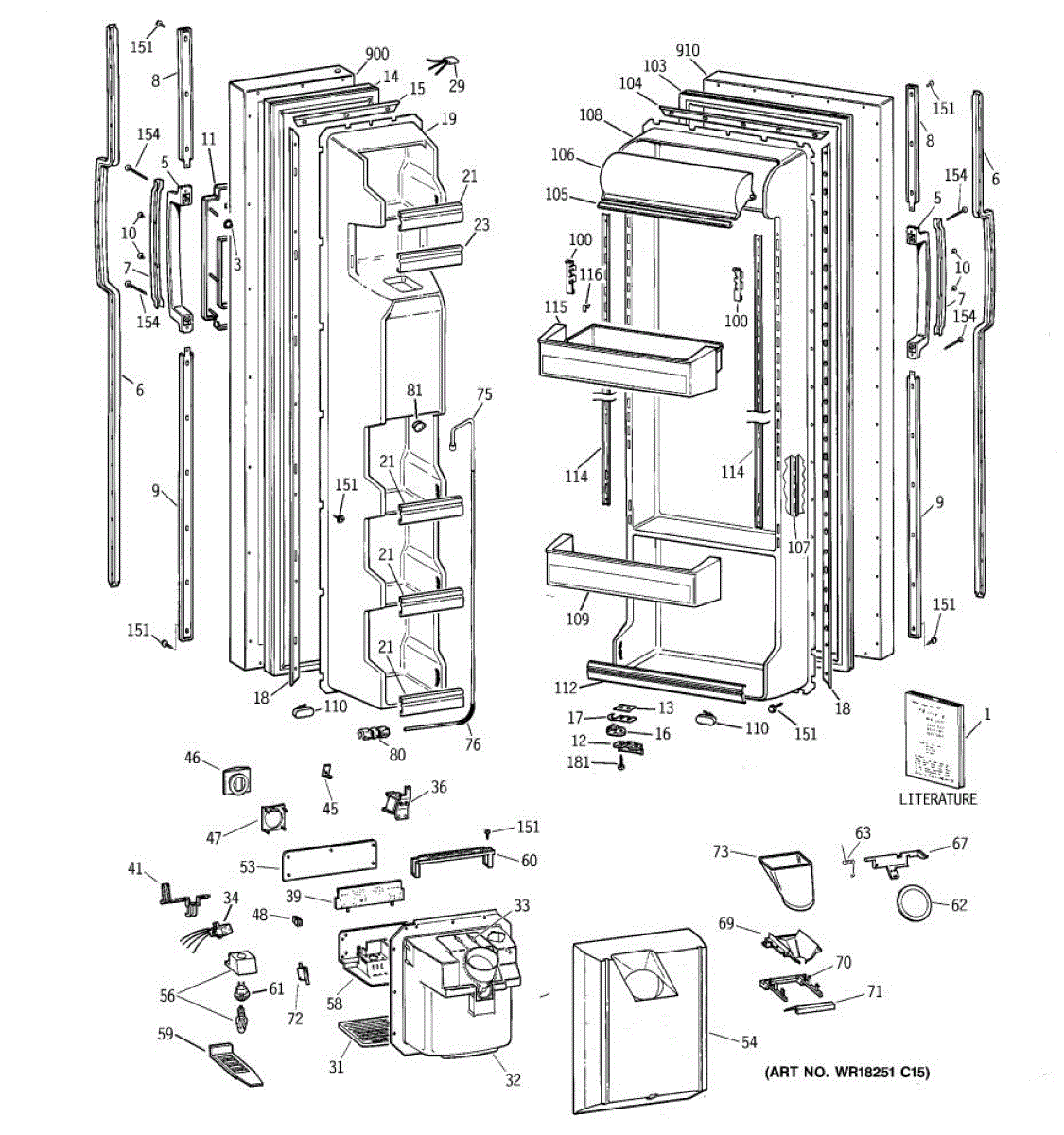

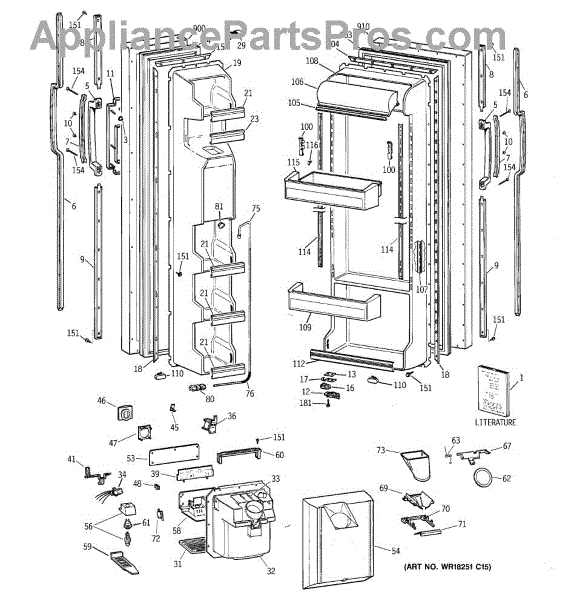

Parts for Ge MSG25GRZBWW: 01 - Doors Parts

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

This part is white.

Restore smooth, reliable door movement. This hinge cam riser fits at the lower door hinge to provide the lift and ramp action that helps the refrigerator door open/close smoothly and seal properly—reducing sag, noise, and poor sealing. What it does:

• Interfaces with the lower hinge pin to lift and guide the door during opening and closing
• Helps maintain door alignment and gasket contact for a proper seal
• Can reduce door sag, scraping, wobble, and clicking/popping noises
• Common signs it's worn: door drops or binds, won't stay closed or self-close, or shows an uneven gap

• 1 hinge cam riser

• Disconnect power and remove items from the door before servicing
• Support the door; remove the top hinge cover and screws, then lift the door off the lower hinge
• Remove the old riser at the lower hinge and install the new riser in the same orientation
• Reinstall hinges; verify gasket contact and door alignment, adjusting leveling if needed

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Color: Black.

This refrigerator lamp socket holds an E12-base appliance bulb and provides the electrical connection for the light fixture. Replace it when the light won't turn on or flickers despite a known-good bulb and functioning door switch.

• Secures an E12 (candelabra) bulb and supplies power to it
• Works with the door/light switch to illuminate the compartment or dispenser area
• Typical failures include heat damage, cracking, or internal contact wear
• Symptoms: no light, intermittent flicker, or a bulb that won't seat firmly

• Disconnect power to the refrigerator before servicing
• Remove any lens/cover, note wire placement, and install the new socket in the original orientation
• Use an E12-base appliance bulb with the wattage specified on your model's rating label
• Restore power and verify operation with the door switch

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Door Spring is an OEM part compatible with GE refrigerators. It is responsible for providing tension and support to the ice chute door, allowing it to open and close smoothly. When you activate the ice dispenser, the spring helps to release the door and allow the ice to pass through. After dispensing, the spring assists in closing the door to prevent cold air leakage and maintain the desired temperature inside the refrigerator.

You should replace the ice door spring if it loses tension or breaks, which can happen due to regular wear and tear, frequent use, or accidental damage. A faulty spring can lead to issues with the ice dispenser's operation and overall efficiency.

Symptoms of a bad ice door spring may include:

• Difficulty in opening or closing the ice chute door
• Ice dispensing issues, such as the door not opening when the dispenser is activated
• Cold air leakage from the ice chute area
• Ice buildup on the front of the icemaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

This dispenser crank links the dispenser solenoid and the ice chute door. When you press the dispenser lever, the crank pivots to open and close the ice door so cubes or crushed ice can dispense cleanly without warm air leaking into the freezer.

• Connects the solenoid to the ice chute door to control door movement
• Helps seal the chute when not dispensing to reduce frost and moisture issues
• Common failure signs include ice door not opening/closing, constant frost around chute, or warm/moist air leakage at dispenser
• Can cause ice clumping, frost buildup, or water/ice dispensed irregularly when worn or broken

• Disconnect power before servicing the dispenser area
• Access typically requires removing the dispenser front panel and trim; use care with plastic tabs and wiring
• Note linkage orientation to the solenoid and door flap before removal
• Inspect related parts for wear while open

Color: Black.

Color: Black.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws. Size: 8-18 ab.

This replacement screw secures appliance components and panels where an 8-36 threaded fastener is required. Durable and ready for repair, it restores proper fit and reduces rattles or loose parts. What it does:

• Fastens panels, brackets, or components that use an 8-36 threaded screw
• Replaces stripped, lost, or damaged screws that cause vibration or loose parts
• Restores secure mechanical connections to help maintain normal operation

• One screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct driver and match thread engagement; do not force or cross-thread
• Tighten to snug; avoid overtightening which can strip threads or damage parts

Color: clear. Measures about 16 inches wide by 7 inches high.

A stainless-steel #6-20 screw (1/2" length) used to fasten appliance panels and components securely. Durable corrosion-resistant finish helps maintain a tight fit and long-lasting hold in wet or humid areas. What it does:

• Fastens trim, brackets, panels, and internal components where a #6-20 x 1/2" screw is specified
• Provides a corrosion-resistant connection for areas exposed to moisture
• Restores loose or missing fasteners that cause rattling or misalignment
• Matches OEM thread and length for proper fit and function

• One stainless steel #6-20 x 1/2" screw

• Turn power off and unplug appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; stop when the component is snug and aligned
• Replace any additional damaged fasteners with matching OEM screws

6 - 10 pl flp 1/2 s

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

Includes 12 screws.

8 - 18 x .375

The Slide Bearing is an OEM part for GE refrigerators. This small but crucial component is typically located on the rails of refrigerator drawers, allowing them to slide in and out smoothly without sticking or jamming. The slide bearing helps reduce friction between the drawer and the frame, protecting the refrigerator's structure from wear and tear while ensuring a quieter, more efficient operation.

Symptoms of a failing slide bearing include:

• Drawers becoming difficult to open or close
• Squeaking noises during drawer movement
• Increased resistance or jerking when pulling out the refrigerator drawers

Causes of slide bearing deterioration typically involve accumulation of food particles or debris, general wear from frequent use, or inadequate lubrication leading to increased friction and eventual wear out.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-16 ab.

Size: 8-32 t. Includes 12 screws.

This water tube fastener secures the refrigerator's water tube/line to the cabinet or chassis, keeping the tubing routed and stable to prevent kinks and inconsistent water flow. Simple replacement helps restore proper line routing and reduces vibration noise. What it does:

• Holds the water inlet/dispenser tube in place to prevent movement and rubbing
• Keeps tubing routed away from sharp edges and hot components
• Helps prevent kinks that can restrict water flow to the dispenser/ice maker
• Reduces vibration-related noise from loose tubing

• Disconnect power and shut off the water supply before replacing any water-line hardware.
• Remove any access panels needed to reach the existing clip; use hand tools to unclip or remove fastener.
• Check for leaks and secure routing after installation.

Black. 8-18 AB HXW 3/8
