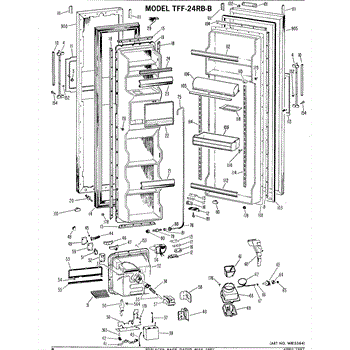

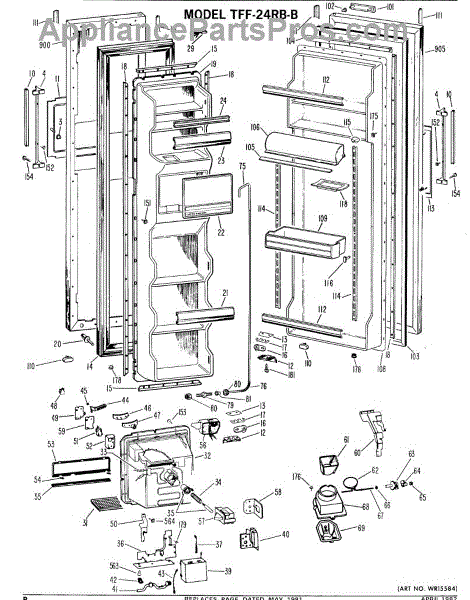

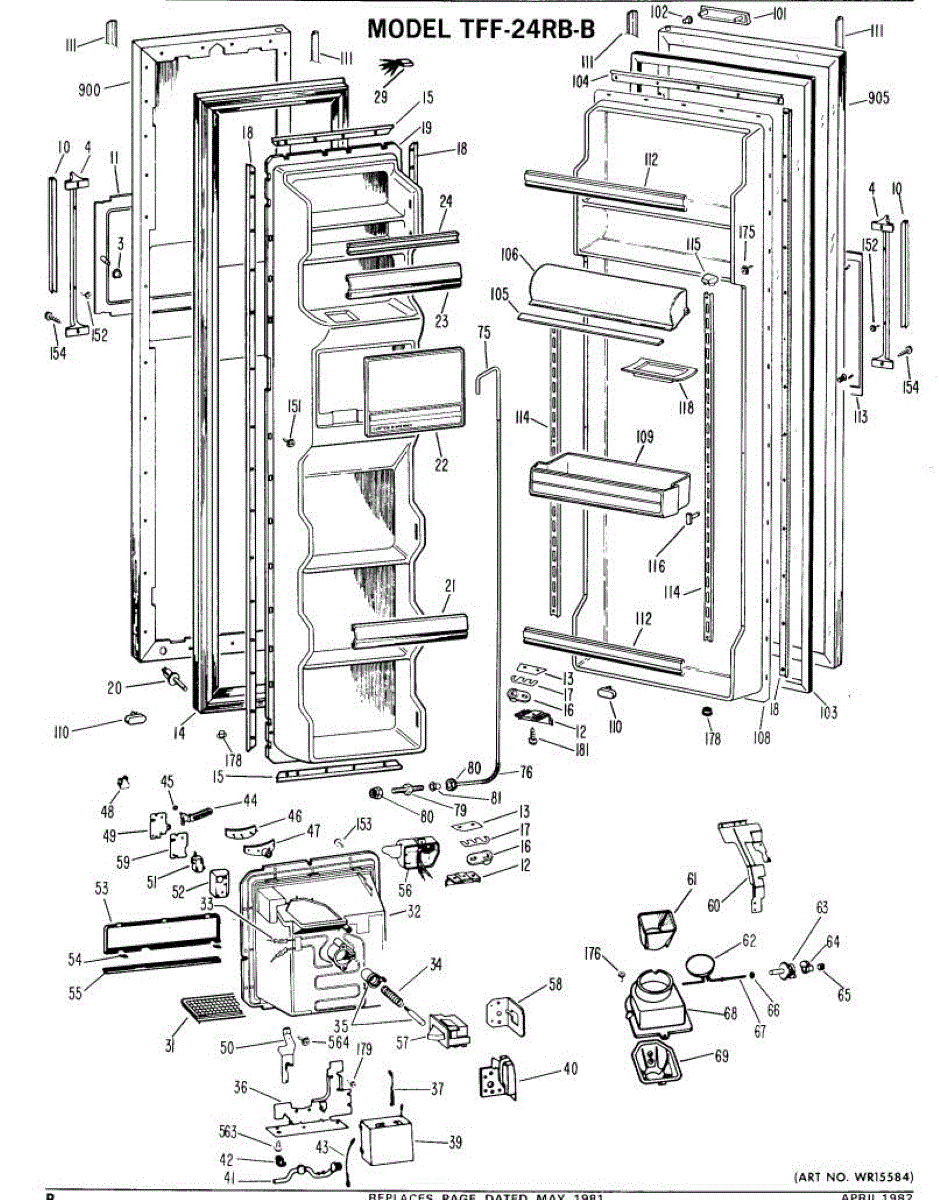

Parts for Ge TFF24RBM: 01 - Section1 Parts

This replacement part is a door hinge, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. This door hinge is typically found in refrigerators or freezers. The hinge is stationed so that the door and the main parts of the appliance are connected and in working order. The door hinge allows the doors to be opened and closed easily and smoothly. There is typically more than one hinge on each door so be sure to purchase the correct amount. A new door hinge might be needed if the current appliance doors are not properly opening and closing. Another way to tell if the hinges are damaged is if the doors are drooping and require a slight lift to be shut. This usually means the hinges are becoming loose and either need to be tightened or replaced altogether. Note that the doors will have to be completely removed to replace this part so the food inside the fridge may go bad during the repair if it takes too long. This is a genuine OEM replacement part and is sold individually.

The Cam Riser is an OEM part for GE refrigerators. It plays a crucial role in the door mechanism, helping to lift and align the door as it opens and closes. This ensures the door operates smoothly and maintains a proper seal, which is essential for the efficient functioning of the refrigerator.

Over time, the cam riser can wear out or become damaged. Causes of a bad cam riser can include frequent use, physical damage from heavy door loads, or general wear and tear of the plastic components.

Symptoms of a bad Cam Riser include:

• Difficulty in opening or closing the refrigerator door
• The door not staying aligned or sealing properly
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Spring for recess duct. For spring sleeve use WR2X4822.

This dispenser sleeve comes with plunger, sleeve, and screw.

This dispenser cradle is the molded housing that supports and guides the refrigerator dispenser components, helping keep the dispenser chute and actuator aligned for smooth water or ice dispensing. Replacement restores proper fit and function. What it does:

• Holds the dispenser chute and actuator assembly in the door for stable dispensing
• Guides water or ice flow to the dispense area and helps prevent spills
• Replaces cracked, warped, or broken housing that can cause misalignment or leaks
• Restores a solid mounting surface for switches, nozzles, and trim

• One dispenser cradle housing

• Disconnect power and shut off water supply before beginning any work
• Removal typically requires opening the freezer/refrigerator door and removing inner door trim and screws to access the cradle
• Handle plastic parts gently to avoid cracking; use a trim tool to disengage clips where needed

Color: White. For black use WR2X7951.

Color: clear. It's 7 watts 130 volts.

This part has been discontinued and is no longer available.

Ice maker dispenser door.

Time delay display arm.

Includes 12 washers.

Ice chute door lever.

This is the right side duct gasket. For left side use WR14X247.

This is the left side duct gasket. For right side use WR14X246.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws. Size: 8-18 ab.

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

Includes 12 screws.

Includes 12 screws.

Includes 12 screws.

This mechanical defrost timer controls the refrigerator's automatic defrost cycle, clearing frost from the evaporator and helping maintain stable temperatures. Replacing a faulty timer restores regular defrost intervals to prevent frost buildup and inconsistent cooling.

• Cycles the system between cooling and defrost at set intervals to remove frost from the evaporator coils
• Heavy frost on the freezer back wall or evaporator cover may indicate a failed timer
• Fresh food section warming while the freezer seems cold, or unit stuck in defrost with no cooling
• Compressor runs continuously or never restarts; timer does not advance as expected

• Disconnect power before servicing to avoid electrical shock
• Access location varies by model; commonly in the control housing, behind the kick plate, or at the rear near the compressor
• Photograph or label wiring and transfer wires one at a time to the matching terminals
• Mount securely, restore power, and confirm normal cooling/defrost operation

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This hinge assembly replaces a worn or damaged refrigerator door hinge to restore proper door alignment and smooth opening and closing. Install this part to stop door sag, rubbing, uneven gaps, or noisy operation. What it does:

• Supports and guides the door during opening and closing for stable operation
• Restores proper door alignment to eliminate sagging or uneven gaps
• Stops rubbing, scraping, and binding that can prevent the door from sealing
• Reduces squeaks or rough movement caused by a damaged hinge

• Always unplug the appliance and turn off the water supply before starting work
• Support the door and remove contents to prevent damage while replacing the hinge
• Use basic hand tools; align the door carefully and tighten fasteners securely but do not overtighten

Includes 12 screws. Size: 8-18 ab.

Package of 12

Includes 12 screws.

Size: 10-16 ab.

Size: 8-32 t. Includes 12 screws.

Size: 8-32 t. Includes 12 screws.

Dual fill valve (round ice cube)

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

Includes 12 screws.

This dispenser sleeve comes with plunger, sleeve, and screw.

This ice maker seal kit replaces worn or damaged gaskets that help seal and stabilize the ice maker assembly for reliable operation and to reduce leaks. Use it to restore a tight ice-maker-to-freezer fit. What it does:

• Replaces seals/gaskets that prevent water leaks around the ice maker
• Helps maintain proper ice maker alignment and operation
• Supports consistent ice production by ensuring proper water flow control

• Disconnect power and turn off the water supply before servicing
• Remove the ice maker assembly to access and replace seals as needed
• Use common hand tools; avoid over-tightening fasteners that can deform seals
• Inspect surrounding mounting surfaces for damage, clean before installing new seals

CW, 2w, 2 1/4" spade terminals

This mechanical defrost timer controls the refrigerator's automatic defrost cycle, clearing frost from the evaporator and helping maintain stable temperatures. Replacing a faulty timer restores regular defrost intervals to prevent frost buildup and inconsistent cooling.

• Cycles the system between cooling and defrost at set intervals to remove frost from the evaporator coils
• Heavy frost on the freezer back wall or evaporator cover may indicate a failed timer
• Fresh food section warming while the freezer seems cold, or unit stuck in defrost with no cooling
• Compressor runs continuously or never restarts; timer does not advance as expected

• Disconnect power before servicing to avoid electrical shock
• Access location varies by model; commonly in the control housing, behind the kick plate, or at the rear near the compressor
• Photograph or label wiring and transfer wires one at a time to the matching terminals
• Mount securely, restore power, and confirm normal cooling/defrost operation

Open - 55, close - 35

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
