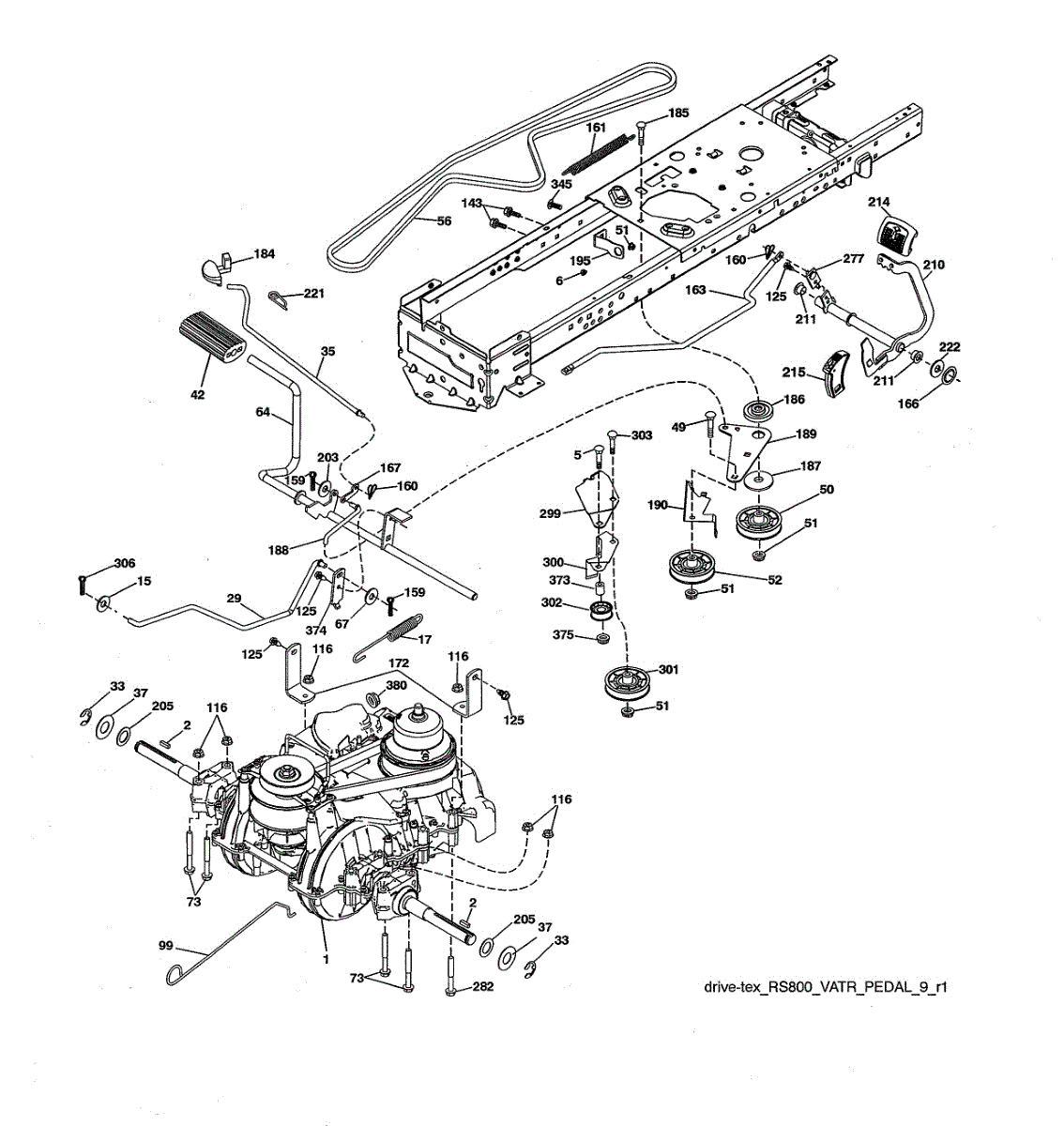

Parts for Poulan 917223980: Drive Parts

This no grease mandrel assembly is the part that houses the shaft where the mower blade attaches. It is mounted to the deck of the mower by three bolts, which are sold separately. The mounting holes on the mandrel housing are not threaded, but the bolts used to secure the mandrel to the deck are self-tapping. If the lawnmower is no longer providing an even cut, there may be a problem with the mandrel assembly. A broken or damaged mandrel assembly can severely reduce the mower's cutting performance. Replace it as soon as possible. The mandrel shaft goes through the deck, and the pulleys are attached to them, then the belt that drives the mandrels is placed in the pulleys. A spacer must be installed under the pulley. Failing to use a spacer or installing it on top of the pulley will result in damage to the shaft and pulley. This mandrel assembly is compatible with Ariens, Craftsman, Husqvarna, Poulan, and Weed Eater lawn mower models. It is an OEM part sourced directly from the manufacturer and is sold individually. The mandrel assembly includes a housing, shaft assembly, bearing, and nut only; the pulley/washer and blade bolt/washers are not included.

This genuine OEM replacement washer is a specially hardened washer to provide more support for a wide range of different lawn appliances. Washers are usually used in conjunction with a nut and a bolt and act as a barrier between those two parts. Washers help to redistribute pressure to prevent the bolt from giving out over time, as well as to provide a stronger grip. Washers can begin to corrode over time, and when this happens, the washer can fuse together with the bolt or nut. This would make the connection difficult to disengage in the case of a bigger repair. It is good practice, then, to replace washers anytime the nut or bolt is also replaced. This way, all parts age at the same rate and will not have to be individually changed out. Use a wrench to unthread the nut and change out a washer. This part is a top of the line replacement washer for a Husqvarna, Weed Eater, Ryobi, Jonsered, or Poulan engine. It comes sourced from the original manufacturer and does not include any other hardware.

This is an idler pulley meant to be used on many brands of lawn tractor or mower. It is designed to create tension on the drive belt, and it can wear with years of use or be damaged by a blow to the mower deck or by an over-accumulation of debris that causes it to become jammed. To repair or replace this genuine OEM part, it requires pliers and a wrench. The steps used include removing the mower deck, removing the bolt securing the pulley and drive belt, removing the washer and bolt from the pulley, and replacing it with a new one. Then, the original or a new belt can be installed before the mower deck is restored. This parts fits with mowers, trimmers, and tractors sold by brands like Husqvarna, Poulan, Weed Eater, and Jonsered. It ships individually and is made of durable plastic.

This is a genuine OEM replacement that is designed for use with riding lawn mowers. This idler pulley helps drive the engine of the Lawn Mower. This part experiences a lot of constant motion, which can cause it to wear over time. It can also become damaged due to an impact or in the course of other repairs, which would require a replacement. This genuine OEM part features a 3/8-inch mounting hole and 3.5-inch exterior diameter, and includes a one-year warranty and can provide a replacement for compatible engines. This OEM idler pulley is manufactured by Husqvarna and designed to be compatible with select machines from the brand, as well as brands like Poulan, Weed Eater, and Jonsered. It is made of durable plastic with a metal bushing and fitting and will provide an exact replacement fit for hundreds of compatible engines. This part is sold individually and does not include any necessary hardware. Ensure that the engine is cool and gloves are worn for hand protection when replacing this part.

This genuine OEM replacement part is a V-belt for a lawn mower. Engines use belts for many reasons, typically to transfer energy efficiently from one moving part to the next. Manufacturers often use a rubber V-belt to connect two parts and guarantee a steady transfer of rotational energy. This V-belt is located on the lower deck of a lawn mower and is responsible for driving the blade. After prolonged exposure to heat and lawn clippings, a V-belt can stretch or snap. When this happens, the blade will no longer rotate and the mower will stop cutting. To replace the V-belt, first detach and slide out the lower deck. Carefully remove the old belt and clean the pulley system, which will help guarantee the life of the new belt. Attach the new V-belt and reconnect the lower deck. This high-quality replacement part is compatible with Jonsered, Poulan, and Husqvarna lawn mowers. It is sourced from the original manufacturer and it ships individually.

A hex screw can be used on a variety of different types of lawn and garden equipment. On small machines, it can be used to hold the housing together while on larger machines, it might be used to mount on the gas tank. It's versatile with the ability to secure items including wood, plastic, metal, and brick together. The screw is made of high-quality metal and measures 5/16-18 x ¾ inches. Sometimes these screws can become stripped, get damaged, or even break and will need to be replaced.Inspect the screw for any damage, looseness, or debris that might be causing issues. If the damage is major or the screw is stripped, it will need to be replaced. In most cases, the screw can be removed using nothing more than a screwdriver before inserting the replacement screw. For stripped screws, pliers may be needed to get the original screw out of the equipment.This hex screw is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. The screw is compatible with lawnmowers, string trimmers, snowblowers, and tillers by Craftsman, Ariens, Husqvarna, Poulan Pro, Weed Eater, and Poulan.

This screw is a genuine Husqvarna part, sold individually. This screw can be used as a replacement part in a lawn mower or a snowblower. The purpose of the screw in a lawn mower or a snowblower is to serve as a fastening component.The screw in a lawn mower or a snowblower might need to be replaced if the screw is chipped away, eroded, dented, punctured, or scraped at some point within the typical lifespan of the appliance. The screw can also be lost or misplaced during the operation of the appliance, in which case the screw should be replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This screw is compatible with the following outdoor appliance brands: Husqvarna, Craftsman, Weed Eater, Poulan, Murray, Ariens, and Dixon.

This is a bellcrank ground drive intended for use with riding mowers, tractors, and trimmers. The bellcrank ground drive employs the idler pulleys when the pedal brake control shaft assembly is pressed. A new bellcrank may be needed if the original was faulty, or if it becomes significantly worn through general operation of the machinery. However, installation of a new bellcrank is relatively simple. Only a few tools will be required when replacing this item, including: a socket set, a set of pliers and a hex wrench. The removal of the mower deck will also be required. The user should refer to their owner's manual for guidance regarding their specific model.This is an OEM part sourced directly from the manufacturer. It is sold individually. The bellcrank ground drive is designed for use in Husqvarna, Poulan, Weed Eater, and Jonsered models.

This replacement part is an idler pulley. This is a genuine replacement part made by Husqvarna. Idler pulleys connect multiple parts together so they can operate properly during use. This enables certain parts to work together and run smoothly and effectively. A new idler pulley might be needed if the current one has become worn down over time or damaged. Pulleys typically experience a large amount of friction over time and can begin to malfunction with extended use. If the user notices unusual noises coming from the inside of the machine, it can be due to a pulley that needs to be replaced. Work gloves are recommended to ensure safety. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.
