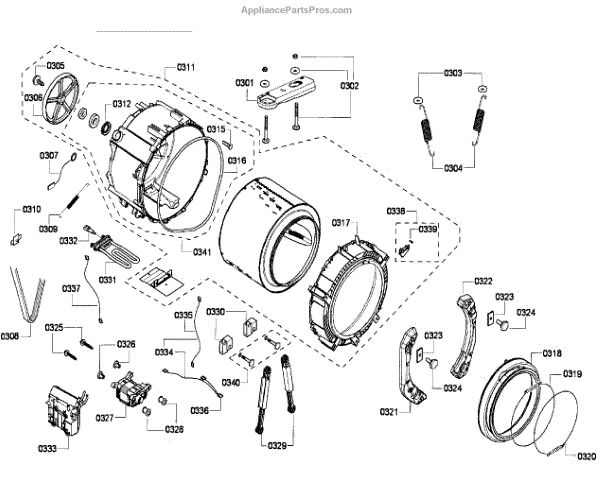

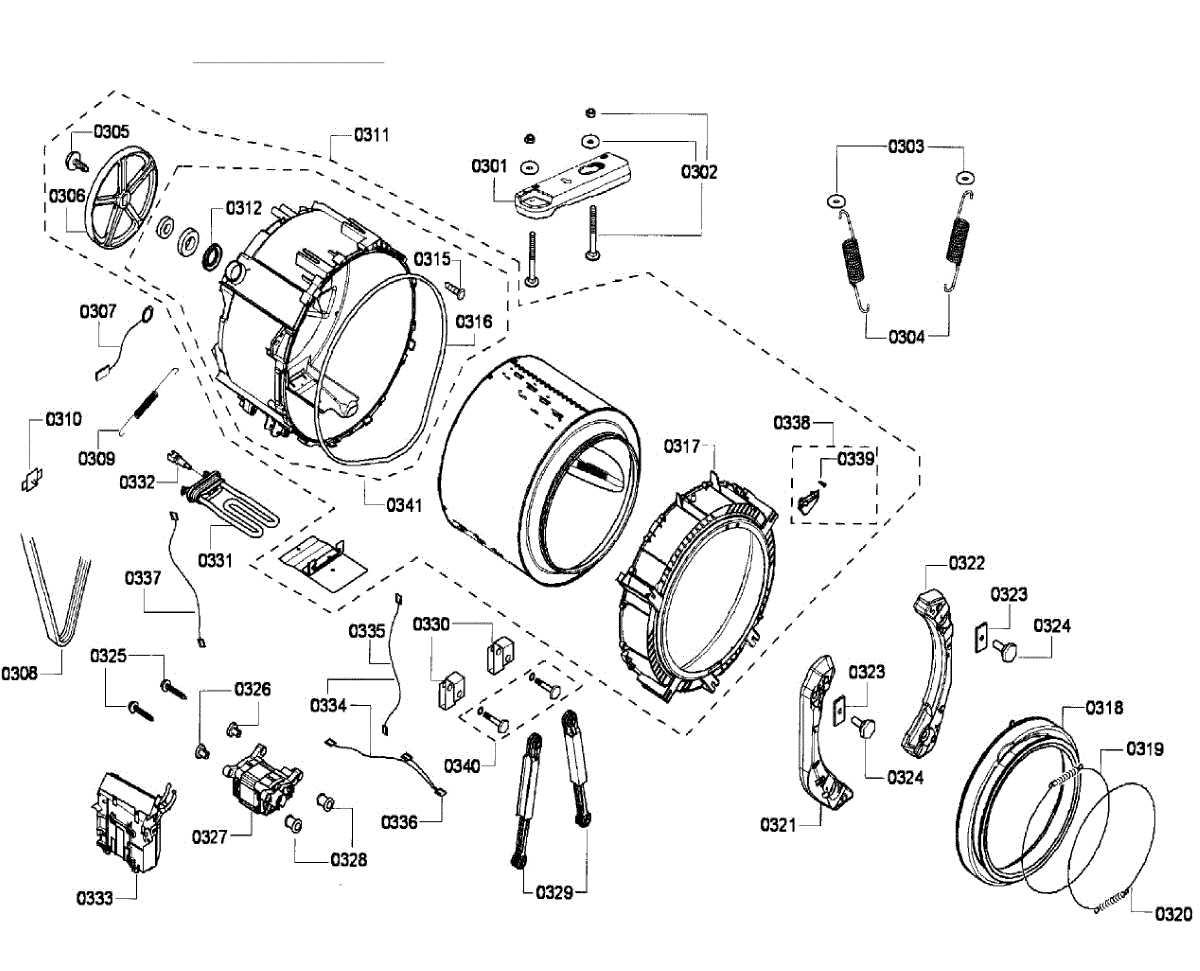

Parts for Bosch WFMC5801UC/16: Drum Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Tank Spring is an OEM part for Bosch washing machines. It is located within the central support assembly below the washer tub. The spring provides counterbalancing tension to assist the tub during movement and rotation.

Causes can be fatigue from years of use, mineral buildup hindering spring function, or damage such as cracks or breaks in the spring coil.

Symptoms of a bad tub support spring include:

• Excessive vibration or off-balance loads during spin cycles
• Noisy squeaking or grinding sounds from central support area
• Difficulty lifting or rotating the tub for loading/unloading

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement screw restores secure mounting for appliance panels and components so parts sit correctly and don't rattle or shift during use. Simple, direct fit for repairs that need the original-style fastener. What it does

• Secures panels, brackets, or small components to the appliance chassis
• Restores proper alignment and prevents vibration or rattling sounds
• Replaces missing or stripped screws that allow parts to move or hang
• Helps maintain safe operation by keeping covers and guards fastened

• One screw

• Disconnect power to the appliance before starting work
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and seat straight; do not overtighten
• Keep removed hardware organized to ensure all fasteners are returned to their original locations

Spring tank secures and positions an appliance tension spring to maintain proper movement and balance for a door or other moving assembly. Replacing a worn or broken tank restores correct spring alignment and smoother, more reliable operation. What it does:

• Holds the end of the tension spring and keeps it aligned in the assembly.
• Maintains correct spring tension so doors or panels open, close and remain balanced.
• Prevents spring detachment that can cause sudden drops, misalignment or noisy operation.
• Common symptoms of a failing tank: door drops or won't stay open, uneven closing, rattling or banging during movement.

• Disconnect power to the appliance before starting any repair to avoid electrical hazards.
• Support the door or moving panel while replacing the tank to prevent sudden movement or injury.
• Use the OEM part orientation and hardware; inspect the spring and mounting points for wear and replace if scored or damaged.
• Test the door/panel operation several times after installation to ensure correct tension and secure mounting.

The Tub Seal is an OEM part for Bosch washing machines. This part prevents water from leaking from the rear part of the drum where it connects to the machine's other components. This seal is specifically engineered to handle the rigorous environment of a washing machine, dealing with constant exposure to water, high spin speeds, and fluctuations in temperature.

Causes of deterioration in a tub seal include aging and wear over time, chemical damage from detergents, and physical stress from unbalanced loads or excessive spin speeds.

Symptoms of a bad Tub Seal include:

• Water leaking from the back of the washer, especially during or after the spin cycle
• Unusual noises such as grinding or squeaking, which may indicate that water has seeped into bearings or other components
• An increase in humidity or wetness around and behind the machine
• Rust or corrosion on nearby metal parts, suggesting prolonged exposure to leaking water

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Outer Tub Seal is an OEM part for Bosch washing machines. This part ensures a watertight seal between the outer tub halves, preventing water leaks during the washing cycle.

Causes for the replacement of the Outer Tub Seal can range from natural wear and tear due to age and frequent usage, to hard water conditions that can degrade the seal material over time.

Symptoms of a failing Outer Tub Seal include:

• Water leaking from the bottom of the washing machine.
• Unusual noises during the spin cycle, which may indicate water has leaked into the bearings.
• Signs of water damage or rust near the base of the machine.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Door Boot Gasket is an OEM replacement part for Bosch washing machines. This gasket forms a tight seal around the washer door, preventing leaks and ensuring optimal water containment during cycles.

Causes of a faulty gasket include wear over time and repeated use. Mineral buildup or tears in the sealing material allow for leaks.

Symptoms of a bad door boot gasket include:

• Water leaking from the door area
• Visible cracks or tears in the gasket
• Mold or mildew growth
• An unpleasant odor from the washer
• The washer door not sealing properly

This front load washer door boot seal is used on many Bosch/Siemens including those model numbers beginning with WFMC/WFXD and serial numbers beginning with FD8710-Later. For serial numbers beginning with FD8505-FD8709 order 00667489.

This Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore washing machines.

The Clamp is an OEM component specifically designed for select Bosch front-loading washers. As an adjustable mechanism, it secures tub components within acceptable alignments throughout spin cycles.

Symptoms signaling the need for a new clamp include:

• Increased vibrations from tub or suspension movements exceeding specifications
• Difficulty starting or uneven spin balance detections by diagnostics sensors
• Loosened or missing fasteners releasing adjustments subject to shifts

Causes related to fatigue cracks developing over prolonged wash cycles equating to years of use. Submersion in cleaning chemicals may also embrittle synthetic portions more rapidly.

This OEM Bosch replacement clamp is also compatible with Thermador, Gaggenau, and some Kenmore washers.

The Door Clamp is an OEM replacement part for Bosch front-loading washing machine models. Located internally at the edge of the washer door, it secures the door liner firmly in place.

Causes of a bad clamp include cracks developing from repeated door openings/closings, and deterioration of mounting points from constant vibration feedback stressing plastic fasteners over time.

Symptoms include:

• Excessive door sagging creates gaps for debris/moisture entry
• Noisy rattling or shaking from compromised seal integrity
• Difficulty opening/closing the door smoothly

This genuine Bosch replacement is compatible also with Siemens washers..

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This front drum motor mounting bushing supports the dryer drum shaft and helps the drum spin smoothly for quiet, even drying. It replaces a worn bearing surface to reduce noise and prevent drum misalignment. What it does:

• Provides a low-friction bearing surface for the drum shaft at the front motor mount
• Helps keep the drum properly aligned during rotation
• Reduces squealing, grinding, or rubbing noises caused by a worn front bushing
• Prevents excess wear on the drum shaft and adjacent components when functioning correctly

• One front drum motor mounting bushing

• Disconnect power before beginning any repair and follow all safety precautions
• Inspect the drum shaft, drum seal, and rear bushing for wear and replace as needed
• Use appropriate tools to remove the old bushing and press or seat the new bushing evenly
• Re-check installation and related components if alignment or noise persists after replacement

The Drive Motor is an OEM replacement part for Bosch washing machines. This powerful motor is responsible for driving the drum rotation during the wash and spin cycles.

A bad drive motor can occur due to electrical faults, mechanical issues, or normal wear and tear over time. Signs of a faulty drive motor include the drum not spinning or agitating, unusual noises coming from the motor, or the washer not starting at all.

Symptoms of a bad drive motor include:

• The drum not spinning or agitating
• Unusual noises
• The washer not starting

Replace your faulty washer drive motor with this genuine OEM Bosch part to restore your washing machine. This Bosch part can also be used on Thermador and Gaggenau appliances.


This rear drum motor mounting bushing supports the motor shaft at the back of the tub, keeping the drum aligned and reducing wear. It restores smooth drum rotation and helps reduce noise and vibration when functioning properly. What it does:

• Centers and supports the motor shaft to maintain proper drum alignment.
• Cushions rotating components to reduce squealing, grinding, or scraping noises.
• Helps prevent excess drum wobble and uneven wear on the tub and bearings.
• Can stop intermittent rubbing or burning smells caused by a worn mounting surface.

• Disconnect power before starting and follow all safety precautions; service panels may have sharp edges.
• Access typically requires removing the dryer/heater assembly and drum.
• Inspect mating surfaces and surrounding components (shaft, bearing, seal). Replace any excessively worn parts to prevent repeat failures.
• Use only OEM-recommended parts and fasteners; do not force or press the part in without proper alignment.

This tub shock absorber helps control drum movement and reduce vibration during spin, keeping your washer stable and quiet. Replacing a worn shock restores smoother operation and helps prevent excess shaking that can lead to noise and wear.

• Damps tub movement to minimize vibration and noise during spin
• Helps prevent "walking," banging, and excessive shaking
• Can contribute to unbalanced loads or longer spin times when worn
• Common fix for thumping sounds and visible drum oscillation

• Unplug the appliance and turn off water before servicing
• Access typically requires removing the front or rear panel
• Support the tub before disconnecting old shock; replace in matched pairs when applicable
• Verify secure seating of pins/fasteners and test for smooth suspension travel

The Laundry Deflector Kit is an OEM part for Bosch washing machines. This kit includes baffles that are installed inside the washer drum. The baffles play a crucial role in improving the washing action by lifting and tumbling clothes during the cycle, which helps ensure a thorough clean and efficient water usage.

Causes of a bad Laundry Deflector Kit can include physical damage such as cracking or breaking, which can occur from heavy or improper loads. Wear and tear over time from regular use also contributes to baffle deterioration.

Symptoms of a bad Laundry Deflector Kit include:

• Clothes not moving or tumbling correctly inside the drum
• Increased noise during a wash cycle
• Unusual wear or damage to clothing
• Parts of the baffle detaching or missing

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.
