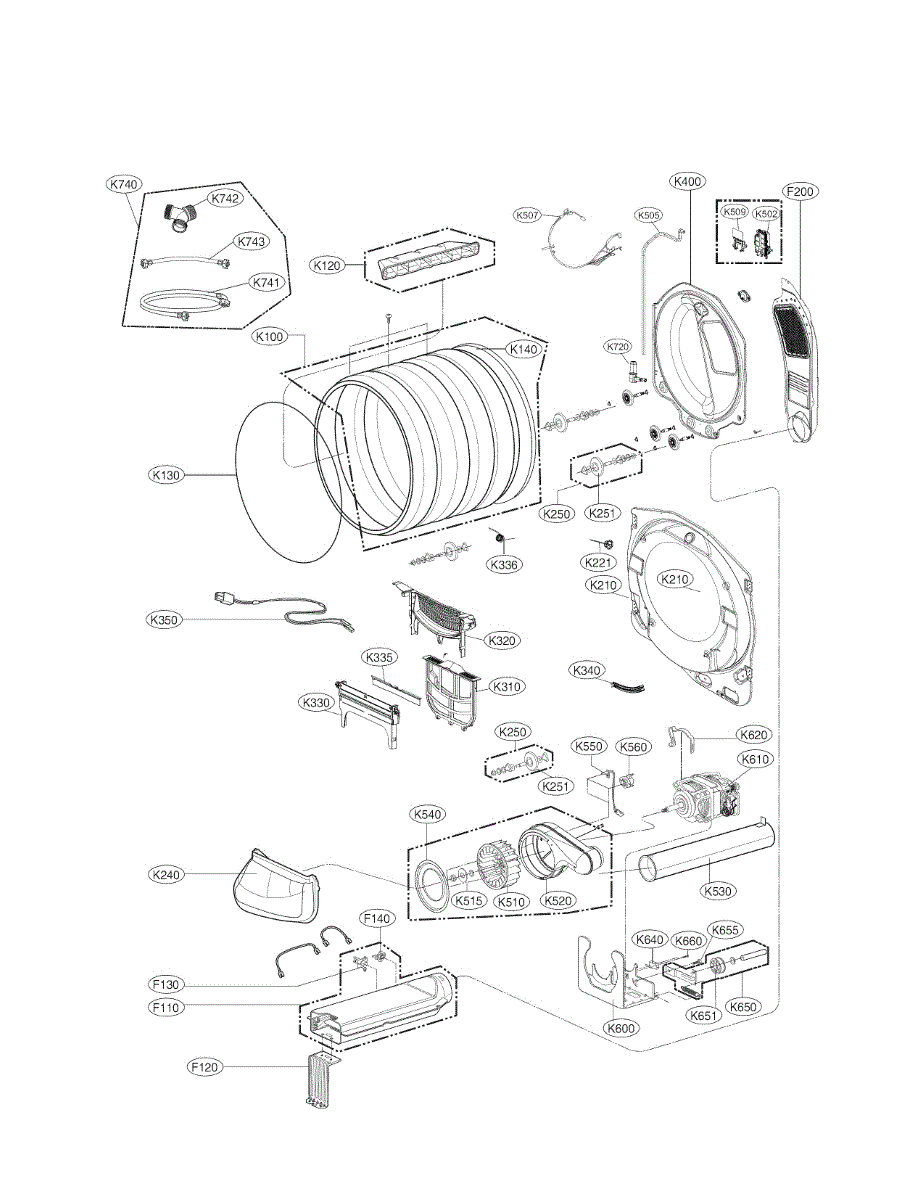

Parts for Lg DLEX5000V: Drum Parts

The Tub Assembly is an OEM component for LG clothes dryers. As the central component housing both the inner and outer drums, the tub assembly is essential for safely drying wet laundry loads. It rotates the drums to circulate air and remove moisture from clothes during cycles.

Causes of a bad tub assembly dryer can include cracks, leaks, or damage to the drum structure from excessive use or unbalanced loads over time. Wear and tear on rotating or suspension components that impair rotation.

Symptoms of an issue with the tub assembly dryer are:

• Inefficient or slow drying times
• Abnormal noises or vibrations during cycles
• Restricted or lack of drum rotation
• Cracks, leaks, or physical damage visible on drums

This OEM LG part is also compatible with Sears/Kenmore.

Fix a dryer that won't heat or leaves clothes damp with this heating element assembly. Generates heat to dry clothes effectively. DIY repair.

The Dryer Drum Baffle is an OEM part for LG dryers. This baffle is attached to the inside of the dryer drum and is designed to help lift and tumble clothes during the drying cycle.

Causes of a bad dryer drum baffle can include wear and tear from regular use, physical damage from heavy or sharp objects, or becoming loose due to vibration over time.

Symptoms of a bad dryer drum baffle include:

• Thumping or banging noises during the drying cycle
• Clothes not tumbling properly, leading to uneven drying
• Loose or rattling baffle inside the drum
• Visible damage or breakage on the baffle

This OEM LG part is also compatible with some Kenmore models.

The Belt is an OEM replacement part for LG dryers that is responsible for connecting the motor to the drum to allow it to tumble. Over time, dryer belts can stretch, wear out, or even break, leading to a drum that won't turn and clothes that don't dry properly.

Symptoms of a bad Dryer Belt include:

• The dryer motor running but the drum not turning.
• A squealing or thumping noise coming from the dryer.
• The dryer not starting at all.

Causes of failure can include regular wear and tear from the dryer's operation, overloading the dryer beyond its capacity, which puts extra strain on the belt, or a misalignment that causes uneven wear. A damaged belt can prevent your dryer from functioning correctly, leading to inefficiency in drying clothes and potential motor damage due to unnecessary strain.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Hi Limit Thermal Fuse is an OEM part for LG dryers. This fuse is a safety device that protects the dryer from overheating by cutting off power to the heating element if the dryer’s temperature exceeds a safe limit. It ensures that the dryer operates within safe temperature ranges, preventing potential fire hazards.

Replace the hi limit thermal fuse if it becomes faulty due to wear and tear, a buildup of lint, or exposure to high temperatures over time. A malfunctioning fuse can compromise the dryer’s ability to regulate heat properly.

Symptoms of a bad hi limit thermal fuse include:

• The dryer not heating
• The dryer shutting off unexpectedly during a cycle
• No response from the dryer when attempting to start a cycle
• Extended drying times due to lack of heat

This OEM LG part is also compatible with Sears/Kenmore models.

Replace your dryer drum seal when clothes take longer to dry or you notice lint buildup. Maintains heat efficiency and prevents air leaks. Confirm fit with your model number.

The Hi Limit Thermostat Assembly is an OEM part for LG dryers. This thermostat monitors and regulates the temperature within the dryer to prevent overheating, ensuring safe and efficient operation. It acts as a safety device that shuts off the heating element if the dryer exceeds a certain temperature, protecting the appliance and your home from potential fire hazards.

Over time, the hi limit thermostat can fail due to wear and tear, electrical issues, or repeated exposure to high temperatures. If the thermostat becomes faulty, it can lead to improper temperature regulation within the dryer.

Symptoms of a bad hi limit thermostat include:

• The dryer overheating
• The dryer not heating at all
• The dryer shutting off mid-cycle
• Extended drying times due to inconsistent heating

This OEM LG part is also compatible with Sears/Kenmore models.

Fix a noisy, wobbling, or damaged dryer with this front drum tub. Moderately difficult repair requiring disassembly. Restores smooth tumbling action.

LED light illuminates your dryer drum for easy viewing during operation. Replace when light dims, flickers, or burns out. Verify fit with your model.

Replace your dryer's duct assembly if cracked, broken, or damaged. This component channels air from the drum through the heating system to ensure proper airflow.

The Roller Kit is an OEM part for LG dryers. This 4 roller kit includes replacement drum support rollers, which are essential for allowing the dryer drum to rotate smoothly during operation. The rollers are designed to provide stable support for the drum, minimizing noise and ensuring efficient drying performance.

Over time, drum rollers can wear out due to continuous use, exposure to heavy loads, or lack of proper lubrication. When the rollers become damaged or worn, they may develop flat spots, lose their smooth surface, or begin to squeak. These issues can lead to improper drum rotation or increased strain on other dryer components.

Symptoms of a bad Roller Kit include:

• Loud squeaking, rumbling, or thumping noises during operation
• The dryer drum not spinning or rotating unevenly
• Excessive vibrations while the dryer is running

This OEM LG part is also compatible with Sears/Kenmore.

This is an authentic OEM drum support roller sourced directly from the manufacturer for use in clothes dryers. During the drying cycle, the drum turns and tosses the clothes around to distribute heat. This drum support roller holds the drum in place as it rotates. Over time, the heat from the dryer can lead to the roller becoming worn. If the dryer is making squealing sounds or thumping when operating, the support roller is worn out and should be replaced. Before replacing the drum support roller, make sure the power is disconnected from the dryer. Remove the top and front panel of the dryer to reach the drum. The idler pulley and dryer belt are underneath the drum; remove these and then take the drum out of the unit and set it aside. Remove the mounting bracket holding the worn drum support roller. Remove and replace the worn roller. While the dryer is apart, inspect the remaining support rollers. Reverse the steps used and put the dryer back together. Power the dryer and make sure the drum turns.This is a black and white, rubber and metal part that is individually sold. It does not come with assembly hardware. This drum support roller is designed for dryers manufactured by LG, Kenmore, and General Electric.

Captures lint and debris during drying cycles. Replace when torn, cracked, or difficult to remove. Confirm fit using your dryer's model number.

Replace your dryer's guide cover trim piece if cracked, broken, or missing. This trim protects the guide area and prevents debris from entering the mechanism.

Holds and guides the lint filter in proper position. Replace if cracked, warped, or filter fits loosely. Confirm fit with your model number.

Distortion spring that applies tension within the dryer mechanism. Replace if fatigued, broken, or missing to restore proper tension and assembly function.

The Pressure Sensor is an OEM replacement part for LG dryers. This sensor monitors the airflow or pressure within the dryer, helping to regulate drying cycles and ensure efficient operation. By detecting blockages or changes in airflow, it plays a critical role in maintaining proper performance and preventing overheating.

Over time, the pressure sensor can fail due to wear, electrical issues, or buildup of lint and debris. Damage to the sensor or its connections can cause the dryer to operate inefficiently or stop functioning altogether.

Symptoms of a bad pressure sensor include:

• Dryer not heating properly
• Extended drying times
• Error codes related to airflow or pressure
• Dryer shutting off unexpectedly during cycles

This OEM LG part is also compatible with Sears/Kenmore dryers.

Single wire harness for dryers. Connects electrical components inside the dryer cabinet. Replace if wires are damaged, frayed, or connectors are broken.

This is the rear tub drum for the washer's drum assembly; it supports the inner drum and helps keep loads balanced so the washer can tumble and spin properly. Use this part to restore stable drum rotation and reduce rubbing or banging noises. What it does:

• Supports the inner wash basket and maintains proper alignment during spin cycles
• Keeps the drum centered to prevent rubbing against the cabinet or seal
• Helps reduce loud banging, wobbling or excessive vibration during operation
• Works with the tub seals, bearings and suspension to maintain smooth rotation

• One rear tub drum

• Disconnect power and water before beginning any repair
• This is a major drum component; expect to remove the outer cabinet and other assemblies to access it
• Support the inner drum while separating components; bearings, seal and hardware may need inspection or transfer

The Generator Assembly is an OEM part for LG electric dryers. This crucial assembly houses the heating element that supplies warmth to dry clothes.

Symptoms of a bad generator assembly include:

• Inability to achieve proper drying temperatures
• Drying cycle taking excessively long times
• Insufficient or incomplete drying of clothes loads
• Odor or smoke emanating from dryer interior

Causes of failure can be cracks in insulating materials allowing electricity leaks, broken or corroded terminal connections, or general carbon buildup over years of use.

Replace yours today with this genuine OEM LG assembly to restore fast and efficient drying performance. New heating elements help eliminate safety concerns. This replacement part is compatible with some Samsung, GE, and Kenmore dryer models.

This inlet hose carries water from your home's supply line into the appliance. Replacing a cracked, kinked, or leaking hose restores proper water flow and helps prevent leaks and fill-related errors.

• Connects the household water supply to the unit's fill circuit
• Provides a sealed path for incoming water
• Damage can cause leaks, restricted flow, or fill errors
• Common signs: slow/no fill, visible leaks, kinks, bulges, or brittle tubing

• Unplug the appliance and turn off the water supply before service.
• Place a towel or pan to catch residual water; relieve line pressure before disconnecting.
• Route the new hose without sharp bends; hand-start threads, then snug—do not overtighten.
• Restore water and power; check all connections for leaks.

This inlet hose carries water from your home's supply line into the appliance. Replacing a cracked, kinked, or leaking hose restores proper water flow and helps prevent leaks and fill-related errors.

• Connects the household water supply to the unit's fill circuit
• Provides a sealed path for incoming water
• Damage can cause leaks, restricted flow, or fill errors
• Common signs: slow/no fill, visible leaks, kinks, bulges, or brittle tubing

• Unplug the appliance and turn off the water supply before service.
• Place a towel or pan to catch residual water; relieve line pressure before disconnecting.
• Route the new hose without sharp bends; hand-start threads, then snug—do not overtighten.
• Restore water and power; check all connections for leaks.

Fix a dryer that won't start, stops mid-cycle, or has intermittent power issues with this wire harness. Connects electrical components. Moderate DIY repair.

Fix loud banging, grinding noise, or poor drying performance with a new dryer blower wheel. Restores proper airflow through drum and exhaust vent.

This is a fastener and retainer assembly that secures the blower wheel to the motor shaft inside a dryer. It keeps the blower wheel firmly in place so it can properly circulate hot air through the drum and out the exhaust vent. Replace this assembly if the blower wheel wobbles, makes rattling or squealing noises, or if the retainer nut is stripped or broken, causing poor airflow and longer drying times.

Blower housing assembly for dryer that channels heated air from the drum to the exhaust. Replaces a cracked or damaged housing to restore proper airflow and help the dryer dry more efficiently and quietly. What it does:

• Channels heated air from the drum to the exhaust and supports the blower wheel.
• Restores airflow when a damaged or cracked housing is restricting ventilation.
• Commonly used to address reduced drying performance and longer dry times.
• Can also resolve unusual rattling or grinding noises coming from the lower front of the dryer.

• Disconnect power (and gas, if applicable) before beginning work; wear eye protection and gloves.
• Remove access panels and disconnect vent/ducting per your model's service instructions to reach the blower housing.
• Inspect the blower wheel and surrounding seals/gaskets while the housing is out; replace damaged components as needed.
• Reassemble all panels and venting securely and test the dryer for proper airflow and operation after installation.

Duct assembly channels air from dryer drum to blower and exhaust. Replace if cracked, warped, or missing to restore proper airflow and prevent lint bypass.

This guide assembly supports and aligns a refrigerator/freezer drawer so it opens and closes smoothly and stays on track. It restores stable drawer movement and prevents sticking, sagging, or dislodging during normal use. What it does:

• Guides and stabilizes the drawer on its track for smooth sliding action
• Keeps the drawer properly aligned to prevent catching or binding
• Helps stop the drawer from sagging or coming off the track
• Reduces grinding or scraping noises caused by misalignment

• One guide assembly

• Unplug the appliance or shut off power before beginning work
• Empty the drawer and remove any obstructing components to access the guide
• Typical installation uses basic hand tools; handle plastic parts carefully to avoid damage

The Dryer Thermistor is an OEM part for LG dryers, designed to monitor and help regulate the temperature within the dryer by providing feedback to the control board about the temperature inside the drum. This allows the dryer to adjust its heat settings accordingly, preventing overheating and ensuring clothes are dried evenly and safely.

Symptoms of a bad Dryer Thermistor include:

• Clothes not drying properly or taking longer than usual to dry.
• The dryer repeatedly stopping during a cycle.
• Error messages appearing on the dryer's display panel.
• The dryer getting too hot or not heating enough.

Causes of a bad Dryer Thermistor can include a buildup of lint and debris affecting its ability to accurately sense temperature, wear and tear over time, or electrical issues within the dryer's circuitry.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Dryer Blower Thermostat is an OEM replacement part for LG dryers. It plays a role in regulating the operation of the blower motor, which is responsible for circulating hot air throughout the dryer during the drying cycle.

Causes of a bad dryer blower thermostat can include electrical malfunctions, physical damage, or simply wear and tear over time.

Symptoms of a bad dryer blower thermostat include:

• The dryer not heating up properly or taking longer to dry clothes
• The blower motor failing to turn on or running continuously
• Inconsistent or inadequate airflow during the drying cycle
• Error codes or fault indicators related to the thermostat or blower motor

This OEM LG part is also compatible with Sears/Kenmore models.

Metal mounting bracket that secures internal dryer components to the frame. Replace if cracked, bent, or broken to restore proper alignment and stability.

The Drum Motor Assembly is an OEM part for LG dryers. It serves as the powerhouse that drives the drum, enabling it to tumble clothes during the drying cycle. This essential component ensures your dryer operates smoothly, providing the necessary torque for consistent and efficient drying performance.

Causes of failure might include wear and tear from prolonged use, overload from trying to dry heavy loads, electrical issues like short circuits, or physical damage to the motor components.

Symptoms of a bad Drum Motor Assembly include:

• The dryer drum fails to turn, even though the dryer powers on.
• Unusual noises, such as humming or buzzing, indicating the motor is struggling.
• The dryer stops unexpectedly during cycles or won't start at all.
• Decreased drying efficiency or clothes taking longer to dry due to inconsistent drum speed.

This OEM LG part is also compatible with Sears/Kenmore.

This clamp secures hoses, tubing or wiring to the appliance frame to help prevent rubbing, vibration and routing issues. It restores a solid attachment point so lines stay in place during normal use. What it does:

• Holds a hose, tubing or wire bundle in place to prevent chafing and abrasion
• Keeps components routed away from moving parts and hot surfaces
• Reduces rattling or vibration caused by loose lines
• Helps maintain safe, reliable connections by preventing strain on fittings

• Disconnect power and shut off water before servicing
• Use basic hand tools; avoid over-tightening which can pinch hoses or wires
• Inspect adjacent hoses/wires for wear and replace if damaged
• Take photos before removal to ensure correct reinstallation

This micro switch is a compact, snap-action electrical switch that sends an on/off signal when a lever, latch, or paddle is moved. Replacing a worn switch restores reliable detection and control response for the affected function.

• Converts mechanical movement into an electrical open/close signal to the control
• Commonly used for lever/paddle actuators, latches, or interlock detection within the appliance
• Safe symptom clues: no response when actuated, intermittent operation, or a function stuck on/off
• Physical clues: weak or absent "click" when pressed, heat discoloration or damage at terminals

• Disconnect power before servicing; if the product is connected to a water line, close the supply valve
• Note wire positions and terminal labels (COM/NO/NC); transfer wires one at a time to matching terminals
• Match the actuator orientation and mounting position to the original for proper operation
• After installation, verify continuity with a multimeter and test function before reassembly

Maintains tension on your dryer's drum belt for smooth rotation. Replace if pulley wheel is cracked, shaft worn, or assembly moves excessively during operation.

Idler pulley maintains tension on the dryer belt. Replace if worn, cracked, or causing belt slippage. Installs between motor and drum support system.

This replacement screw secures appliance components in their proper position. Use it to restore a tight, rattle-free fit when the original fastener is missing, stripped, or corroded. What it does:

• Fastens brackets, panels, or trim to keep assemblies aligned and secure
• Helps prevent vibration, rattling, and gaps from loose hardware
• Restores proper attachment when a screw is lost, worn, or damaged
• Common symptoms: loose panel/handle, misalignment, rattling, or a missing screw

• Disconnect power; shut off water or gas before service
• Match location to the original; start threads by hand to avoid cross-threading
• Use the correct driver bit; do not overtighten (especially into plastic)
• If the original hole is stripped, repair threads before installing the new screw

Self-tapping screw secures panels, brackets, and components inside your appliance. Replace stripped, corroded, or missing screws to restore secure fit.

This connector nozzle attaches to the appliance's nozzle assembly to route fluid through the system and help maintain a sealed connection. It replaces a worn or cracked nozzle connector to restore proper flow and reduce leaks. What it does:

• Provides a secure connection point for the nozzle assembly, directing fluid through the correct pathway
• Restores a sealed joint to prevent drips or steady leaks at the nozzle area
• Helps eliminate flow interruptions caused by a cracked, split, or damaged connector
• Works as a direct-fit replacement when the original connector is broken or degraded

• One connector nozzle

• Turn off power and shut off the water supply before starting any repair
• Remove only the components necessary to access the nozzle area; use basic hand tools
• Check seals and adjoining hoses for wear and replace if needed to ensure a leak-free connection

Dryer not steaming or refreshing clothes? This water inlet valve controls the steam cycle. Fixes mineral buildup and flow issues. Moderate DIY repair.

Fix leaks or poor water flow with a new washer inlet hose. This part channels household water supply into your machine for proper filling and operation.

This pipe connector joins appliance water tubing to the inlet assembly, restoring a secure, leak-resistant connection so the dispenser or ice-making system can get a steady water supply. Ideal when fittings are cracked or worn. What it does:

• Creates a watertight connection between supply tubing and the appliance inlet/valve
• Stops leaks caused by cracked, split, or loose fittings at the tubing junction
• Restores proper water flow to dispensers and ice makers when a bad connector is the cause
• Helps prevent water pooling and potential damage from slow leaks

• Turn off water supply and disconnect power before replacing the connector
• Inspect tubing ends for damage and trim squarely if needed before installing
• Use correct tools and tighten fittings per manufacturer guidance; do not overtighten
• After installation, restore water and power and check carefully for leaks

If your washer won't fill with water or leaks during fill cycles, a damaged inlet hose is often the cause. This hose restores proper water flow.
