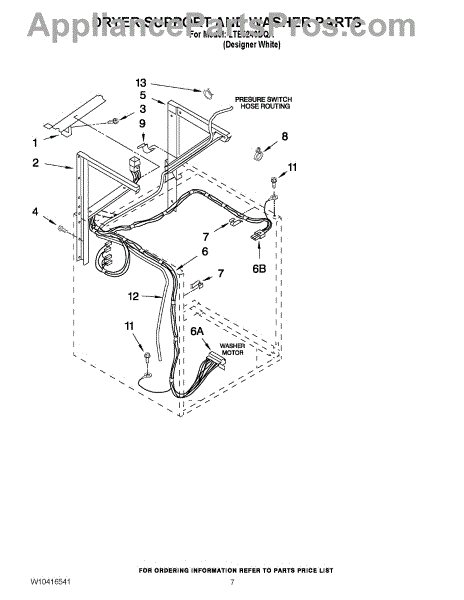

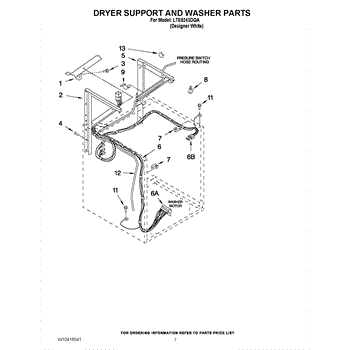

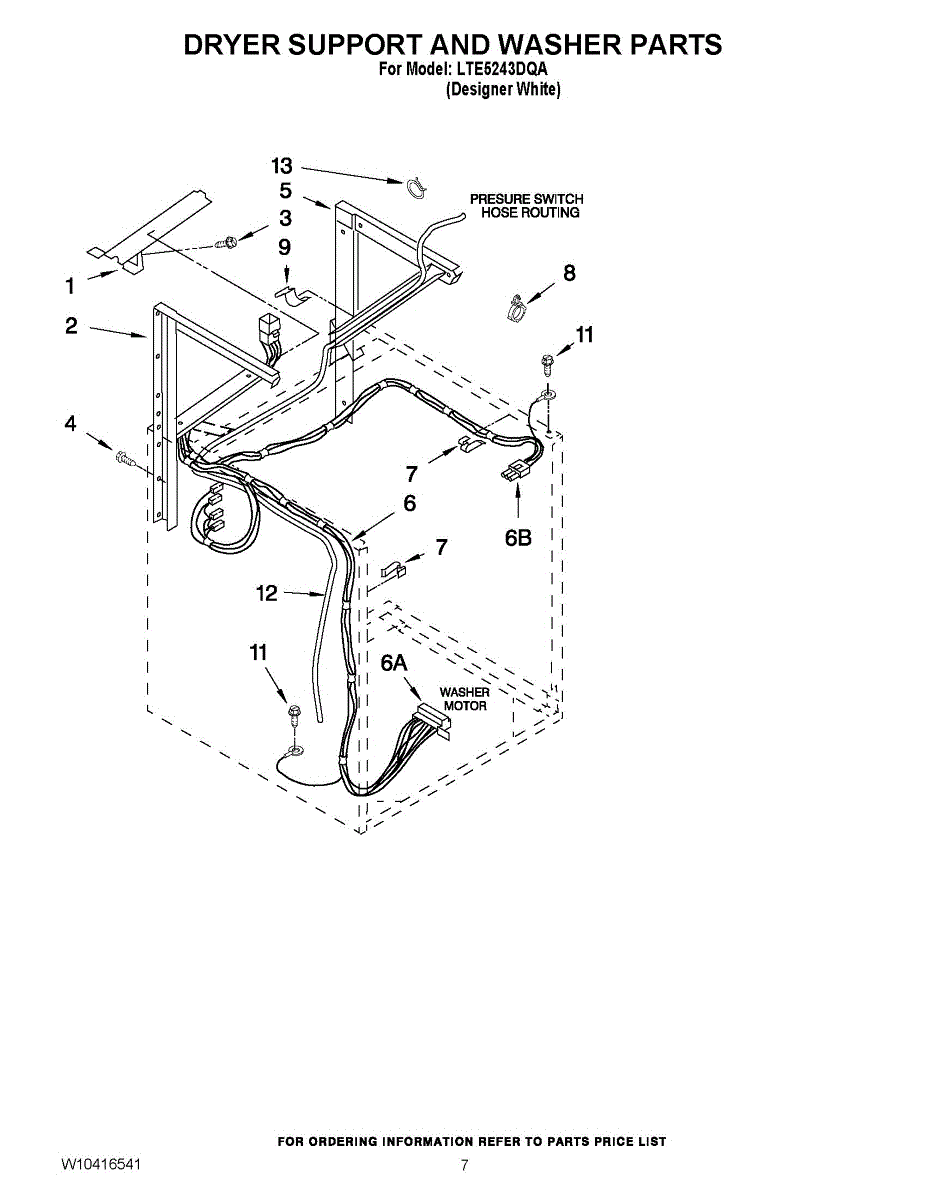

Parts for Whirlpool LTE5243DQA: 05 - Dryer Support And Washer Parts

Specs: 10-16 x 1/2 inch.

This wiring assembly replaces a worn or damaged wire harness to restore electrical connections between an appliance's controls and components. It helps re-establish reliable power and signal routing for proper appliance operation. What it does:

• Routes power and signal connections between control modules, switches, sensors and major components
• Restores interrupted circuits that can cause controls to be unresponsive or the appliance to fail to start
• Replaces cracked, frayed or heat-damaged wiring that may cause intermittent operation or arcing
• Ensures proper connector fit and factory routing to prevent shorts and electrical faults

• Disconnect power at the breaker or unplug the appliance before starting any work
• Compare the new harness to the old one and follow original wire routing and connector orientation
• Secure harness with existing clips or fasteners; avoid contact with moving parts or hot surfaces

This 10-circuit connector housing provides a secure plug-style connection for the appliance wiring harness, restoring reliable electrical contact where the original plastic connector is cracked or melted. It helps ensure circuits stay seated and insulated. What it does:

• Replaces a damaged or cracked 10-circuit plastic connector housing to restore a proper plug connection
• Secures wiring harness terminals to prevent intermittent power or signal loss
• Keeps electrical contacts insulated from vibration and moisture
• Useful when the mating connector body is broken, burned, or otherwise unusable

• One 10-circuit connector housing

• Disconnect power to the appliance before starting any repairs
• Verify terminal pin type and wiring orientation before removing the old housing; take a photo for reference
• This listing is for the housing only; transfer existing terminals/pins or replace pins with exact matches as needed

Used for lid switch.

Used from harness to top.

Size: 10-24 x 3/8 inch.

This is a clear plastic hose that runs from the water level switch to the bottom of the tub.

The Water Level Pressure Switch Hose is an OEM part for Whirlpool washers, playing a critical role in the accurate measurement of water levels within the machine.

Causes of damage to the Water Level Pressure Switch Hose can stem from natural wear and tear over time, leading to cracks or holes in the hose.

Symptoms of a bad Water Level Pressure Switch Hose include:

• The washer overfills or underfills, indicating a problem with water level detection.
• Unusual noises during the fill cycle, which may suggest air leaks in the hose.
• Error codes related to water level or filling issues displayed on the washer.
• The machine stops mid-cycle due to incorrect water level readings.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
