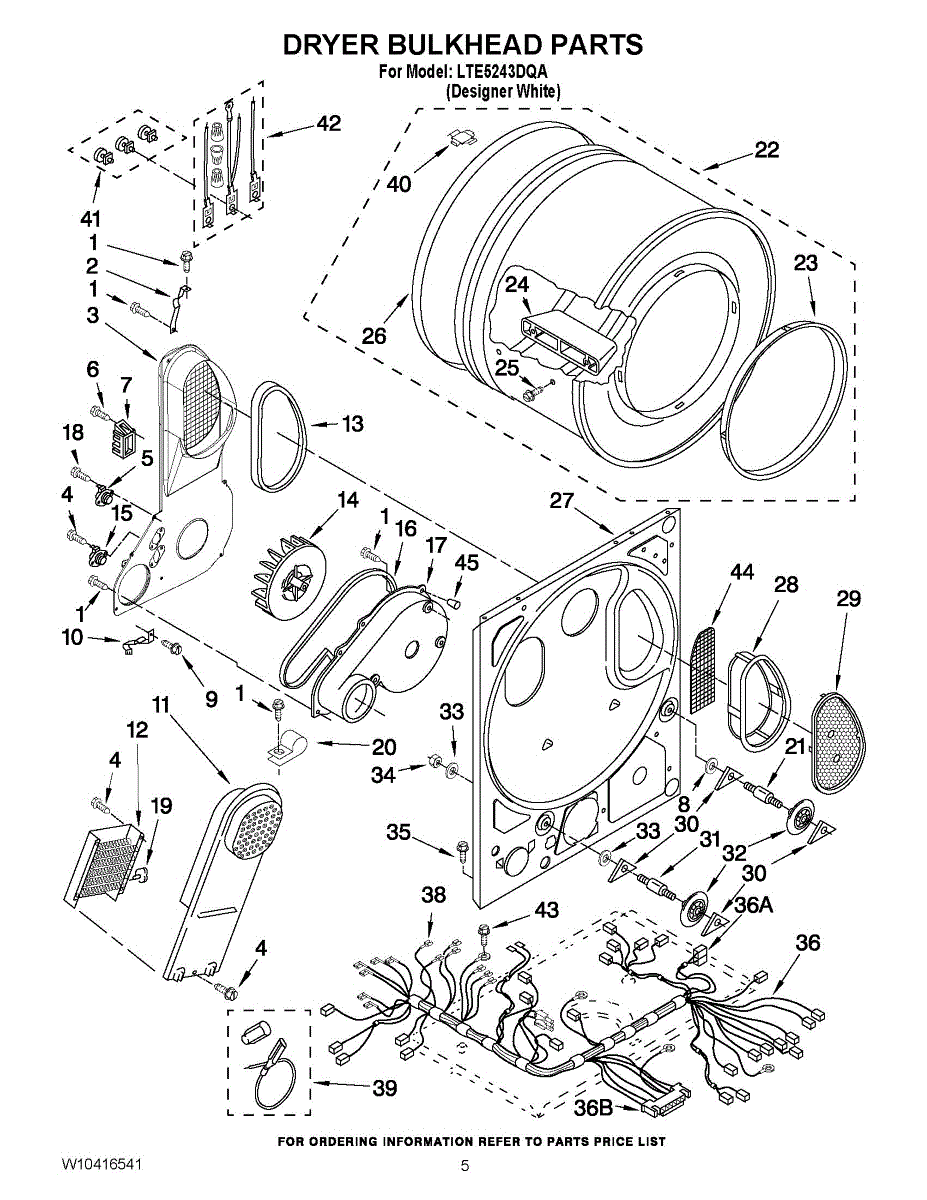

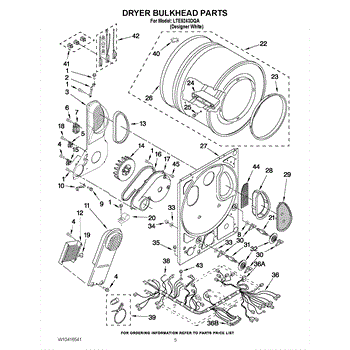

Parts for Whirlpool LTE5243DQA: 04 - Dryer Bulkhead Parts

Specs: 10-16 x 1/2 inch.

Secures the air duct to your dryer's blower housing. Replace if loose, cracked, or missing to prevent air leaks and maintain efficient drying. Verify fit.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Dryer won't heat? This high limit thermostat cycles the heating element to maintain safe temperatures. A simple 5-10 minute fix with a multimeter test.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Dryer won't heat or stops working? A burnt or melted terminal block disrupts power flow. DIY repair in under an hour with video guidance included.

This flat support washer provides a stable bearing surface under a fastener. Its 1-1/2-in diameter helps distribute load, maintain spacing, and keep components aligned so hardware stays tight and assemblies operate smoothly. What it does:

• Distributes clamping force to prevent pull-through and gouging
• Maintains proper spacing and alignment between mating parts
• Helps reduce vibration, rubbing, or wobble from a loose assembly
• Replaces a cracked, deformed, or missing support washer

• One support washer

• Disconnect power and shut off water/gas before servicing.
• Note the order and orientation of any washers/spacers during disassembly.
• Inspect mating hardware and surfaces; replace any worn or damaged parts.
• Tighten fasteners to manufacturer specifications—do not over-tighten.

Fastener secures panels, brackets, and internal assemblies in washers, dryers, and refrigerators. Replace stripped, missing, or worn screws.

This retainer clip secures a component in place to prevent movement and maintain proper alignment during appliance operation. Replacing a damaged or missing clip helps restore safe, reliable performance.

• Holds the mating part firmly to reduce vibration and noise
• Helps prevent intermittent operation caused by loose fitment
• Common fix when a component feels loose, rattles, or won't stay seated

• Disconnect power and shut off gas/water before servicing
• Note original clip orientation and location before removal
• Use needle-nose pliers to carefully release and install the clip
• Do not over-bend the clip; replace if deformed or fatigued

Dryer not heating or damaging clothes with rust marks? This heater housing supports the heating element and channels airflow. Moderate DIY repair.

Dryer not heating or taking too long to dry? This heating element generates the hot air for drying cycles. DIY-friendly repair, typically 10-15 minutes.

Seals the lint screen housing to prevent air leaks and maintain proper airflow. Replace if damaged, missing, or causing lint buildup. Verify fit.

Dryer not heating or drying properly? A damaged blower wheel restricts airflow, preventing hot air circulation. Attaches to motor shaft with left-hand threads.

Dryer won't heat? A failed thermal limiter opens the heating circuit when temperatures exceed safe limits. Simple DIY fix restores heat in 15-30 minutes.

Replacement dryer seal creates a tight barrier between components to prevent leaks and lint buildup. Replace when worn or brittle to stop drips. Verify fit.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Dryer not heating or shuts off after a few minutes? A faulty thermostat often causes temperature regulation failure. Easy DIY fix with a multimeter test.

Right-side shaft for dryer drum support roller. Replace if worn, bent, scored, or damaged to restore proper drum rotation. Installs on right side of cabinet.

Supports the front drum edge for smooth, quiet rotation. Replace when worn to stop scraping noises or drum wobble. Confirm fit with your model number.

Dryer drum baffle installs inside the drum to lift and tumble clothes evenly. Replace when cracked, broken, or missing to restore proper drum function.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Seals the gap between drum and bulkhead to maintain airflow and quiet operation. Replace when worn to eliminate squealing, reduce lint buildup, and prevent fabric snags. Confirm fit by model number.

Front drum bulkhead for your dryer. This structural component supports the drum assembly. Replace if cracked, broken, or worn to restore proper drum support.

Traps lint and debris during drying to prevent vent clogs. Replace when torn, damaged, or no longer catching lint effectively. Verify fit with your model.

Traps lint and debris during drying to prevent vent clogs. Replace when torn, damaged, or no longer catching lint effectively. Verify fit with your model.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Left-side shaft that supports the drum roller assembly in your dryer. Replace if worn, bent, or damaged to restore proper drum rotation and alignment.

Rear drum support roller kit for dryers. Mounts behind the drum to maintain alignment and smooth rotation. Replace when rollers are worn or damaged.

This support washer is a flat spacer used within the mechanism to support and separate mating parts, maintaining alignment and smoother movement. Replacing a worn washer helps reduce friction and wear so components operate properly. What it does:

• Maintains proper spacing and support between adjoining parts
• Helps prevent metal-to-metal contact, reducing scraping or grinding noises
• Addresses wobble or excess play when the original washer is worn, deformed, or missing
• Restores smoother movement and alignment in the assembly

• One support washer

• Disconnect power and water supply before servicing; for gas combos, also shut off gas
• Refer to your model's parts diagram for location and orientation
• Track the order of any shims/spacers during disassembly and reinstall in the same sequence
• Tighten fasteners to manufacturer guidance to avoid deforming the washer or binding parts

This locking nut is used for many purposes on a range of machines including household appliances. This nut is often used for leg leveling for machines. It will help with vibrations from washers and dryers. If the nut is used for this purpose and goes missing or becomes damaged, it could cause the machine to vibrate more and seem louder.Nuts are made from metal and are built to last a long time. However, there can still be issues that arise. In some cases, the nuts might go missing if they become loose and the machine is moved. They could also corrode over time and need to be replaced. The replacement of the nut is typically a fast and simple repair.The nut is a genuine OEM replacement part sourced from the manufacturer. It can work with washers, dryers, and combo machines, and is compatible with models from Whirlpool, Kenmore, Maytag, and Roper. The part is sold individually. Owners may want to have several on hand.

10 - 16 x 1/2

Wire harness for washer dryer combo units. Connects internal electrical components. Replace if wires are damaged, corroded, or connections are loose.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

For mating terminal use [AP31136300].

Connects power to your dryer's heating element. Replace this wire if it's frayed, burned, corroded, or broken to restore the electrical connection.

This drum hole plug seals an unused or service access hole in the dryer drum to help prevent clothing snags and reduce interior airflow leaks. Simple replacement restores the drum surface and helps keep items from catching. What it does:

• Covers a drum access/service hole to provide a smooth interior surface
• Prevents fabric from catching or tearing on open drum holes
• Reduces unwanted air leakage through the drum
• Helps maintain normal drum rotation contact points by keeping openings closed

• One drum hole plug

• Disconnect power to the appliance before starting any repairs
• Inspect the drum area and remove any debris before installing the plug
• Press or snap the plug into the hole until fully seated; replace if damaged or deformed

Dryer won't power on or has loose power cord connection? This terminal block screw kit secures electrical connections. Easy DIY fix in 15 minutes.

Includes screws and wire connectors. For the complete terminal block kit use 279320.

Replacement screw secures panels, brackets, and internal assemblies. Needed when original hardware is stripped, corroded, or missing to keep parts tight.
