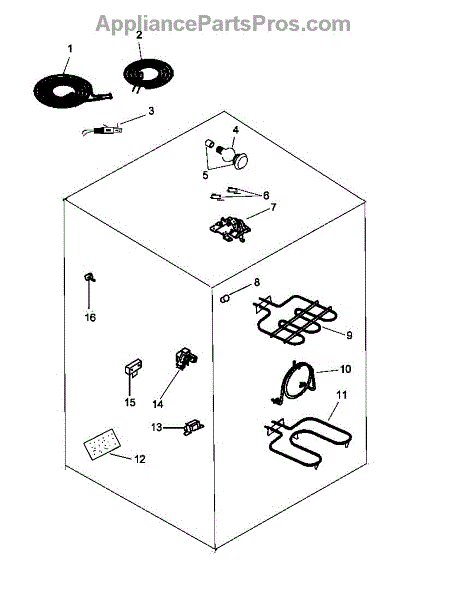

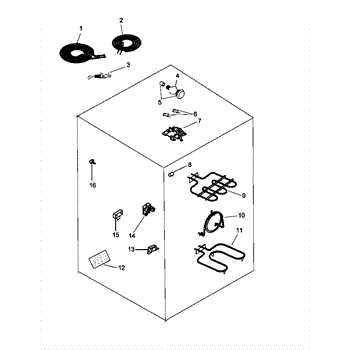

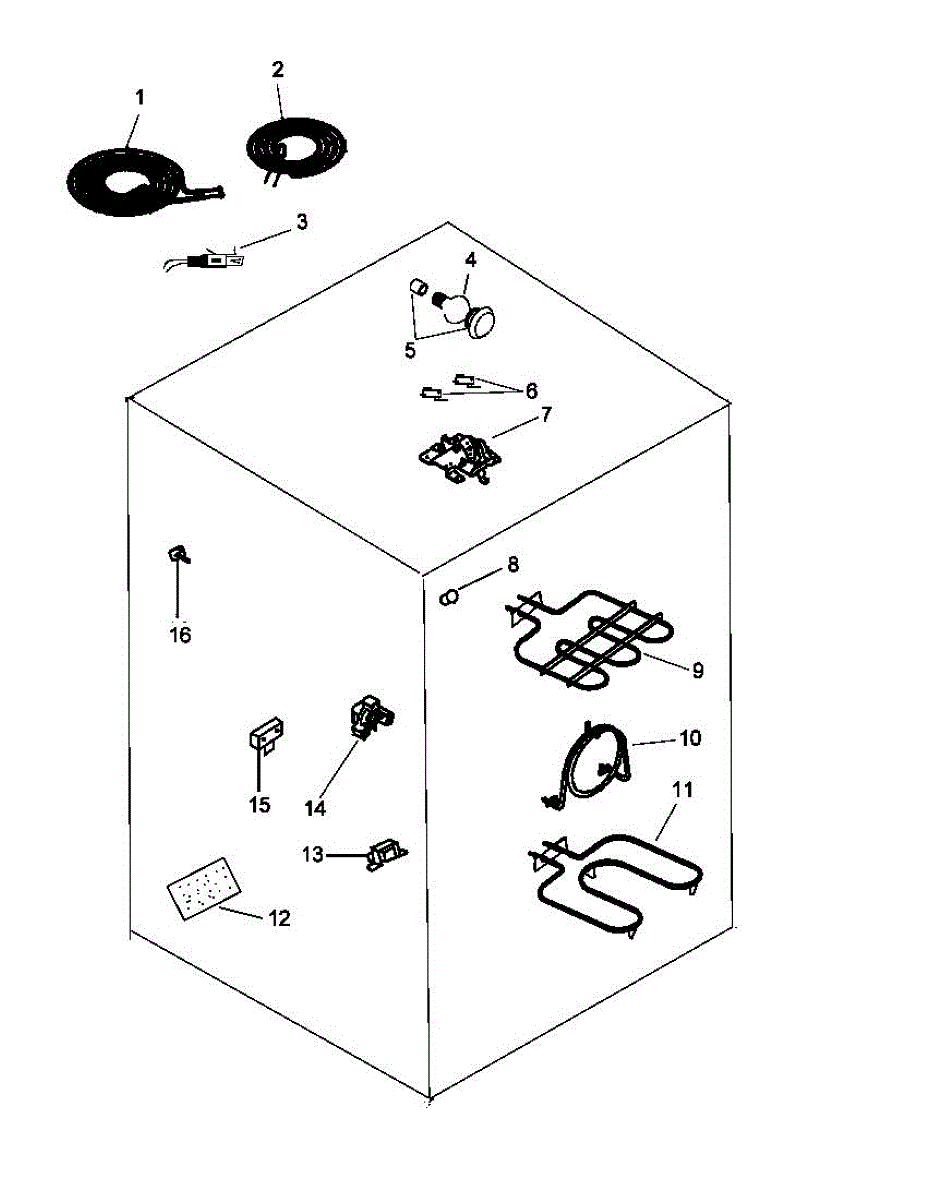

Parts for Amana CARC700E-P1143410NE: Electrical Components Parts

Replace a burner that won't heat or heats unevenly. This 8-inch surface element restores proper cooking temperature. Easy DIY repair in minutes.

Burner not heating or heating unevenly? This 6-inch surface element restores heat to your cooktop. Simple plug-in replacement takes 5 minutes.

The Oven Bake Element is an OEM replacement part for Whirlpool ovens. Located at the bottom of the oven cavity, it is responsible for providing the consistent heat necessary for baking and roasting. This element ensures even cooking by heating up uniformly and maintaining the set temperature throughout the cooking process.

Over time, the bake element can wear out or become damaged due to repeated exposure to high temperatures, spills, or power surges. Normal wear and tear, as well as accidental impacts during oven cleaning or rack adjustments, can also lead to the element malfunctioning.

Symptoms of a bad oven bake element include:

• The oven not heating up or reaching the set temperature
• Uneven baking or longer cooking times
• Visible signs of damage such as burns, blisters, or breaks in the element
• Sparking or unusual noises when the oven is in use
• The element not glowing red-hot during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Please Note. Due to a manufacturer change element may appear physically different from the original.

This is a replacement control board that has been manufactured by Whirlpool.The control board needs to be kept in good working order, or the user may notice that the range doesn't heat up properly or the temperature is unable to be accurately controlled. In such circumstances, or if there is visible damage to the control board, it should be immediately replaced. Wear work gloves to prevent serious hand injuries and unplug the appliance from power.This genuine OEM part is compatible with different ranges. As an authentic part, this control board is intended for use with different brands of ranges manufactured by Whirlpool, Maytag, Kitchenaid, Magic Chef, and other compatible brands. This part is sold individually.

If your range has a strong burning smell or won't power on, the terminal block may be heat-damaged. This insulated connector restores safe power flow.

Fix F2 or F3 error codes with a new temperature sensor. Restores accurate oven temperature control. Most DIYers complete this repair in under 30 minutes.

Mounting screw secures panels, brackets, and trim to the appliance frame. Replace if screw is stripped, missing, or damaged to restore secure fastening.

This surface heating element replaces a damaged or worn top burner coil to restore cooking heat on electric ranges. It installs into the stove's cooktop receptacle and provides a reliable heating surface for pots and pans. What it does:

• Heats cookware on the cooktop for boiling, frying and simmering
• Restores power to a burner that no longer heats or only heats intermittently
• Replaces elements with visible breaks, burn spots, or inconsistent temperature
• Works with the range's burner receptacle to complete the heating circuit

• Disconnect power to the range at the breaker or unplug before servicing.
• Replace by lifting the cooktop or removing the element from its receptacle per your model's service instructions.
• Ensure terminals are fully seated and secured; inspect wiring and receptacle for damage and replace if necessary.

Restore reliable, even heat to a single cooking zone with this surface heating element. It replaces a failed top burner element on an electric range or cooktop so pots and pans heat consistently for everyday cooking. What it does:

• Supplies controlled heat to one cooktop burner zone
• Helps resolve: burner won't heat, intermittent heating, or very slow heat-up
• Can address uneven heating or visible damage to the element
• Replaces an open/failed element to restore normal cooking performance

What's included:

• 1 surface heating element

Install notes:

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element per your model's service manual; support the cooktop if lifting a glass top
• Note wire locations and transfer connections one at a time to the new element
• Secure the element with existing brackets/clips as designed, then test operation before reassembly

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.
