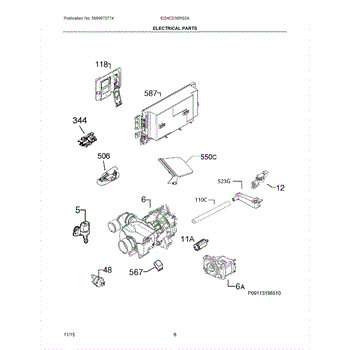

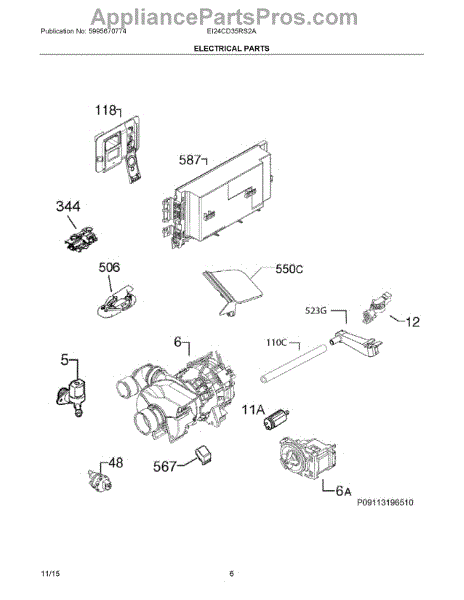

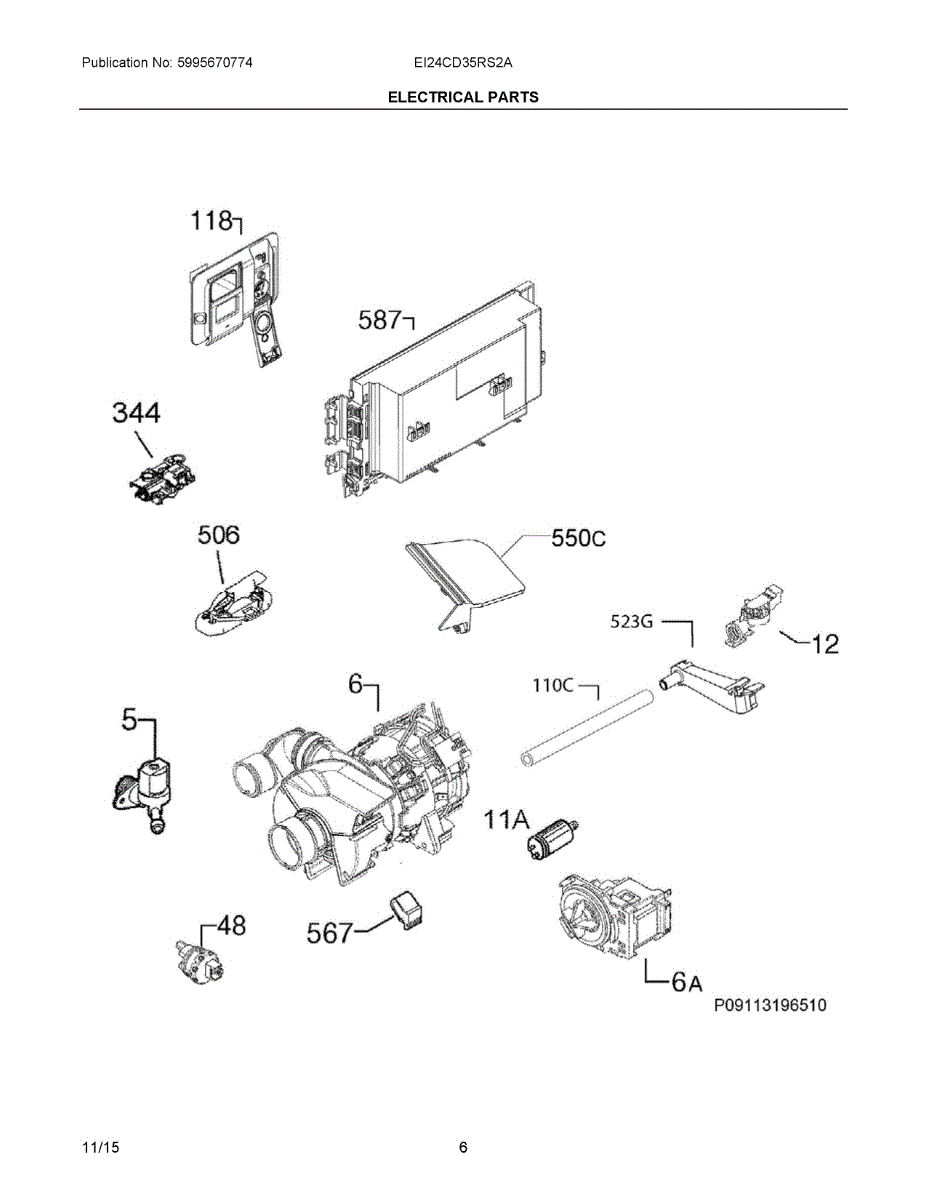

Parts for Electrolux EI24CD35RS2A: 04 - Electrical Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This water inlet valve controls water flow to the refrigerator's ice maker and dispenser so your appliance makes ice and dispenses water reliably. Replaces a failed valve to restore normal water delivery and prevent leaks. What it does:

• Opens and closes to route household water to the ice maker and dispenser when signaled.
• Stops water flow when the fill cycle ends to prevent overfilling.
• Commonly replaces valves causing no water to the dispenser or ice maker.
• Also used when valve leaks or runs continuously.

• Turn off the refrigerator and shut off the water supply before starting work.
• Disconnect electrical connectors and water lines carefully; expect minor residual water.
• Inspect hose fittings and seals; test for leaks after installation.

This drain pump assembly removes water from the tub at the end of wash and rinse cycles, helping your appliance complete cycles and prevent standing water.

• Pumps wastewater out through the drain hose to the household drain
• A failing pump can cause slow or no draining, cycle interruptions, or error codes related to draining
• May also present as water left in the tub or an inability to start the spin/drain portion of a cycle

• Unplug appliance and shut off water supply before service
• Have towels or a pan ready—residual water will drain when hoses are removed
• Note wire and hose orientations before disconnecting; transfer any mounting hardware from the original if reused
• After installation, check for leaks and run a short drain cycle to verify operation

The Pressure Sensor is an OEM part for Frigidaire dishwashers. It monitors the water pressure within the dishwasher to ensure optimal performance during the wash cycle.

Causes of a bad pressure sensor can include electrical faults, buildup of debris or mineral deposits, or general wear and tear from regular use.

Symptoms of a bad pressure sensor include:

• Poor cleaning performance
• Dishwasher not filling with water properly
• Error codes related to water pressure
• Dishwasher stopping mid-cycle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replacement sensor assembly that detects appliance operating conditions and sends readings to the control system for proper operation. Installing a working sensor restores reliable feedback and helps resolve related error codes or inconsistent performance. What it does:

• Detects operating conditions and provides electrical feedback to the appliance control.
• Enables the control board to monitor and adjust cycles based on measured readings.
• Faulty or intermittent sensors can cause incorrect readings, error codes, or unstable/incorrect appliance operation.
• Replacing a failed sensor restores accurate sensing and helps return the appliance to normal function.

• Always disconnect power to the appliance before starting work to avoid shock or injury.
• Handle the sensor and wiring gently; avoid pulling on wires or bending sensor probes sharply.
• Ensure connectors are fully seated and routed clear of moving parts or heat sources.
• After installation, restore power and verify proper operation and that any previous error codes are cleared.

The Detergent Dispenser is an OEM part for Frigidaire dishwashers. It dispenses the necessary doses of detergent at precisely timed intervals during cycle operation.

Causes of dispenser malfunction stem from normal wear over extended use. Mineral buildup can accumulate inside inhibiting proper dispensing action. Mechanical or electronic components controlling release functions are also susceptible to failure.

Symptoms of a bad dispenser include:

• Dishes not getting completely clean after cycles
• Residual food or film left on dishware
• Error codes related to detergent supply issues
• Leaks or spills from the dispenser area

This OEM Frigidaire part is also compatible with some Electrolux, Gibson, and Kenmore appliance models.

The Door Lock is an OEM part for Frigidaire dishwashers. As a basic safety component, it secures the dishwasher door firmly closed during active wash cycles. Trapping steam and heat within the tub area is crucial for sanitizing soils and delivering clean dishes.

Symptoms of a faulty door lock include:

• Inability to fully latch or lock the dishwasher door closed
• Accidental opening of the door during washing interruptions
• Possible leaks or loss of heat from unsealed door cracks
• Partial or incomplete cleaning cycles

Causes of a failed lock can be wear over extended use, or damage to the locking latch or striker plate. Warped or misaligned doors also put undue stress on the lock mechanism.

Replacing with this genuine Frigidaire part restores secure closure and safe operation. It is also compatible with some Kenmore, Gibson, and Admiral branded dishwasher models. Proper door locking is essential for optimal washing performance.


This switch assembly restores electrical on/off control for a specific appliance function. Replace a worn or failed switch to stop intermittent operation and return reliable control to the affected circuit. What it does:

• Provides the electrical on/off or function control for the appliance circuit.
• Replaces a failed switch that can cause intermittent operation or unresponsive controls.
• Helps resolve symptoms such as a function that won't start, no response from the control, or erratic switching.
• Connects to the existing wiring harness and mates with the original mounting points.

• Disconnect power to the appliance before beginning any work.
• Remove the appropriate access panel to reach the switch; note wire and terminal locations before disconnecting.
• Unplug the wiring harness or carefully detach terminals, swap the switch assembly, then reconnect securely.
• Restore power and verify the replaced switch operates the function correctly.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This replacement cover protects internal housing and components, restoring the appliance's finished appearance and helping keep dust, moisture and debris away from controls. It's a simple, direct part for cosmetic and protective repair. What it does:

• Shields control electronics and internal components from dust and accidental contact
• Restores the appliance's exterior look after damage or wear
• Helps prevent debris buildup that can affect component function
• Supports secure mounting of adjacent panels or trim

• Disconnect power (unplug or turn off breaker) before servicing
• Remove any trim or screws that secure the old cover; keep fasteners if they are reused
• Handle plastic edges gently to avoid cracking; align tabs before tightening screws

This wiring harness connects electrical components to restore power and signal paths so affected appliance circuits operate correctly. It replaces a damaged or worn harness to help resolve intermittent or lost electrical connections. What it does

• Provides reliable electrical connections between controls, motors, and sensors
• Carries power and control signals to restore component function
• Common symptoms it can address: components not powering on, intermittent operation, or control panel not responding
• Replaces frayed, burned, or broken wire bundles and connector assemblies

• Disconnect power to the appliance before inspecting or replacing the harness
• Compare the harness and connector locations to the parts diagram to ensure correct routing and fit
• Secure connectors fully and avoid pinching wires during reassembly
• If corrosion or other component damage is present, inspect and replace affected parts as needed

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
