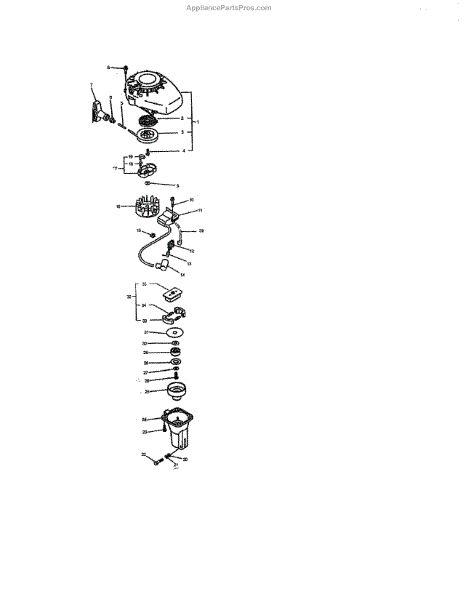

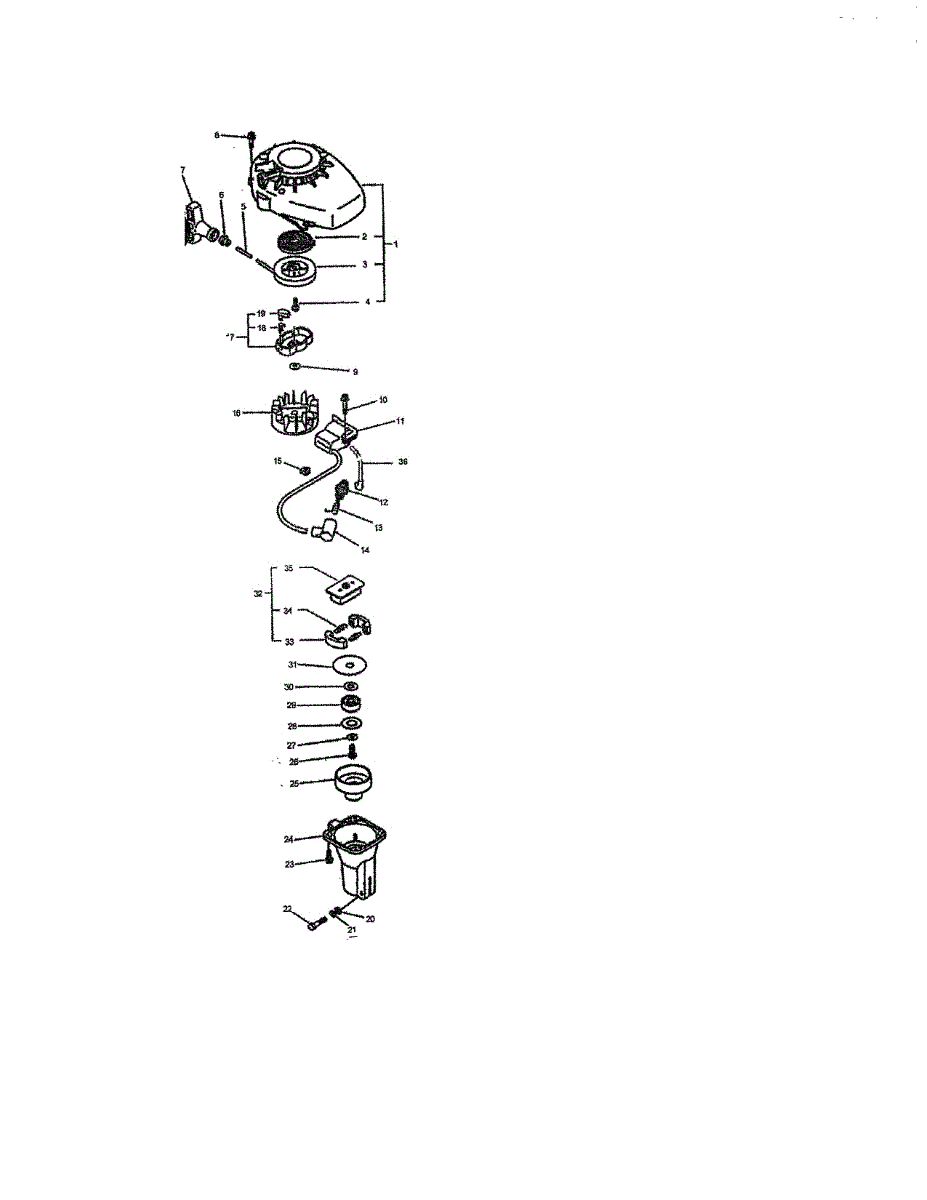

Parts for Mantis 7222E: Engine-Starter / Pawl Catcher / Clutch Parts

This is a genuine starter assembly that is used for gas powered hedge trimmers. The starter assembly contains all of the components of the starter system, including the plastic starter grip, starter rope, housing, starter pulley, and the recoil spring. When one component of this system goes bad, it can impact the rest of the machine. If the recoil spring is too stretched or the starter rope is damaged, for example, the unit may not start.The starter assembly is fairly easy to replace but be sure to wear gloves when doing engine work and allow the machine to cool completely to avoid the risk of burns or other dangers. If a starter assembly isn't working as it should, a replacement should be made as soon as possible.This genuine OEM starter assembly is manufactured by Echo. It is compatible with trimmers from Echo and Little Wonder. It is sold as an individual assembly. The hardware required is sold separately and will require an additional purchase.

Pull starter won't retract or has no resistance? This rewind spring restores proper starter function on trimmers, blowers, and tillers. Common DIY fix.

Fix a trimmer that won't start with a broken recoil mechanism. This starter drum pulley holds the rope and enables the pull-start system to function.

This screw is a necessary part in many pieces of outdoor lawn and garden equipment and especially in power machines. It is designed to be used with hedge trimmers, edgers, chainsaws, leaf blowers, chippers, shredders, trimmers, engines, power sprayers, pole saws, pruners, brush cutters, tillers, cultivators, and water pumps. It is designed to be compatible for use with products manufactured by the Echo and Shindaiwa companies.The basic function of a screw is to hold different pieces or materials together. Replacing screws like this one is a relatively simple process as it involves locating the faulty screw, or a spot with a missing screw, and replacing it with the new one.This screw is a genuine OEM part sourced directly from the manufacturer, and it is sold individually. It is manufactured by the Echo company. This screw is made out of metal.

Replacement mounting screw for front-tine tiller engines. Secures engine components in place. Replace if stripped, broken, or missing for proper assembly.

Gas-powered machines for the lawn or garden means rely on the machine's electronics to create a spark that causes an ignition inside of the combustion engine. Any engine is going to need air, fuel, and that spark to create power and it is the job of the spark plug to generate it. However, the spark plug needs a current to generate that spark, and that is where the ignition coil comes into play. When an engine is not firing, it may be that there is a problem with the ignition coil. This replacement part works in trimmers and pruners made by Little Wonder and Echo. This is an OEM replacement part that will require a screwdriver and wrench to replace. It includes the plastic casing as well as the properly fitted wires that send electrical energy to the spark. It ships individually.

Fix weak spark or starting issues with this spark plug cap spring. Ensures solid contact between ignition lead and plug for reliable engine ignition.

Getting shocked while operating your hedge trimmer? A cracked or missing spark plug cap allows current to leak. This cap restores safe operation quickly.

Most lawn and garden machines operate on fuel, typically gas or a blend of gas and oil. The system for delivering fuel to the engine relies on fuel lines with durable seals and connections. The fuel grommet on many power tools is designed for use between the fuel tank and the filter. It is meant to secure the line and ensure there is no leakage and only minimal movement. This replacement fuel grommet is designed for Echo, Shindaiwa, LIttle Wonder, and other makes and models of lawn and garden gear. This includes trimmers, pruners, chainsaws, and many other small engine machinery. This is an OEM replacement part that will ship individually and will require pliers to install. It is important to ensure that this is the appropriate size and gauge for the machine in question prior to the repair.

To start a gas-powered engine requires more than just hitting the ignition switch. Often, it is a series of events that include the creation of a spark to ignite the fuel in the engine, as well as an initial nudge to the engine from a device known as a starter. This rotates the crank inside of the engine and helps to get it going under its own power. While an engine that doesn't turn over may have a bad battery, it can also be a problem with the starter. This replacement starter is meant for use in more than 60 different yard and garden machines produced by Little Wonder and Echo brands. This is an OEM replacement part that will require the use of a screwdriver and pliers to make the repair. It ships individually without mounting hardware.

This is a genuine pawl spring, also sometimes called a return spring, which can be found on select models of small power equipment engines. This part is designed as part of the recoil starter system. When the starter is engaged, the return spring is responsible for returning the starter pawl back to its original position once the engine is started. If the spring starts to wear or fail and cannot return the pawl, the engine will not operate properly and could have trouble starting in the future. It is always a good idea to inspect all starter housing components and replace them with genuine parts like this pawl spring when they are faulty. The OEM pawl spring is manufactured by Echo and made to exact standards to fit more than 150 compatible machines from the brand, as well as select models from Little Wonder and Shindaiwa. It can be used with edgers, trimmers, hedge trimmers, blowers, and paint sprayers. The pawl spring is made of durable metal and is sold as a single unit with no additional hardware or parts. Always allow the engine to cool completely and disengage the spark plug before working on the starter assembly, including replacing this spring.

This is a durable plastic starter pawl that is designed to secure the return spring inside of the starter pawl assembly. It connects the flywheel with the recoil pulley and spins when the starter rope is pulled. This makes the flywheel rotate, which causes the engine to start. If a trimmer or leaf blower isn’t working correctly, it could be caused by a defective starter pawl. The first step is removing the engine cover followed by removing the spark plug boot, taking off the engine cover, and taking out the starter assembly. Next, bind the engine and remove the starter pulley from the engine. At this point, take off the starter pawl return spring using a screwdriver and install the new starter pawl. Reassemble the unit before unbinding the engine and using the equipment again. This is a genuine OEM starter pawl for Echo, Mantis, Shindaiwa, and Little Wonder water pumps, trimmers, tillers, hedge trimmers, chipper shredders, leaf blowers, and pole saws. It is sold individually. A screwdriver and a hex key are needed to complete the replacement.

Replacement engine housing screw for front-tine tillers. Secures engine covers and internal components. Needed when original screws are stripped or missing.

This clutch shoe can be used as a replacement part for hedge trimmers, string trimmers, or tillers. The clutch shoes are bound together by the clutch spring through consistent tension and are integrated into the equipment's clutch system. A clutch shoe engages the clutch bell once the engine has reached a certain speed and avoids engaging the clutch bell when the engine is idling.A clutch shoe can be worn down over time or can suffer damage from puncturing, piercing, erosion of the metal material, or direct impact with a hard object thereby warping the material. If the clutch shoe is damaged, the clutch bell will be engaged even when the engine is idling. The broken or malfunctioning clutch shoes should be removed and replaced with this genuine OEM replacement part immediately before using the outdoor appliance again. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This clutch shoe is a genuine Echo part, sold individually. It is compatible with the following outdoor appliance brands: Echo, Mantis, Shindaiwa, and Little Wonder.

The clutch spring is found within the retaining plate of a clutch disc. This clutch spring part is crucial, as its purpose is to dampen and smoothen out the engagement of the clutch disc. This means that it is responsible for assisting with the absorption of any fluctuations of the engine's rotations per minute (RPMs). Clutch springs also serve to level out the speed difference, which in turn helps keep the transmission healthy because it experiences a more linear delivery of power instead of spurts.This clutch spring is a genuine OEM part sourced directly from the manufacturer, and it is sold individually. A clutch spring is a key part when it comes to outdoor lawn and garden machines such as trimmers, hedge trimmers, string trimmers, grass trimmers, cultivators, engines, and tillers. It is compatible to be used with products manufactured by the Echo and Little Wonder brands. Please note that the clutch spring with the part number 17501805130 (AP6127844) should replace part number 17501804630.

This is a genuine ignition lead replacement manufactured for use in select models of lawn and garden equipment. The ignition lead is used to connect the ignition switch to the ignition module, allowing the engine to be started properly when it is engaged. Over time, this cable can become stretched or worn. It may also be damaged in an incident and need to be replaced. Either way, a genuine OEM replacement like this is essential. This part is manufactured to strict OEM standards by Echo. It can be used in several models of equipment from Echo, Shindaiwa, and Little Wonder. The ignition lead is compatible with trimmers, cultivators, edgers, hedge trimmers, and drills. It is sold as an individual unit and does not include any hardware or additional accessories. It is made of durable metal and rubberized cabling. To install the new ignition lead, simply disconnect the old unit from the ignition switch and module. Be sure to disconnect the power and let the engine cool first before getting started. Once the old lead has been removed, the new cable can be installed so that the unit is functional again.
