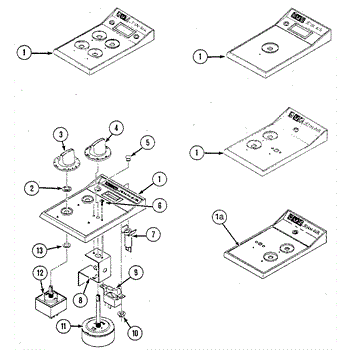

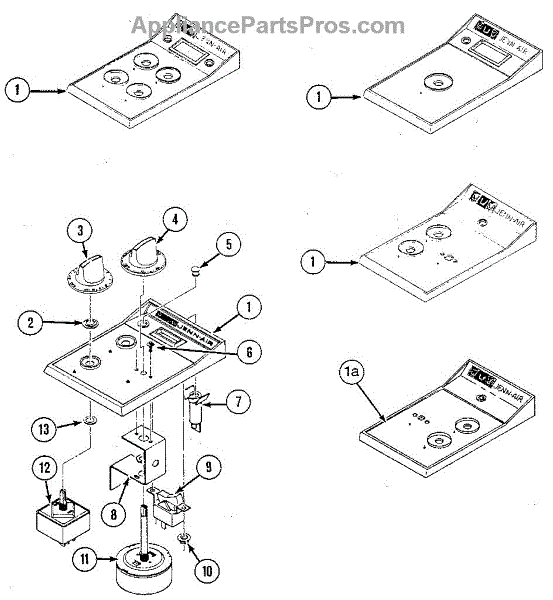

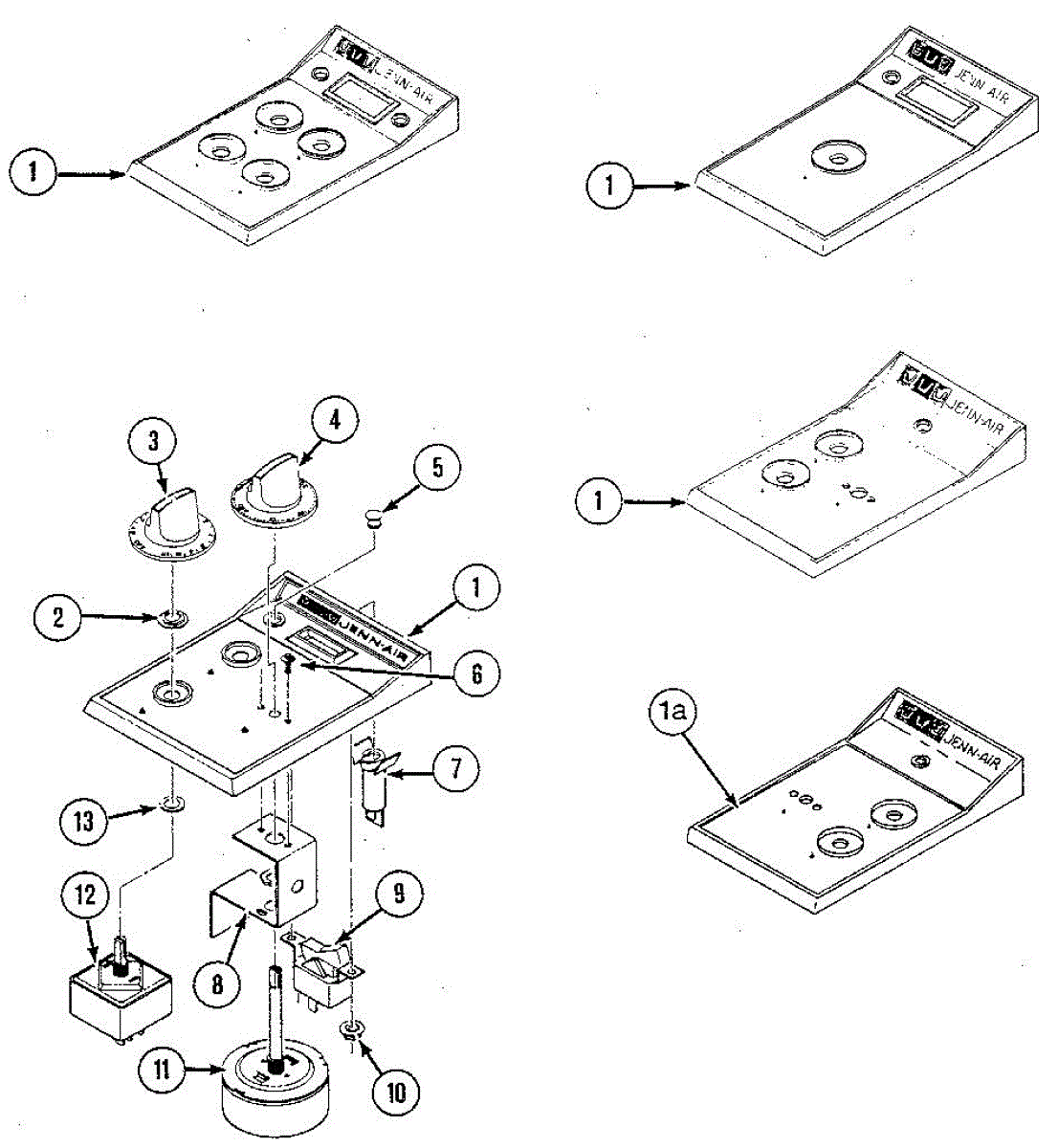

Parts for Kenmore 223.03 / 1988 (22303 / 1988, 223 03 / 1988): Escutcheon Assembly Parts

Color: Black. Includes all four knobs. Fits the figure eight shaped shaft.

This timer knob replaces a worn or broken range timer control knob, restoring a positive grip and reliable dial operation so you can set cooking times accurately. Easy-restore part for common knob damage or wear. What it does:

• Provides a replacement control surface for the oven/range timer so the dial turns smoothly
• Re-establishes a secure connection between the user and the timer shaft for accurate time setting
• Commonly used when the knob is cracked, stripped, loose, or will not engage the timer shaft
• Helps eliminate slipping or intermittent timer operation caused by a damaged knob

• Unplug or disconnect power to the appliance before replacing the knob
• Pull the old knob straight off the timer shaft; align and press the new knob firmly onto the splined shaft
• Do not force the knob at an angle; if it does not seat easily, inspect the shaft for debris or damage
• The timer control assembly may also need replacement

This pilot light lens covers and diffuses the indicator lamp on the appliance control panel, making the "on" status easy to see while protecting the opening. Replace a cracked or missing lens to restore a safe, finished look.

• Mounts in the control panel as the viewing lens for the pilot/indicator light
• Diffuses light output to improve visibility of the "on" signal
• Helps protect the lamp opening from dust and debris
• Common signs include a cracked, discolored, loose, or missing lens

• Disconnect power to the appliance before servicing
• Access the control panel per your model's service information
• Note lens orientation; remove the old lens and seat the new lens fully
• Reassemble and verify indicator light visibility and operation

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Includes two red lenses. For the lens only order WPY700631

The Infinite Switch is an OEM replacement part for Whirlpool ranges. It is the interface switch positioned at the control panel that allows users to select cooking functions and power levels. Precise operation is crucial for an intuitive user experience. Measures 1.85 inches in height and 6.55 inches in width.

Causes of a bad switch can include components wearing out from heavy use over time, water damage compromising electronic components, or accidental impacts.

Symptoms include:

• Functions not responding to switch presses
• Controls becoming unresponsive or erratic
• Indicator lights flickering or not illuminating
• Improper display of selected power levels

This OEM Whirlpool part is compatible with KitchenAid, Jenn-Air, and some Kenmore induction ranges as well.

Note: Due to factory design change, the switch may look different but is functionally the same.
