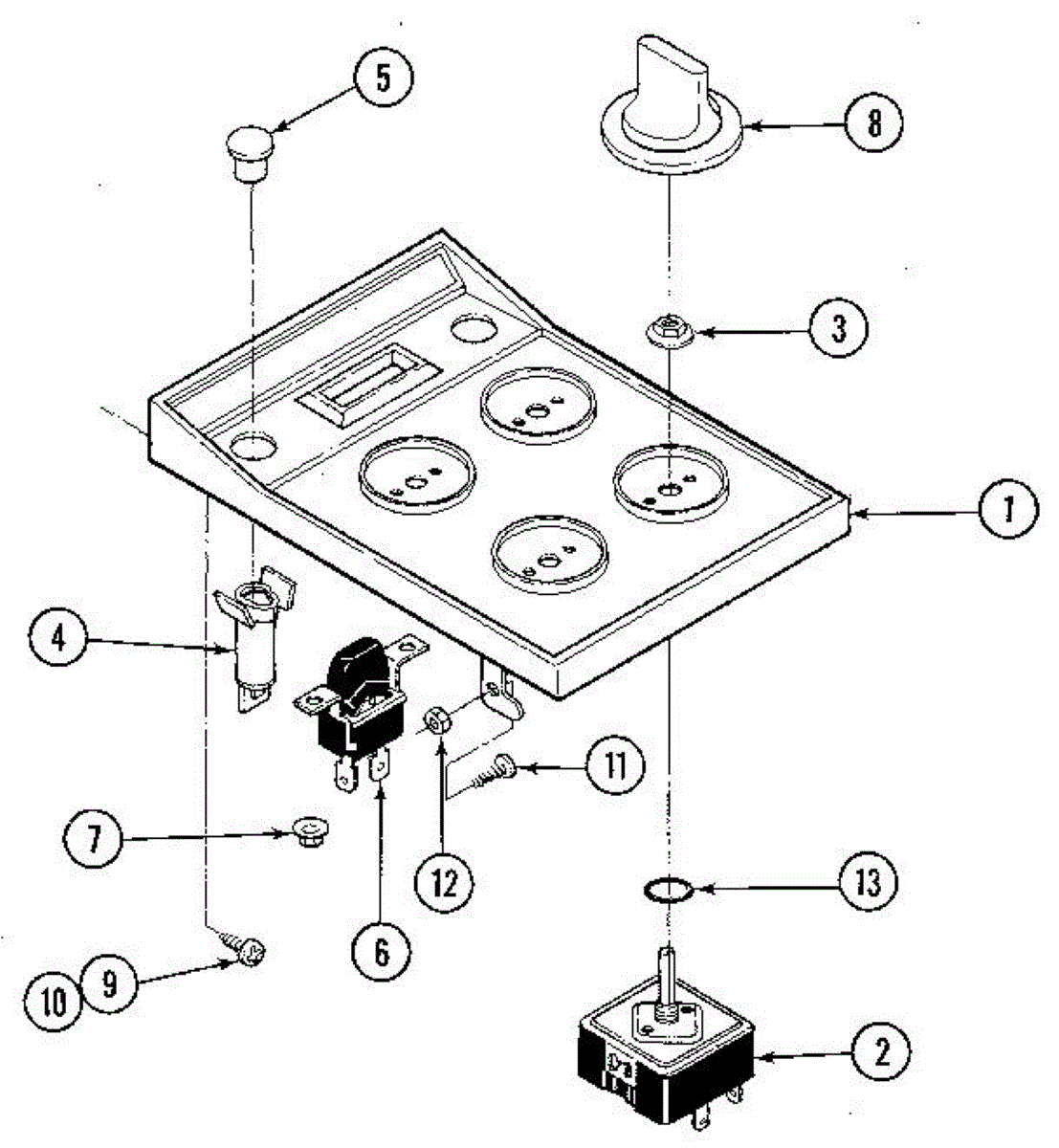

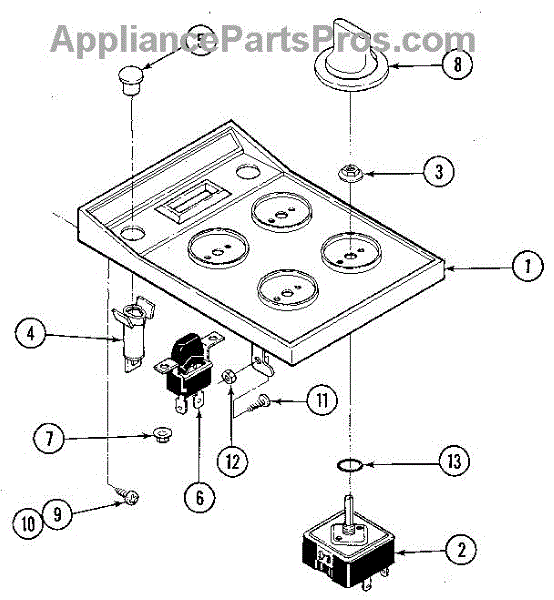

Parts for Kenmore 629.22112 (62922112, 629 22112): Escutcheon Assembly Parts

Includes two red lenses. For the lens only order WPY700631

Mounting nut secures burner components to your range cooktop. Replace if cracked, stripped, or missing to properly fasten burner parts in place.

Black control knob kit for cooktop burners. Includes four knobs that fit figure-eight shaped shafts. Replace cracked, worn, or missing knobs to restore control.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Metal hinge assembly that mounts to the oven door frame, enabling smooth opening and closing. Replace if cracked, broken, or no longer holding door securely.

Size: 8-32 x 1/4 inch.

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.

Energy saver grill assembly.

Wire harness assembly for cooktops. Connects electrical components and controls. Replace if wires are frayed, connectors damaged, or harness is broken.

Size: 8 inches. Includes a 1 inch elevated vent to improve air circulation. This Jenn-Air big pot canning element is perfect for those meals where a heavy pan is required. Its also great for canning your fruits and vegetables. This element can be used in place of the standard large burner element with male plug-in terminals.

Wire harness for cooktops and ranges. Connects electrical components for proper operation. Replace if wires are damaged, frayed, or connectors are broken.

Size: 19 5/16 inches x 10 3/4 inches. This Jenn-air Designer Line non-stick aluminum electric griddle accessory fits over the electric grill elements and has two drain holes on the one end to make ease of separating the grease from the food. For the gas griddle order JGA8200ADX.

Color: White. For black order A341. Size: 21 inches x 11 1/2 inches. This one piece Jenn-Air Designer Line electric grill cover adds that clean look to your cooktop when not in use. It also provides the extra work space when cooking. Handles are attached on each end for easy removal.

This Jenn-Air flat bottom wok will work on any electric element or gas burner. Includes the lid, steaming rack, two rice paddles and instruction manual.

Color: Black. For white order A341W. Size: 21 inches x 11 1/2 inches. This one piece Jenn-Air Designer Line electric grill cover adds that clean look to your cooktop when not in use. It also provides the extra work space when cooking. Handles are attached on each end for easy removal. For gas order AG341B.

Radiant element cartridge for modular electric cooktops. Replaces cracked, broken, or worn plug-in cooking modules. Restores smooth heating surface.

Black plug-in coil cartridge for modular cooktops. Replace worn, damaged, or discolored modules to restore a clean, uniform appearance across your cooktop.

This radiant cartridge is the plug-in cooking surface used on Designer Line modular cooktops. It restores a smooth black surface and consistent, even heat when the original cartridge is damaged or no longer heating properly.

• Provides radiant heat beneath a smooth glass surface for everyday cooking tasks
• Self-contained plug-in module that seats in the cooktop bay and delivers heat to cookware
• Common symptoms prompting replacement: no heat, uneven or intermittent heat, or visible cracks/discoloration on the surface
• Restores normal heating performance when matched to a compatible modular cooktop

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Lift out and unplug the old cartridge straight up; avoid prying on the glass surface
• Inspect and clean the receptacle; align and firmly seat the new cartridge until fully engaged
• Restore power and test heating at low and high settings using appropriate cookware

This radiant cartridge is the plug-in cooking surface used on Designer Line modular cooktops. It restores a smooth black surface and consistent, even heat when the original cartridge is damaged or no longer heating properly.

• Provides radiant heat beneath a smooth glass surface for everyday cooking tasks
• Self-contained plug-in module that seats in the cooktop bay and delivers heat to cookware
• Common symptoms prompting replacement: no heat, uneven or intermittent heat, or visible cracks/discoloration on the surface
• Restores normal heating performance when matched to a compatible modular cooktop

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Lift out and unplug the old cartridge straight up; avoid prying on the glass surface
• Inspect and clean the receptacle; align and firmly seat the new cartridge until fully engaged
• Restore power and test heating at low and high settings using appropriate cookware

This is a complete plug-in cooking module for compatible Jenn-Air/Whirlpool modular cooktops. It drops into the cooktop bay and provides a pair of electric coil burners so you can swap configurations as needed.

• Provides two electric coil surface elements within a self-contained module
• Restores heating performance when a cartridge is damaged or not heating
• Symptoms can include no heat, uneven heating, or visible damage to the module
• Designed to plug into the cooktop's cartridge receptacle for quick changeovers

• Disconnect power before servicing
• Allow the cookware and module to cool completely before removal
• Lift out the old cartridge straight up; align and seat the new module fully into the receptacle
• Test each burner on low and high to ensure proper operation
