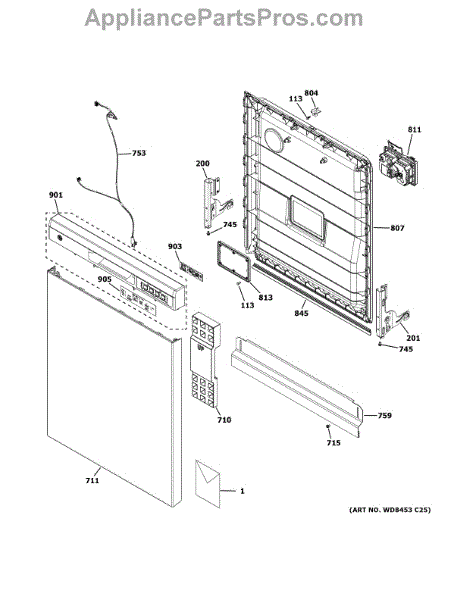

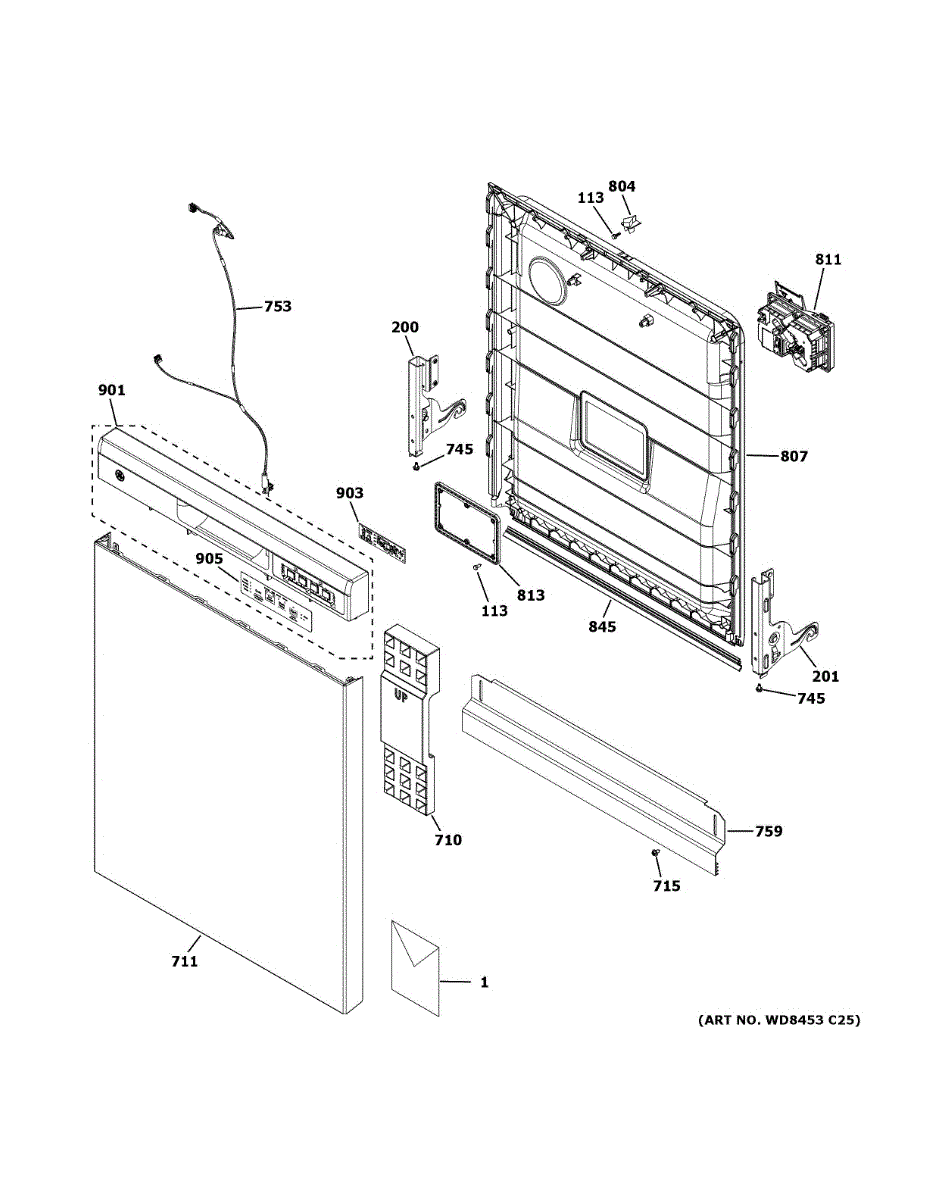

Parts for Ge GDF511PSR6SS: Escutcheon Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Hex washer head screw for dishwasher panel and component mounting. Replaces lost, stripped, or corroded fasteners during repairs or reassembly.

Left-side door hinge assembly for dishwashers. Mounts and supports the door for smooth opening and closing. Replace if cracked, broken, or worn.

Right-side door hinge assembly for dishwashers. Mounts and supports the door for smooth opening and closing. Replace if cracked, broken, or worn.

The Outer Door Panel is an OEM replacement part for GE dishwashers. It forms the protective exterior cladding on the dishwasher door. The sheet metal panel withstands water, heat, and other environmental stresses each cycle but common causes can lead to demise over time.

Symptoms of a bad outer door panel include:

• Dents, scratches, or other cosmetic flaws detracting from appearance
• Loose or sagging fit that compromises the door seal
• Rust, corrosion, or other degradation exposing underlying structures

Causes of outer door panel failure relate to impacts from daily usage like silverware loading as well as moisture exposure cycles promoting underlying metal decay.

Color: Stainless

This GE replacement part is compatible with Hotpoint, RCA, and select Kenmore models.

Hex washer head screw for securing dishwasher brackets, panels, and internal assemblies. Replace if stripped, corroded, or missing during repairs.

10-32 x 9/16" machine screw secures dishwasher panels, brackets, and internal assemblies. Replace missing, stripped, or damaged fasteners to restore fit.

Covers the bottom front of your dishwasher, protecting internal components and reducing noise. Replace if cracked, dented, or missing for a clean look.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The Door Latch Strike is an OEM part for GE dishwashers. It ensures the dishwasher door latches securely, allowing the appliance to operate only when the door is properly closed.

Causes of a bad door latch strike can include wear and tear from regular use, damage from slamming the door, or misalignment due to repeated opening and closing.

Symptoms of a bad door latch strike include:

• The dishwasher door not latching securely
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• Difficulty in closing the door properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This inner door service assembly replaces a damaged or worn inner door panel to restore proper sealing and appearance. It's the factory-style inner door component designed to fit the original door frame and mounting points. What it does:

• Replaces cracked, dented, or warped inner door panel that can affect door fit or appearance
• Helps restore the door's sealing surface and alignment with the outer door assembly
• Stops rubbing, vibration, or noise caused by a damaged inner door component
• Restores the correct support for any attached trim or hardware

• One inner door service assembly

• Disconnect power to the appliance before starting and follow manufacturer safety instructions
• Typical install requires removing the outer door and separating door halves; keep screws and small parts organized
• Handle carefully to avoid damage to the panel and any attached trim or glass

Dishwasher not dispensing detergent or dishes coming out dirty? This detergent dispenser module controls detergent release timing during wash cycles.

This component covers and protects the detergent compartment inside your dishwasher door. Located on the interior door panel, it ensures proper detergent release during wash cycles. Replace if the plate is cracked, warped, or prevents the dispenser door from closing securely.

Seals the bottom of your dishwasher door to prevent water leaks during wash cycles. Replace if you notice pooling water on the floor. Confirm fit with your model.

Fix unresponsive buttons or a non-functioning display with this dishwasher control panel assembly. Houses all control buttons and indicators for operation.

Gray control panel overlay for dishwasher consoles. Adheres to front panel to display button labels. Replace worn, peeling, faded, or unreadable graphics.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
