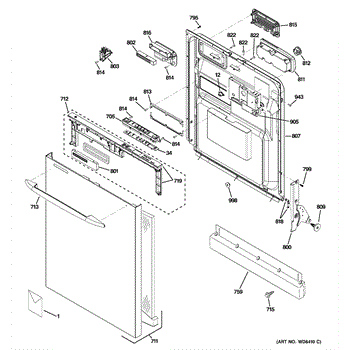

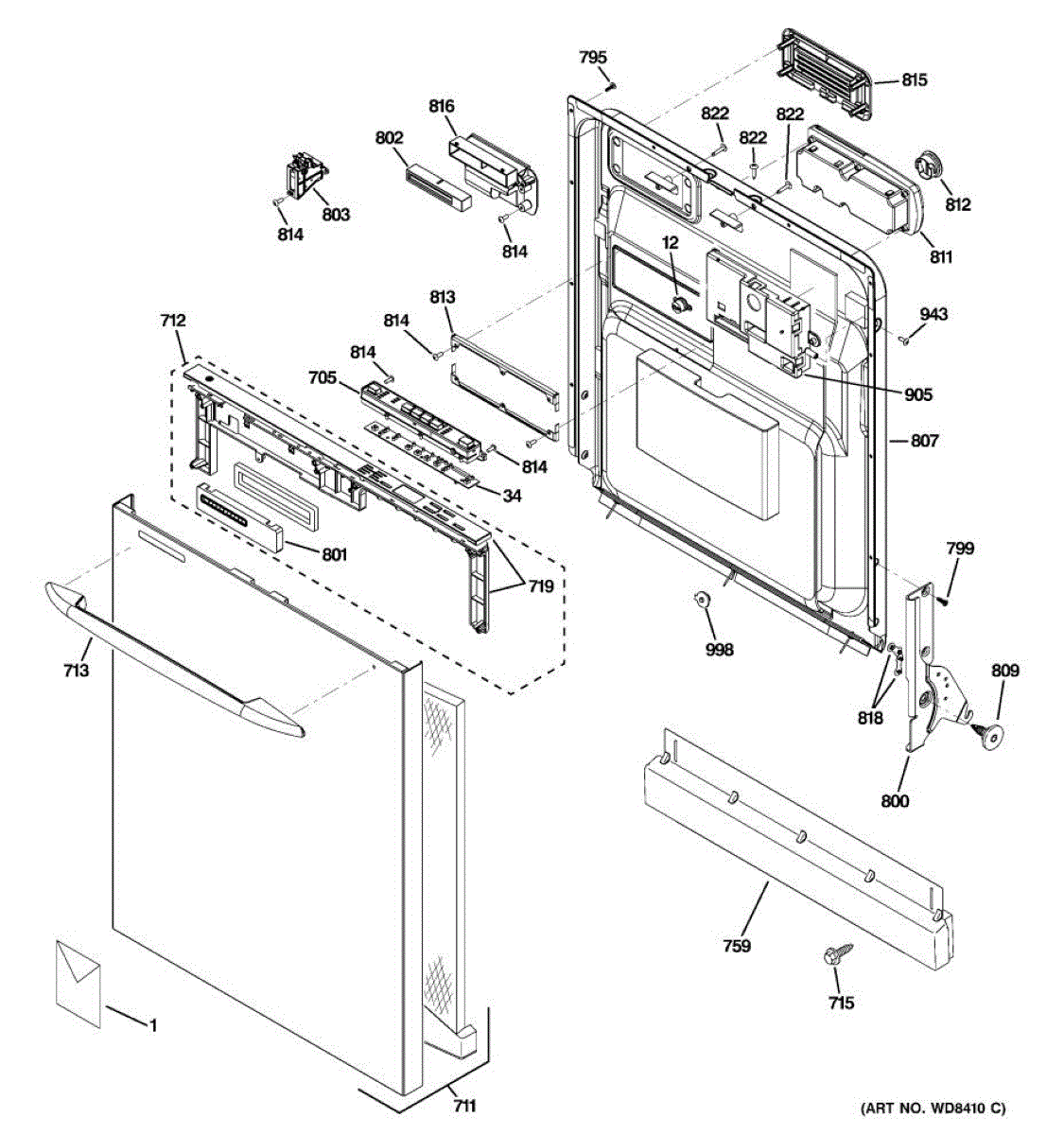

Parts for Ge PDWT100V00BB: 01 - Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This silicon controlled rectifier (SCR) is the control device that regulates high-current power to heating and motor circuits, helping restore proper operation when the original SCR fails. A direct-fit replacement part for the listed appliance control. What it does:

• Regulates and switches high-current power to heating elements or motor circuits as commanded by the appliance control board.
• Stops or reduces power flow when the SCR fails, which can cause no-heat or intermittent heating.
• Can cause symptoms such as no heating, intermittent operation, or incorrect cycle heating when faulty.
• Works with the main control to protect and time the appliance's heating cycles.

• SCR control

• Disconnect power before servicing to avoid electrical shock.
• Handle the part and wiring carefully; match terminals and mounting to the original unit.
• Follow the appliance service manual or wiring schematic for correct installation and testing.

Size: 8-18 B 1HW 1/2 S N

This is a genuine replacement screw used to secure components and panels on compatible GE appliances. It restores proper fit and prevents rattling or loose parts for safe, reliable operation. What it does:

• Secures panels, brackets, or internal components to maintain proper alignment
• Stops rattling or vibration caused by loose fasteners
• Replaces missing, stripped, or damaged screws to restore safe operation
• Helps maintain seals and clearances by holding parts firmly in place

• Screw

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to components
• Keep removed fasteners organized to ensure correct reassembly

This left-hand arm hinge assembly replaces a worn or damaged door hinge to restore proper door alignment and smooth opening and closing. Designed as the left-side support arm for the appliance door. What it does:

• Supports the left side of the door and secures the door to the cabinet during operation
• Guides smooth door movement and helps prevent sagging or uneven closing
• Stops rubbing, binding, or intermittent contact that can cause noise or poor seal
• Restores proper door fit to maintain normal operation and safety

• Disconnect power to the appliance before starting any repair
• Support the door while removing and installing the hinge to prevent dropping
• Use basic hand tools; verify hinge orientation and alignment before tightening
• Retain or replace mounting hardware if damaged; do not overtighten fasteners

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Size: 10-32GX FLT25 .615 S

The Detergent and Rinse Aid Dispenser is an OEM part for GE dishwashers. It is responsible for holding and releasing detergent and rinse aid during the dishwashing cycle, ensuring that dishes are cleaned and rinsed effectively.

Causes of a bad detergent and rinse aid dispenser can include clogging or blockage in the dispenser mechanism, damage to the dispenser door or latch, or malfunctioning electronic components that control the dispensing process. These issues can arise from regular use, buildup of detergent residue, or accidental impact.

Symptoms of a bad detergent and rinse aid dispenser include:

• Improper dispensing of detergent or rinse aid
• Insufficient cleaning or rinsing results
• Leaks or drips from the dispenser area
• The dispenser door not opening or closing correctly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rinse Aid Cap is an OEM part for GE dishwashers. It securely seals the rinse aid dispenser, ensuring that the rinse aid is properly stored and dispensed during the wash cycle. This helps improve the drying process and prevents water spots on dishes and glassware.

You should replace this rinse aid cap if it becomes cracked, loose, or fails to seal properly. Common causes of a bad cap include wear and tear from regular use, damage from over-tightening, or deterioration due to exposure to dishwasher detergents and rinse aids.

Symptoms of a bad rinse aid cap include:

• Rinse aid leaking or spilling inside the dishwasher
• Cap not staying securely in place
• Poor drying performance or water spots on dishes
• Difficulty in opening or closing the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bracket supports and secures the detergent/rinse-aid dispenser to the inner door of your dishwasher, keeping it aligned and sealed so detergent stays contained until the cycle releases it.

• Rigidly mounts the dispenser assembly to the inner door panel
• Helps maintain gasket compression to reduce leaks around the dispenser perimeter
• Keeps the dispenser flush and properly aligned for consistent operation
• Common signs of damage: loose or wobbly dispenser, visible cracks in the bracket, moisture or drips around the dispenser area, difficulty tightening the dispenser to the door

• Disconnect power and turn off water supply before servicing
• Remove the inner door panel to access the dispenser; support the dispenser while loosening hardware
• Transfer the bracket and reuse existing mounting screws; ensure the dispenser gasket is clean and seated before tightening
• Tighten screws evenly without overtightening; run a short cycle to check for leaks around the dispenser

The GE screw is an OEM replacement part responsible for securing various components and parts of the dishwasher together. The screw is designed to provide a tight and secure connection for different panels, brackets, or other elements within the dishwasher. It plays a crucial role in maintaining the structural integrity of the appliance by preventing loose parts.

Common causes of a bad screw can include regular wear and tear from frequent use, exposure to moisture leading to corrosion, or damage from over-tightening. A compromised screw can result in loose or unstable components, which can affect the dishwasher's performance and safety.

Symptoms of a bad screw include:

• Loose or wobbly components within the dishwasher
• Difficulty in securing parts properly
• Visible rust or corrosion on the screw
• The screw head being stripped or damaged

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dishwasher vent cover mounts on the inner door and shields the exhaust opening. It directs moist air out during drying while helping keep spray and debris out of the vent path to protect internal components. What it does:

• Covers the door vent opening and helps guide exhaust airflow during the dry cycle
• Helps keep water spray and debris from entering the vent assembly
• Supports proper moisture management around the top of the door/control area
• Replace if the cover is cracked, warped, loose, or missing, or if steam/water escapes from the vent area

• 1 vent cover

• Disconnect power at the breaker and turn off the water supply; wear cut-resistant gloves
• Access is through the door; on many models the inner door panel must be removed to reach the vent area
• Ensure any gasket/seal is properly seated and secure the cover evenly—do not overtighten
• Run a short cycle and inspect the vent area for leaks

This part is a tactile control assembly kit that is used on a dishwasher. The tactile control assembly is the system that uses touch to make adjustments. For example, the buttons are connected to this tactile control assembly, and when the buttons are pressed, it is activated. A new tactile control assembly kit may be needed if the dishwasher keypad is entirely unresponsive when the buttons are pressed. If this is the case, the dishwasher will not be able to be used at all. The replacement process is relatively easy and takes anywhere from 30 to 60 minutes to complete. A screwdriver will be needed for the replacement.This tactile control assembly is a genuine General Electric part and is an OEM part sourced directly from the manufacturer. It is sold individually. This specific tactile control assembly is compatible with dishwashers that are manufactured by the General Electric brand.

Includes 12 screws.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
