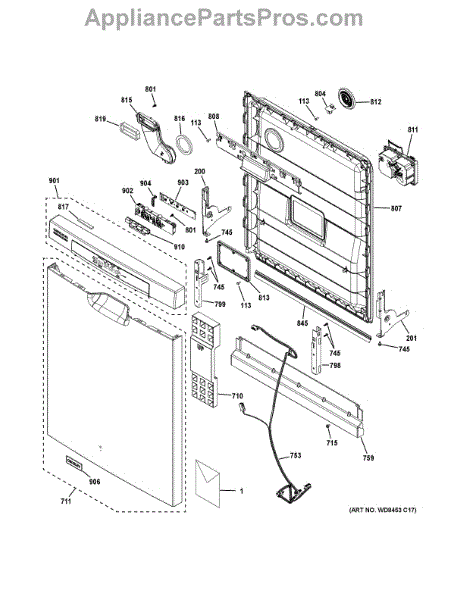

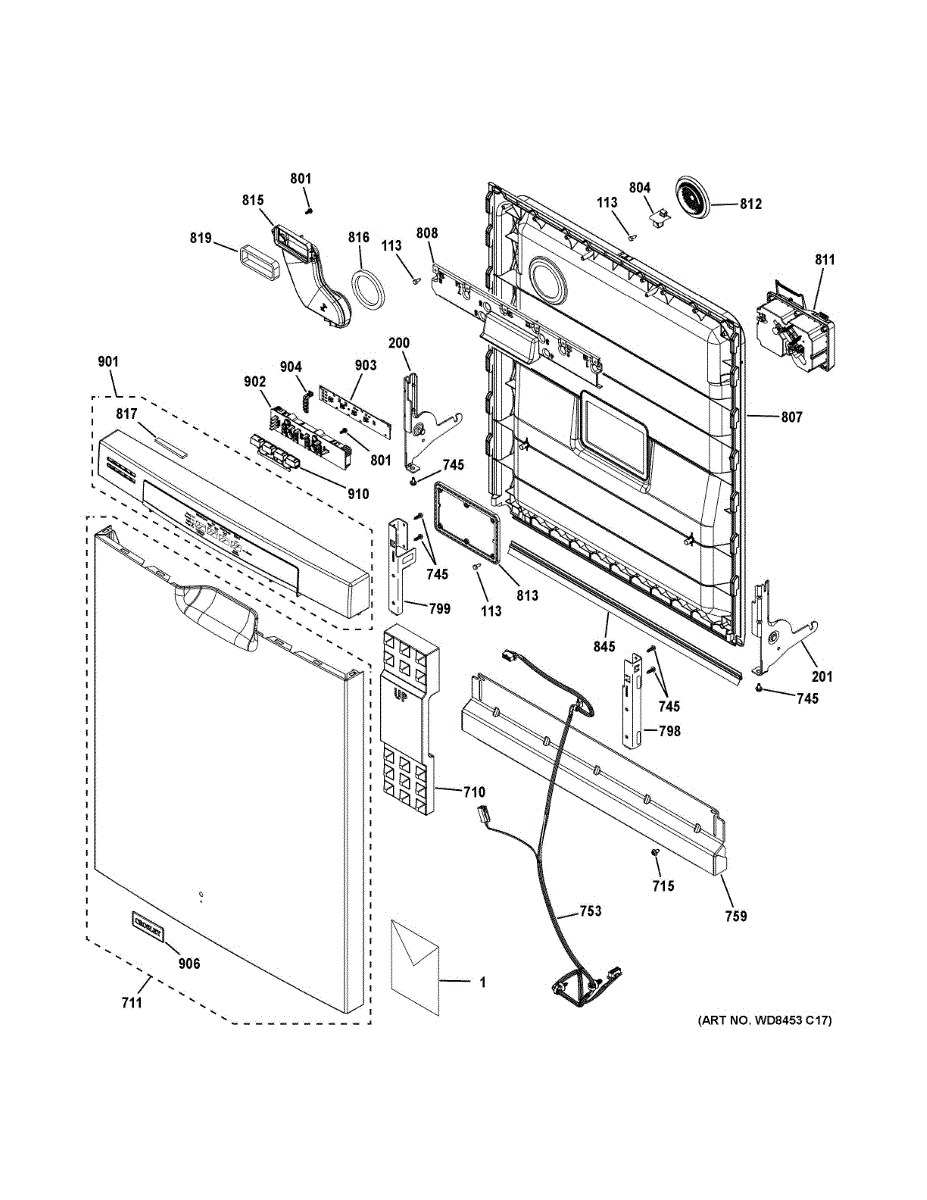

Parts for Ge XDF300PGN0BB: Escutcheon Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This arm hinge assembly restores smooth, controlled movement of a hinged component in your dishwasher, helping maintain proper alignment and reliable operation. Replacing a worn or broken hinge can reduce binding, squeaks, and misalignment that affect performance. What it does:

• Provides the pivot point and support for a hinged assembly
• Maintains alignment to ensure correct engagement and sealing
• Helps ensure smooth opening/closing motion without binding
• Replaces a hinge arm that is cracked, bent, or worn
• Common signs: stiff or uneven movement, squeaking or popping noises, misalignment, or visible damage

• 1 arm hinge assembly

• Disconnect power and water before servicing
• Support the door or movable assembly to relieve tension while removing the hinge
• Note orientation and transfer any side-specific hardware from the original part
• After installation, check for smooth motion and proper alignment before restoring power and water

Pivoting hinge that supports and guides your dishwasher door. Replace if cracked, worn, or causing door sagging, misalignment, or scraping during operation.

Fix door leaks or excessive noise with this dishwasher door foam block. Cushions and seals the door to prevent vibration and restore a tight fit.

Hex washer head screw for securing dishwasher brackets, panels, and internal assemblies. Replace if stripped, corroded, or missing during repairs.

10-32 x 9/16" machine screw secures dishwasher panels, brackets, and internal assemblies. Replace missing, stripped, or damaged fasteners to restore fit.

Fix unresponsive controls or door issues with this dishwasher door harness assembly. Restores reliable signal routing between door switches and control panel.

Front lower trim panel that covers the dishwasher base. Replace if cracked, damaged, missing, or to refresh appearance. Direct-fit cover piece.

Secures and aligns the dishwasher door hinge assembly. Replace if your hinge bracket is cracked, bent, or broken to restore proper door fit and movement.

Secures your dishwasher door to the cabinet as a stable pivot point. Replace this bracket if cracked, broken, or worn to restore proper door alignment.

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

The Door Latch Strike is an OEM part for GE dishwashers. It ensures the dishwasher door latches securely, allowing the appliance to operate only when the door is properly closed.

Causes of a bad door latch strike can include wear and tear from regular use, damage from slamming the door, or misalignment due to repeated opening and closing.

Symptoms of a bad door latch strike include:

• The dishwasher door not latching securely
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• Difficulty in closing the door properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replace your dishwasher's damaged inner door assembly to restore secure sealing and eliminate rattling. Fits into existing frame. Verify fit with model number.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dishwasher detergent dispenser won't open or latch? This module controls soap release during wash cycles. Moderate DIY repair—30 minutes, door removal.

Gray dishwasher vent cap that releases moist air during the dry cycle. Replace if cracked, damaged, or causing leaks to restore proper steam venting.

This component covers and protects the detergent compartment inside your dishwasher door. Located on the interior door panel, it ensures proper detergent release during wash cycles. Replace if the plate is cracked, warped, or prevents the dispenser door from closing securely.

Controls airflow in your dishwasher door. Replace if cracked or if you see leaking from the door vent area. Confirm fit with your model number.

Foam vent insert seals the dishwasher vent opening to reduce leaks and noise. Replace if torn, compressed, or causing poor drying. Confirm fit by model.

Seals the dishwasher door vent to prevent leaks and maintain moisture control. Replace if worn or causing steam leaks. Confirm fit with your model.

Seals the bottom of your dishwasher door to prevent water leaks during wash cycles. Replace if you notice pooling water on the floor. Confirm fit with your model.

This control panel assembly is the user-facing console that houses the control buttons and display for your appliance, restoring responsive controls and visible status feedback for normal operation. What it does:

• Replaces a damaged or unresponsive control console so buttons and touch controls register correctly
• Restores visible status indicators and display elements used to select cycles and options
• Resolves symptoms like unresponsive keys, missing/blank display segments, or intermittent control behavior
• Interfaces with the appliance's control electronics to send user commands to the machine

• Disconnect power to the appliance before beginning any work to avoid shock or damage
• Exercise care when removing trim and electrical connectors to avoid breaking clips or wires
• Reconnect all harnesses securely and test the control functions before fully reassembling

This electronic control board manages your dishwasher's wash cycles, water temperature, and timing functions, housed in a protective casing. It controls when the dishwasher fills, drains, heats water, and runs the wash arms. Replace it if your dishwasher won't start, stops mid-cycle, or the control buttons don't respond properly.

Fix dishwasher control panel buttons not responding or display not working. This user interface control board restores cycle selection and digital display.

This light shield is a molded plastic diffuser that protects and disperses the interior appliance light for clearer, gentler illumination. It replaces damaged or missing shields to keep the bulb covered and light evenly distributed. What it does:

• Covers and protects the interior light bulb from contact with food, spills, and debris
• Diffuses and softens the bulb output for more even interior lighting
• Helps prevent direct glare from the bulb and reduces hot spots
• Common symptom: cracked, melted, missing, or rattling shield that exposes the bulb

• One light shield

• Disconnect power to the appliance before attempting replacement
• Remove bulb carefully to access and seat the shield; avoid excessive force
• Use only the exact replacement part designed for your model to ensure proper fit
• If the existing mounting clips or brackets are damaged, replace them before reinstalling the shield

Fix unresponsive or stuck control panel buttons with this dishwasher button tree assembly. Restores reliable button actuation when selections don't register.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
